Describe a schema in an R object

[eddelbuettel]

This PR gather schema information we can use to both print schema creation command, and to summarize array objects directly for more fine-grained formatting. It is a rather unfortunate this only comes together now as @johnkerl could most likely have saved some time had I put this together earlier.

I will leave this as a draft for now. It currently returns a list with two data frames for array (high-level) descriptives and then one for all 'data' columns. As dimensions and attributes are in fact a little distinct it may be beneficial to return one each for dimensions and attributes.

Current output format showing the two data frames directly on two sample arrays:

edd@rob:~/git/tiledb-r(de/sc-13273/schema_object)$ r -ltiledb -e'arr <- tiledb_array("/tmp/tiledb/quickstart_dense"); df <- tiledb_schema_object(arr); print(df)'
$array
                           uri  type cell_order tile_order capacity allow_dupes coord_filters        coord_options offset_filters     offset_filters.1
1 /tmp/tiledb/quickstart_dense dense  COL_MAJOR  COL_MAJOR    10000       FALSE          ZSTD COMPRESSION_LEVEL=-1           ZSTD COMPRESSION_LEVEL=-1

$data
     column names datatypes nullable varnum domains extend nfilters filters filtopts fillvalue
1 dimension  rows     INT32    FALSE      1   [1,4]      4        0
2 dimension  cols     INT32    FALSE      1   [1,4]      4        0
3 attribute     a     INT32    FALSE      1                       0                         NA

edd@rob:~/git/tiledb-r(de/sc-13273/schema_object)$ r -ltiledb -e'arr <- tiledb_array("/tmp/tiledb/penguins"); df <- tiledb_schema_object(arr); print(df)'
$array
                   uri   type cell_order tile_order capacity allow_dupes coord_filters        coord_options offset_filters     offset_filters.1
1 /tmp/tiledb/penguins sparse  COL_MAJOR  COL_MAJOR    10000        TRUE          ZSTD COMPRESSION_LEVEL=-1           ZSTD COMPRESSION_LEVEL=-1

$data
     column             names datatypes nullable varnum     domains extend nfilters filters             filtopts fillvalue
1 dimension           species     ASCII    FALSE     NA (null,null)   null        0
2 dimension            island     ASCII    FALSE     NA (null,null)   null        0
3 attribute    bill_length_mm   FLOAT64     TRUE      1                           1    ZSTD COMPRESSION_LEVEL=-1
4 attribute     bill_depth_mm   FLOAT64     TRUE      1                           1    ZSTD COMPRESSION_LEVEL=-1
5 attribute flipper_length_mm     INT32     TRUE      1                           1    ZSTD COMPRESSION_LEVEL=-1
6 attribute       body_mass_g     INT32     TRUE      1                           1    ZSTD COMPRESSION_LEVEL=-1
7 attribute               sex     ASCII     TRUE     NA                           1    ZSTD COMPRESSION_LEVEL=-1
8 attribute              year     INT32    FALSE      1                           1    ZSTD COMPRESSION_LEVEL=-1        NA

edd@rob:~/git/tiledb-r(de/sc-13273/schema_object)$

[shortcut-integration]

This pull request has been linked to Shortcut Story #13273: Wrap ArraySchema as high-level object.

[eddelbuettel]

Some more work here to make it more like the Python sibbling that describes in array schema in 'code'. A new function describe() was added to do just that. We may want to embed it in show() instead, via an option. That is easy to adjust.

This is now mostly feature complete, I have don't full round-trips yet to see if all ascii representations of enums of mapping fully (there may be some cases of, say, "ASCII" != "TILEDB_ASCII").

For example for the Penguins array (with NAs) we now get this:

> library(tiledb)
TileDB R 0.10.2 with TileDB Embedded 2.7.0. See https://tiledb.com for more information.
> arr <- tiledb_array("/tmp/tiledb/penguins/")
> describe(arr)
dims <- c(tiledb_dim(name="species", domain=c(NULL,NULL), tile=NULL, type="ASCII"),
          tiledb_dim(name="island", domain=c(NULL,NULL), tile=NULL, type="ASCII")))
dom <- tiledb_domain(dims=dims)
attrs <- c(tiledb_attr(name="bill_length_mm", type="FLOAT64", ncells=1, nullable=TRUE, filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))),
           tiledb_attr(name="bill_depth_mm", type="FLOAT64", ncells=1, nullable=TRUE, filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))),
           tiledb_attr(name="flipper_length_mm", type="INT32", ncells=1, nullable=TRUE, filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))),
           tiledb_attr(name="body_mass_g", type="INT32", ncells=1, nullable=TRUE, filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))),
           tiledb_attr(name="sex", type="ASCII", ncells=NA, nullable=TRUE, filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))),
           tiledb_attr(name="year", type="INT32", ncells=1, nullable=FALSE, filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))))
sch <- tiledb_array_schema(domain=dom, attrs=attrs, cell_order="COL_MAJOR", tile_order="COL_MAJOR", sparse=TRUE, capacity=10000, allow_dupes=TRUE,
                           coord_filters=filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))),
                           offset_filters=filter_list=c(tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))))))
>

after which sch can be used with a suitable uri in tiledb_array_create(uri, sch).

[johnkerl]

awesome @eddelbuettel !!

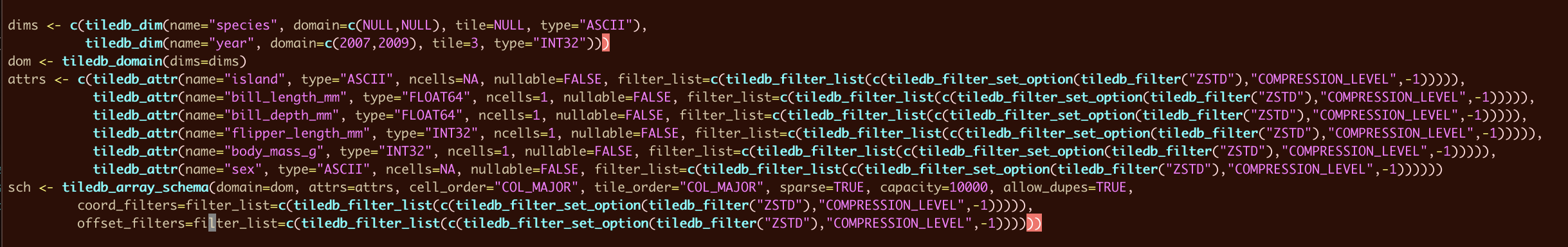

one little fine-tune opportunity, i ran this for a few arrays then vim'ed the result & i am seeing some parenthesis imbalances --

[johnkerl]

🚢
🎉

[eddelbuettel]

We all may need to gab a little in a little while (as per my chat with @ihnorton) as we a) probably want to restore the object dump from core as an optional feature and b) need to work out if we want these verbose code pretty printers or the "look like core but ain't" you added as default as two may seem like one too many. Not urgent, but one of those things where a little chat prior to unannounced PRs can work wonders.

Also note that the code in the PR so far 'only looks pretty' but hasn't been to the dance yet. I haven't done any round-robin tests yet. I am sure there may be a many-legged creature be hiding in a corner or two.
