Update show() methods

[eddelbuettel]

This PR updates the newer show() methods. They now work better in isolation as well as when composed, are more compact and a little closer to the Python equivalents.

[shortcut-integration]

This pull request has been linked to Shortcut Story #13744: Update show methods to more compact 'schema creation style' used by tiledb-py.

[johnkerl]

Awesome! Let me give this a spin in Jupyter just as a road-test. :)

[johnkerl]

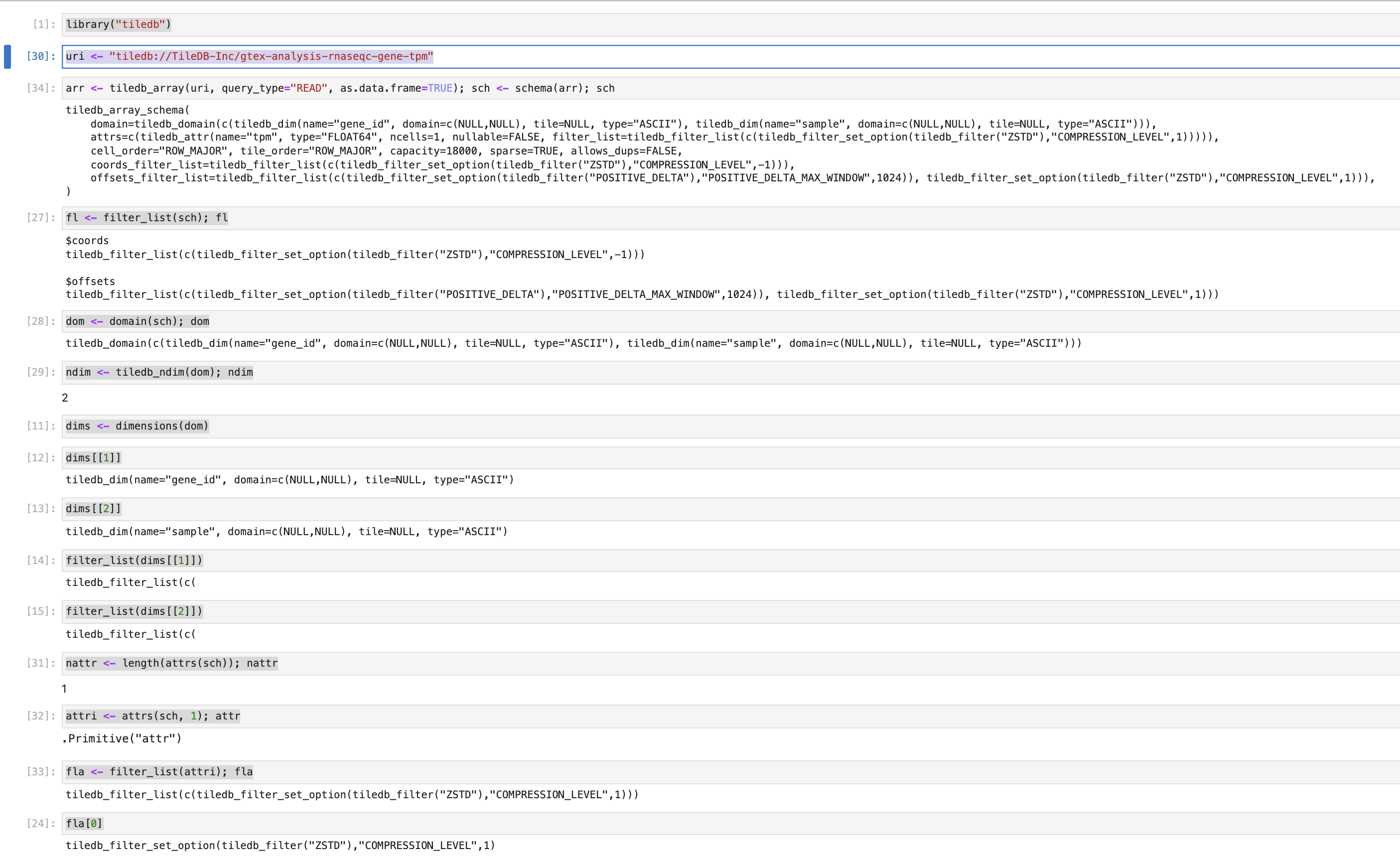

OK, test-drove in Jupyter!

My thinking (perhaps overwrought) was to make sure if someone prints the entire schema, it comes out OK -- and likewise if they just print the domain, etc.

Full code:

library("tiledb")
uri <- "tiledb://TileDB-Inc/gtex-analysis-rnaseqc-gene-tpm"
arr <- tiledb_array(uri, query_type="READ", as.data.frame=TRUE); sch <- schema(arr); sch
fl <- filter_list(sch); fl
dom <- domain(sch); dom
ndim <- tiledb_ndim(dom); ndim
dims <- dimensions(dom)
dims[[1]]
dims[[2]]
filter_list(dims[[1]])
filter_list(dims[[2]])
nattr <- length(attrs(sch)); nattr
attri <- attrs(sch, 1); attr
fla <- filter_list(attri); fla
fla[0]

Some notes:

• Cell 34 in the screenshot -- there is a trailing comma (really a nit unless we want people to be able to copy-paste this as-is)
• Also in cell there is one too many closing parentheses
• Cells 14 and 15 do we want to support parenthesis-balanced output at this detail level? If so we should fix this; otherwise a nit ...

Also I would add that I love that the output from show now will actually be, not just a particularly formatted output, but runnable code -- this is a huge advance! :)

[johnkerl]

Review comments here (sorry if it's confusing to narrate through a screenshot)
#355 (comment)

[eddelbuettel]

My thinking (perhaps overwrought) was to make sure if someone prints the entire schema, it comes out OK -- and likewise if they just print the domain, etc.

I am not sure what you are trying to say here. We do have show methods for schema, domain, dimension, filter_list and filter and if go to the SC ticket that is linked you see the output listed there explicitly.

Cell 34 in the screenshot -- there is a trailing comma (really a nit unless we want people to be able to copy-paste this as-is)

Ahh. Likely old TileDB Core instance so no validity filter. Will try to fix.

Also in cell there is one too many closing parentheses

Sorry can you be more specific? Where? Can you maybe show it more directly than "somewhere in those X lines in a screenshot" ? Also I ran the code generated from a schema and that worked. (Of course, no running example proofs anything about other possible bugs...)

Cells 14 and 15 do we want to support parenthesis-balanced output at this detail level? If so we should fix this; otherwise a nit ...

These calls seem "wrong". Maybe I need to add type checkers:

> flt1 <- tiledb_filter("DOUBLE_DELTA")
> flt2 <- tiledb_filter("CHECKSUM_SHA256")
> flt3 <- tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",4)
> show(flt1)
tiledb_filter("DOUBLE_DELTA")
> show(flt2)
tiledb_filter("CHECKSUM_SHA256")
> show(flt3)
tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",4)
> fltlst <- tiledb_filter_list(c(flt1, flt2, flt3))
> show(fltlst)
tiledb_filter_list(c(tiledb_filter("DOUBLE_DELTA")), tiledb_filter("CHECKSUM_SHA256")), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",4)))
> dims <- tiledb_dim(name="rows", domain=c(1L,40L), tile=40L, type="INT32")
> show(dims)
tiledb_dim(name="rows", domain=c(1L,40L), tile=40L, type="INT32")
>

(As an aside, the debugging in the notebook may be more cumbersome. The code works the same within/without.)

The PR also makes no claim to be adding show() methods for every conceivable TileDB object. That will come in another PR. The focus here is improve on the state of the world as of a week ago and get something releasable.

[eddelbuettel]

@johnkerl The trailing comma in case of less than three filter lists is taken care of (and tested against 2.5.3 too). I found no extra paren so no change there.

[johnkerl]

Sorry for the confusion @eddelbuettel !

• Good call re Jupyter and screenshotting; I did want to verify things work in a notebook (that's my primary interest here) but for further iteration (the notebook viability having been proved out), scripts are fine from here on out. Here is a script: https://gist.github.com/johnkerl/5460094755520bae0ed93a3a75db21ea
• Here is output from before this PR: https://gist.github.com/johnkerl/83f172962d086db395392e1431ec222e
• Here is output from with this PR: https://gist.github.com/johnkerl/9bc52ef7c68d7789ad9941a4f6ae1226

My apologies; it looks like the DIM1 FL and DIM2 FL are completely blank (I missed those!) on the 'before' from the second gist

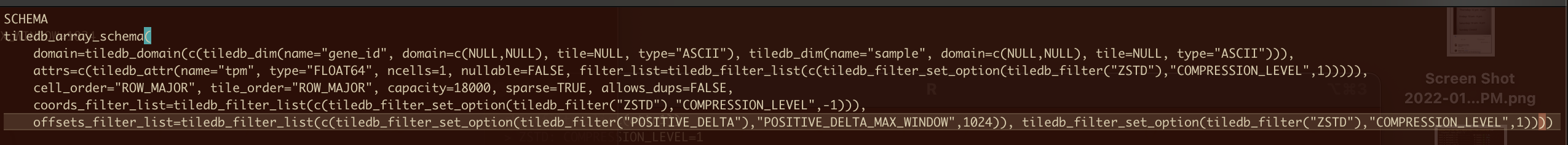

Re imbalanced parens, here's a screenshot of the top of the third gist in vim -- appears to be simply an extra final ) -- ?

[eddelbuettel]

Ok, that I can reproduce. Minimal example:

> uri  <- "tiledb://TileDB-Inc/gtex-analysis-rnaseqc-gene-tpm"
> arr  <- tiledb_array(uri)
> sch <- schema(arr)
> sch
tiledb_array_schema(
    domain=tiledb_domain(c(tiledb_dim(name="gene_id", domain=c(NULL,NULL), tile=NULL, type="ASCII"), tiledb_dim(name="sample", domain=c(NULL,NULL), tile=NULL, type="ASCII"))),
    attrs=c(tiledb_attr(name="tpm", type="FLOAT64", ncells=1, nullable=FALSE, filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))))),
    cell_order="ROW_MAJOR", tile_order="ROW_MAJOR", capacity=18000, sparse=TRUE, allows_dups=FALSE,
    coords_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))),
    offsets_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("POSITIVE_DELTA"),"POSITIVE_DELTA_MAX_WINDOW",1024)), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))),
    validity_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("RLE"),"COMPRESSION_LEVEL",-1)))
)
>
>
> fl <- filter_list(sch)
> fl
$coords
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1)))

$offsets
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("POSITIVE_DELTA"),"POSITIVE_DELTA_MAX_WINDOW",1024)), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1)))

$validity
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("RLE"),"COMPRESSION_LEVEL",-1)))

>

I'll work that out tomorrow to correct the filter_list bit for the offets. There is something that comes up wrong with particular mixes of filters with/without options.

[eddelbuettel]

Looks like it is sorted out:

> uri  <- "tiledb://TileDB-Inc/gtex-analysis-rnaseqc-gene-tpm"
> arr <- tiledb_array(uri); sch <- schema(arr); fl <- filter_list(sch); fl
$coords
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1)))

$offsets
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("POSITIVE_DELTA"),"POSITIVE_DELTA_MAX_WINDOW",1024), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1)))

$validity
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("RLE"),"COMPRESSION_LEVEL",-1)))

> sch
tiledb_array_schema(
    domain=tiledb_domain(c(tiledb_dim(name="gene_id", domain=c(NULL,NULL), tile=NULL, type="ASCII"), tiledb_dim(name="sample", domain=c(NULL,NULL), tile=NULL, type="ASCII"))),
    attrs=c(tiledb_attr(name="tpm", type="FLOAT64", ncells=1, nullable=FALSE, filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))))),
    cell_order="ROW_MAJOR", tile_order="ROW_MAJOR", capacity=18000, sparse=TRUE, allows_dups=FALSE,
    coords_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))),
    offsets_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("POSITIVE_DELTA"),"POSITIVE_DELTA_MAX_WINDOW",1024), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))),
    validity_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("RLE"),"COMPRESSION_LEVEL",-1)))
)
>

[eddelbuettel]

If you have some TileDB arrays on disk you can use this ad-hoc script to extract the executable schema, and re-create it.

#!/bin/bash

if [ $# -lt 1 ]; then
    echo "Usage: $0 uri"
    exit 1
fi

tf=$(mktemp)
echo "library(tiledb)" > ${tf}
echo -n "tiledb_array_create(uri=tempfile()," >> ${tf}
# use littler:    r -ltiledb -e"show(schema(tiledb_array(\"$1\")))" >> ${tf}
# or Rscript:   Rscript -e 'suppressMessages(library(tiledb)); show(schema(tiledb_array(\"$1\")))" >> ${tf}
Rscript -e "suppressMessages(library(tiledb)); show(schema(tiledb_array(\"$1\")))" >> ${tf}
echo ")" >> ${tf}
echo "cat(\"Done!\\n\")" >> ${tf}

cat ${tf}
Rscript ${tf}
rm -v ${tf}

[eddelbuettel]

@johnkerl The show() method for FilterList is now smarter about length zero. Your script then just shows nothing.

> library(tiledb)
TileDB R 0.10.2 with TileDB Embedded 2.7.0. See https://tiledb.com for more information.
> uri  <- "tiledb://TileDB-Inc/gtex-analysis-rnaseqc-gene-tpm"
> arr  <- tiledb_array(uri, query_type="READ", as.data.frame=TRUE)
> sch <- schema(arr)
> cat("SCHEMA\n")
SCHEMA
> show(sch)
tiledb_array_schema(
    domain=tiledb_domain(c(tiledb_dim(name="gene_id", domain=c(NULL,NULL), tile=NULL, type="ASCII"), tiledb_dim(name="sample", domain=c(NULL,NULL), tile=NULL, type="ASCII"))),
    attrs=c(tiledb_attr(name="tpm", type="FLOAT64", ncells=1, nullable=FALSE, filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))))),
    cell_order="ROW_MAJOR", tile_order="ROW_MAJOR", capacity=18000, sparse=TRUE, allows_dups=FALSE,
    coords_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1))),
    offsets_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("POSITIVE_DELTA"),"POSITIVE_DELTA_MAX_WINDOW",1024), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))),
    validity_filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("RLE"),"COMPRESSION_LEVEL",-1)))
)
> fl   <- filter_list(sch)
> cat("\nFILTER_LIST\n")

FILTER_LIST
> show(fl)
$coords
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",-1)))

$offsets
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("POSITIVE_DELTA"),"POSITIVE_DELTA_MAX_WINDOW",1024), tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1)))

$validity
tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("RLE"),"COMPRESSION_LEVEL",-1)))

> dom  <- domain(sch)
> cat("\nDOMAIN\n")

DOMAIN
> show(dom)
tiledb_domain(c(tiledb_dim(name="gene_id", domain=c(NULL,NULL), tile=NULL, type="ASCII"), tiledb_dim(name="sample", domain=c(NULL,NULL), tile=NULL, type="ASCII")))
> ndim <- tiledb_ndim(dom)
> cat("\nNDIM\n")

NDIM
> show(ndim)
[1] 2
> dims <- dimensions(dom)
> cat("\nDIM1\n")

DIM1
> show(dims[[1]])
tiledb_dim(name="gene_id", domain=c(NULL,NULL), tile=NULL, type="ASCII")
> cat("\nDIM2\n")

DIM2
> show(dims[[2]])
tiledb_dim(name="sample", domain=c(NULL,NULL), tile=NULL, type="ASCII")
> cat("\nDIM1 FL\n")

DIM1 FL
> show(filter_list(dims[[1]]))

> cat("\nDIM2 FL\n")

DIM2 FL
> show(filter_list(dims[[2]]))

> nattr <- length(attrs(sch))
> cat("\nNATTR\n")

NATTR
> show(nattr)
[1] 1
> attr1 <- attrs(sch, 1)
> cat("\nATTR1\n")

ATTR1
> show(attr1)
tiledb_attr(name="tpm", type="FLOAT64", ncells=1, nullable=FALSE, filter_list=tiledb_filter_list(c(tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1))))
> fla <- filter_list(attr1)
> cat("\nATTR1 FL\n")

ATTR1 FL
> show(fla[0])
tiledb_filter_set_option(tiledb_filter("ZSTD"),"COMPRESSION_LEVEL",1)
>

[johnkerl]

Awesome @eddelbuettel !! :D

#355 (comment) is really the bomb -- built-in syntax checking + user empowerment FTW! :D

[eddelbuettel]

"It takes a village" 😂 -- started drafting the NEWS for 0.11.0 and we about 'large number' of PRs on this topic but I like the place we got, even if it some iterations!
