…nt lights Like with spot lights, resolution for each shadow map is computed every frame in order to fit all of them in the common shadow atlas. Some of the current limitations: - ShadowBias possibly needs more precise values - FovBias possibly needs more precise values - Unused shadow faces allocate a slot in the common shadow atlas - Draw calls are generated even for shadow frustums that do not contain shadow casters - Not tested: Standalone players - Not tested: Dynamic scenes - Not tested: Performances - Not tested: Code path using Structured Buffers to pass shadow information to GPU (during shadow pass and lighting loop) - Not tested: Deferred Renderer
Normal bias for point lights now behaves similarly as for spot lights
…- This makes point light shadows look closer to spot light shadows
…dow normal bias - This fixes the issue of shadows that changed when point light was rotated. Built-In RP uses a similar approach to apply punctual light shadow normal bias. See UnityWorldSpaceLightDir called by UnityClipSpaceShadowCasterPos in UnityCG.cginc: https://github.cds.internal.unity3d.com/unity/unity/commit/93015b67a6e1afdfe00867fdd3a336eaa835f54d#diff-c2818feb2f37e566cf36ca5cab57a99eR533 https://github.cds.internal.unity3d.com/unity/unity/blob/93015b67a6e1afdfe00867fdd3a336eaa835f54d/External/shaderlab/CGIncludes/UnityCG.cginc#L76
…s, to avoid missing shadows at cube face boundaries
…adow data to the lighting shaders + Fixed indexing issue when using non-shadow-casting additional light Some known issues still happening: - If only a single light in the scene is set to use soft shadows, all punctual light shadows will be soft (even if their setting is "Hard") - Toggling setting "Soft Shadows" in UniversalRP asset also impacts shape of shadows from punctual light set to cast "Hard Shadows"
…salGraphicsTest suite
…ot light shadow's Normal Bias to match reference image - Since revision ed8fcbe Normal Bias is applied using actual spot light direction
… use per-vertex light direction when applying shadow normal bias)
… of Hard Shadows"
…t to ScriptableRenderContext.DrawShadows - Reduces the number of shadow casters rendered to the shadow map
…nd 143_SSAO_DepthNormals_Orthographic directional light shadows Normal Bias to match reference images - Since revision ed8fcbe formula to apply Normal Bias changed slightly
See also native-side changes introduced for Persistent Intermediate Renderer: https://github.cds.internal.unity3d.com/unity/unity/commit/89f4e3b https://github.cds.internal.unity3d.com/unity/unity/commit/fbe6025 https://github.cds.internal.unity3d.com/unity/unity/commit/8652678
…dditional light shadows Test fails if "hard shadows" setting is replaced by "soft shadows" setting Test fails if "soft shadows" setting is replaced by "hard shadows" setting Test fails if "no shadows" setting is replaced by "shadows" setting Test fails if one of the punctual lights in the scene is not rendered
…light angle" introduced in 1552692
…nstead of _ShadowCastingLightParameters from revision 6341928) This avoids deprecation of public variables, and makes code easier to understand Addresses comments: #1616 (comment) #1616 (comment) #1616 (comment)
Addresses comment #1616 (comment)
Addresses following comments: #1616 (comment) #1616 (comment) #1616 (comment)
Thanks @Verasl and @martint-unity for this suggestion, that makes a lot of sense when considering Universal RP restrictions. In this branch, I re-used the U.I implemented in HDRP in order to provide a unified experience between both Render Pipelines. When opening this pull request, I consulted @TheoWong-pixel who had commented the section about shadow resolution UI in the Tech Design Doc. Does this approach look OK to you? |
…order to match reference images
…ional Lights too Fixes "shadows popping" behavior illustrated by https://github.com/Unity-Technologies/BoatAttack/tree/testing/urp-pointlight-shadows, when changing PipelineAsset's "Shadows Max Distance" setting
…adow-resolution # Conflicts: # com.unity.render-pipelines.universal/Runtime/Passes/AdditionalLightsShadowCasterPass.cs
Solves issue described in https://docs.google.com/document/d/1tkQdYKx2bED5hp3dTmUlkeZS_moiUsRZeMS4hMXHfXk/edit#bookmark=id.dqn8fqx5f45 (i.e: repro by editing TestProjects/UniversalGraphicsTest/Assets/Scenes/010_AdditionalLightsSorted/SortedLightsTestPrefab.prefab to make the meshes cast shadows, and running UniversalGraphicsTest#010_AdditionalLightsSorted)
Solves issue happening when after procedure described in https://docs.google.com/document/d/1tkQdYKx2bED5hp3dTmUlkeZS_moiUsRZeMS4hMXHfXk/edit#bookmark=id.dqn8fqx5f45 (i.e: repro by editing TestProjects/UniversalGraphicsTest/Assets/Scenes/010_AdditionalLightsSorted/SortedLightsTestPrefab.prefab to make the meshes cast shadows, running UniversalGraphicsTest#010_AdditionalLightsSorted, and switching to Scene view)
See example in section "Unity function calls" of https://learn.unity.com/tutorial/fixing-performance-problems
# Conflicts: # TestProjects/UniversalGraphicsTest/Assets/Scenes/105_TransparentReceiveShadows.unity # com.unity.render-pipelines.universal/CHANGELOG.md # com.unity.render-pipelines.universal/Runtime/Data/UniversalRenderPipelineAsset.cs # com.unity.render-pipelines.universal/Runtime/Passes/AdditionalLightsShadowCasterPass.cs
…hadow popping when scene uses more shadows than what the atlas can hold Mitigates issues illustrated by test scene https://github.com/Wilfrid-Unity/compare-rp-shadows/blob/master/urp-shadows/Assets/Scenes/010_ManyPointShadows.unity
lukaschod
reviewed
Dec 14, 2020
com.unity.render-pipelines.universal/Editor/UniversalRenderPipelineAssetEditor.cs
Show resolved
Hide resolved
lukaschod
reviewed
Dec 14, 2020
com.unity.render-pipelines.universal/Runtime/Data/UniversalRenderPipelineAsset.cs
Show resolved
Hide resolved
Verasl
approved these changes
Dec 14, 2020
|
Found small UI issue, when changing between no shadow and hard shadow - during transsition effect resolution property has wrong spacing. |
lukaschod
approved these changes
Dec 14, 2020
simon-engelbrecht-soerensen
approved these changes
Dec 14, 2020
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
5 participants
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
Purpose of this PR
This pull request allows Universal RP additional (i.e punctual) lights to specify custom shadow resolutions.
In current URP version, all additional (i.e punctual) shadowed lights use shadow maps of the same resolution (scaled to fit in the common shadow atlas).

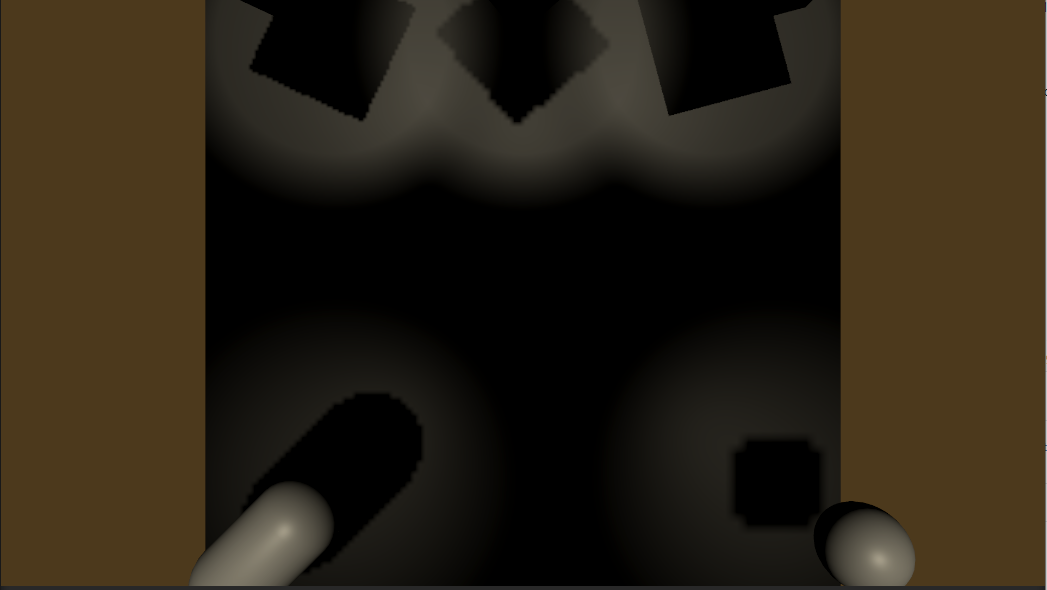

Custom shadow resolutions make it possible to give more importance to some lights in the scene, ensuring their shadows will look as good as possible.
U.I and assets
The interface provided by this pull request to control shadow resolution ; is similar to the one used in HDRP.

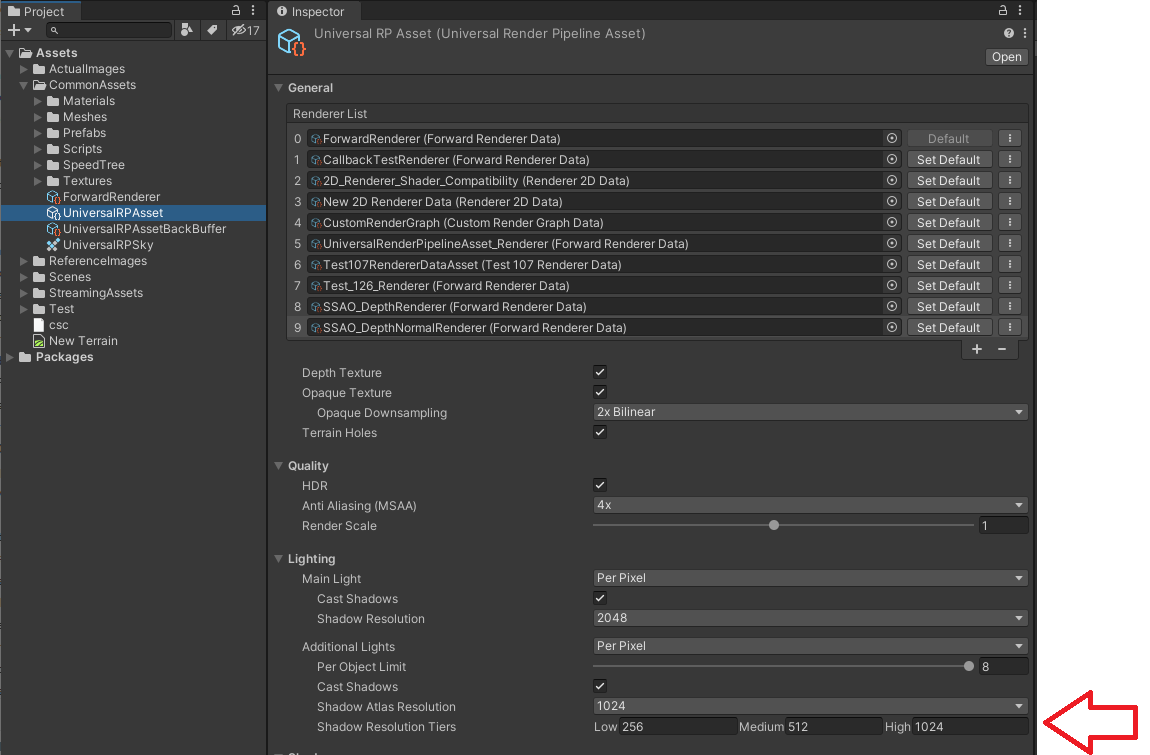

Different shadow resolution tiers can be defined in the Universal RP asset file.
