[HDRP] Adding a transparency setup samples

[remi-chapelain]

Purpose of this PR

The idea behind theses transparency setup samples is to share to the users the knowledge in that document.

In HDRP, different transparent setups are needed depending on which pipeline we use: Raster, Path Traced or Raster and Ray Tracing. Each of theses setup are not trivial nor intuitive to users.

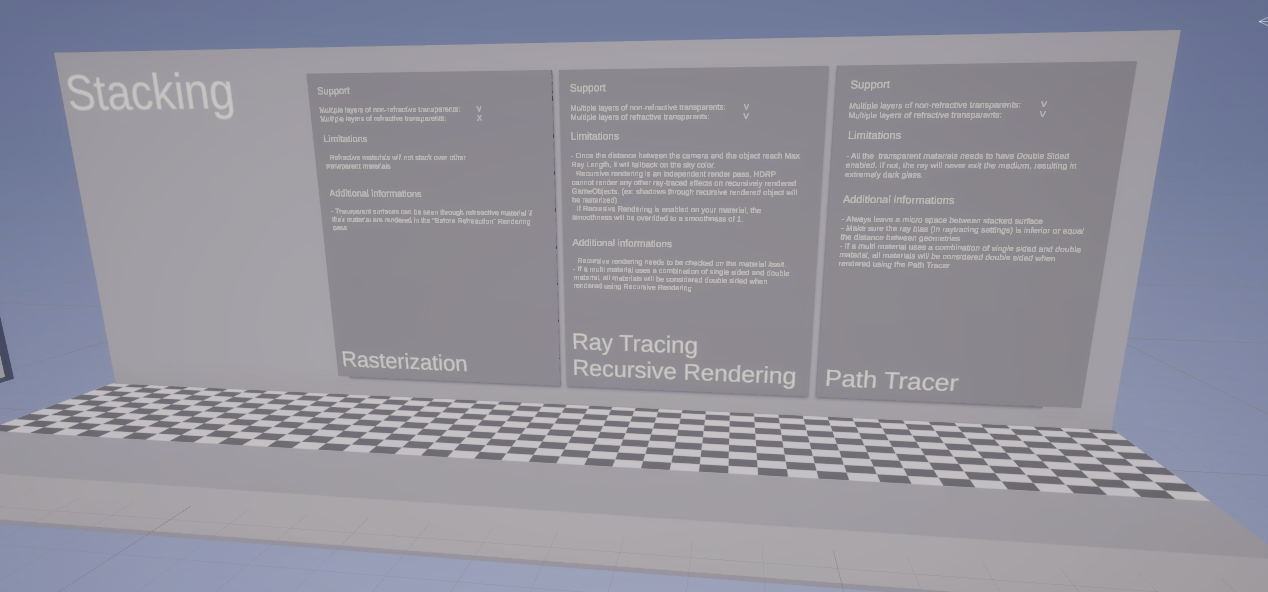

For now, this sample only includes the scenes about shadows. Each part contains 3 scenes, one raster, one path traced, one mixing raster and ray tracing with details and instructions on the tiles.
It would be interesting to add some of theses infos (what's on the tiles) to the docs too and a link how to get the samples.

What will be added in later PRs

Informations and examples about:

• Stacking
• Sorting
• Refraction models
• Transparent pre-pass
• Distortion
• Shader graph implementation.

WIP

---

Testing status

• Tried to import the sample without and with other samples ✔️
• Imported the sample in a fresh new HDRP project ✔️
• Opened the 3 scenes independently ✔️

---

Comments to reviewers

Added @Vic-Cooper to have feedback on documentation and text that is inside the scene. Also I would like to know if you think it's interesting to include some of those bit in the documentation itself for redundancy.
For simplicity purpose, here's a gdoc with all the text.

[github-actions]

Hi! This comment will help you figure out which jobs to run before merging your PR. The suggestions are dynamic based on what files you have changed.
Link to Yamato: https://yamato.cds.internal.unity3d.com/jobs/902-Graphics
Search for your PR branch using the sidebar on the left, then add the following segment(s) to the end of the URL (you may need multiple tabs depending on how many packages you change)

HDRP
/.yamato%252Fall-hdrp.yml%2523PR_HDRP_trunk
With changes to HDRP packages, you should also run
/.yamato%252Fall-lightmapper.yml%2523PR_LightMapper_trunk

Depending on the scope of your PR, you may need to run more jobs than what has been suggested. Please speak to your lead or a Graphics SDET (#devs-graphics-automation) if you are unsure.

[iM0ve]

Not sure what Im doing wrong but getting a ton of warnings and almost no text is rendering.

[JMargevics]

pcxrna5Uyx.mp4

Yes looks like TMP fonts and shader got dropped. Also weird that only one mobile shader is packaged with this. Could be a bug with TMP not playing nicely with imported packages, will try to repro 👍

[JMargevics]

This looks like a great addition however I have one issue with the current content: it's very shadow casting oriented but the sample pack is called "Transparency Setup" implying there will be more general cases :)

Some things I'd like to see:

• Practical examples on how to setup sorting and it's limitations. Like usage of transparent depth prepass or show that we can't sort refractive surfaces
• Practical examples of Transparent unlit with distortion enabled. I think these deserve a lot more love :)
• Practical examples of using different refraction models. Sphere model is still an enigma for me and it never looks right (in your example too)


I understand that transparency is a massive subject and adding all these will result in a way too big sample pack especially taking DXR variations into consideration but pretty sure there can be a middle ground 😊

[AlixMi]

Hello I have too warnings about font not being found, making text not appear. It's great that you are doing this thank you. Indeed the sphere refraction model isn't looking too good, I noticed that there is some discrepancies between the behavior of sphere and box model with their behavior around thickness, this is stuff I hope we will tackle with transparency improvements work. As I said before to you I will gladly contribute to this transparency sample by giving models and/or shader.

[remi-chapelain]

Quick update:

• Rebased master

• Fixed Text Mesh Pro issues (was using the wrong TMP material, the one in material samples)

• Fixed a few typos

• Issue with sphere refraction model disappeared

• Added documentation about the sample itself (stayed vague to not promised things that are not there yet)

• After documentation review, should be ready to merge and then iterations will continue on the rest of work in progress.

• Will update the stained glass texture (with new unity logo) when we'll update the Unity ball with the new logo too.

[remi-chapelain]

Closing the PR and linking the new one as this will probably be added to the material sample here.
