APV Baking States

[adrien-de-tocqueville]

Purpose of this PR

This PR adds baking states for APV. It allows to bake lighting in different scene configurations that can then be used at runtime when needed.

First here's as gif showing how it works. Note that there's a script changing the lights when the state is changed

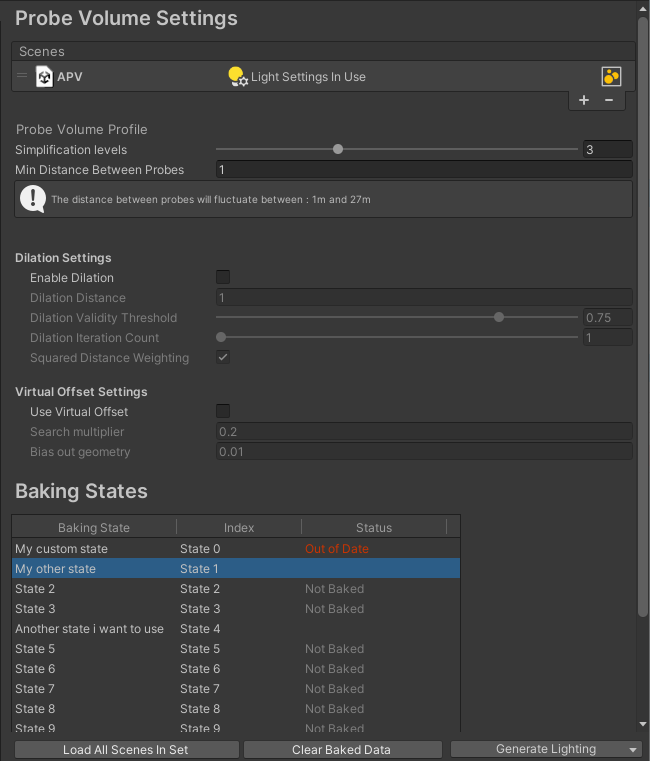

New UI: Total number of states is fixed to 16, and the names are shared between sets, but the content can be baked separately, and some sets can choose to use only some of the states

Added new api in ProbeReferenceVolume

• bakingState to set/get the current active state
• onBakingStateChanged, a delegate so that scripts can register to state change

I also changed a bit the logic when selecting "Generate Lighting > Bake the set", which now doesn't require saving and reloading the scenes if the scenes in the set are already currently loaded.
Also "clear baked data" now delete the asset on disk

Notes:

• To detect which bake is out of date, it relies on a hash compute during baking. It will need to be updated if we add more paraemters in the future

---

Testing status

Tested baking multiple states, also tested in a setup with multiple sets

[github-actions]

Hi! This comment will help you figure out which jobs to run before merging your PR. The suggestions are dynamic based on what files you have changed.
Link to Yamato: https://unity-ci.cds.internal.unity3d.com/project/902/
Search for your PR branch using the search bar at the top, then add the following segment(s) to the end of the URL (you may need multiple tabs depending on how many packages you change)

HDRP
/jobDefinition/.yamato%2Fall-hdrp.yml%23PR_HDRP_trunk
With changes to HDRP packages, you should also run
/jobDefinition/.yamato%2Fall-lightmapping.yml%23PR_Lightmapping_trunk

SRP Core
You could run ABV on your branch before merging your PR, but it will start A LOT of jobs. Please be responsible about it and run it only when you feel the PR is ready:
/jobDefinition/.yamato%252F_abv.yml%2523all_project_ci_trunk
Be aware that any modifications to the Core package impacts everyone in the Graphics repo so please discuss the PR with your lead.

Depending on the scope of your PR, you may need to run more jobs than what has been suggested. Please speak to your lead or a Graphics SDET (#devs-graphics-automation) if you are unsure.

[FrancescoC-unity]

There are a bunch of things we need to discuss about this actually before I go on with the review, give me a ping when you around for a call

[FrancescoC-unity]

Also adding @alelievr as there are touches to the baking window.

[TomasKiniulis]

Continuing on Motiejus testing. I seem to be running into lighting issues when switching between two states after I use same states in multiple Baking Sets. Probe volumes themselves remain unchanged but the lighting is way off. Maybe a potential bug to lighting team or not pr related, but the states feature reveal this.

Running into some UX issues where I seem to be not getting "Out Of Date" state usually when having multiple sets. Also loading scenes from another set does not load probes from state, but the state is highlighted.

I also find it confusing switching states, but having to manually switch through volume lighting setups or different lighting scenes, would be good to have some sort of functionality directly in the ui to disable/enable specific volumes load/unload scenes, I guess that's something planned for the future?

Listed my findings in test doc: https://confluence.unity3d.com/display/HDRP/APV+Baking+State could you have a look? And let me know if more info is needed.

[TomasKiniulis]

Looks good! Issues listed in test doc are addressed for this PR. Status seems to be properly shown after bake and clearing or not saving the scene. Baking States table is hidden when no Scene is assigned.

[adrien-de-tocqueville]

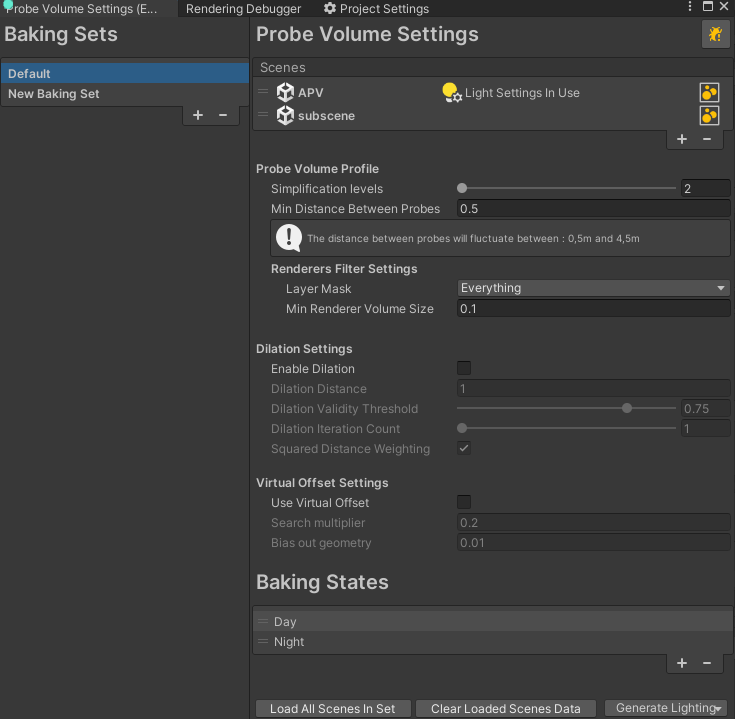

UX is back to this point, where number of state is not fixed, and states can be different between two baking sets.
(Note however that they are identified by names, so if you switch between sets that have states with the same name, it will automatically be loaded)

[adrien-de-tocqueville]

@FrancescoC-unity right now since the state name is appended to the baked data file name on disk, existing project will need to rebake. I didn't do a conversion step but i could do it if you think it's important

[FrancescoC-unity]

@FrancescoC-unity right now since the state name is appended to the baked data file name on disk, existing project will need to rebake. I didn't do a conversion step but i could do it if you think it's important

I think it's fine; we are still in experimental so it's fine breaking. Only thing is remember to ping the slack channel when this lands.

[TomasKiniulis]

Gave another look after the changes. Looks good! Haven't ran into any PR specific issues

[iM0ve]

Tomas tested the PR. Couldnt remove myself, approving.
