🌐 Web Access Log Analyzer for FastAPI

A powerful Python-based platform to analyze web access logs via:

• 🧭 User Journey Analysis
• 🔍 Search Engine Visibility
• 💡 Engagement with Core Features
• 🌍 Geographic Insights (via IP geolocation)
• 📌 Interest in Specific Content
• 📈 Website Traffic Trends

---

🚀 Getting Started

Follow these steps to set up and start using the FastAPI Log Analyzer:

---

1. Clone the Repository

git clone https://github.com/werevi/log-analyzer.git
cd log-analyzer

---

2. Install Dependencies

Make sure you have Python 3.8+ installed, then run:

pip install -r requirements.txt

---

3. Configure Logging in Your FastAPI Project

Create a file named log_config.yaml in your FastAPI project with the following content:

version: 1
disable_existing_loggers: False

formatters:
  access:
    format: "%(asctime)s - %(levelname)s - %(message)s"

handlers:
  access_file:
    class: logging.FileHandler
    filename: access.log
    formatter: access
    level: INFO

loggers:
  uvicorn.access:
    handlers: [access_file]
    level: INFO
    propagate: False

This configuration will save incoming request logs to a file named access.log.

---

4. Run Your FastAPI Server with Logging Enabled

Use the following command to start your FastAPI server with logging:

uvicorn core.main:app \
    --log-config log_config.yaml \
    --host 127.0.0.1 \
    --port 9876 \
    --workers 4

Replace core.main:app with the path to your actual FastAPI app if it's different.

---

5. Export the Access Log

After running your server, copy the generated access.log file from your FastAPI project into the log-analyzer directory:

cp /path/to/your/project/access.log ./access.log

Once the file is in place, you can run the analyzer and explore detailed statistics.

---

📁 Sample Input Format

Ensure your access.log follows this format:

2025-06-14 17:47:34,797 - INFO - 190.158.28.5:10242:0 - "GET / HTTP/1.1" 200
2025-06-16 12:33:29,584 - INFO - 66.249.66.6:58625:0 - "GET /robots.txt HTTP/1.1" 404

🌍 Geolocation Setup

Download the GeoIP database (choose one):

1. Register at MaxMind GeoLite2
2. Download GeoLite2-City.mmdb
3. Place the .mmdb file in the project root

---

🛠️ Configuration

Update the file paths in the script main.py :

GEOIP_DB_PATH = "dbip-city-lite.mmdb"  # or GeoLite2-City.mmdb
LOG_PATH = "access.log"

---

▶️ Usage Options

Outputs include:

• 📌 Top URLs
• 🌍 IP Geolocation (City & Country)
• 💡 Core JS Feature Access
• 📈 Traffic by Hour
• 🔍 Bot & Scraper Detection
• 🧭 Example User Journeys

---

✅ Web Dashboard (FastAPI)

Run the web server:

uvicorn main:app --host 0.0.0.0 --port 8000 --reload

Then open your browser at:

http://localhost:8000

---

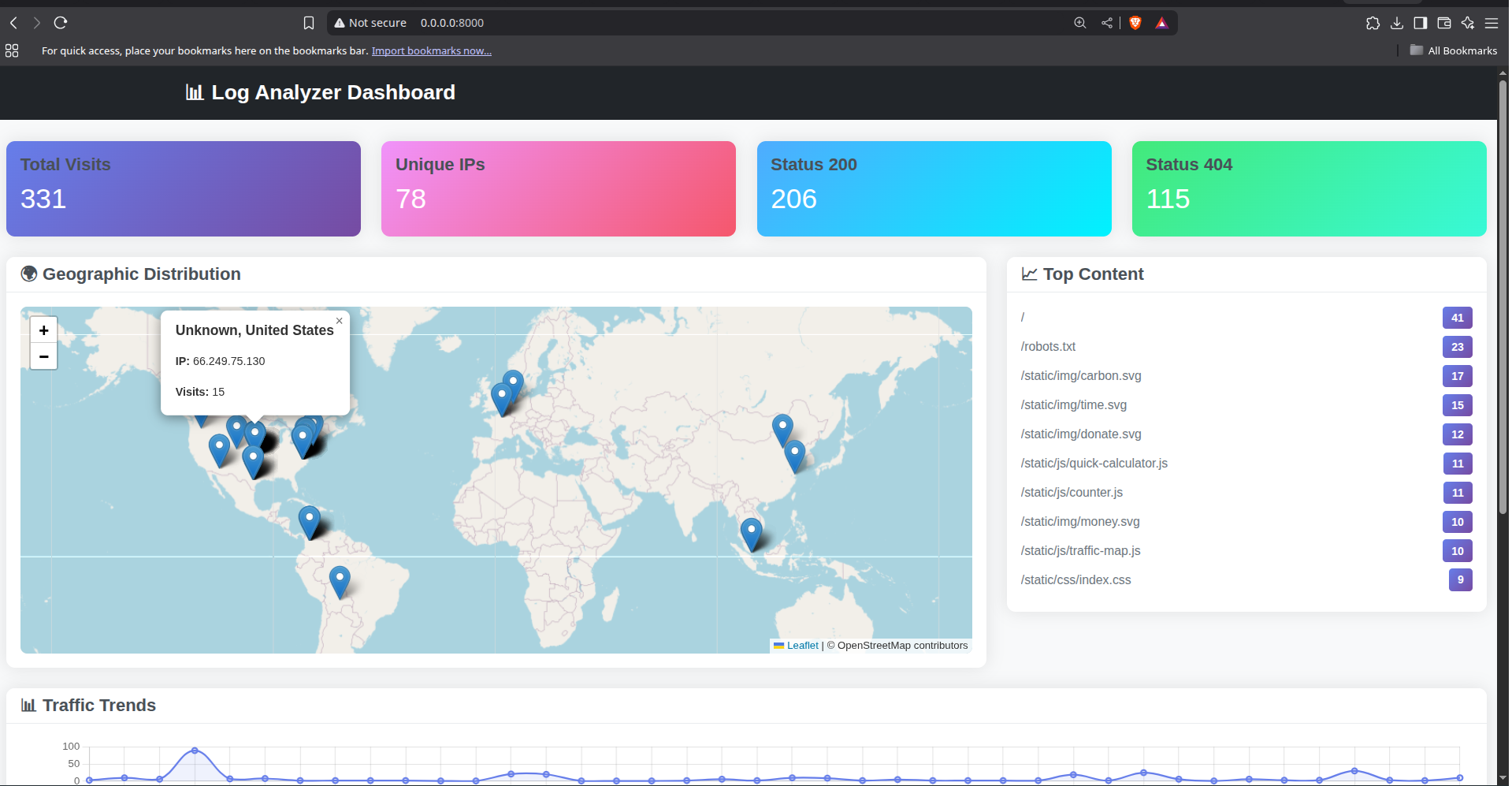

📊 Web Dashboard Features

• 📌 Statistics Cards: Total hits, unique IPs, HTTP status codes
• 🌍 Interactive Map: IP geolocation via OpenStreetMap
• 📈 Hourly Traffic Graphs
• 📑 Most Popular URLs
• 🧭 Detailed User Journeys

---

🔌 API Endpoints

Endpoint	Description
GET /	Main dashboard
GET /api/locations	IP → Location JSON data
GET /api/stats	Global traffic stats

---

⚙️ Customization

Modify Log Parsing Pattern

If your log format differs, change the LOG_PATTERN in main.py:

LOG_PATTERN = re.compile(r'your_custom_pattern_here')

Dashboard Styling

Edit static/css/dashboard.css for appearance tweaks.

Map Provider

Change map tiles in static/js/dashboard.js:

L.tileLayer('https://your-tile-provider/{z}/{x}/{y}.png', {
  attribution: 'Your attribution'
}).addTo(map);

---

📦 Output Sample

🧭 User Journey Samples
IP: 190.158.28.5
  2025-06-14 17:47:34 - / [200]
  2025-06-14 17:47:35 - /static/img/background_logo_figure.webp [200]

🌍 Geographic Insights
190.158.28.5 → Bogotá, Colombia

📈 Hourly Traffic Trends
2025-06-14 17:00 → 3 hits

---

🧠 Insights You Can Extract

Insight	Description
User Journey	IP-wise page flow tracking
Search Engine Activity	Detects bots like Googlebot, Bingbot
Feature Usage	Tracks visits to /static/js/... endpoints
Geolocation	IP-based city & country lookup
Content Popularity	Top visited endpoints
Traffic Trends	Hourly breakdown of hits

---

🧩 Dependencies

• Python 3.7+
• geoip2
• fastapi, uvicorn
• jinja2, aiofiles
• GeoIP .mmdb file from DB-IP or MaxMind

---

🧰 Troubleshooting

Problem	Solution
Log file not found	Verify access.log path
GeoIP errors	Ensure .mmdb exists & matches GEOIP_DB_PATH
Map doesn't load	Check tile URL or internet connection
Dashboard blank	Check browser console for JS errors

---

📌 Notes

• No database required — logs are parsed on-the-fly
• Fully responsive dashboard (desktop & mobile)
• Auto-refresh for real-time traffic monitoring
• Perfect for dev teams, SEO audits, or traffic debugging

---

💖 Contribute

We welcome PRs! Feel free to fork, star ⭐, or suggest new features.

---

🪪 License

GPLv3 License. See LICENSE file for details.

---
