The Radio Image Framing Protocol (RIFP) 1.0 is an experimental, extensible standard for sending images over low-rate radio links.
The default rifp-cpfsk-4800 profile uses binary continuous-phase FSK and can
be deployed around 433.92 MHz where local regulation permits it. RIFP itself is
not tied to 433 MHz or to FSK.
The implementation is not an analogue WEFAX receiver. The group3 and
group4 codecs nevertheless use real CCITT Group 3/4 TIFF facsimile
compression.
RIFP 1.0 provides:
- a 28-byte versioned base header;
- 64-bit random session identifiers;
- 32-bit sequence and chunk-count fields;
- advisory and critical flags;
- extensible 16-bit type/length/value header fields;
- MANIFEST, DATA, END and CANCEL frame types;
- JSON manifests with namespaced extension data;
- CRC-32 on every frame;
- CRC-32 and SHA-256 verification of the complete encoded image;
- out-of-order delivery, repetition and duplicate detection;
- explicit media types and content-encoding names; and
- named radio profiles that are independent of the framing protocol.
Unknown advisory extensions are ignored. Unknown critical extensions cause the individual frame to be rejected, allowing future features such as encryption, signatures, FEC and repair requests to be introduced safely.
python3 -m pip install -r requirements_radiofax.txtFor live RF, install SoapySDR, its Python bindings and the hardware module for your SDR. Transmission requires TX-capable hardware such as a HackRF, LimeSDR, PlutoSDR or USRP. Many RTL-SDR devices are receive-only but can run the receiver.
Run the commands from the directory containing all three Python files:
python3 radiofax_sender.py example.png \
--preset small --codec group4 --bits 1 \
--packet-repeats 1 --manifest-repeats 1 \
--sender-id CIRCL \
--content-hint "scheduled weather image" \
--manifest-extension 'org.example.source={"camera":"north"}' \
--duty-cycle 1 --iq-output example.cf32
python3 radiofax_receiver.py \
--iq-input example.cf32 \
--output-dir received-radiofaxBoth sides must use the same sample and symbol rates. Defaults are 96
ksample/s and 4,800 symbols/s. IQ-file mode uses --iq-gap and does not add
long silence representing regulatory duty-cycle pacing.
Manifest extensions use NAMESPACE=JSON. The namespace must contain a dot or
colon, for example org.example.feature={"enabled":true}.
python3 radiofax_sender.py images/ \
--recursive \
--device driver=hackrf \
--frequency 433.92M \
--preset small \
--codec auto \
--bits 1 \
--cycles 0 \
--interval 900 \
--packet-repeats 2 \
--manifest-repeats 3 \
--manifest-every 8 \
--duty-cycle 0.10--cycles 0 repeats the set indefinitely. Directories are rescanned at the
start of each cycle, so newly added images are included. --shuffle changes
the order for every cycle.
python3 radiofax_receiver.py \
--device driver=rtlsdr \
--frequency 433.92M \
--gain 25 \
--output-dir received-radiofaxpython3 radiofax_receiver.py \
--device driver=rtlsdr \
--discover \
--scan-center 434.0M \
--scan-span 1.9M \
--scan-sample-rate 2.4M \
--gain 25Discovery performs energy detection and then retunes to the strongest candidate. Identification still requires a valid RIFP synchronization word, header and CRC.
Line art or text, lossless and normally smallest:
--preset tiny --bits 1 --codec group4 --packet-repeats 1Photographs, lossy and much smaller:
--preset small --bits 8 --codec jpeg --jpeg-quality 35 --packet-repeats 1Grayscale diagrams, lossless:
--preset small --bits 4 --codec zlib --packet-repeats 1--codec auto selects the smallest successful lossless encoding. Add
--allow-lossy-auto to include JPEG in the comparison.

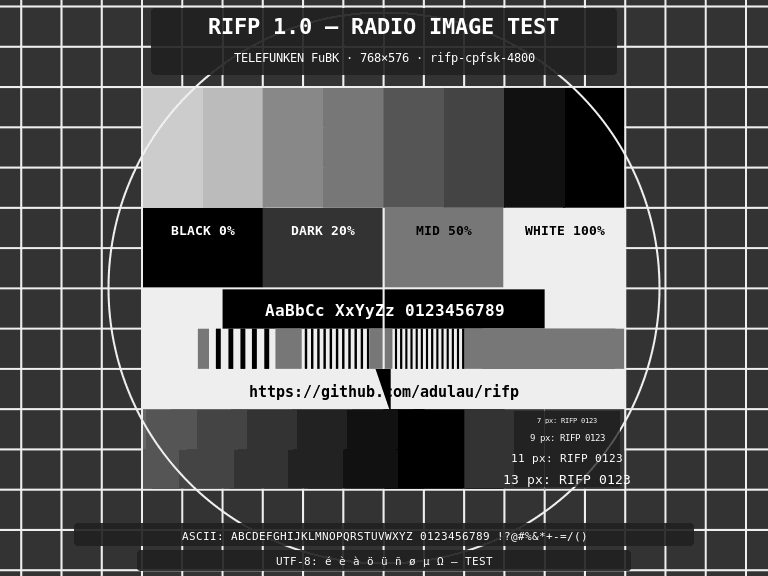

python3 -m unittest -v test_rifp_protocol.pyThe implementation has also been exercised with offline IQ loopbacks for Group 3, Group 4, PNG, JPEG, raw raster, RLE, ZLIB and automatic codec selection. A repeated-frame transfer was reconstructed after adding synthetic noise and a +2.5 kHz carrier offset.
The Radio Image Framing Protocol (RIFP) draft-dulaunoy-rifp-00 defines the base header, TLV extension model, manifest schema, fragmentation rules, CRC algorithm, CPFSK profile, security considerations, test vector and proposed IANA registries.
Use a shielded setup, attenuators, a dummy load or very low output power during
development. Confirm permitted frequency, effective radiated power, occupied
bandwidth, duty cycle, equipment requirements and licensing conditions before
connecting an antenna. --duty-cycle only paces software bursts; it does not
certify compliance or measure radiated emissions.
The software is open-source under a BSD 2-Clause License. RIFP is free of patent or specific restriction on the standard.
