Robotframework + AppiumLibrary + Allure: Screenshot attachments return 404 error using

[rodolfo-enjoei]

I'm submitting a ...

• bug report
• feature request
• support request => Please do not submit support request here, see note at the top of this template.

What is the current behavior?

Screenshot attachments return 404 error.

If the current behavior is a bug, please provide the steps to reproduce and if possible a minimal demo of the problem

1. Generate Allure report:

$ allure serve results/allure

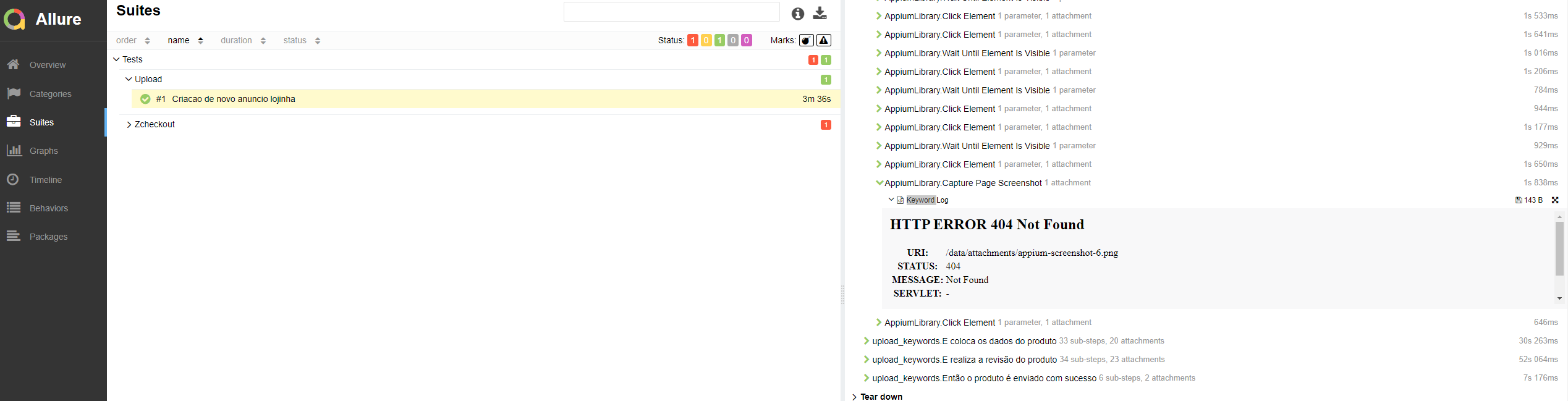

2. Go to Allure and open any Capture Page Screenshot step.

What is the expected behavior?

Screenshot attachment is displayed without issues.

What is the actual behavior?

Failed to load resource: the server responded with a status of 404 (Not Found)
http://192.168.1.2:50104/data/attachments/selenium-screenshot-6.png 404 (Not Found)

Please tell us about your environment:

• Allure version: 2.15.0
• Test framework: robotframework 4.1.1
• Allure adaptor: allure-robotframework 2.5.2
• AppiumLibrary: robotframework-appiumlibrary 1.6.3

[rodolfo-enjoei]

I did this to solve this problem. I see this here in Github, but someone solve this problem for SeleniumLibrary. This is the fix for AppiumLibrary

import allure
from robot.libraries.BuiltIn import BuiltIn

class AppiumLibraryHelper(object):
    ROBOT_LIBRARY_SCOPE = "TEST SUITE"
    ROBOT_LISTENER_API_VERSION = 2

    def __init__(self):
        self.ROBOT_LIBRARY_LISTENER = self

    def _start_suite(self, name, attrs):
         BuiltIn().set_library_search_order('AppiumLibraryHelper')

    def capture_page_screenshot(self):
        ul = BuiltIn().get_library_instance('AppiumLibrary')
        path = ul.capture_page_screenshot()
        allure.attach.file(path, name="screenshot", attachment_type=allure.attachment_type.JPG)
        return path

[delatrie]

The link to the screenshot here is just a part of appium log. I don't think it's wise to try to parse and post-process html logs - they are just information the library considered suitable to tell you.
The proper way to add a screenshot to the report is to use Attach File keyword from AllureLibrary:

*** Settings ***
Library    AppiumLibrary
Library    AllureLibrary

*** Test cases ***
Reproduce issue 635
    Open Application  http://127.0.0.1:4723  platformName=Windows  deviceName=WindowsPC  app=C:\\Windows\\System32\\notepad.exe
    Capture Page Screenshot  ./screenshots/i635.png
    Attach File  ./screenshots/i635.png  name=Notepad window
    Close Application

And of course, it's always possible to reshape the report with custom code like the one just above.

I'm closing it, since this is not a bug. If someone feels otherwise, please, notify me here with additional info.
