[AIRFLOW-936] Add clear/mark success for DAG in the UI

[allisonwang]

Dear Airflow maintainers,

Please accept this PR. I understand that it will not be reviewed until I have checked off all the steps below!

JIRA

• My PR addresses Airflow 936 issues and references them in the PR title.

Description

• Here are some details about my PR, including screenshots of any UI changes:

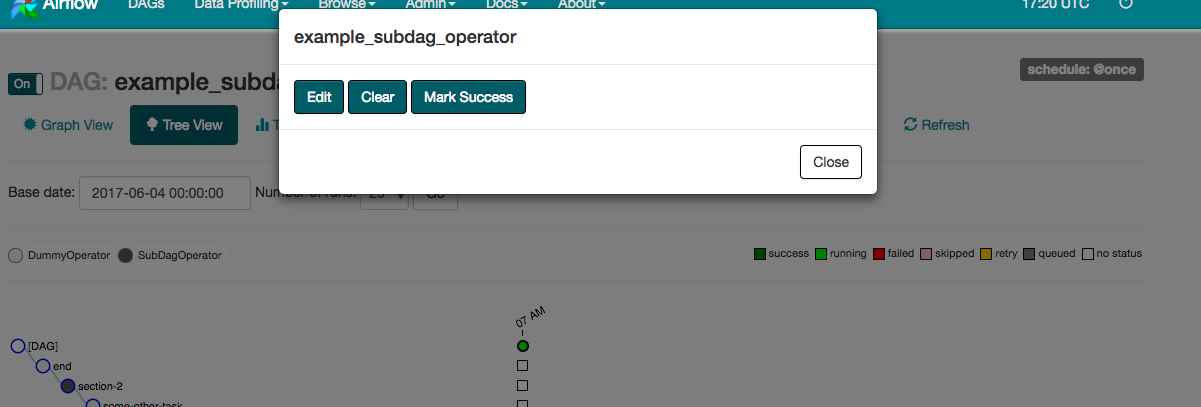

This PR adds a modal popup when clicking circle DAG icon in Airflow tree view UI. It adds the functionalities to clear/mark success of the entire DAG run. This behavior is equivalent to individually clear/mark each task instance in the DAG run. The original logic of editing DAG run page is moved to the button "Edit DAG Run".

Tests

• My PR adds the following unit tests OR does not need testing for this extremely good reason:

Tests are added under test/api/common/mark_tasks.py to test marking entire DAG as success. There is no test for clear the DAG since it is directly implemented in views.py.

Commits

• My commits all reference JIRA issues in their subject lines, and I have squashed multiple commits if they address the same issue. In addition, my commits follow the guidelines from "How to write a good git commit message":
  1. Subject is separated from body by a blank line
  2. Subject is limited to 50 characters
  3. Subject does not end with a period
  4. Subject uses the imperative mood ("add", not "adding")
  5. Body wraps at 72 characters
  6. Body explains "what" and "why", not "how"

@aoen @saguziel

[mention-bot]

@allisonwang, thanks for your PR! By analyzing the history of the files in this pull request, we identified @mistercrunch, @bolkedebruin and @patrickleotardif to be potential reviewers.

[codecov-io]

Codecov Report

Merging #2339 into master will decrease coverage by 0.22%.
The diff coverage is 46.03%.

@@            Coverage Diff             @@
##           master    #2339      +/-   ##
==========================================
- Coverage    69.5%   69.27%   -0.23%
==========================================
  Files         145      145
  Lines       11066    11121      +55
==========================================
+ Hits         7691     7704      +13
- Misses       3375     3417      +42

Impacted Files	Coverage Δ
airflow/api/common/experimental/mark_tasks.py	82.97% <13.33%> (-13.23%)	⬇️
airflow/www/views.py	67.62% <56.25%> (-1.16%)	⬇️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update b13cd6d...61a470e. Read the comment docs.

[amaliujia]

Add else and add logging say cannot find dag_run in DB or find more than one dag_run given dag_id and execution_date in DB?

[saguziel]

There can't be more than one dag_run
The schema for dag_run has
PRIMARY KEY (`id`), UNIQUE KEY `dag_id` (`dag_id`,`execution_date`), UNIQUE KEY `dag_id_2` (`dag_id`,`run_id`),

So it should be either 0 or 1

[amaliujia]

I think more checks are good.

[allisonwang]

Good to know! I will make a note in else branch.

[saguziel]

I feel like it's just code bloat this point given it's impossible to get multiple results. I think the better thing to do is just loop over the results

[bolkedebruin]

This seems unrelated. Why add this?

[allisonwang]

@bolkedebruin This is for appending results from this function. Without expunge sqlalchemy will through UnboundedExceptionError since the session is closed before function returns.

[bolkedebruin]

You are not setting a dag state but a dagrun state please rename.

[saguziel]

I haven't really dived in, but does it make sense that clear and success are separate endpoints?

[amaliujia]

Same as above. You are testing dagrun. So can rename tests.

[saguziel]

This import appears unused

[saguziel]

This import also appears unused

[saguziel]

It seems that if clear_dagrun can be part of clear, dag_success could be part of success

[saguziel]

And maybe it should be dagrun_success

[aoen]

@saguziel I think dagrun/task clearing should be separate functions, having them in the same function is the equivalent to having 15 different classes and then having a function that switches off of the class type, instead of just having 15 different functions to call in the first place.

[aoen]

Nit: kill whitespace

[aoen]

The name of this method seems to imply that commit should always be true. Maybe there should be another method that gets a list of task instances that would be modified without altering them?

[aoen]

This should be a different endpoint for dagruns/tasks, although they could reuse most of the same logic.

[saguziel]

Should be able to call clear_task from clear_dagrun, likewise for success

[aoen]

"Edit"
"Clear"
and
"Mark Success"

are fine for the button names.

[aoen]

Nit: replace "dag" with "dagrun"

[aoen]

Nit: edit_dagrun

[saguziel]

@aoen That is a pattern though. We save some code duplication, and we don't have 15 classes. Especially since we aren't actually clearing the dag_run, but rather the tasks that belong to it.

[saguziel]

Do a top level import instead

[saguziel]

Actually, put this in models.py. It's okay to have the stub here but the logic of setting the dagrun to the state should be in models

[allisonwang]

@saguziel There is a function called set_dag_run_state in models.py, but the logics are quite different. set_dag_run_state here basically called set_state above which is designed for mark success functionality and considers a lot more edge cases. But definitely the API functions need refactoring in the future to be consistent with other parts of the codebase.

[aoen]

Spoke with @saguziel offline, we are in agreement that dagrun/task clearing should be separate functions that call some common functions.

[aoen]

Looks like these were accidental removals

[allisonwang]

@aoen Hmm maybe my editor (Atom) removed the white space automatically but the Apache license content should be exactly the same.

[aoen]

This section can be factored out with the /clear endpoint code.

also I think the recursive flag needs to be supported here too for the subdag operator (same as /clear).

[allisonwang]

@aoen clear here default to include subdags https://github.com/apache/incubator-airflow/blob/master/airflow/models.py#L3149 but adding it definitely makes it more readable :) Will refactor out the logic.

[aoen]

As far as I understand we should allow the option to specify recursive the same way it can be specified for task-clearing (for the subdag operator), i.e. I think it should be an option in the modal.

[aoen]

it's better to use keyword arguments like recursive=True here (that way it's clear what each argument is). The recursive value should not always be True but have it's value derived from the recursive button in the model, same as for individual task instance clearing. LGTM after that though!

[allisonwang]

@aoen Right we can make the clear DAG run UI more consistent with clear tasks, i.e. support past / future, recursive/ non-recursive, etc. Here I feel letting recursive always be true make sense otherwise clear DAG run will clear all operator task instances except for subdag which could be confusing.

[allisonwang]

Maybe in version 2 :)

[aoen]

I think past/future are a bit different than non-recursive (which set of dagruns are affected vs how affected tasks are changed), but I am OK leaving the recursive option as a TODO (it's just not that great that clearing dagruns doesn't have functional parity with clearing task instances).

[aoen]

LGTM
