don't convert date to iso string format if export format is parquet in PostgresToGCSOperator

[sanxore]

• Issue description:
  In PostgresToGCSOperator operator we can't write DATE column when export_format="parquet" because at convert_type method the date data result from postgres are converted to string so pyarrow raise this exception : pyarrow.lib.ArrowTypeError: object of type <class 'str'> cannot be converted to int

• Solution:
  Don't convert date to string when export format is parquet.

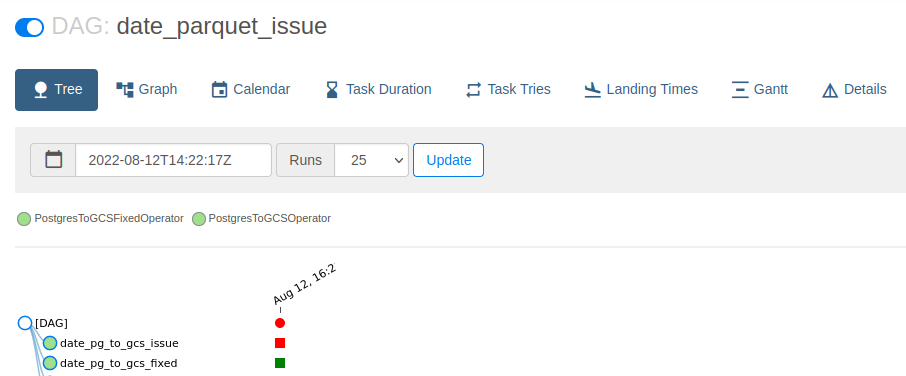

• Here my solution and screen of DagRun:

import datetime
import json
import os
import time
from decimal import Decimal

import pendulum
from airflow import DAG
from airflow.providers.google.cloud.transfers.postgres_to_gcs import PostgresToGCSOperator
from common_v2.settings import GCS_BUCKET

DEFAULT_ARGS = {
    "start_date": datetime.datetime(2022, 8, 12),
    "retries": 1,
    "retry_delay": datetime.timedelta(minutes=1),
}


class PostgresToGCSFixedOperator(PostgresToGCSOperator):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

    def convert_type(self, value, schema_type, stringify_dict=True):
        """
        Takes a value from Postgres, and converts it to a value that's safe for
        JSON/Google Cloud Storage/BigQuery.
        Timezone aware Datetime are converted to UTC seconds.
        Unaware Datetime, Date and Time are converted to ISO formatted strings.
        Decimals are converted to floats.

        :param value: Postgres column value.
        :param schema_type: BigQuery data type.
        :param stringify_dict: Specify whether to convert dict to string.
        """
        if isinstance(value, datetime.datetime):
            iso_format_value = value.isoformat()
            if value.tzinfo is None:
                return iso_format_value
            return pendulum.parse(iso_format_value).float_timestamp

        if self.export_format != "parquet":
            if isinstance(value, datetime.date):
                return value.isoformat()
            if isinstance(value, datetime.time):
                formatted_time = time.strptime(str(value), "%H:%M:%S")
                time_delta = datetime.timedelta(
                    hours=formatted_time.tm_hour, minutes=formatted_time.tm_min, seconds=formatted_time.tm_sec
                )
                return str(time_delta)

        if stringify_dict and isinstance(value, dict):
            return json.dumps(value)
        if isinstance(value, Decimal):
            return float(value)
        return value


with DAG(
    "date_parquet_issue",
    default_args=DEFAULT_ARGS,
    schedule_interval=None,
) as dag:
    date_pg_to_gcs_issue = PostgresToGCSOperator(
        task_id=f"date_pg_to_gcs_issue",
        postgres_conn_id="postgres",
        sql="SELECT CURRENT_DATE;",
        bucket=GCS_BUCKET,
        filename=os.path.join("data/date_pg_to_gcs_issue", "part_{}.parquet"),
        export_format="parquet",
    )

    date_pg_to_gcs_fixed = PostgresToGCSFixedOperator(
        task_id=f"date_pg_to_gcs_fixed",
        postgres_conn_id="postgres",
        sql="SELECT CURRENT_DATE;",
        bucket=GCS_BUCKET,
        filename=os.path.join("data/date_pg_to_gcs_fixed", "part_{}.parquet"),
        export_format="parquet",
    )

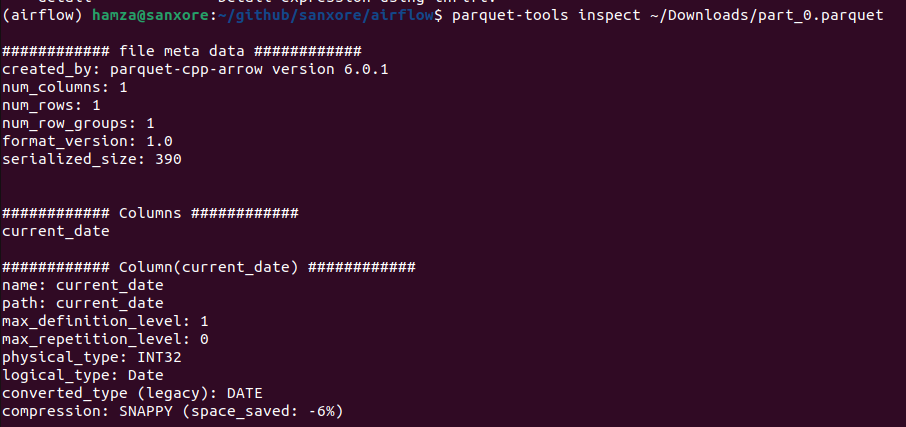

• Fixed Operator write data to Parquet with the right format (physical_type: INT32, and logical_type: Date):


[boring-cyborg]

Congratulations on your first Pull Request and welcome to the Apache Airflow community! If you have any issues or are unsure about any anything please check our Contribution Guide (https://github.com/apache/airflow/blob/main/CONTRIBUTING.rst)
Here are some useful points:

• Pay attention to the quality of your code (flake8, mypy and type annotations). Our pre-commits will help you with that.
• In case of a new feature add useful documentation (in docstrings or in docs/ directory). Adding a new operator? Check this short guide Consider adding an example DAG that shows how users should use it.
• Consider using Breeze environment for testing locally, it's a heavy docker but it ships with a working Airflow and a lot of integrations.
• Be patient and persistent. It might take some time to get a review or get the final approval from Committers.
• Please follow ASF Code of Conduct for all communication including (but not limited to) comments on Pull Requests, Mailing list and Slack.
• Be sure to read the Airflow Coding style.
  Apache Airflow is a community-driven project and together we are making it better 🚀.
  In case of doubts contact the developers at:
  Mailing List: dev@airflow.apache.org
  Slack: https://s.apache.org/airflow-slack

[pingzh]

can you write a corresponding test for it? thanks

[pierrejeambrun]

If I remember correctly we had to modify things to be able to export them to BigQuery with the correct field type.

• You are updating the date case, do we also want not to isoformat datetime in this case ? here
• Is is possible to confirm that these fields are getting exported with the correct type to bigquery with this modification ? (DATETIME, DATE and TIME)

[sanxore]

If I remember correctly we had to modify things to be able to export them to BigQuery with the correct field type.

• You are updating the date case, do we also want not to isoformat datetime in this case ? here
• Is is possible to confirm that these fields are getting exported with the correct type to bigquery with this modification ? (DATETIME, DATE and TIME)

• we have the issue with datetime too. ( I will add the fix to the PR )

• This Operator have no interaction with BigQuery. The goal of this Operator is to write data to GCS file system with the right type if we write data to a binary format ( like parquet) or with the right format if we write data to a string format ( like csv )

Converting time, detetime and date to a string format had broken the Operator for parquet as export format

[pierrejeambrun]

• This Operator have no interaction with BigQuery. The goal of this Operator is to write data to GCS file system with the right type if we write data to a binary format ( like parquet) or with the right format if we write data to a string format ( like csv )

The schema generated by this operator use type that are safe for BigQuery (_write_local_schema_file will for instance use field_to_bigquery, using the underlying type_map mapping db types to BigQuery types). This makes sure we can load into BigQuery all data exported with a BaseSQLToGCSOperator.

Parquet has on top of that an additional mapping, for mapping BigQuery types to pyarrow types. (See _convert_parquet_schema).

I would expect parquet export to be successful when columns are dates, but also be able to import this into bigquery with a correct schema definition. (This is how it works for csv and json export format)

Note: I took a quick look, and couldn’t find what changed. On my bucket I found working extract from 19 April 2022, with PostgresToGCSOperator to parquet format with date and datetime in the schema. 🤔

[sanxore]

If I remember correctly we had to modify things to be able to export them to BigQuery with the correct field type.

• You are updating the date case, do we also want not to isoformat datetime in this case ? here
• Is is possible to confirm that these fields are getting exported with the correct type to bigquery with this modification ? (DATETIME, DATE and TIME)

• we have the issue with datetime too. ( I will add the fix to the PR )
• This Operator have no interaction with BigQuery. The goal of this Operator is to write data to GCS file system with the right type if we write data to a binary format ( like parquet) or with the right format if we write data to a string format ( like csv )

Converting time, detetime and date to a string format had broken the Operator for parquet as export format

Yes i confirm this field will have the right type in BigQuery. If you see my terminal screenshot I parsed the schema of parquet file I exported.
The physical type is INT32 an logical type is DATE is exactly what's date for BigQuery in we use a bq load for managed and external table on parquet files

[sanxore]

• This Operator have no interaction with BigQuery. The goal of this Operator is to write data to GCS file system with the right type if we write data to a binary format ( like parquet) or with the right format if we write data to a string format ( like csv )

The schema generated by this operator use type that are safe for BigQuery (_write_local_schema_file will for instance use field_to_bigquery, using the underlying type_map mapping db types to BigQuery types). This makes sure we can load into BigQuery all data exported with a BaseSQLToGCSOperator.

Parquet has on top of that an additional mapping, for mapping BigQuery types to pyarrow types. (See _convert_parquet_schema).

I would expect parquet export to be successful when columns are dates, but also be able to import this into bigquery with a correct schema definition. (This is how it works for csv and json export format)

Note: I took a quick look, and couldn’t find what changed. On my bucket I found working extract from 19 April 2022, with PostgresToGCSOperator to parquet format with date and datetime in the schema. 🤔

But unfortunately we don't have unit tests on parquet export format which can confirm that parquet format was working :(

[sanxore]

• This Operator have no interaction with BigQuery. The goal of this Operator is to write data to GCS file system with the right type if we write data to a binary format ( like parquet) or with the right format if we write data to a string format ( like csv )

The schema generated by this operator use type that are safe for BigQuery (_write_local_schema_file will for instance use field_to_bigquery, using the underlying type_map mapping db types to BigQuery types). This makes sure we can load into BigQuery all data exported with a BaseSQLToGCSOperator.

Parquet has on top of that an additional mapping, for mapping BigQuery types to pyarrow types. (See _convert_parquet_schema).

I would expect parquet export to be successful when columns are dates, but also be able to import this into bigquery with a correct schema definition. (This is how it works for csv and json export format)

Note: I took a quick look, and couldn’t find what changed. On my bucket I found working extract from 19 April 2022, with PostgresToGCSOperator to parquet format with date and datetime in the schema. 🤔

We should not compare how json and csv format work with parquet format. Because it's two different different files types, json and csv file are string serialized format and parquet is a binary format which make parquet a type aware format.

For example:

• in csv :
  • a timestamp is a STRING type.
  • a date is a STRING
• in json :
  • a timestamp is a STRING type
  • a date is a STRING
• in parquet:
  • a timestamp is an INT64
  • a date is an INT32

[potiuk]

needs rebase and test fixes.
