Tiered storage

[HeimingZ]

Description

This PR adds tiered storage support for iotdb. Users can use both local and hdfs directories as data_dirs at the same time, and they can group some directories as a tier, so that one tsfile may migrate to next tier after it meets certain conditions.

hadoop

Completes iotdb's support for hdfs.

• Implements Path, FileSystem and FileSystemProvider interfaces in java.nio.file.
• The implement of HDFSPath class references the implement of code sun.nio.fs.UnixPath.
• Adds move and copy methods in HDFSFile.

tsfile

Supports both local and hfs filesystem at the same time.

• The type of tsfile_storage_fs is change from FSType to FSType[].
• The FSFactoryProducer class's factory method now must accept a FsType param because iotdb can support several filesystems at the same time.
• The FSPath class wraps filesystem and path value. The format is like LOCAL@data/data.
  • two parse methods: parse String or File to FSPath.
  • toFile, toPath method: get File or Path object of this fsPath.
  • preConcate, postConcat method: concat string at the beginning or end of this path.
• The FsUtils class helps judging the corresponding FSType of File, Path, String object.

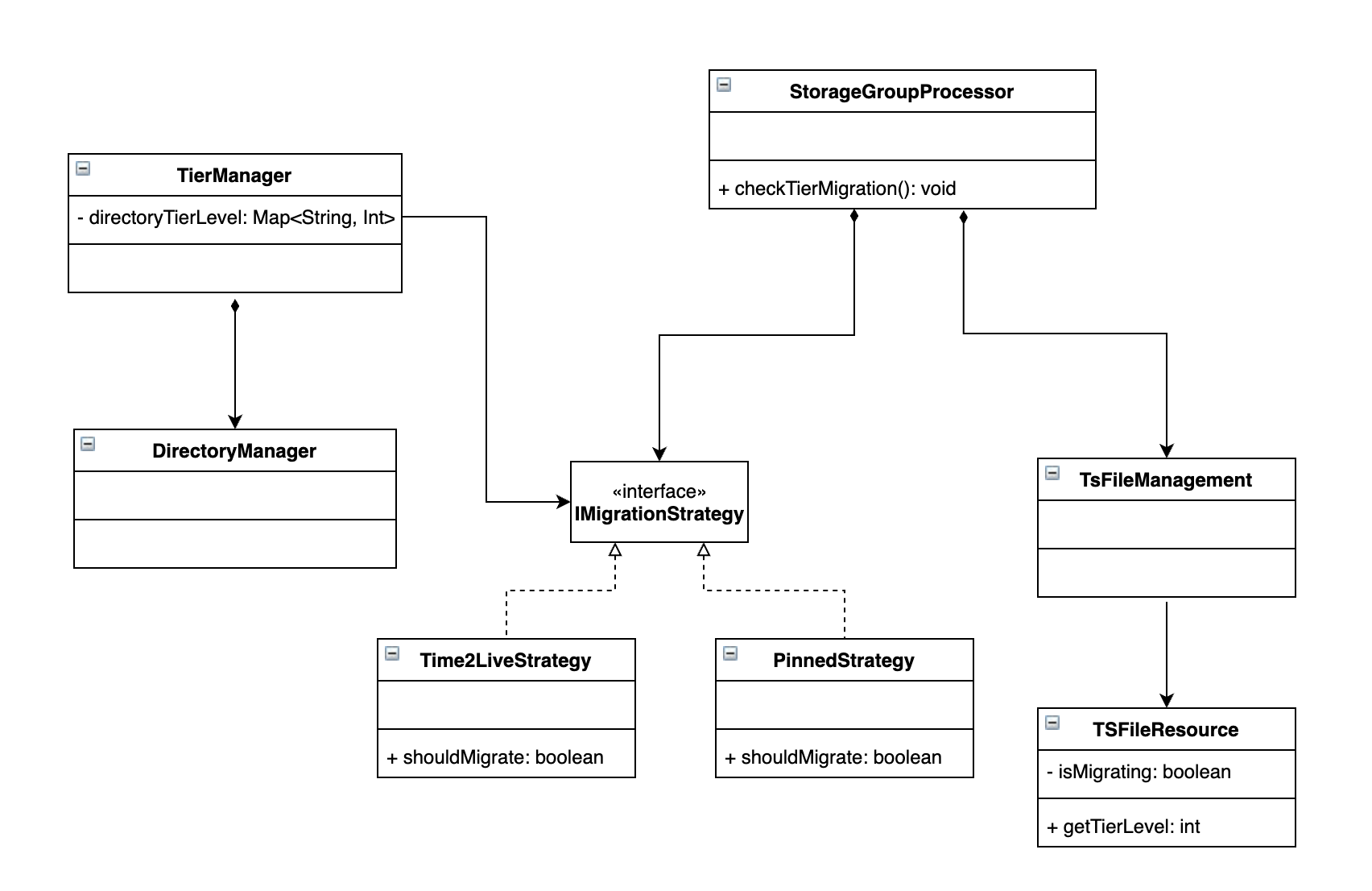

tier

Maintains the relationship between storage tiers and data directories.

• The type of tsfile_storage_fs is change from FSType to FSType[].
• The type of data_dirs is change from String[] to FSPath[][].
• The type of multi_dir_strategy is change from String to String[].
• Adds default_tier_migration_strategy param, which is used to specify the default migration trigger strategy of each tier.
• Adds TIER_MIGRATION_CHECK_INTERVAL in StorageEngine, which specify the time interval of checking tier migration.
• The TierManager class maintains data_dirs, multi_dir_strategy and default_tier_migration_strategy, which all can be hot modified.
  • Methods to hot modify data_dirs, multi_dir_strategy and default_tier_migration_strategy.
  • getAllSequenceFileFolders, getNextFolderForSequenceFile... : wraps same methods of DirectoryManager, the methods are call in ascending order of tierLevel.
  • getTierLevel()：get the tierLevel of a tsfile.
• Provides two migration strategies: PinnedStrategy and Time2LiveStrategy
  • PinnedStrategy: tsfile is pinned in this tier and will not be migrated.
  • Time2LiveStrategy: accepts one param as ttl, in ms, tsfile will be migrated when timeIndex.stillLives(System.currentTimeMillis() - ttl) return false.
• StorageEngine, VirtualStorageGroupManager and StorageGroupProcessor are responsible for checking when to migrate tsfiles.

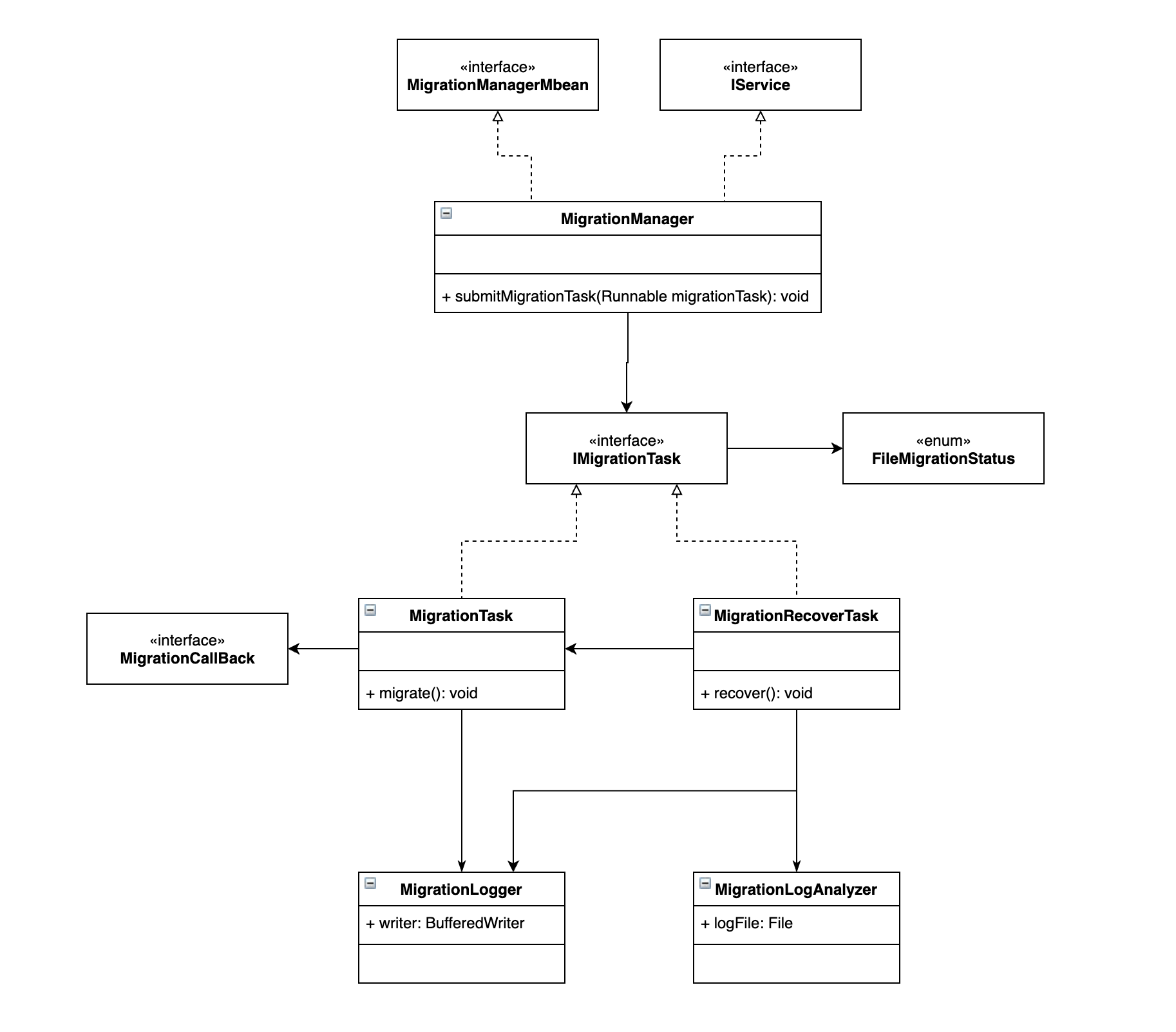

migration

Responsible for migrating tsfile.

• Adds migration_thread_num param, which is used to specify how many threads will be set up to perform file migration.
• MigrationTask: migrates some tsfiles to a target directory.
• MigrationRecoverTask: recover migration task from log.
• MigrationCallBack: is called when each tsfile is migrating, offen used to ensure concurrency.
  • BiConsumer<File, File> opsToBothFiles param: the operation needs to do to the source file and the target file when getting the lock.
• MigrationLogger, MigrationLogAnalyzer: write and analyze migration log.

sync

Adapts to tiered storage, aiming to removing the redudant remove&add operations. (If file A is migrated from /tier1 to /tier2, it will bring a remove op in /tier1 and an add op in /tier2, which are redundant)

• Adds deleted_files_blacklist.txt, files in this blacklist don't need remove operation.
• Adds to_be_synced_files_blacklist.txt, files in this blacklist don't need add operation.
• Two files above are analyzed in SyncFileManager.getLastLocalFiles method and SyncSenderLogAnalyzer.loadLastLocalFiles method.

integraion&unit Test

• use FSType.LOCAL as default filesystem

---

This PR has:

• been self-reviewed.
  • concurrent read
  • concurrent write
  • concurrent read and write
• added documentation for new or modified features or behaviors.
• added Javadocs for most classes and all non-trivial methods.
• added or updated version, license, or notice information
• added comments explaining the "why" and the intent of the code wherever would not be obvious
  for an unfamiliar reader.
• added unit tests or modified existing tests to cover new code paths, ensuring the threshold
  for code coverage.
• added integration tests.
• been tested in a test IoTDB cluster.

---

Key changed/added classes (or packages if there are too many classes) in this PR

• org.apache.iotdb.hadoop.fileSystem
  • HDFSPath
  • HDFSFileSystem
  • HDFSFileSystemProvider
• org.apache.iotdb.tsfile.fileSystem
  • FSPath
  • FSFactoryProducer
• org.apache.iotdb.tsfile.utils.FSUtils
• org.apache.iotdb.db.engine.tier.TierManager
• org.apache.iotdb.db.engine.tier.migration.IMigrationStrategy
• org.apache.iotdb.db.engine.tier.migration
  • mange
  • task
  • utils
• org.apache.iotdb.db.sync.sender.utils.FilesBlacklistWriter
