HDDS-13625. Recon UI: Add "Replication Type" col on Bucket page by stantheman0128 · Pull Request #10968 · apache/ozone

stantheman0128 · 2026-08-07T18:31:37Z

What changes were proposed in this pull request?

The Recon UI Bucket list page does not show how each bucket is replicated, so a
reader cannot tell a Ratis bucket from an EC one without looking somewhere else.

This adds a Replication Type column to that page. The bucket endpoint already
returns the information as BucketObjectDBInfo#replicationConfigInfo, a
serialized DefaultReplicationConfig, so no backend change is needed. The
frontend was not reading the field.

The column renders the replication strings Ozone uses elsewhere:

Bucket default replication	Column value
Ratis, factor `THREE`	`Ratis-3`
EC, RS 6-3 with 1 MB chunks	`RS-6-3-1024k`
Standalone	`Standalone-1`
No default replication config	`NA`

getReplication() carries @JsonIgnore on both RatisReplicationConfig and
ECReplicationConfig, so the ready-made string does not reach the browser. The
column composes it from the fields that are serialized: requiredNodes for
Ratis and Standalone, and codec, data, parity, ecChunkSize for EC.
Sorting uses the rendered string.

The Jira description asks to reuse the themeIcon component. That component is
generalized in HDDS-13623, whose PR #9003 was closed without merging, so this
change renders plain text and does not depend on it. An icon can be layered on
top once HDDS-13623 lands.

Three of the five mock buckets in api/db.json now carry a
replicationConfigInfo, so the column can be exercised with pnpm dev. The
other two are left without one to cover the NA case.

What is the link to the Apache JIRA

https://issues.apache.org/jira/browse/HDDS-13625

How was this patch tested?

New unit tests in src/__tests__/buckets/BucketsTable.test.tsx cover Ratis,
EC, Standalone, a config that carries only the outer type, and the
undefined and null cases. npx vitest run reports 74 passing tests with
one pre-existing skip.
npx vite build succeeds.
npx eslint on the touched files reports no warning that is not already
present on the same files before the change.

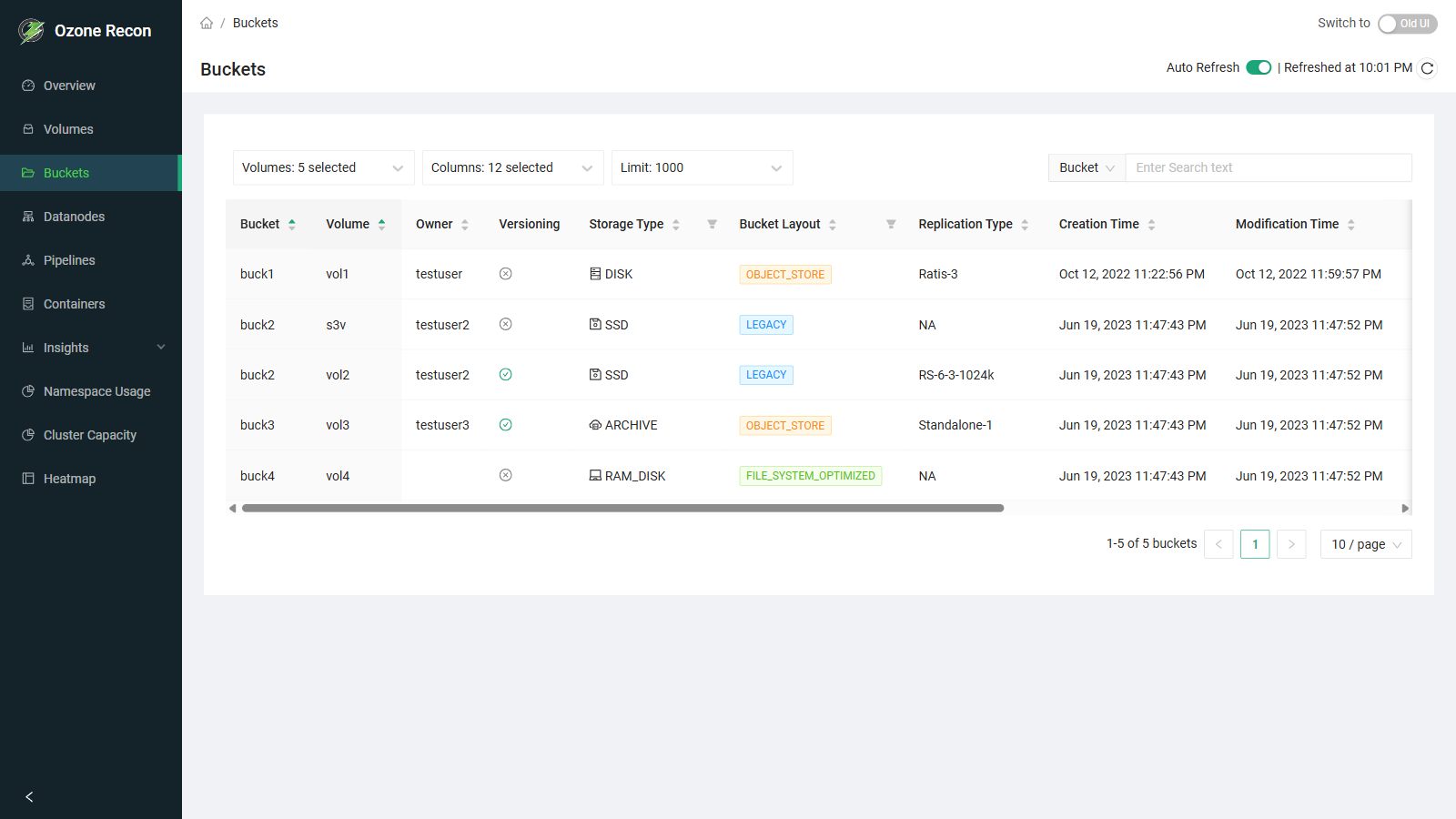

Manually checked against the mock API with pnpm dev. The five mock buckets
cover all four rendered forms:

build-branch workflow run on the fork:
https://github.com/stantheman0128/ozone/actions/runs/31186914918
43 of the 44 jobs pass. The kubernetes job fails on the fork runner across
all three attempts because the minikube cluster never leaves safe mode:
HealthyPipelineSafeModeRule reports a pipeline count of 0, so no datanode
pipeline forms. The Recon pod itself starts normally in those runs.

Generated-by: Claude Code (claude-opus-5)

Show the default replication of each bucket on the Recon Bucket list page. The bucket endpoint already returns this as BucketObjectDBInfo#replicationConfigInfo, so no backend change is needed. The column renders the replication strings Ozone uses elsewhere: Ratis-3 for Ratis buckets, RS-6-3-1024k for EC buckets, Standalone-1 for single replica buckets, and NA when a bucket carries no default replication config. Sorting follows the rendered string. Three of the five mock buckets in api/db.json gain a replicationConfigInfo so the column can be exercised locally with pnpm dev. The column is plain text rather than the themeIcon component named in the JIRA description, because the change that generalizes themeIcon (HDDS-13623) has not been merged. The icon can be added on top later.

Copilot

Pull request overview

This PR updates the Recon UI bucket list (v2) to display each bucket’s default replication as a new “Replication Type” column, using the existing replicationConfigInfo already returned by the Recon bucket endpoint (no backend changes).

Changes:

Extend bucket types to include replicationConfigInfo (serialized DefaultReplicationConfig).
Plumb replicationConfigInfo through the buckets page data mapping and render/sort the new table column via a formatted replication string.
Add UI unit tests covering the new column’s rendering and update mock API data (api/db.json) to exercise the column.

Reviewed changes

Copilot reviewed 5 out of 5 changed files in this pull request and generated 3 comments.

Show a summary per file

File	Description
hadoop-ozone/recon/src/main/resources/webapps/recon/ozone-recon-web/src/v2/types/bucket.types.ts	Add TypeScript types for `replicationConfigInfo` and extend `Bucket` with the new field.
hadoop-ozone/recon/src/main/resources/webapps/recon/ozone-recon-web/src/v2/pages/buckets/buckets.tsx	Include `replicationConfigInfo` when mapping API buckets into UI buckets.
hadoop-ozone/recon/src/main/resources/webapps/recon/ozone-recon-web/src/v2/components/tables/bucketsTable.tsx	Add “Replication Type” column and formatting/sorting logic.
hadoop-ozone/recon/src/main/resources/webapps/recon/ozone-recon-web/src/tests/buckets/BucketsTable.test.tsx	Add unit tests for the new column formatting and fallbacks.
hadoop-ozone/recon/src/main/resources/webapps/recon/ozone-recon-web/api/db.json	Add `replicationConfigInfo` to several mock buckets to exercise the column in dev.

💡 Add Copilot custom instructions for smarter, more guided reviews. Learn how to get started.

+type BucketRatisReplicationConfig = {
+  replicationType: 'RATIS' | 'STAND_ALONE';
+  replicationFactor: string;
+  requiredNodes: number;
+}


+const REPLICATION_TYPE_LABELS: Record<string, string> = {
+  RATIS: 'Ratis',
+  STAND_ALONE: 'Standalone'
+};


+  test('renders the Standalone variant for a single replica bucket', () => {
+    render(
+      <BucketsTable
+        {...defaultProps}
+        data={[getBucketWith('standalone-bucket', {
+          type: 'STAND_ALONE',
+          replicationConfig: {
+            replicationType: 'STAND_ALONE',
+            replicationFactor: 'ONE',
+            requiredNodes: 1
+          }
+        })]}
+      />
+    );
+
+    expect(screen.getByText('Standalone-1')).toBeInTheDocument();
+  });


StandaloneReplicationConfig serializes replicationType as STANDALONE, without the underscore, while the ReplicationType enum name used elsewhere is STAND_ALONE. A Standalone bucket therefore reached the column as STANDALONE and rendered as STANDALONE-1 instead of Standalone-1. Map both spellings, widen the type accordingly, and cover each spelling with its own test. The mock bucket in api/db.json now uses the spelling the backend actually emits.

chihsuan

Thanks for the patch! @stantheman0128 Overall, looks good. I tested this on local mock site and verified form renders the column as described.

I left a few inline comments, mainly around the EC string and a type we could reuse.

chihsuan · 2026-08-10T14:08:12Z

+  const replicationConfig = replicationConfigInfo?.replicationConfig;
+  if (replicationConfig?.replicationType === 'EC') {
+    const { codec, data, parity, ecChunkSize } = replicationConfig;
+    return `${codec}-${data}-${parity}-${Math.floor(ecChunkSize / 1024)}k`;


Minor: Ozone itself prints rs-6-3-1024k (lowercase) everywhere else. Would it make sense to use codec.toLowerCase() here for consistency?

chihsuan · 2026-08-10T14:10:43Z

+// and StandaloneReplicationConfig. The latter serializes its replicationType as
+// STANDALONE, while the enum name used elsewhere is STAND_ALONE, so both spellings
+// can reach the UI.
+type BucketRatisReplicationConfig = {


These Ratis and EC response shapes are already defined as RatisInfo, EcInfo, and ReplicationInfo in insights.types.ts.

Could we add a StandaloneInfo variant there and reuse the shared ReplicationInfo here? That would avoid duplicating the serialized ReplicationConfig contract and would also include the backend’s minimumNodes field.

chihsuan · 2026-08-10T14:12:23Z

+  STANDALONE: 'Standalone'
+};
+
+// Mirrors the replication strings Ozone uses elsewhere, e.g. Ratis-3 and RS-6-3-1024k


nit: Ozone uses formats such as RATIS/THREE and rs-6-3-1024k elsewhere, rather than Ratis-3 and uppercase RS-.... Perhaps change it to a local description such as "Formats the bucket’s default replication configuration for display."?
