Closed
Conversation
yswdqz
added
backend
wu-sheng
reviewed
Feb 12, 2023
| path: "/en/setup/backend/backend-mysql-monitoring" | ||
| - name: "PostgreSQL Server" | ||
| path: "/en/setup/backend/backend-postgresql-monitoring" | ||
| - name: "AWS-DynamoDB Server" |
Member
There was a problem hiding this comment.
Suggested change
| - name: "AWS-DynamoDB Server" | |
| - name: "AWS DynamoDB" |
This should be placed in the AWS monitoring too.
Also, you should update UI repository to add this feature into two places(database and AWS catalogs).
wu-sheng
reviewed
Feb 12, 2023
| 1. Enable [AWS CloudWatch](https://aws.amazon.com/cn/cloudwatch/) | ||
| 2. Create [Amazon Kinesis Data Filehose](https://aws.amazon.com/cn/kinesis/data-firehose/), set source to `Direct PUT`, set destination to `HTTP Endpoint`, and set `HTTP EndPoint url` to `aws-firehose-receiver`'s port (refer to [aws-firehose-receiver](aws-firehose-receiver.md)) | ||
|
|
||
| Note that AWS requires that the `HTTP Endpoint url` must be HTTPS and the port needs to be 443, so you can load the certificate in [aws-firehose-receiver](aws-firehose-receiver.md) and set the port to 443. Also, you can use another gateway to accept the request and route it to `aws-filehose-receiver`. |
Member
There was a problem hiding this comment.
Suggested change
| Note that AWS requires that the `HTTP Endpoint url` must be HTTPS and the port needs to be 443, so you can load the certificate in [aws-firehose-receiver](aws-firehose-receiver.md) and set the port to 443. Also, you can use another gateway to accept the request and route it to `aws-filehose-receiver`. | |
| Note that AWS requires that the `HTTP Endpoint URL` must be through HTTPS listening at 443, therefore need to load the certificate in [aws-firehose-receiver](aws-firehose-receiver.md) and set the port to 443. | |
| Or, you can use another gateway to accept the requests and route them to `aws-filehose-receiver`. |
I remember @pg-yang mentioned 443 needs to be some OS user group. Should we mention this? @kezhenxu94
wu-sheng
reviewed
Feb 12, 2023
|
|
||
| ### DynamoDB Monitoring | ||
| DynamoDB monitoring provides monitoring of the status and resources of the DynamoDB server. AWS user id is cataloged as a `Layer: AWS_DYNAMODB` `Service` in OAP. | ||
| Each DynamoDB table is cataloged as an `Instance` in OAP. |
Member
There was a problem hiding this comment.
The table should be closer to the endpoint concept. Because table is a logic concept rather than a physical deployment concept like pods or processes in a cluster.
Member
|
Is #10302 (comment) addressed and fixed? I think we need that fix. @pg-yang Is the e2e mock data load for AWS firehose ready to use? This PR should be covered by that style e2e. |
Member
I use OTEL mock service to test S3 just like EKS. Because if we directly mock firehose service, we have to copy OTEL v0.7.0 into mock service for rewriting some fields such as |
…pache#10390) - `./mvnw test ...` by its nature only runs unit tests, whose name is pattern of `*Test`, and it does never runs integration tests, whose name is patter of `IT*` or `*IT`, so in this PR we use `./mvnw clean test ...` to only run unit tests. - `./mvnw integration-test ...` will run integration tests and unit tests, so we have `skipUTs` to control whether to skip the UT when running ITs, we already had this before. - As for ITs, we have two groups, one is normal tests without any `@Tag`s, the other one is slow integration tests, which is annotated with `@Tag("slow")`, so we divided the integration tests into two workflow jobs: - `./mvnw -DskipUTs=true clean integration-test -DexcludedGroups=slow ...` run the ITs but don't run the slow ITs and UTs, `-DexcludedGroups=slow` excludes tests annotated with `@Tag("slow")` - `./mvnw -DskipUTs=true clean integration-test -Dcheckstyle.skip -Dtest=${{ matrix.test.class }}` run the slow ITs (because `excludedGroups` is not set) one case at a time, by setting `-Dtest={{ class }}`, not run UTs,
2 tasks
* Remove TLS support from firehose receiver Notice, no HTTPS/TLS setup support. By following AWS Firehose request, it uses [proxy request](https://en.wikipedia.org/wiki/Proxy_server#Web_proxy_servers) (`https://...` instead of `/aws/firehose/metrics`), there must be a proxy(Nginx, Envoy, etc.). * Update docs.
…yswdqz-DynamoDB
Member
|
This PR context seems broken. It reports codes have been changed on upstream. |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
6 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
If this is non-trivial feature, paste the links/URLs to the design doc.
Update the documentation to include this new feature.
Tests(including UT, IT, E2E) are added to verify the new feature.
If it's UI related, attach the screenshots below.
If this pull request closes/resolves/fixes an existing issue, replace the issue number. Closes #.
Update the
CHANGESlog.This PR is not finished yet, but I've encountered some problems, so I'm sending this PR first in order to ask some questions and report on my progress.
Problems:

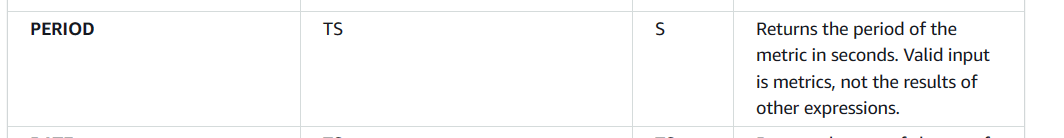

PERIOD, Is there such a function in mal?doc is here

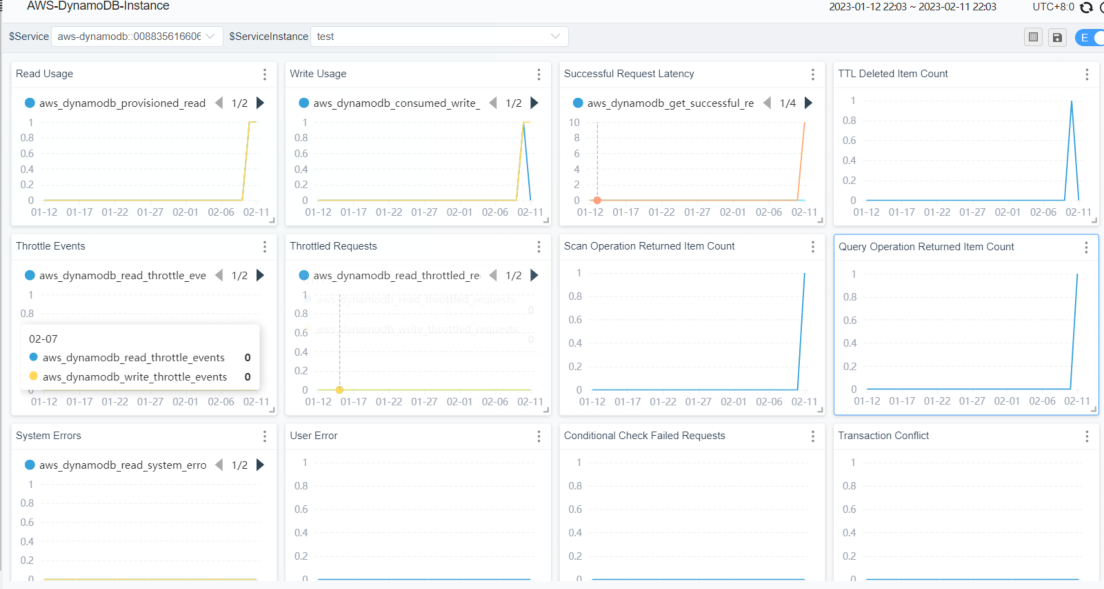

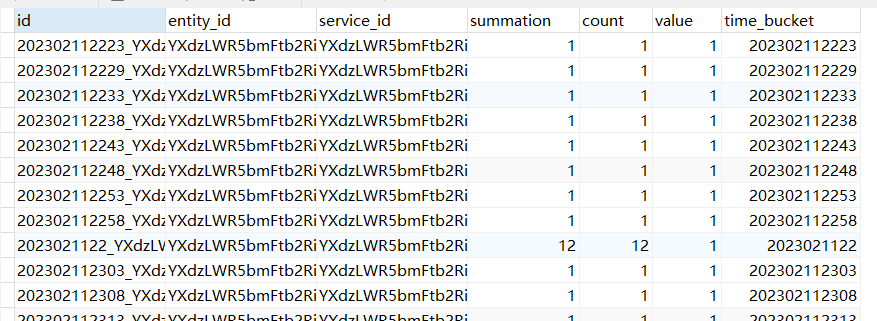

But the real data is always 1

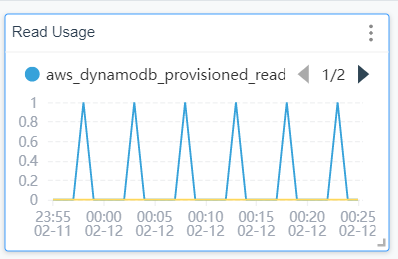

I think it should be a horizontal line rather than a diagonal line? And is it because of my mal's
avgfunction?(also, I find I'm still not familiar with the metric model, are there any articles that go into detail about the metric model?)
TODO:
metrics I have not tested:
①read/write_throttled_requests
②read/write_throttle_events
③read/wirte system error
④user error
⑤conditional_check_failed_requests
⑥transaction_conflict
