[EC-981] OTP handling - Set to selected cipher

[fedemkr]

Type of change

• Bug fix
• New feature development
• Tech debt (refactoring, code cleanup, dependency upgrades, etc)
• Build/deploy pipeline (DevOps)
• Other

Objective

Add the possibility to choose a cipher to set the scanned OTP handled by the Bitwarden app.

Code changes

AutofillCiphersPage -> CipherSelectionPage

Given that selecting a cipher on Autofill and selecting it on OTP handling is pretty much the same, the AutofillCiphersPage was taken and renamed to CipherSelectionPage to have a common UI to share between these flows. The context changes depending on the AppOptions passed to the page creating the appropriate ViewModel for each flow.

A diagram can illustrate this better:

classDiagram
    class CipherSelectionPageViewModel
    <<Abstract>> CipherSelectionPageViewModel
    CipherSelectionPageViewModel <|-- AutofillCiphersPageViewModel
    CipherSelectionPageViewModel <|-- OTPCipherSelectionPageViewModel
    CipherSelectionPage --> CipherSelectionPageViewModel

Loading

Other changes

• AccountsManager: Added method to start the navigation flow (as in changing an account) that allows the caller to perform any action to the current AppOptions
• DeepLinkContext: Added method to handle new incoming Uris
• App.xaml.cs: Added otp handling logic and updated some hardcoded message commands values with consts
• MainActivity: Updated hardcoded message commands with consts
• AppOptions: Added OtpData to get the data from the otp uri
• CipherSelectionPage.xaml: Added close toolbar item and updated obsolete properties. Also, changed selection to new approach and added callout for the OTP cipher selection.
• CipherSelectionPage.xaml.cs: Added logic to choose between the Autofill and OTP viewmodels depending on the AppOptions. Also, added logic for Close. Something to highlight, is that the Account Switching toolbar item was left with the default .. icon on iOS because there is an issue and it's not being updated correctly (it just shows a white backgrounded circle). So, for now I've just left it with the default one which IMO is better than the white circle.
• CipherSelectionPageViewModel.cs: Moved common things to this abstract class and added template methods to be implemented by the children
• AutofillCiphersPageViewModel: Add inheritance from CipherSelectionPageVIewModel and removed things that are now in the abstract class. Additionally, the select flow was changed to accept an IGroupingsPageListItem to be more generic and flexible.
• OTPCipherSelectionPageVIewModel: Implemented for OTP handling given the base CipherSelectionPageVIewModel class. The suggested ciphers to show on loading are the ones which include the Issuer of the OTP if exists or the AccountName otherwise.
• CipherAddEditPageViewModel: Added automatic set of OTP key when coming from OTP flow, the tooltip and the appropriate navigation when saving.
• CiphersPage.xaml.cs: Moved some initialization to the VM using the Prepare(...) method to have less logic on the view.
• CiphersPageViewModel: Updated CipherOptionsCommand to use the new async way. Added logic to show all ciphers if there's no search term and it comes from the OTP flow. Also, on selection it goes to the edit page of the cipher when coming from the OTP flow.
• AppHelpers: Added navigation logic for OTP flow
• NavigationTarget: Added new target for OTP flow
• OTPData: Added this struct which is the responsible to get all the attributes/parameters from an OTP Uri to be reused throughout the app.
• TOTPService: Updated it to use the new OTPData struct.
• UriExtensions: Added method to unescape a URI string like a OTP URI (it needs to be done multiple times to correctly unescape everything)

Screenshots

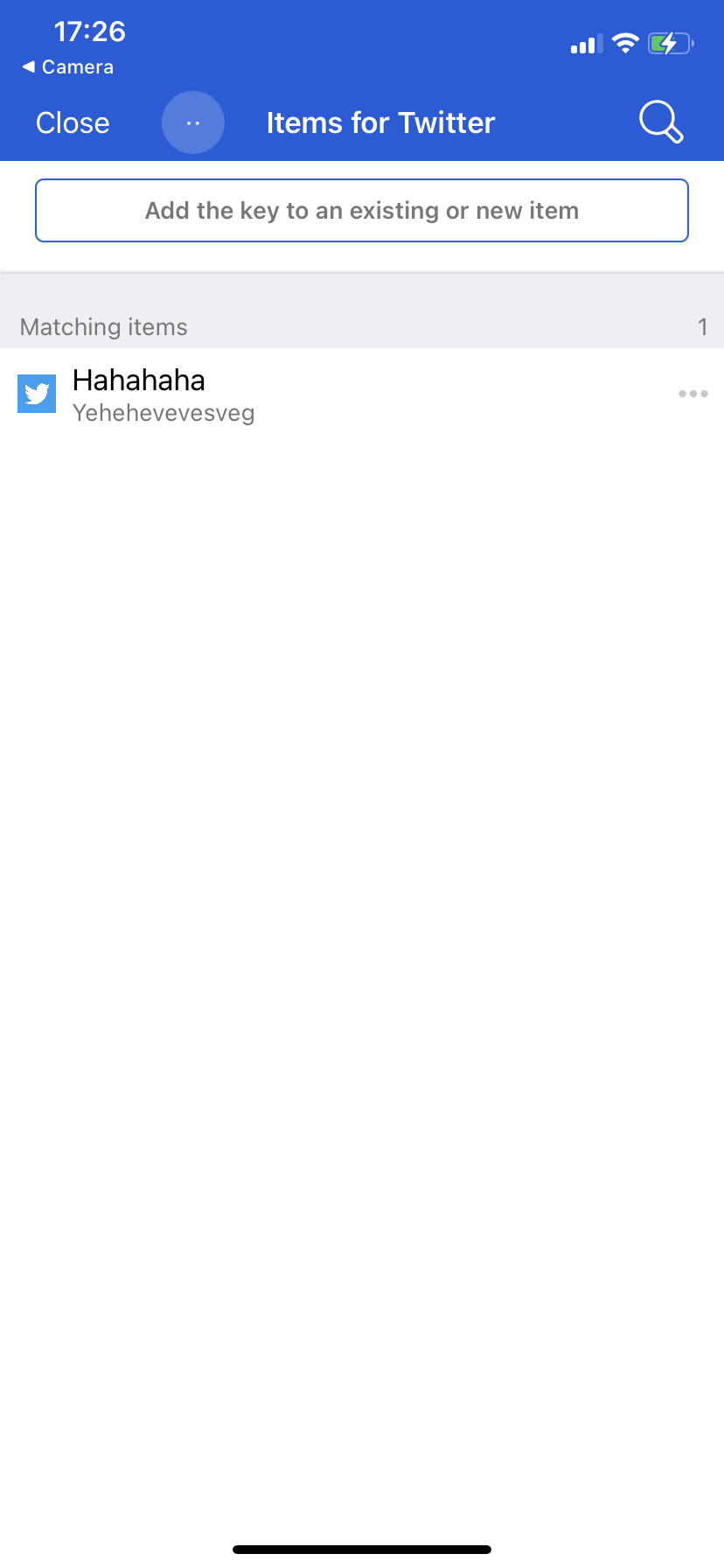

Cipher Selection

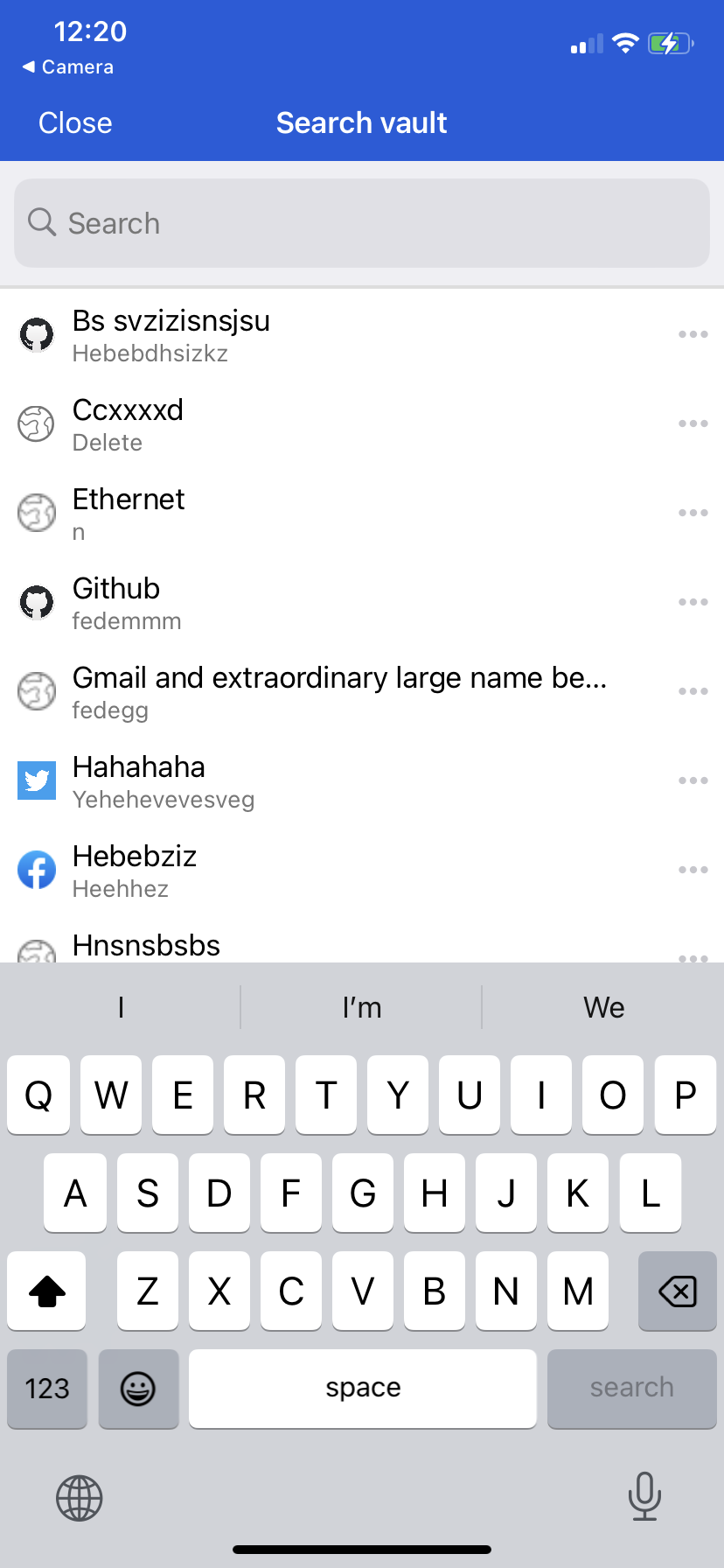

Cipher Search

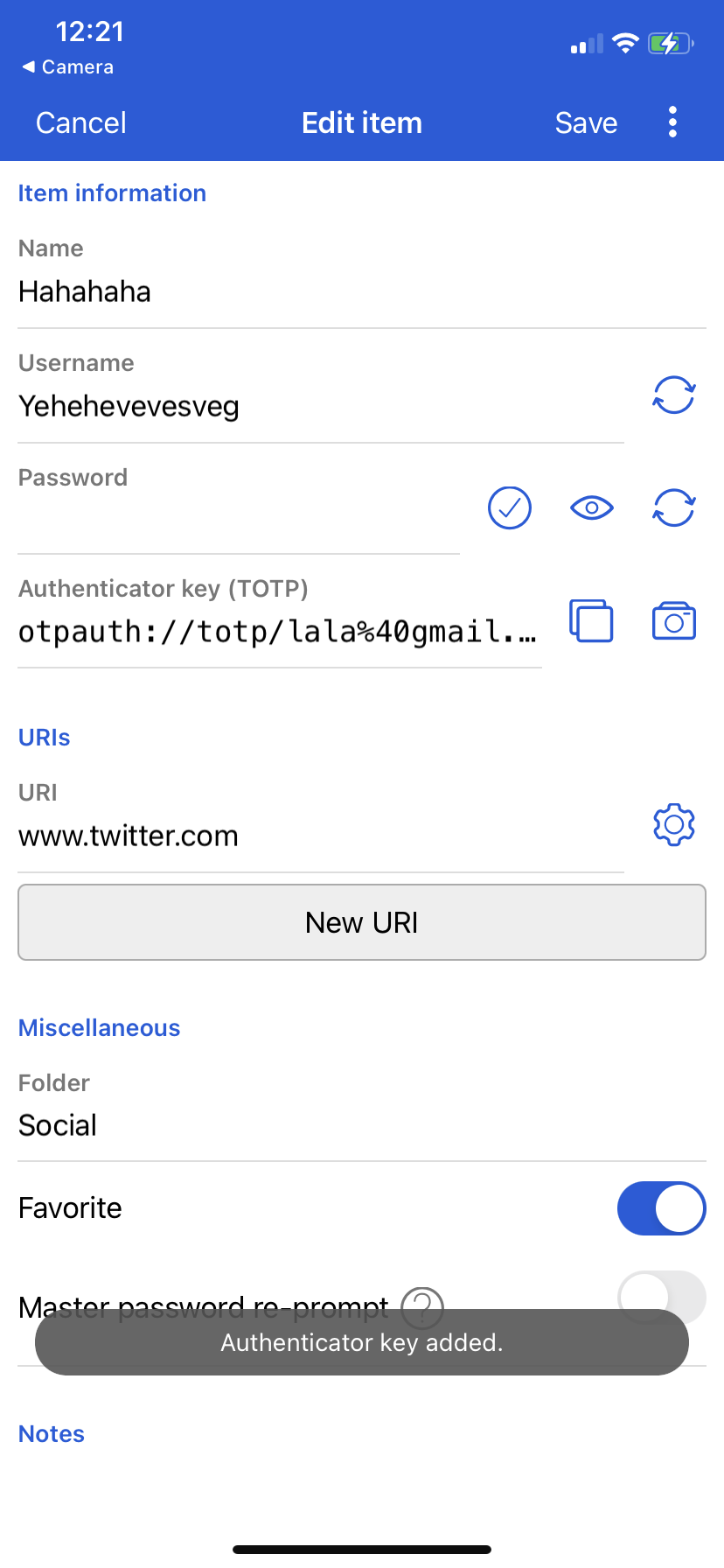

OTP set on Cipher edition

Before you submit

• Please check for formatting errors (dotnet format --verify-no-changes) (required)
• Please add unit tests where it makes sense to do so (encouraged but not required)
• If this change requires a documentation update - notify the documentation team
• If this change has particular deployment requirements - notify the DevOps team

[mpbw2]

Is it possible the change of Priority of the avatar from -1 to -2 broke the original colorization trick you did for iOS? (I don't see any hardcoded positions but I may be missing something)

[fedemkr]

That's a great suggestion and I think I didn't try that but I've created another task to track this issue so that I make progress with the whole feature. On this PR I won't be fixing this given that's something minor and can be fixed later on.
