feat(web): the malleable workbench — layout tree, movable slots, workspaces as nodes (0280) by crs48 · Pull Request #409 · crs48/xNet

crs48 · 2026-07-07T22:31:41Z

Implements exploration 0280_[x]_MALLEABLE_WORKBENCH_COMPOSABLE_WORKSPACE.md — the shell as data. One layout tree (regions → slots → views) replaces the calm/workbench component fork; the former shells become data-only presets; layouts are saveable, syncable, shareable xnet:Workspace nodes; and the companion edits the workspace through the same undoable commands the UI runs.

What landed

Phase 1 — layout tree engine: LayoutTree primitives (now in @xnetjs/plugins workspace/), pure move/tier ops, payload codec, useWorkbench integration with v1→v3 persist migration, and the flag-gated ShellFrame renderer (xnet:experiment:layout-tree; legacy shells remain the default). A source-grep tripwire forbids components branching on preset identity.
Phase 2 — movable views: SlotContribution generalizes the 0273 SurfaceDock contract (defaultRegion/allowedRegions; deprecated aliases kept — no breaking change). One app-side slot registry replaces the PanelViewHost/dock maps; every panel gains Move menu, drag handle, and View: Move/Open/Hide/Show palette commands.
Phase 3 — workspaces as nodes: xnet:Workspace schema (portable tree only; pixel sizes stay device-local keyed by workspace id), Tier-1 preset seeder (round-trip guarded), quick switcher with Save as… / Switch / Share / Reset.
Phase 4 — customization slope: Esc walks the pinned frame down one dock per press; tabless-bench starter chips; ModeSwitch workspace button + first-run coachmark; /pin and /workspace slash verbs run the shared commands.
Phase 5 — agent + ecosystem: workspace_* agent tools (describe/apply preset/move/open/save/scaffold/undo) that emit registered commands with an undo stack + agent-change toast; slot-view scaffold template (network-closed by default, ai-generated consent preview); marketplace workspace listing kind; Electron shares the primitives behind a parity guard (full ShellFrame port explicitly deferred per risk 6).

Three-roads audit (review gate)

Verb	Pointer	Touch twin	Keyboard / ⌘K
Move a view between docks	Header Move menu; drag header → dock drop zone	Same Move menu (tap)	`View: Move <label> to <dock>`
Open a view	Dock strips / rail buttons / corner launcher	FAB + bottom sheet (0273)	`View: Open <label>`, ⌘B/⌘\/⌘J
Hide / show a view	Panel close button	Same	`View: Hide/Show <label>`
Switch workspace / preset	ModeSwitch Layers button	Same (tap)	`Workspace: Switch…`, `Workspace: Preset: …`
Save a layout	Switcher "Save current layout as…"	Same	`Workspace: Save as…`, `/workspace` slash
Undo a layout change	Agent-change toast Undo	Same	`Workspace: Undo layout change`
Walk disclosure down	Scrim/close buttons	Swipe-away (0273 sheets)	Esc (one rung per press)

Validation

33/33 checklist items checked in the doc; new unit/interaction tests: layout-tree ops + payload round-trip, store integration + migrations (incl. foreign-tab hardening), preset tripwire, seeder round-trip, agent tools (undo/announce/capability bounds), scaffold template, marketplace kind filter, Esc ladder walk, slot-move re-render bound, Electron parity guard.
Live click-through on the worktree preview (flag on): fresh-identity boot into calm, preset switcher → bench (Rail/tabs/status), Move menu left→corner with corner launcher appearing, reload persistence, palette move navigator→right with when-filtered targets, Esc closing docks rung by rung.
The live pass caught and fixed three real defects: foreign-nodeType tabs crashing TabBar, routeForTab crash on unknown types, and the Esc handler dying on window-target events.

Implements and checks off docs/explorations/0280_[x]_MALLEABLE_WORKBENCH_COMPOSABLE_WORKSPACE.md.

🤖 Generated with Claude Code

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Regions → slots → views as data: createPresetTree(quiet|calm|bench), pure move/tier ops, workspace-payload round trip, store integration with v1→v2 persist migration, flag-gated ShellFrame renderer, preset tripwire. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Generalizes the 0273 SurfaceDock contract: SlotRegion plus defaultRegion/ allowedRegions in @xnetjs/plugins (surfaceDock kept as deprecated alias), one app-side slot registry replacing the PanelViewHost/dock maps, move/ hide/show palette commands per view, Move menu and drag between docks. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Esc walks the pinned frame's ladder down one dock at a time; slot views gain View: Open palette entries (replacing dock-only commands); tabless bench shows dimmed starter chips; ModeSwitch gains the workspace switcher button with a first-run save-as coachmark; /pin and /workspace slash verbs run the same registered commands. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

…ngs (0280) Companion tools (workspace_describe/apply_preset/move_view/open_view/ save/scaffold/undo) emit the same registered commands the UI runs, with an undo stack + agent-change toast; slot-view scaffold template defaults to network:[] with ai-generated consent preview; marketplace gains a workspace listing kind (shared benches are data, not code); Electron shares the workspace primitives behind a parity guard (ShellFrame port deferred per 0280 risk 6). Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Live click-through caught three defects: persisted tabs from another branch's build crashed TabBar (migration v3 drops unknown nodeTypes + icon/route fallbacks), and the Esc ladder died on window-target events (instanceof guard). Adds the Esc-walk and slot-move re-render-bound validation tests. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

github-actions · 2026-07-07T22:44:04Z

Preview removed for PR #409.

+ * device-local and keyed by the workspace id (0280 phase 3) — a saved bench
+ * carries its placements everywhere, its pixel widths nowhere.
+ */
+function PinnedFrame({ tree, children }: { tree: LayoutTree; children: ReactNode }) {


+}
+
+/** The dock body: the active placement's view, bare or hosted. */
+function DockBody({ tree, region, side }: { tree: LayoutTree; region: RegionId; side: PanelSide }) {


+  )
+}
+
+export function WorkspaceSwitcher(): JSX.Element | null {


+            value={query}
+            onValueChange={setQuery}
+            placeholder={saving ? 'Name this workspace…' : 'Switch workspace…'}
+            onKeyDown={(event) => {


+ * layout tree + slot registry (0280) — the same resolution the pinned
+ * frame's DockBody uses, so a moved view follows the user into quiet.
+ */
+function OverlayBody({ side }: { side: 'left' | 'right' }) {


…shim Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

github-actions · 2026-07-07T23:01:43Z

🖼️ UI changes in this PR

Screens

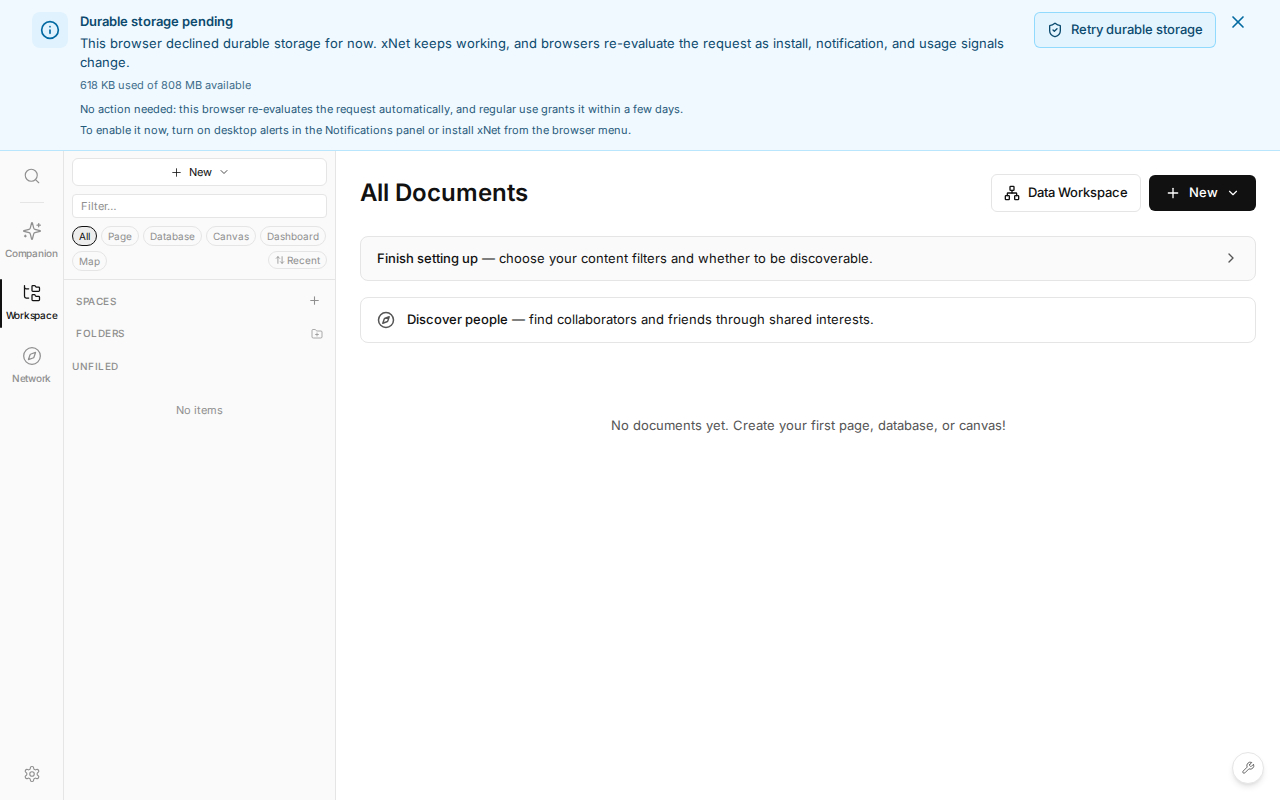

✏️ Home _(SSIM 0.998)_

before	after	diff

_{Auto-captured by CI · run. Informational — not a blocking check.}

Fallow flagged PanelViewHost → slot-registry → Rail/StatusBar → contributions cycles; first-party residents move to builtin-slot-views.tsx so the registry module imports no components. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

@crs48

This PR was opened by the [Changesets release](https://github.com/changesets/action) GitHub action. When you're ready to do a release, you can merge this and the packages will be published to npm automatically. If you're not ready to do a release yet, that's fine, whenever you add more changesets to main, this PR will be updated. # Releases ## @xnetjs/data@0.6.0 ### Minor Changes - [#409](#409) [`bd50f40`](bd50f40) Thanks [@crs48](https://github.com/crs48)! - Workspaces as nodes (exploration 0280): new `xnet:Workspace` schema in `@xnetjs/data` (name/preset/system/tree — the portable half of a saved shell layout), and workspace layout primitives in `@xnetjs/plugins` (`LayoutTree`, `createPresetTree`, `moveSlot`/`setSlotTier`, `parseWorkspacePayload`/`serializeWorkspacePayload`) shared by the web shell, the seed, and future desktop adoption. ### Patch Changes - Updated dependencies []: - @xnetjs/storage@0.6.0 - @xnetjs/sqlite@0.6.0 - @xnetjs/sync@0.6.0 - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/plugins@0.6.0 ### Minor Changes - [#409](#409) [`6795f6b`](6795f6b) Thanks [@crs48](https://github.com/crs48)! - Generalize the SurfaceDock contract into shell-wide slot contributions (exploration 0280). New `SlotContribution` type (with `defaultRegion` / `allowedRegions`), `SlotRegion` union, a `slots` registry on `ContributionRegistry`, a `slots` key on `PluginContributions`, and `ExtensionContext.registerSlotView()`. `SurfaceDockContribution` and the `surfaceDock` registry remain as deprecated aliases — no breaking changes. - [#409](#409) [`bd50f40`](bd50f40) Thanks [@crs48](https://github.com/crs48)! - Workspaces as nodes (exploration 0280): new `xnet:Workspace` schema in `@xnetjs/data` (name/preset/system/tree — the portable half of a saved shell layout), and workspace layout primitives in `@xnetjs/plugins` (`LayoutTree`, `createPresetTree`, `moveSlot`/`setSlotTier`, `parseWorkspacePayload`/`serializeWorkspacePayload`) shared by the web shell, the seed, and future desktop adoption. ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/abuse@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/abuse@0.6.0 ### Patch Changes - Updated dependencies []: - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 ## @xnetjs/cli@0.0.11 ### Patch Changes - Updated dependencies [[`6795f6b`](6795f6b), [`bd50f40`](bd50f40)]: - @xnetjs/plugins@0.6.0 - @xnetjs/data@0.6.0 - @xnetjs/runtime@0.1.7 - @xnetjs/sqlite@0.6.0 - @xnetjs/sync@0.6.0 - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/crypto@0.6.0 ### Patch Changes - Updated dependencies []: - @xnetjs/core@0.6.0 ## @xnetjs/data-bridge@0.6.0 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/sqlite@0.6.0 - @xnetjs/sync@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/history@0.6.0 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/sync@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/identity@0.6.0 ### Patch Changes - Updated dependencies []: - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/react@0.6.0 ### Patch Changes - Updated dependencies [[`6795f6b`](6795f6b), [`bd50f40`](bd50f40)]: - @xnetjs/plugins@0.6.0 - @xnetjs/data@0.6.0 - @xnetjs/runtime@0.1.7 - @xnetjs/data-bridge@0.6.0 - @xnetjs/history@0.6.0 - @xnetjs/sync@0.6.0 - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/runtime@0.1.7 ### Patch Changes - Updated dependencies [[`6795f6b`](6795f6b), [`bd50f40`](bd50f40)]: - @xnetjs/plugins@0.6.0 - @xnetjs/data@0.6.0 - @xnetjs/data-bridge@0.6.0 - @xnetjs/history@0.6.0 - @xnetjs/storage@0.6.0 - @xnetjs/sync@0.6.0 - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/storage@0.6.0 ### Patch Changes - Updated dependencies []: - @xnetjs/sqlite@0.6.0 - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/sync@0.6.0 ### Patch Changes - Updated dependencies []: - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 - @xnetjs/core@0.6.0 ## @xnetjs/core@0.6.0 ## @xnetjs/sqlite@0.6.0 ## xnet-cloud@0.0.9 ### Patch Changes - Updated dependencies []: - @xnetjs/crypto@0.6.0 - @xnetjs/cloud@0.0.1 ## @xnetjs/brain@0.0.10 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/vectors@0.0.1 ## @xnetjs/comms@0.0.10 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/crypto@0.6.0 ## @xnetjs/dashboard@0.0.10 ### Patch Changes - Updated dependencies [[`6795f6b`](6795f6b), [`bd50f40`](bd50f40)]: - @xnetjs/plugins@0.6.0 - @xnetjs/data@0.6.0 - @xnetjs/react@0.6.0 - @xnetjs/social@0.0.10 ## @xnetjs/labs@0.0.10 ### Patch Changes - Updated dependencies [[`6795f6b`](6795f6b), [`bd50f40`](bd50f40)]: - @xnetjs/plugins@0.6.0 - @xnetjs/data@0.6.0 ## @xnetjs/licenses@0.0.10 ### Patch Changes - Updated dependencies []: - @xnetjs/crypto@0.6.0 ## @xnetjs/maps@0.0.10 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 ## @xnetjs/meetings@0.0.3 ### Patch Changes - Updated dependencies [[`6795f6b`](6795f6b), [`bd50f40`](bd50f40)]: - @xnetjs/plugins@0.6.0 - @xnetjs/data@0.6.0 ## @xnetjs/server@0.0.9 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/data-bridge@0.6.0 - @xnetjs/identity@0.6.0 - @xnetjs/crypto@0.6.0 ## @xnetjs/social@0.0.10 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 - @xnetjs/crypto@0.6.0 ## @xnetjs/unreal@0.0.10 ### Patch Changes - Updated dependencies [[`bd50f40`](bd50f40)]: - @xnetjs/data@0.6.0 ## xnet-desktop@0.6.0 Desktop shell release riding the @xnetjs/core 0.6.0 train. Desktop-specific changes are not tracked here; see the core packages' changelogs for what shipped.

) Follow-up to #409: the workspace switcher verb (`workspace.switch`) was only reachable from the calm shell's ModeSwitch. Now every shell posture has the pointer road: - **Workbench (bench)** — a Workspaces button on the Rail, above the identity/settings footer. - **Quiet (minimal)** — a Workspaces glyph in the top-left corner cluster, between Search and Settings. - **Calm** — unchanged (already had it). And **Settings → Appearance** reflects the 0280 defaults: the Layout row now picks between the three presets (Quiet / Calm / Bench via `applyPreset`, active state derived from the tree's provenance), plus a Workspaces row with a shortcut into the switcher. Verified live in the worktree preview (flag on): the button opens the switcher in all three postures, and the settings preset row applies and highlights correctly. 🤖 Generated with [Claude Code](https://claude.com/claude-code)
