feat(ui): scroll-edge fade affordance for scrollable surfaces

[crs48]

Implements exploration 0386.

Scrollable surfaces now fade their content into the background at any edge that still has more to scroll, and the fade collapses to nothing once you reach that edge — or when the container does not scroll at all.

The core decision: mask, not overlay

The fade is a mask-image, so it dissolves the content's alpha rather than painting a background-coloured scrim on top. That is what makes it correct on every surface we have — the --surface-* ramp, .wb-root island planes, and the linear/cozy/true-black variants all differ, and a hard-coded gradient colour would be wrong on most of them. A mask carries no colour at all, so light/dark and every variant work with zero configuration.

Two mechanisms, one mask formula

• .scroll-fade utility for raw overflow-* containers. Fade distances are @property-registered lengths animated against animation-timeline: scroll(self). When a container has no overflow its timeline is inert, so the registered 0px initial values render no fade — the "fade out when there's nothing left to scroll" behaviour falls out of the platform rather than being detected. Zero JS, no scroll listeners, no observers.
• fade prop on ScrollArea, reading the live per-edge overflow distances Base UI publishes on its Viewport (--scroll-area-overflow-y-start/end) through min(). No timelines, no @supports gate — works in every engine including Firefox, and the scrollbar is a sibling of the masked Viewport so it stays crisp.

Also adds scroll-fade-b (bottom-only, for sticky-header containers), scroll-fade-x (RTL-aware), scroll-fade-none (escape hatch), and spacing-scale size modifiers.

Adoption

Chat transcript, channel messages, unified tree, context panel, devtools panel menu, Command/Select popup lists, settings (via the fade prop), and the board lane strip. The grid is deliberately left unfaded — mask repaints are main-thread and it has its own 60fps budget (0340).

Verification

Measured against the running app (Playwright) and cross-engine on chromium/webkit/firefox builds:

Check	Result
No overflow	0px / 0px — no fade at all
Ramp continuity	0→16→32px top, 32→16→0px bottom — smooth, not a pop
WebKit (Safari engine)	identical to Chromium, 0 console errors
Firefox 146	@supports excludes it → mask-image: none, 0 errors (not a stuck fade)
ScrollArea path	identical in all three engines, clamps to distance left (12px left → 12px fade)
Portalled popups	unaffected (mask-image: none, not descendants)
Scroll cost, 400 rows	17.6 vs 16.7 ms/frame — both at the 60fps vsync bound
Electron 33	clears the floor by version (33.4.11 → Chromium 130 ≥ 115); not booted

Verified visually over a multicolour gradient + checkerboard backdrop — a case an overlay gradient could not handle.

Notes

• scroll-state() container queries would be the semantically perfect primitive but need Chromium 133, above Electron 33's ~130 — so the desktop app would be the one platform without it. Revisit when the floor rises.
• Two plan deviations, recorded in the doc: Menu.tsx has no scroller to fade, and board columns don't scroll vertically (only the lane strip does). The lane strip's fade is suspended mid-drag via scroll-fade-none, because dnd-kit's DragOverlay renders inside that container.
• A mask applies to the whole element box, so a scroller drawing its own border would see that border fade too. Every current consumer keeps its border on the parent.
• No changeset: packages/ui is private: true, as are the app/devtools/views packages.

🤖 Generated with Claude Code

[github-actions]

🖼️ UI changes in this PR

Screens

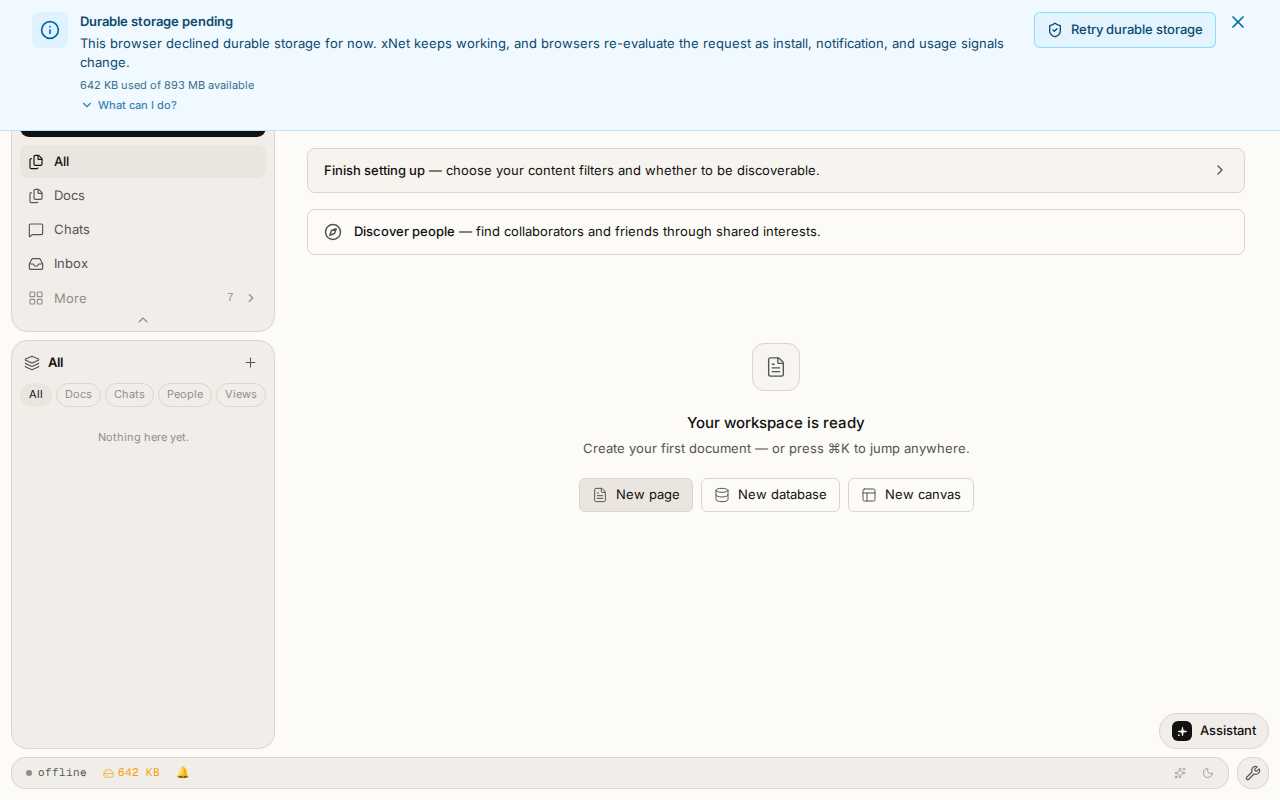

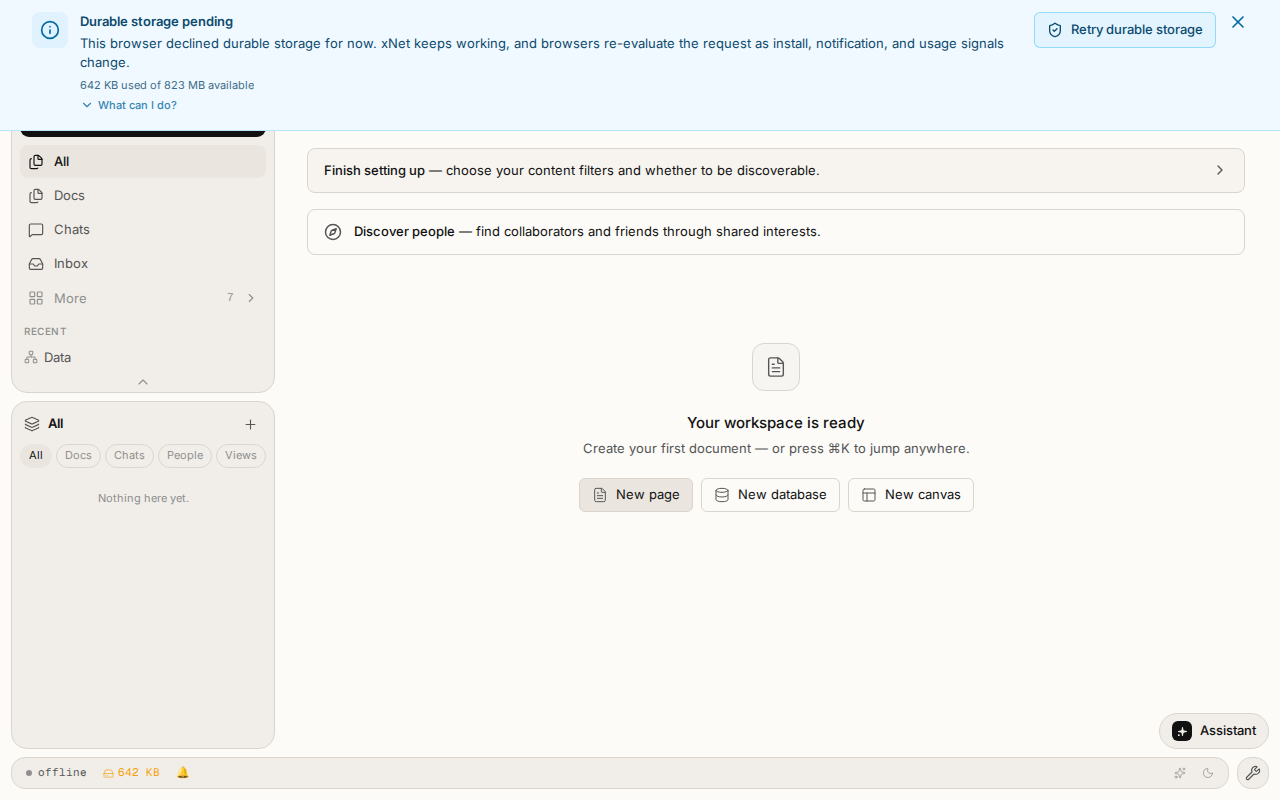

✏️ Home _(SSIM 0.983)_

before	after	diff

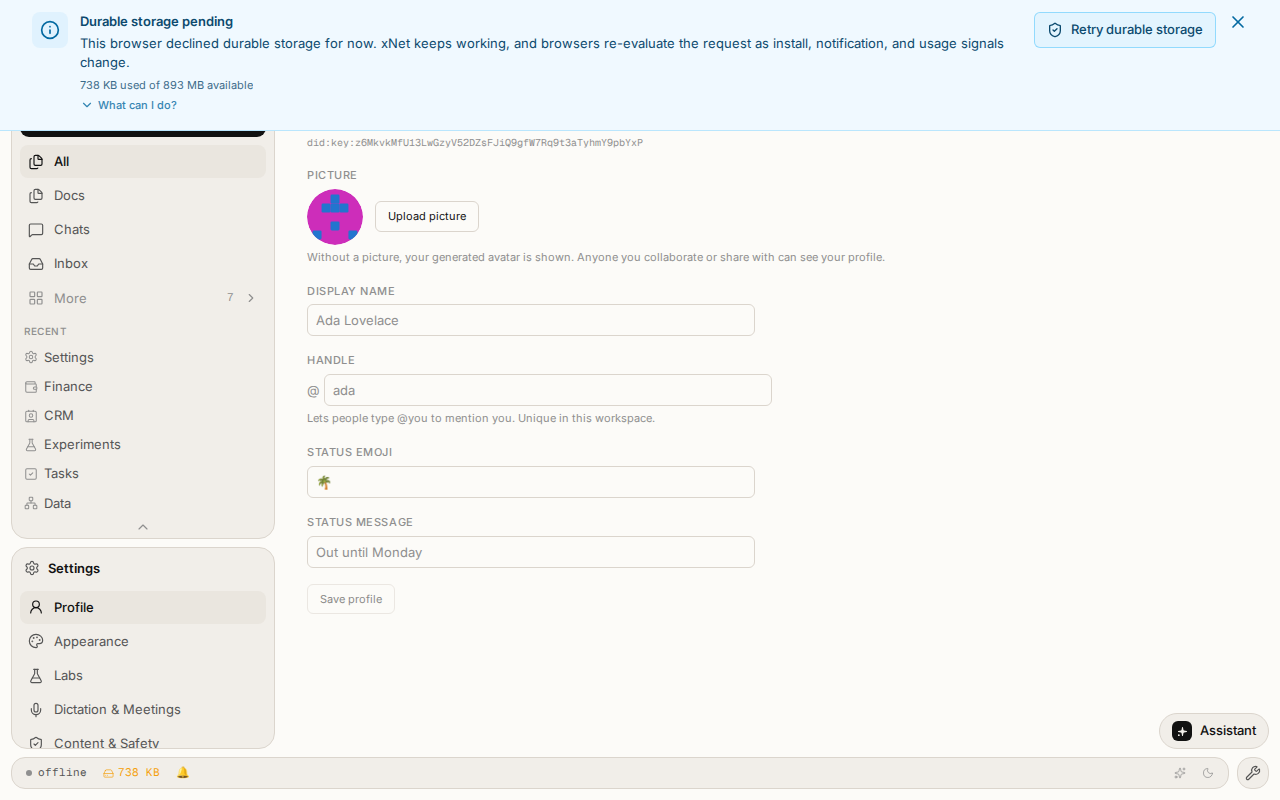

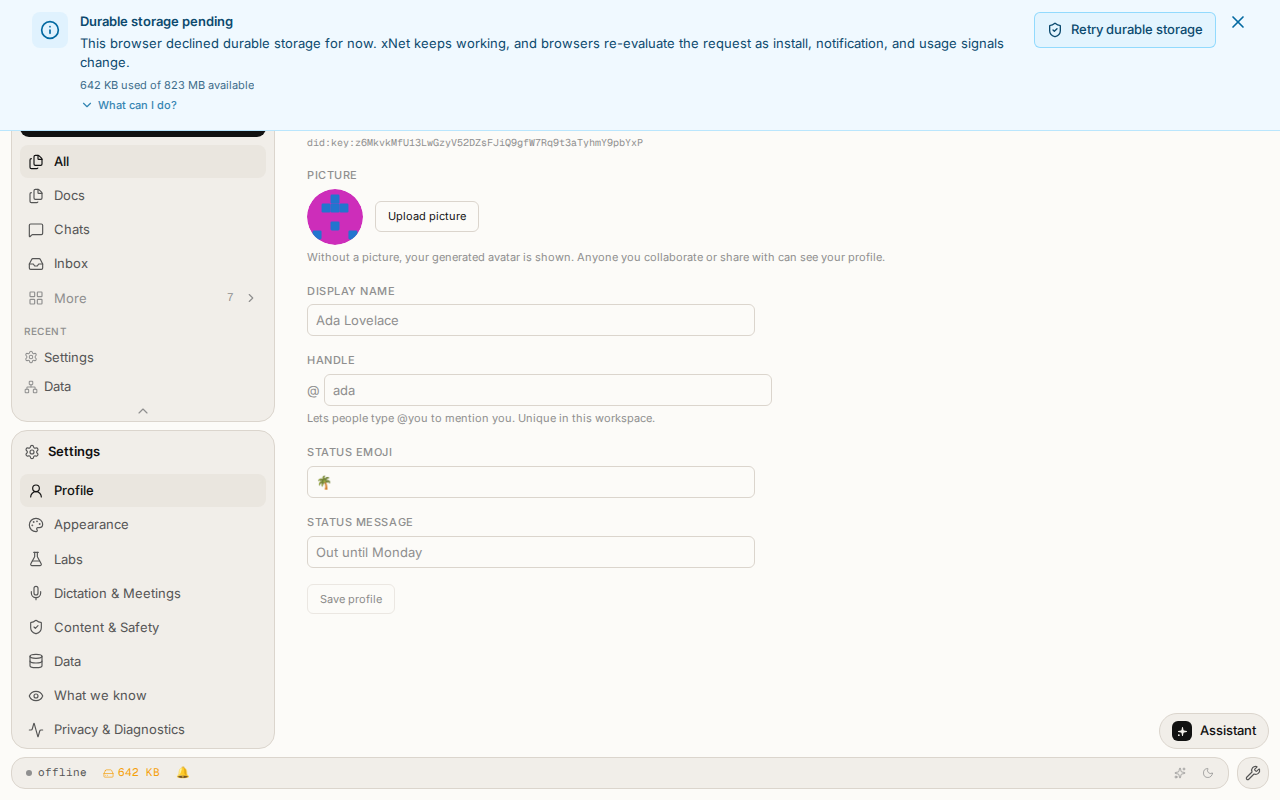

✏️ Settings _(SSIM 0.965)_

before	after	diff

Interactions

🎬 Open a channel and post a message

▶ Watch MP4

_{Auto-captured by CI · run. Informational — not a blocking check.}
