What changed

Preserve DOCX WordprocessingGroup (wpg) child shapes, text boxes, tables, and inline images that were previously dropped or partially parsed.

Why

docx-rs exposes only one child from a WPG group. The converter therefore lost sibling shapes and their text-box content. It also discarded group transforms, bodyPr text layout, and theme-backed colors.

Key changes

  • scan WPG groups from word/document.xml in document order
  • flatten nested group transforms into child positions and sizes
  • preserve supported shape geometry, fills, strokes, rich text-box blocks, tables, and inline images
  • retain text-box padding, vertical alignment, theme text colors, and geometry-aware text bounds
  • add strict real-world fixture assertions for grouped shape count, geometry, text, table cells, and layout metadata

Verification

  • cargo fmt --all -- --check
  • cargo test -p office2pdf (1083 passed)
  • cargo clippy -p office2pdf --all-targets -- -D warnings
  • Microsoft Word GT compared visually against matched Before and After renders at 120 DPI

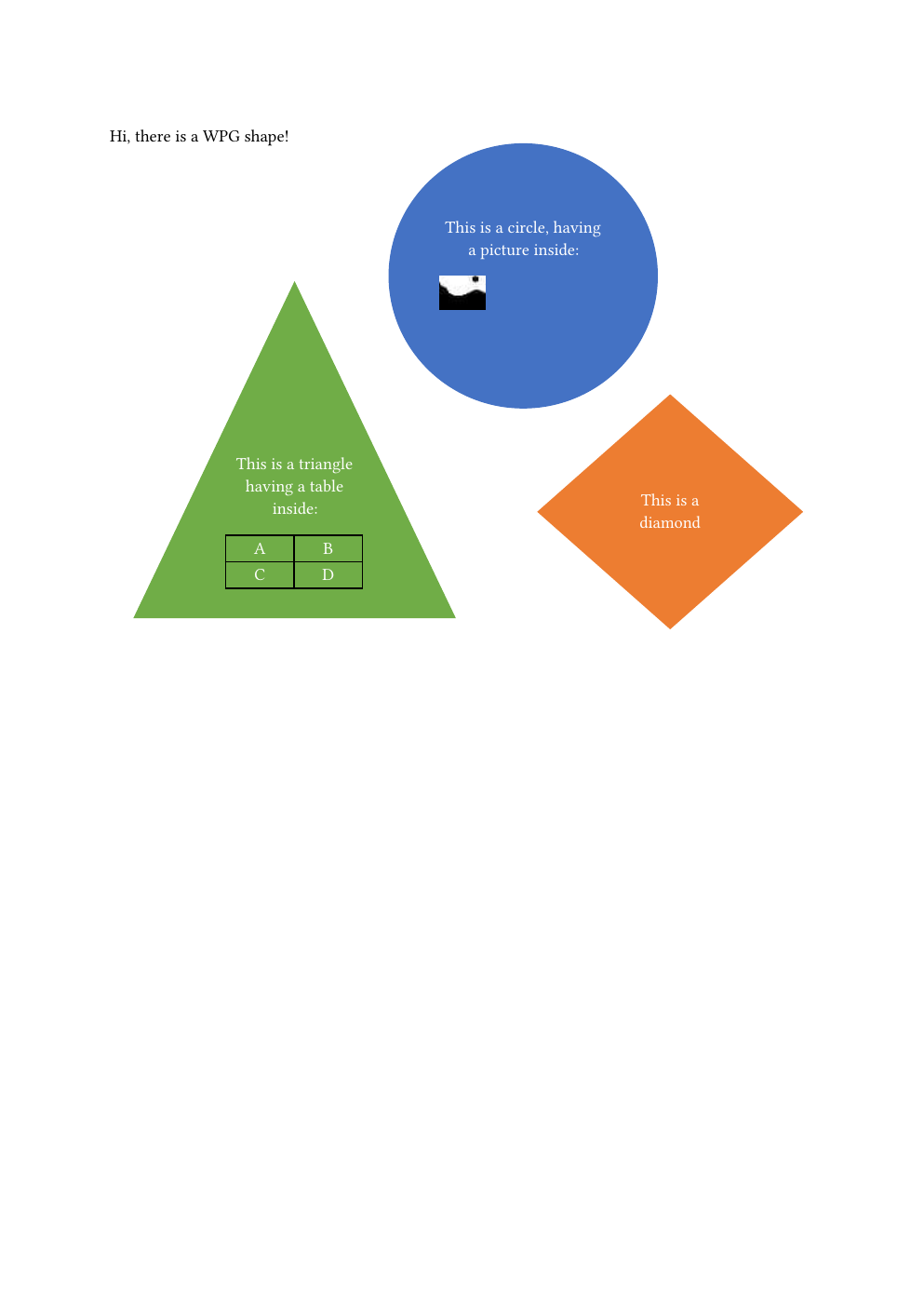

Visual comparison

Microsoft Word GT Before After
Microsoft Word GT Before After

Related: #200
Related: #195

Signed-off-by: Yonghye Kwon <developer.0hye@gmail.com>
