Jebao DP4 WiFi Hack Pics

Close up of DP4 controller card in the box

Pictures of the Front of the doser along with the VOSS bottles for chemicals

ESP8266 side of the wiring - follow the colors to the controller pics

Dosing tubes fed through plastic wire wrap to keep them together on way up to tank

Cable that will be removed so that ESP8266 can be connected to the controller (it is the white arched 5-wire cable)

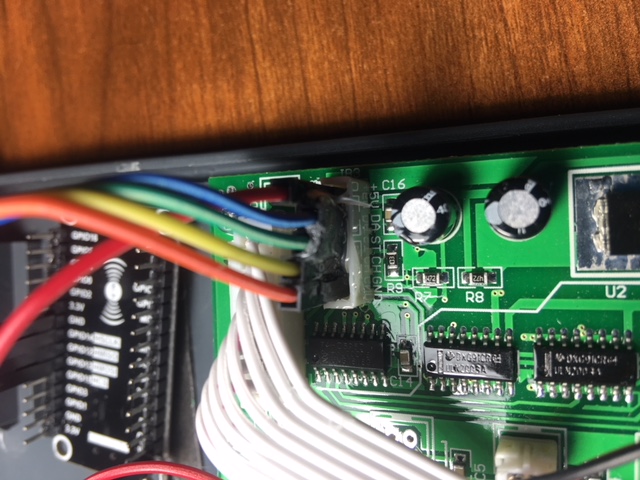

Close up of the colored wires from the ESP8266 plugged into the connector on the controller board
