Output files

Output files

Table: spoligotyping.tsv or <sample>_spoligotyping.txt

A tab-separated table with a header and one line per sample. The same table is printed to the screen.

Column	Example	Description
Sample	AF2122_97	Sample name
SpacerCount	56:47:0:58:...	Number of reads containing each spacer, spacers 1 to 43, separated by :. For assemblies, the number of contigs
Binary	1101101000001...	43 digits: 1 = spacer present (count ≥ MinCount), 0 = absent
Octal	664073777777600	15-digit octal code
Hexadecimal	6D-03-5F-7F-FF-60	Hexadecimal code, 6 blocks
Spoligotype	SB0140	SB number of the pattern in the Mbovis.org database, or Spoligo not found
FileType	fastq	File format: fastq (reads) or fasta (an assembly, or reads in fasta format: see Warnings)
Reads	1212727	Number of reads (or contigs) in the input
Depth	65	Reads only: estimated sequencing depth, all bases divided by 4.4 Mb
MinCount	5	Minimum count used to call a spacer present
Status	ok	ok, warning (see the next column) or failed
Warnings		Warnings, separated by |, or the error for failed samples
Species	M. bovis	From the regions of difference and the lineage SNPs, see Species and lineage
Lineage	BOV	Most specific lineage of the SNP barcode (e.g. 4.3.4.2, 2.2.1, BOV), or mixed: ...
LineageName	M. bovis	e.g. "Euro-American (LAM)", "East-Asian" (Beijing)
RD9, RD4, RD1	deleted	present, deleted or partial (also RD7 and RD12, the last two columns)
MTBCFraction	1.00	Reads only: estimated fraction of the reads from the M. tuberculosis complex
Closest	SB0140 (spacer 7 differs)	For a pattern not in the database: the closest SB numbers, up to 3 spacers away
RD7, RD12	deleted	present, deleted or partial
SIT	SIT451	Shared international type of the SITVIT2 database: a SIT, Orphan (a SITVIT2 pattern without SIT), or Spoligo not found. Empty without SIT database: see Installation
SITVIT2family	T-H37Rv	SITVIT2 spoligotype family of the pattern (also for orphan patterns), e.g. Beijing, LAM3, EAI5, BOV_1
ClosestSIT	SIT451 (spacer 12 differs)	For a pattern without SIT: the closest SITs, up to 3 spacers away

Columns are only ever added at the end: the first 6 are those of version 0.2, the next 6 were added in 0.3, the next 8 in 0.4 and the last 5 in 0.5. The species columns are empty with --no-species.

Octal code

The binary pattern is cut into 14 groups of 3 spacers, and each group is written as one octal digit (000 = 0, 001 = 1, ..., 111 = 7). Spacer 43 is the 15th digit, 0 or 1. It is the standard code used by SITVIT and in publications, and it can be converted back to the binary pattern.

Hexadecimal code

The binary pattern is cut into 6 blocks of 7, 7, 7, 7, 8 and 7 spacers, and each block is written as a 2-digit hexadecimal number.

Reading the counts

SpacerCount shows how confident each call is:

• Reads: present spacers usually have tens of reads and absent spacers 0. Counts close to MinCount deserve a second look, and spoligotyper warns about absent spacers seen in a few reads. See How it works.
• Paired-end reads: when a spacer is found in one read of a pair, both reads are counted, so counts are about twice the number of DNA fragments containing the spacer.
• Assemblies: counts are 0 or 1 (occasionally 2, if a spacer is split over two contigs or repeated).

JSON: spoligotyping.json or <sample>_spoligotyping.json

Everything in the table and the PDF report, for pipelines: for each sample the input files, codes, spacer counts, closest patterns, species check (with the depth of each region), lineage (with the reads supporting each SNP allele) and warnings, and the run information (software versions, parameters, checksums of the reference data).

MultiQC: spoligotyping_mqc.json or <sample>_spoligotyping_mqc.json

A MultiQC custom content file (JSON, so that octal codes keep their leading zeros) with the spoligotype, octal code, species, lineage and status of each sample. Run multiqc on the output folder to get a "Spoligotyping" section.

PDF report: spoligotyping_report.pdf or <sample>_spoligotyping.pdf

Made for quality assurance: everything needed to check a result, and to trace how it was produced. Example report (the three samples of the tutorial).

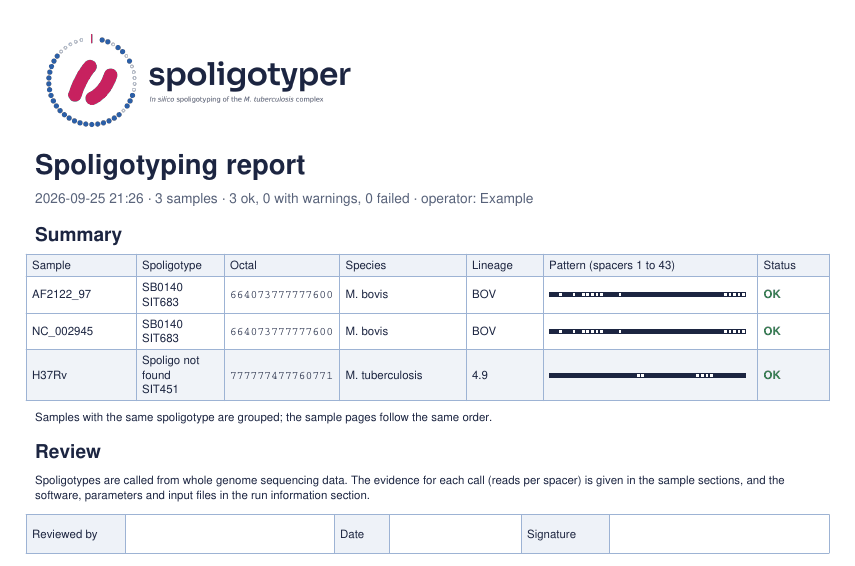

1. Summary: date, operator, and for each sample the spoligotype, octal code, species, lineage, pattern and status. Samples with the same spoligotype are grouped (the largest groups first; alternate groups shaded), and failed samples come last. Warnings and errors are listed below, followed by a box for the reviewer's name, date and signature.

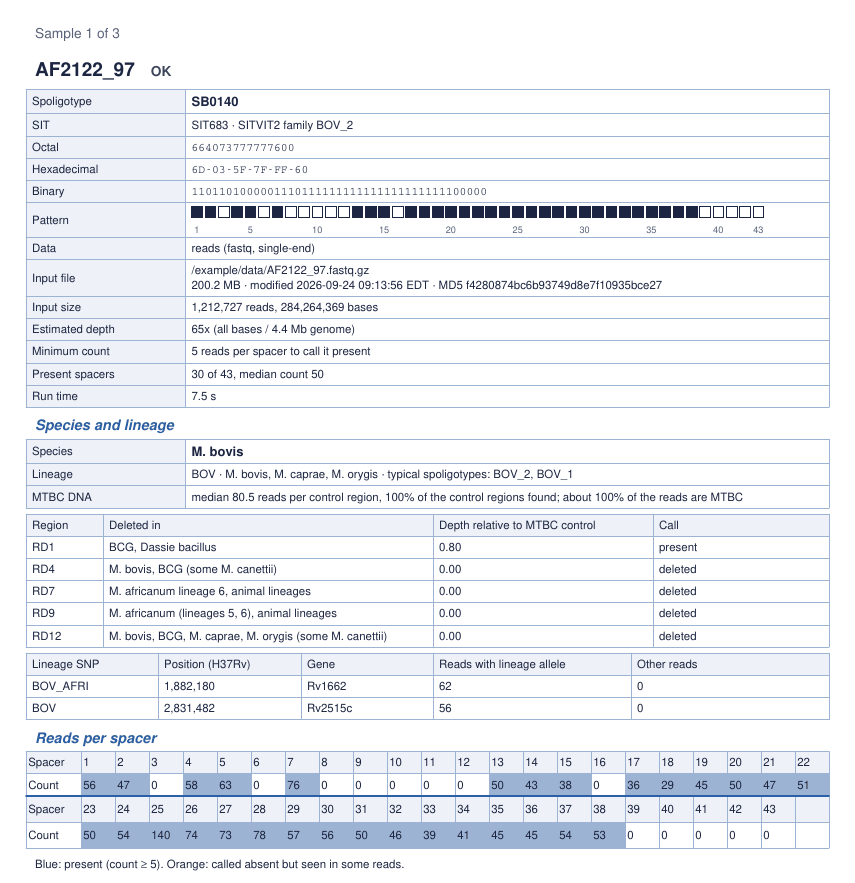

2. Samples: one page per sample, in the order of the summary, so its tables are never split, with
   • the spoligotype, octal, hexadecimal and binary codes, and the pattern;
   • the input files: full path (and the real file when it is a symbolic link), size, modification date and MD5 checksum;
   • the number of reads and bases, estimated depth, minimum count, number of present spacers and their median count;
   • the closest known patterns, when the pattern is not in the database;
   • the species and lineage: regions of difference with their relative depth, lineage with its name and typical spoligotype families, amount of MTBC DNA, and the reads supporting each lineage SNP;
   • the reads (or contigs) per spacer: present spacers in blue, absent spacers seen in some reads in orange;
   • the warnings, or the error of a failed sample.
3. Run information: operator, user, computer, operating system, start and end time (with time zone), working directory, the exact command, parameters, versions of spoligotyper, Python, BBTools and Java, path and MD5 checksum of the spoligotype database and of the spacer sequences, the method, and references.

Every page has the spoligotyper version, the date, user and computer, and "Page x of y" in the footer.

MD5 checksums take one to two seconds per GB of input. Use --no-md5 to skip them (in the PDF and the JSON), and --no-pdf to skip the PDF.
