What is GOPLC?

GOPLC is a full-featured PLC runtime written entirely in Go. It executes IEC 61131-3 Structured Text programs with industrial-grade features:

Multi-task scheduler with priorities, watchdogs, and microsecond-precision scan times
20+ protocol drivers including Modbus, EtherNet/IP, DNP3, BACnet, OPC UA, FINS, S7, IEC 104, Sparkplug B, KNX, M-Bus, SNMP, and ctrlX EtherCAT
ctrlX CORE EtherCAT I/O — native Data Layer IPC via Bosch SDK: 500 Hz polling, 0.69ms scan, 10x faster than REST
Built-in Web IDE with Monaco editor, statement-level debugger, and project management
Integrated Node-RED with 7 custom PLC nodes for building HMI dashboards
AI Assistant supporting Claude, OpenAI, and Ollama for code generation
1,900+ built-in functions covering math, strings, crypto, HTTP, databases, motion control, and more
Real-time capable with memory locking, CPU affinity, and GC tuning
Boss/Minion clustering scaling to 10,000+ PLC instances

Features

Core Runtime

Feature	Description
ST Parser	Full IEC 61131-3 Structured Text with extensions
Multi-task Scheduler	Cooperative scheduling with priorities (1-255)
Scan Times	From 100μs to hours, configurable per task
Watchdog Protection	Per-task watchdogs with fault/halt options
Hot Reload	Update individual tasks without stopping the runtime
Function Blocks	TON, TOF, TP, RTO, CTU, CTD, CTUD, R_TRIG, F_TRIG, SR, RS, SEMA
RETAIN Variables	Persistent variables across warm/cold restarts
Project Files	Single `.goplc` file contains programs, tasks, configs, HMI pages

1,900+ Built-in Functions

Category	Count	Highlights
Conversion	157	INT_TO_REAL, DWORD_TO_TIME, HEX_TO_INT
Data Structures	130	LIST_, MAP_, QUEUE_, STACK_, SET_, HEAP_, DEQUE_*
Crypto & Encoding	55	AES_, SHA, RSA_, JWT_, HMAC_, BASE64_, GZIP_*
MQTT & Sparkplug B	56	MQTT_PUBLISH, MQTT_SUBSCRIBE, SPARKPLUG_NODE_, SPARKPLUG_METRIC_
SNMP	47	SNMP_GET, SNMP_WALK, SNMP_AGENT_, SNMP_TRAP_ (v1/v2c/v3)
Resilience	40	CIRCUIT_BREAKER_, RATE_LIMIT_, RETRY_, CACHE_, BULKHEAD_*
Array (Functional)	50	ARRAY_SORT, ARRAY_FILTER, ARRAY_MAP, ARRAY_REDUCE, ARRAY_ZIP_WITH
Debug	35	DEBUG_TO_FILE, DEBUG_TO_SQLITE, DEBUG_TO_INFLUX, DEBUG_TO_SYSLOG
String & Regex	43	CONCAT, SPLIT, REGEX_, FORMAT, JSON_
JSON	25	JSON_PARSE, JSON_GET, JSON_SET, JSON_MERGE, JSON_PATH
Motion Control	23	MC_POWER, MC_MOVE_ABSOLUTE, MC_HOME, MC_JOG, GSV/SSV
HTTP & URL	22	HTTP_GET, HTTP_POST, URL_ENCODE, URL_PARSE, QUERY_STRING_*
Serial I/O	20	SER_OPEN, SER_READ, SER_WRITE, SERIAL_PORTS, SERIAL_FIND
Database	21	DB_CONNECT, DB_QUERY, DB_EXEC, DB_COMMIT, DB_LIST_TABLES
DateTime	23	NOW, DATE_, TIME_, ADD_TIME, DAY_OF_WEEK, TICK_MS
InfluxDB	16	INFLUX_CONNECT, INFLUX_WRITE, INFLUX_BATCH_ADD, INFLUX_BATCH_FLUSH
NMEA & GPS	26	NMEA_PARSE, NMEA_GET_LAT, GPS_DISTANCE, GPS_BEARING, GPS_IN_RADIUS
File & Config	35	FILE_READ, FILE_WRITE, CSV_PARSE, INI_READ, ZPL_BARCODE_128
Specialty Protocols	76	KNX_SEND, MBUS_PARSE, ARTNET_SEND, SACN_SEND, MIDI_NOTE_ON, OSC_SEND, AT_CMD
Math & Statistics	40	SIN, COS, SQRT, POW, MEDIAN, STDDEV, CORRELATION, PERCENTILE
Barcode & Scale	17	BARCODE_PARSE, BARCODE_GS1_GET, SCALE_PARSE, SCALE_GET_WEIGHT
+ OSCAT Library	557	Complete OSCAT Basic library (384 functions + 173 FBs)

Real-time Capabilities

realtime:
  enabled: true
  mode: container          # container | host | off
  lock_os_thread: true     # Pin goroutines to OS threads
  cpu_affinity: [2, 3]     # Pin to specific CPU cores
  memory_lock: true        # mlockall() to prevent page faults
  gc_percent: 500          # Reduce GC frequency
  rt_priority: 50          # SCHED_FIFO priority (requires privileges)

Web IDE

GOPLC includes a full-featured browser-based IDE built on 18 modular JavaScript components:

IDE Features

Monaco Editor with full IEC 61131-3 syntax highlighting
Project Tree showing tasks, programs, functions, libraries
Live Variable Watch with real-time updates via WebSocket
Runtime Control - Start/Stop/Reset/Upload/Download
Project Management - New/Open/Save/Export/Import (.goplc format)
Task Configuration - Priorities, scan times, watchdogs
Per-Task Hot Reload - Update one task without stopping others
Multi-Runtime Switch - Connect to different PLC instances
Hash-Based Sync Indicator - Shows if IDE matches runtime code
Config Editor - YAML configuration with syntax highlighting
Cross-Reference Search - Find variable/function usage across all programs
Tags Browser - Browse all tags with sorting and filtering

Online Mode

CoDeSys-style live variable debugging — monitor and modify PLC variables in real-time while the program executes:

Split-Panel Layout - Variable list panel alongside the editor with no layout shift
Click-to-Edit Values - Click any variable value to write a new value to the running PLC
250ms Live Updates - Continuous polling with change highlighting
Boolean Coloring - TRUE values in green, FALSE in red
Type-Based Formatting - Specialized display for BOOL, INT, REAL, TIME, STRING
FB Instance Support - View function block member variables
Pause/Step/Resume - Per-scan stepping for system-level debugging

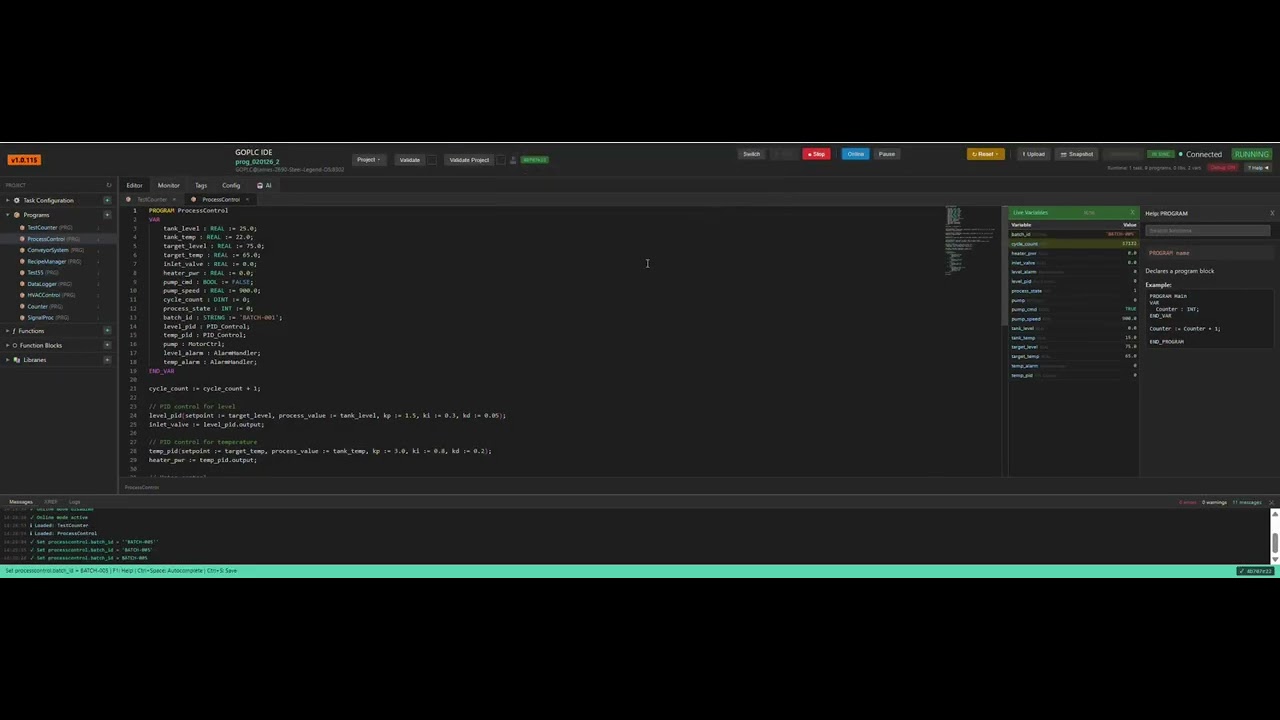

Click to watch: Online Live View Demo

IDE Screenshots

Monitor - Variables Live task/variable view with Watch List	Watch List Real-time variable monitoring
Config Editor YAML configuration with syntax highlighting	Cross Reference Search across all programs
DataLayer Sync Multi-PLC variable synchronization	ESP32 HMI Hardware status display

Debugger

Full statement-level step debugger comparable to CoDeSys and commercial PLC IDEs. Zero runtime overhead when disabled — a single atomic boolean check on the fast path.

Debug Controls

Action	Shortcut	Description
Continue	F5	Resume execution until the next breakpoint
Step Over	F10	Execute the current line, skip over function/FB calls
Step Into	F11	Step into function and function block calls
Step Out	Shift+F11	Run until the current function/FB returns

Debug Features

Line Breakpoints - Click the editor gutter to set/clear breakpoints on any ST line
Breakpoint Enable/Disable - Toggle breakpoints without removing them
Call Stack - View the full function block / function call chain at each stop
Variable Inspection - Examine all variables and their current values at each step
Multi-Task Broadcast - When any task hits a breakpoint, ALL tasks pause for a consistent system snapshot
Watchdog Auto-Suspend - Watchdog timers automatically suspend while stopped in the debugger
Hit Counter - Track how many times each breakpoint has been triggered

Debug API

# Enable the debugger
curl -X POST http://localhost:8082/api/debug/step/enable

# Set a breakpoint at line 15 of MainProgram
curl -X POST http://localhost:8082/api/debug/step/breakpoints \
  -d '{"program": "MainProgram", "line": 15}'

# Continue execution
curl -X POST http://localhost:8082/api/debug/step/continue

# Step into the next statement
curl -X POST http://localhost:8082/api/debug/step/into

# Step over the current statement
curl -X POST http://localhost:8082/api/debug/step/over

# Step out of the current function/FB
curl -X POST http://localhost:8082/api/debug/step/out

# Get current debug state (position, stopped status, call stack)
curl http://localhost:8082/api/debug/step/state

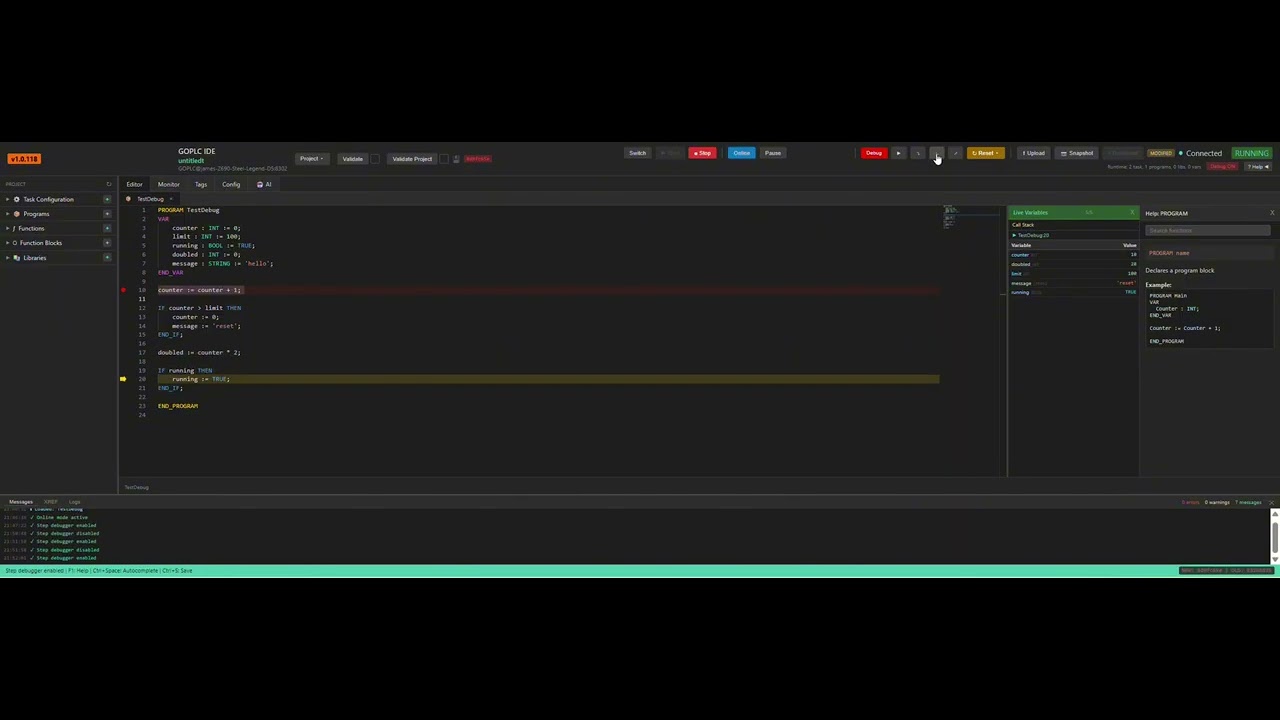

Click to watch: Debugger Walkthrough

Node-RED Integration

GOPLC manages Node-RED as an integrated subprocess with full lifecycle management, a reverse proxy, and 7 custom PLC nodes for building industrial HMI dashboards — all accessible through the same port as the Web IDE.

How It Works

GOPLC (port 8082)
├── /ide/          → Web IDE
├── /nodered/      → Node-RED editor (reverse proxied)
├── /hmi/          → Built-in HMI pages
└── /api/          → REST API

Node-RED auto-starts with GOPLC and auto-restarts on crash (exponential backoff)
No separate port needed — reverse proxy serves Node-RED through GOPLC's API port
GOPLC host/port injected into Node-RED's global context for zero-config node connections

7 Custom PLC Nodes

Node	Description
goplc-connection	Config node — auto-detects host/port from global context
goplc-read	Read a single variable or all variables from the PLC
goplc-write	Write values to PLC variables
goplc-subscribe	Real-time WebSocket variable updates with on-change filtering
goplc-runtime	Start/stop/status control of the PLC runtime
goplc-task	Task management — reload, status, per-task control
goplc-cluster	Read/write variables on cluster minions via boss proxy

Dashboard Support

Auto-installs @flowfuse/node-red-dashboard (Dashboard 2.0) for building operator HMI screens. Includes demo flows:

Industrial HMI Demo - Water treatment plant dashboard with live gauges, trends, and alarm panels
Dual Runtime - Multi-PLC communication and monitoring
Quick Start Dashboard - Simple template to get started

AI Flow Generation

The AI assistant can generate complete Node-RED flows from natural language descriptions. Generated flows include custom PLC nodes pre-configured for the current runtime. Import directly from the AI chat with one click.

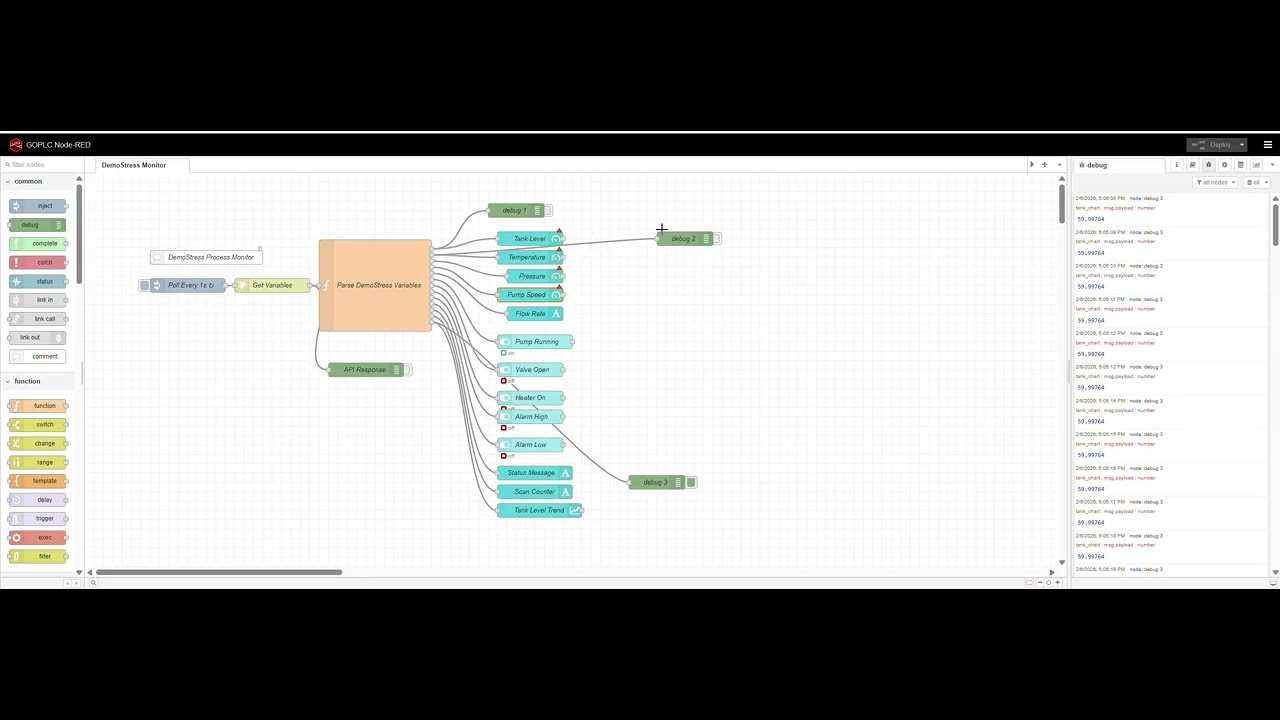

Click to watch: Node-RED Integration Walkthrough

Configuration

nodered:
  enabled: true
  port: 1880                    # Node-RED internal port
  auto_start: true
  restart_on_crash: true
  max_restarts: 5
  restart_backoff_ms: 2000
  user_dir: "data/nodered"
  flow_file: "flows.json"
  credential_secret: ""         # Optional encryption key
  extra_modules:                # Auto-install on startup
    - "@flowfuse/node-red-dashboard"

Node-RED API

# Check Node-RED status (uptime, PID, restart count)
curl http://localhost:8082/api/nodered/status

# Start/stop/restart Node-RED subprocess
curl -X POST http://localhost:8082/api/nodered/start
curl -X POST http://localhost:8082/api/nodered/stop
curl -X POST http://localhost:8082/api/nodered/restart

AI Assistant

Built-in AI coding assistant that understands all 1,900+ ST functions and can generate Structured Text code, HMI pages, and Node-RED flows from natural language descriptions.

Multi-Provider Support

Provider	Models	Use Case
Claude (Anthropic)	claude-sonnet-4-20250514 (default)	Best ST code quality
OpenAI	GPT-4o, GPT-4, etc.	Alternative cloud provider
Ollama	qwen2.5-coder, deepseek-r1, etc.	Fully local/offline

What It Can Generate

Structured Text Programs - PID loops, state machines, alarm handlers, protocol integrations. Detected as iec code blocks with an "Insert as Program" button.
HMI Pages - Custom web dashboards with live PLC data. Detected as HTML with "Preview" and "Save as HMI Page" buttons.
Node-RED Flows - Complete flow JSON with custom PLC nodes. Detected automatically with an "Import to Node-RED" button.

Context-Aware

The AI receives the full function registry (1,900+ signatures with return types), current runtime variables, active tasks, and loaded programs as context — so it generates code that works with your specific setup.

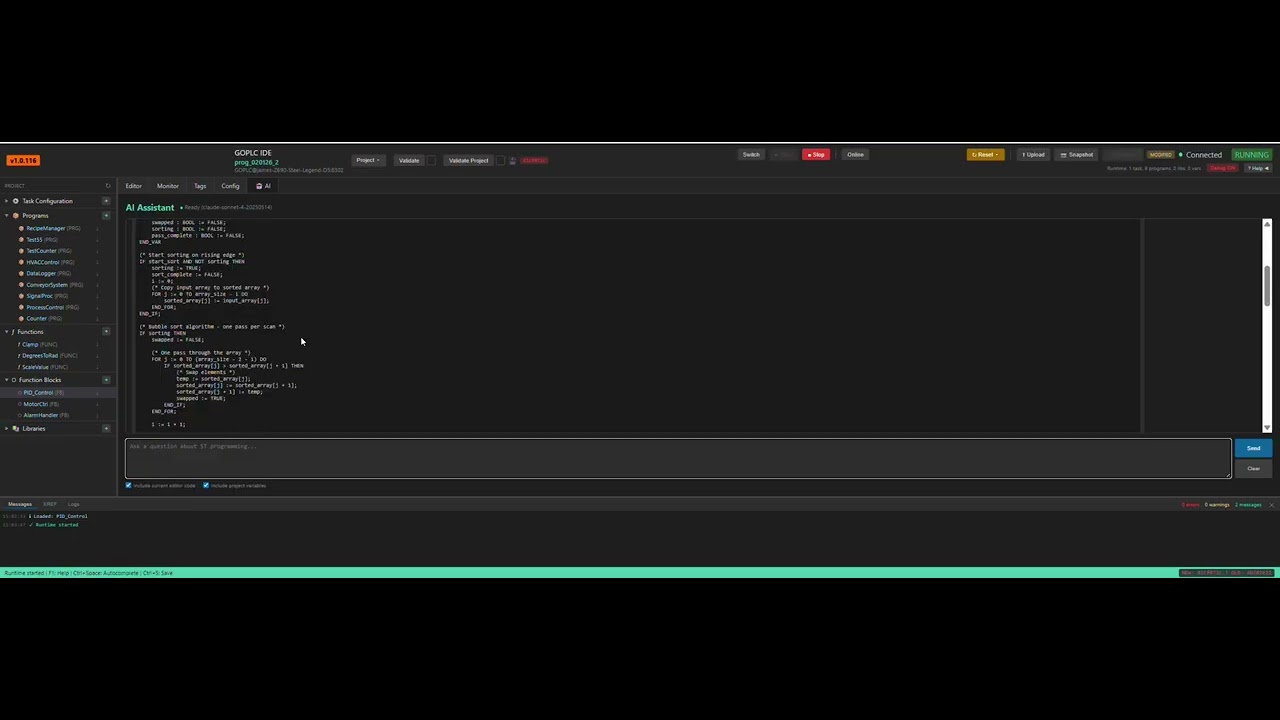

Click to watch: AI Code Writing Demo

Configuration

ai:
  enabled: true
  provider: "claude"            # claude | openai | ollama
  api_key_env: "ANTHROPIC_API_KEY"
  model: "claude-sonnet-4-20250514"
  endpoint: ""                  # Required for Ollama (e.g., http://localhost:11434/v1)
  max_tokens: 8192
  temperature: 0.3

Agentic Control Loop

An autonomous AI control agent that operates the PLC directly — separate from the code-writing assistant. Instead of generating code for a human to review, it reads sensors, writes setpoints, deploys programs, and manages tasks via tool calls in a multi-turn loop.

12 Built-in Control Tools

Tool	Category	Description
`read_variable`	Read-only	Read current PLC variable value
`list_variables`	Read-only	List all variables with optional prefix filter
`get_task_status`	Read-only	All task states, scan times, faults
`get_diagnostics`	Read-only	Memory, uptime, scan stats
`get_faults`	Read-only	Active task fault messages
`write_variable`	Normal	Write setpoint or control variable
`reload_task`	Normal	Hot-reload task without stopping others
`start_task`	Normal	Start named task or all tasks
`create_manifest`	Normal	Register hardware descriptor
`create_hmi_page`	Normal	Generate Node-RED Dashboard 2.0 flow
`deploy_program`	Normal	AI-generate and deploy a control program
`stop_task`	Critical	Stop a running task

curl -X POST http://localhost:8082/api/ai/control \
  -H "Content-Type: application/json" \
  -d '{
    "message": "Ramp the temperature setpoint to 50 degrees and start the pump",
    "max_turns": 6
  }'

The response includes actions_executed — a full log of every tool call and result — and turns_used showing how many AI iterations were needed. Multi-turn conversation history is supported for follow-up instructions.

Hardware Manifests

Declarative YAML descriptors for physical hardware. GOPLC reads manifests and auto-generates a SysInit_{id} ST program that opens hardware channels on startup and maps sensor readings to named PLC variables.

id: "greenhouse_1"
name: "Tomato Greenhouse"
hardware:
  - id: "temp_sensor"
    type: "phidgets"
    channel_type: "temperature"
    serial: -1          # -1 = any connected device
    hub_port: 0
    st_var: "temp_c"

  - id: "heater_relay"
    type: "phidgets"
    channel_type: "digital_output"
    hub_port: 2
    st_var: "heater_on"

  - id: "custom_sensor"
    type: "custom"
    open_call: "MY_DEVICE_OPEN('{name}')"
    read_call: "MY_DEVICE_READ('{name}')"
    write_call: "MY_DEVICE_WRITE('{name}', {var})"

GOPLC generates VAR_GLOBAL declarations for all st_var bindings and a startup sequence that initializes each hardware channel. Manifests can be created manually, via API, or through the agentic control loop.

API:

GET    /api/system/manifests              # List all manifests
POST   /api/system/manifests              # Create manifest
PUT    /api/system/manifests/:id          # Update manifest
DELETE /api/system/manifests/:id          # Delete manifest

HMI Builder

Create and serve custom web-based operator displays directly from the IDE.

Built-in Default Dashboard

GOPLC ships with a default HMI dashboard at /hmi/default-dashboard showing:

Runtime state, uptime, scan count, and memory usage
Live trend charts for task scan times
System information and feature summary

Custom Pages

Create custom HTML pages via the AI assistant or manually
Pages stored inside the .goplc project file (portable, single-file deployment)
Helper library (goplc-hmi.js) provides variable read/write from HMI pages
Served at /hmi/:page-name with no additional configuration

HMI API

# List all HMI pages
curl http://localhost:8082/api/hmi/pages

# Create a new page
curl -X POST http://localhost:8082/api/hmi/pages \
  -d '{"name": "tank-overview", "content": "<html>...</html>"}'

# Get/update/delete pages
curl http://localhost:8082/api/hmi/pages/tank-overview
curl -X PUT http://localhost:8082/api/hmi/pages/tank-overview -d '{"content": "..."}'
curl -X DELETE http://localhost:8082/api/hmi/pages/tank-overview

Config Wizard

Searchable topic browser with static forms and AI-assisted setup that generates ready-to-apply YAML configuration. Lowers the barrier for configuring protocols, clustering, and services.

Available Topics

Topic	Mode	Description
AI Setup	Form	Configure AI provider, API key, model
Modbus Server	Form	TCP server with register mapping
Modbus Client	Form	TCP client with polling intervals
OPC UA Server	Form	Server configuration
FINS	Form	Omron FINS protocol setup
EtherNet/IP	Form	Adapter and scanner configuration
DNP3	Form	Master/outstation setup
S7comm	Form	Siemens S7 configuration
Cluster Boss	Form	Boss with member list (add/remove rows)
Cluster Minion	Form	Minion with unix socket
I/O Mapping	Form	Map ST variables to protocol addresses
Modbus Bridge	AI	Custom gateway configurations
Performance	AI	Tuning and optimization guidance
Real-time	AI	RT container mode setup
DataLayer	AI	Multi-PLC sync configuration

Each form generates a YAML snippet that can be applied via hot-reload — no restart needed.

Protocols

GOPLC includes 60,000+ lines of protocol code for seamless integration with existing automation systems.

Industrial & Specialty Protocols

Protocol	Role	Transport	Lines	Target Systems
Modbus TCP/RTU	Server + Client	TCP, UDP, Serial	7,241	Universal - PLCs, VFDs, meters, sensors
DNP3	Master + Outstation	TCP, UDP, Serial	13,354	SCADA - Electric, water, gas utilities
BACnet/IP & MSTP	Server + Client	UDP, RS-485	7,883	Building automation - HVAC, fire, access
EtherNet/IP	Adapter + Scanner	TCP, UDP	5,388	Allen-Bradley - CompactLogix, ControlLogix
OPC UA	Server + Client	TCP	4,496	Modern - Cloud integration, MES, SCADA
FINS	Server + Client	TCP, UDP	3,565	Omron - NX, NY, CP, CJ series PLCs
S7comm	Server + Client	TCP (TPKT/COTP)	2,441	Siemens - S7-300, S7-400, S7-1200, S7-1500
IEC 60870-5-104	Client + Server	TCP	2,100	Utilities - Power grid SCADA, substation automation
Sparkplug B	Node + Host	MQTT + Protobuf	1,800	IIoT - Unified Namespace, SCADA/MES integration
PROFINET	Server + Client	TCP, UDP	1,997	Siemens - Real-time industrial Ethernet
SEL	Server + Client	Serial	1,758	Protective relays - Power system monitoring
SNMP v1/v2c/v3	Client + Agent + Trap	UDP	3,597	Network devices - Switches, UPS, sensors
DF1	Client	Serial	1,417	Allen-Bradley legacy - SLC 500, MicroLogix, PLC-5
KNX	Client	UDP/Multicast	600	Building automation - Lighting, blinds, HVAC
M-Bus	Master	TCP, Serial	700	Utility metering - Water, gas, heat, electric
ctrlX EtherCAT	DI + DO	REST or Native IPC	1,200	Bosch ctrlX CORE - EtherCAT I/O modules
Phidgets	Sensors + Actuators	USB/VINT	800	Phidgets USB/VINT sensor and actuator modules

Specialty Communication

Protocol	Functions	Transport	Use Case
Art-Net / DMX512	7	UDP	Stage lighting, architectural lighting control
sACN / E1.31	7	UDP Multicast	Entertainment lighting with priority control
MIDI	16	Serial/USB	Music production, audio equipment control
OSC	12	UDP	Audio/visual software, show control
AT Commands	13	Serial	Cellular modems, GSM/GPS modules
NMEA 0183	17	Serial	GPS receivers, marine electronics

Protocol Features

Modbus TCP/RTU - Click to expand

Full function code support (FC01-06, FC15-16)
Coils, discrete inputs, holding registers, input registers
RTU framing with CRC-16
RS-485 half-duplex with RTS control
Connection pooling and retry logic
Diagnostics counters (FC08)
Gateway mode (TCP to RTU bridge)

DNP3 - Click to expand

Complete Master and Outstation implementation
Binary/Analog inputs and outputs
Counters with freeze support
Event buffering with classes (1, 2, 3)
Unsolicited responses
Select-Before-Operate (SBO) control
Time synchronization
Serial transport (RS-232/RS-485)
Data link layer with FCB/FCV
Store-and-forward with SQLite buffering, GZIP compression, AES-256-GCM encryption

BACnet/IP & MSTP - Click to expand

BACnet/IP over UDP (port 47808)
BACnet/MSTP over RS-485 (token passing)
All standard object types (AI, AO, AV, BI, BO, BV, MI, MO, MV)
COV (Change of Value) subscriptions
ReadPropertyMultiple for efficient polling
Priority arrays (1-16) for commandable objects
Schedule and Calendar objects
TrendLog objects
Alarm and Event services
Segmentation for large responses
Device discovery (Who-Is/I-Am)

EtherNet/IP - Click to expand

CIP (Common Industrial Protocol) messaging
Adapter mode (expose tags to scanners)
Scanner mode (read/write remote tags)
Explicit messaging (TCP port 44818)
Implicit I/O (UDP port 2222)
ForwardOpen/ForwardClose connections
Unconnected messaging (UCMM)
Assembly objects for I/O data

OPC UA - Click to expand

Server and Client implementation
Secure channel management
Session authentication
Node browsing
Read/Write attributes
Subscriptions with monitored items
Method calls
Security policies (None, Basic256Sha256)

SNMP v1/v2c/v3 - Click to expand

SNMP v1, v2c, and v3 support
GET, SET, GETNEXT, GETBULK operations
WALK for MIB traversal
Trap receiver
SNMPv3 authentication (MD5, SHA)
SNMPv3 privacy (DES, AES)
ASN.1 BER encoding

Sparkplug B v3.0 - Click to expand

Eclipse Sparkplug B specification v3.0 over MQTT
Node lifecycle: NBIRTH, NDEATH, NDATA, NCMD
Protobuf-encoded payloads with sequence numbering
Metric types: boolean, integer, float, string with timestamps
Command subscription for remote control (NCMD)
Birth certificate on connect, death certificate via MQTT will
Multi-metric batch publishing per NDATA message
26 ST functions for full node lifecycle management

IEC 60870-5-104 - Click to expand

Full Client and Server implementation
APCI frame handling (I, S, U formats)
ASDU types: single/double-point, measured values, step position, normalized/scaled/short floating point
Interrogation commands (station and group)
Command types: single, double, regulating step, set-point
Time-tagged variants for all information types
26 ST functions for IEC 104 operations
Connection state machine with T1/T2/T3 timers

ctrlX EtherCAT I/O - Click to expand

Two transport modes switchable from ST code — no recompilation needed
REST mode ('rest'): HTTP/TLS to ctrlX Data Layer REST API. Works everywhere, 100ms default poll
Native IPC mode ('dl'): Direct function calls via official Bosch ctrlx-datalayer-golang/v2 SDK (CGo). 2ms poll, 500 Hz I/O, sub-millisecond latency
10 ST functions: CTRLX_EC_CREATE, START, STOP, CONNECTED, READ_DI, WRITE_DO, READ_DO, STATS, BROWSE, DELETE
CTRLX_EC_WRITE_DO returns FALSE when disconnected — ST-level connection loss detection
Verified on Bosch ctrlX CORE X3 (ARM64 Cortex-A53) with physical loopback DO→DI
Snap bundles libcomm_datalayer.so + libsystemd.so for native IPC at runtime

Performance (measured on X3 hardware):

Metric	REST Mode	Native IPC Mode
Poll interval	100ms	2ms
Avg scan	1.2ms	0.69ms
I/O update rate	10 Hz	500 Hz
Determinism	Variable (HTTP stack)	Consistent (IPC)

Communication Layer

Module	Purpose	Transport	Features
DataLayer	Multi-PLC sync	TCP, Shared Memory	Real-time variable sharing, <1ms latency, prefix filtering
MQTT	IoT/Cloud	TCP, TLS	Publish variables, subscribe to commands, QoS 0/1/2
HTTP/REST	Integration	TCP	60+ API endpoints, WebSocket streaming, SSE watch
Store-and-Forward	Reliability	SQLite	Offline buffering, GZIP compression, AES-256 encryption
Serial	Legacy	RS-232/485	Configurable baud, parity, RTS/CTS flow control

Hardware Abstraction Layer (HAL)

Tested & Production Ready:

Device	Interface	I/O Type	Use Case
Nextion HMI	Serial/UART	Touch Display	Local operator interface
USB Camera	rpicam-still	Vision	Barcode, QC inspection
ESP32 Remote I/O	Modbus TCP	WiFi I/O Module	Wireless sensors/actuators
Raspberry Pi GPIO	Direct	Digital I/O	Edge computing, local control
PCF8574	I2C	8-bit I/O Expander	Expand GPIO count
Grove ADC	I2C	Analog Input	Seeed Studio sensors
Phidgets	USB/VINT	Multi-sensor	Temperature, humidity, voltage, current, relays, motors, encoders (simulation mode; real hardware via CGO extension)
ctrlX EtherCAT I/O	REST or Native IPC	16 DI + 16 DO	Bosch ctrlX CORE — 500 Hz native IPC, 0.69ms scan, verified on X3 hardware

Hobbyist & Maker Integrations:

GOPLC bridges the gap between industrial automation and hobbyist/maker hardware. All devices use USB serial with automatic port discovery, heartbeat monitoring, and auto-recovery on disconnect/reconnect.

Device	Interface	Functions	Capabilities
Parallax Propeller 2	Serial/USB	56 ST functions	8-core MCU — GPIO, Smart Pins, UART, I2C, SPI, ADC/DAC, PWM, encoder, frequency counter, OLED SSD1306, servo
Teensy 4.x	Serial/USB	40+ ST functions	ARM Cortex-M7 — GPIO, ADC, PWM pairs, encoder, frequency counter, CAN bus, I2C, SPI, UART, PID, NeoPixel, OLED, RTC, TRNG
RP2040 / Pico	Serial/USB	25+ ST functions	Dual-core ARM — GPIO, ADC, PWM, I2C, SPI, UART, NeoPixel, OLED, servo, ultrasonic, temperature
Arduino R4 WiFi	Serial/USB	20 ST functions	Digital/analog I/O, servo, I2C, WiFi, BLE, LED matrix, temperature, ultrasonic
Flipper Zero	Serial/USB	35 ST functions	GPIO, buttons, IR TX/RX, Sub-GHz TX/RX, NFC, RFID — custom binary FAP driver

Implemented - Testing Soon:

Device	Interface	I/O Type	Use Case
Orange Pi GPIO	Direct	Digital I/O	Cost-effective edge nodes
ADXL345	I2C	Accelerometer	Vibration monitoring
DHT11/22	1-Wire	Temp/Humidity	Environmental sensing
TFT Display	SPI	Graphics Display	Custom HMI screens

Planned:

Device	Interface	I/O Type	Use Case
MCP3008	SPI	8-ch 10-bit ADC	Analog sensor input
ADS1115	I2C	4-ch 16-bit ADC	Precision measurement
MAX31855	SPI	Thermocouple	High-temp sensing
MCP23017	I2C	16-bit I/O Expander	More GPIO
W5500	SPI	Ethernet	Wired network on MCU

Protocol Analyzer

Built-in packet capture and analysis with support for all protocols:

# Start capture with filters
curl -X POST http://localhost:8082/api/analyzer/start \
  -d '{"protocols": ["modbus-tcp", "dnp3", "bacnet"]}'

# View captured transactions
curl http://localhost:8082/api/analyzer/transactions?limit=100

# Export to Wireshark
curl http://localhost:8082/api/analyzer/export/pcap -o capture.pcap

# Decode raw packet
curl -X POST http://localhost:8082/api/analyzer/decode \
  -d '{"protocol":"modbus-tcp","raw_hex":"00 01 00 00 00 06 01 03 00 00 00 0A"}'

Supported decoders: Modbus TCP/RTU, DNP3, BACnet/IP, EtherNet/IP, OPC UA, S7, FINS, IEC 104, SEL

Protocol Coverage by Industry

Industry	Protocols
Manufacturing	Modbus, EtherNet/IP, PROFINET, S7, FINS, OPC UA, Sparkplug B
Building Automation	BACnet/IP, BACnet/MSTP, KNX, Modbus, SNMP, OPC UA
Utilities/SCADA	DNP3, IEC 104, Modbus, SEL, M-Bus, OPC UA
Oil & Gas	Modbus, DNP3, OPC UA, EtherNet/IP, Sparkplug B
Water/Wastewater	DNP3, Modbus, OPC UA, Sparkplug B
Power Generation	DNP3, IEC 104, Modbus, SEL, IEC 61850 (planned)
Food & Beverage	EtherNet/IP, Modbus, OPC UA, S7
Pharmaceutical	OPC UA, Modbus, S7, EtherNet/IP
Data Centers	SNMP, Modbus, BACnet, Sparkplug B
Entertainment/AV	Art-Net, sACN, MIDI, OSC
Marine/Fleet	NMEA 0183, GPS, Modbus, MQTT

Clustering

GOPLC supports distributed PLC architecture using a Boss/Minion pattern that scales to 10,000+ instances on a single machine.

Boss/Minion Architecture

Boss PLC (coordinator, port 8082)
├── Unix Socket → Minion: CRAC controller
├── Unix Socket → Minion: Fire suppression
├── Unix Socket → Minion: Power distribution
└── TCP fallback → Minion: Remote site

Boss aggregates and proxies API calls to all minions
Minions are fully isolated PLC instances (own scheduler, protocols, data)
Communication via Unix sockets (same host) or TCP (networked)
All minion access goes through the Boss API — minions never exposed directly
Nested proxy supports multi-tier topologies: Supervisor → Edge Boss → Minions

Per-Task Hot Reload

Deploy updates to individual tasks without stopping the runtime:

# Reload only the MQTTTask — MainTask keeps running
curl -X POST http://localhost:8082/api/tasks/MQTTTask/reload

Cluster API

# Read variables from a specific minion
curl http://localhost:8082/api/cluster/crac/api/variables

# Write to a minion's variable
curl -X PUT http://localhost:8082/api/cluster/fire/api/variables/AlarmActive \
  -d '{"value": true}'

# Reload a task on a specific minion
curl -X POST http://localhost:8082/api/cluster/pdu/api/tasks/MainTask/reload

# Nested: supervisor → edge boss → minion
curl http://localhost:8082/api/cluster/edge-boss/api/cluster/crac/api/variables

Fleet Management

Remote management of distributed GOPLC instances from the Boss IDE:

mDNS Auto-Discovery — automatically finds GOPLC nodes on the local network via DNS-SD
Persistent Node Registry — fleet-registry.json survives restarts, manual node add/remove
Snapshot Store — SQLite metadata + gzip files on disk, auto-save on download/import, auto-prune at 50 local snapshots
Remote Snapshot Management — browse any node's history, push snapshots (single or bulk), drift detection across healthy nodes
Project Deploy — atomic restore+validate+download+start in one API call (POST /api/project/deploy)
System Control — graceful shutdown (POST /api/system/shutdown), process re-exec restart (POST /api/system/restart), runtime restart
Fleet UI — per-node snapshot browser, deploy/multi/export/delete, collect/export/purge toolbar, drift banner, column sorting, auto-refresh 15s

DataLayer Mesh

Minions publish DL_* prefixed variables to the Boss via DataLayer. The Boss aggregates variables from all minions and rebroadcasts, creating a real-time variable mesh across the cluster.

Configuration

# Boss config
api:
  port: 8082
  cluster:
    members:
      - name: crac
        socket: /run/goplc/crac.sock
      - name: fire
        socket: /run/goplc/fire.sock
      - name: remote-plc
        url: http://10.0.0.50:8500

# Minion config
api:
  socket: /run/goplc/crac.sock   # No port needed

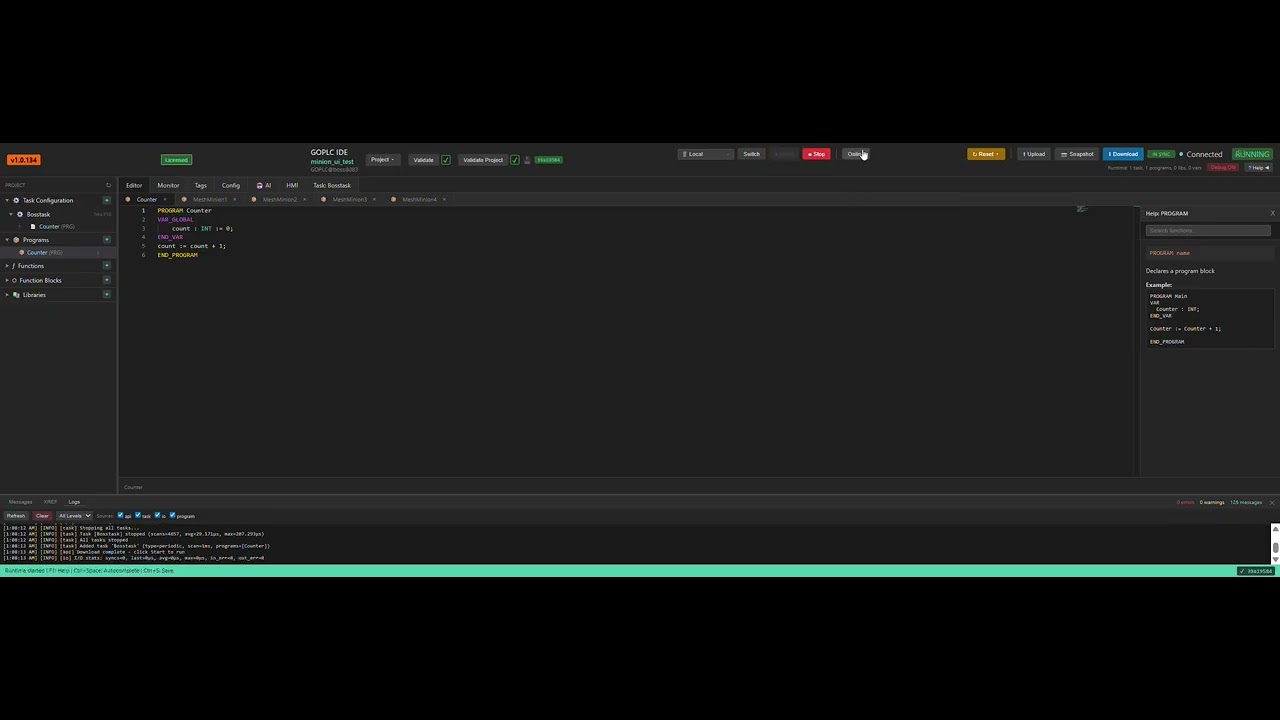

Click to watch: Boss/Minion Cluster Demo — single-port IDE controlling boss and minions with separate tasks, scan times, and live variable windows

Distributed Performance (Whitepaper Results)

Measured on a 24-core / 32-thread AMD system running PID loop workloads:

Metric	Result
Monolithic vs. Distributed	10.4x throughput improvement (same 1,000-line workload, 10 minions)
Linear Scaling	97.7% efficiency at 400 minions, 94.9% at 500
Peak Throughput	620,949 aggregate scans/s at 50μs scan (31 minions, 100.1% efficiency)
DataLayer Latency	1.7μs avg, 5.5μs p95, 8.2μs p99
RT Mode Jitter	5.5x reduction at p95 (890μs → 163μs)
Container Overhead	~2% scan time, 0% scaling efficiency
Projected (768 threads)	~13M aggregate scans/s, ~12,000 simultaneous PID loops

Industry Comparison:

Platform	Min Cycle	Max Cores	Aggregate Scans/s	Architecture
Beckhoff TwinCAT 3	50μs	4-8 (1 per task)	~20,000	Windows CE/RTOS
Siemens S7-1500	250μs	1 (ASIC)	~4,000	Proprietary
Allen-Bradley ControlLogix	500μs	1 (per chassis)	~2,000	Single-threaded
GOPLC	50μs	All available	620,949	Distributed goroutines

See the full Clustering Whitepaper (PDF) for architecture details, methodology, and complete benchmark data. See also the DC Simulation Hardware Whitepaper for hyperscale deployment estimates (50 MW–1 GW).

Redundancy & Failover

GOPLC supports hot-standby redundancy with automatic failover for high-availability deployments. A Supervisor monitors identical primary and backup clusters — if the primary fails, the supervisor switches to the backup with zero data loss.

Failover Performance & Strategies

Three redundancy strategies with sub-second failover, automatic failback, and zero data loss via store-and-forward buffering:

Data Pipeline

Both clusters independently publish telemetry for failover timing analysis and data continuity verification:

Authentication

Optional JWT-based authentication that protects engineering endpoints while leaving operator paths open.

Access Control

Path Type	Examples	Authentication
Public	`/hmi/*`, `/api/variables`, `/api/tags`, `/ws`	None required
Protected	`/ide/*`, `/api/programs`, `/api/runtime`, `/api/tasks`, `/api/cluster`, `/api/config`, `/api/debug`	Bearer token required

Features

Disabled by default — zero friction for development and standalone use
HMAC-SHA256 tokens with configurable expiry (no external dependencies)
Bcrypt password verification for secure credential storage
Login page with token refresh and logout
Operator-friendly — HMI dashboards and variable read/write work without credentials

Configuration

api:
  auth:
    enabled: true
    jwt_secret: "your-jwt-secret"     # auto-generated if empty (won't survive restart)
    token_expiry_hours: 24
    users:
      - username: admin
        password_hash: "$2a$10$..."   # bcrypt hash

# Generate a bcrypt hash for the config
goplc auth hash-password mypassword

# Generate a random JWT secret
goplc auth generate-secret

Licensing

HMAC-signed license keys with cloud activation. Runs in a 2-hour restartable demo mode until activated.

Activation Flow

Get your installation ID: GET /api/license/info
Enter your license key in the IDE or via API
Automatic cloud activation validates the key and binds to your machine
Done — license persists across restarts and updates

Status	Meaning
`demo`	2-hour trial, restartable via API
`active`	Valid unlock code installed
`expired`	Demo expired, activation required

# Check license status and get installation ID
curl http://localhost:8082/api/license/info

# Activate with an unlock code
curl -X POST http://localhost:8082/api/license/activate \
  -H "Content-Type: application/json" \
  -d '{"unlock_code": "GOPLC-XXXXXXXXXXXXXXXX"}'

# Restart the 2-hour demo timer
curl -X POST http://localhost:8082/api/license/restart-demo

License cache is Fernet-encrypted and stored outside the bind-mounted data directory. Unlock codes are HMAC-signed — the binary verifies only; generation uses a separate developer-side tool. The PURGE_LICENSE=true environment variable wipes license data on startup for clean reinstalls.

Snap / ctrlX CORE

Package GOPLC as an Ubuntu Core snap for the Bosch ctrlX CORE ecosystem (ARM64, strict confinement).

make snap-stage            # ARM64 target (ctrlX CORE)
make snap-stage-amd64      # amd64 (local testing)
./build-snap.sh            # Full build + snapcraft pack

Post-install configuration via snap set:

sudo snap set goplc-runtime api-port=8082
sudo snap set goplc-runtime cluster=true minions=4
sudo snap restart goplc-runtime

ctrlX Data Layer Integration

Two approaches for integrating with the ctrlX ecosystem:

EtherCAT I/O (Real-Time Hardware I/O)

Direct read/write of EtherCAT digital I/O modules with dual transport:

// Native IPC mode — 500 Hz polling, sub-millisecond latency
CTRLX_EC_CREATE('ec1', '', '', '', 'XI110116', 'XI211116', 16, 16, 10, 'dl');
CTRLX_EC_START('ec1');

// Read inputs, write outputs
di_val := CTRLX_EC_READ_DI('ec1', 1);
write_ok := CTRLX_EC_WRITE_DO('ec1', 1, TRUE);  // Returns FALSE if disconnected

// Switch to REST mode (no recompile needed)
CTRLX_EC_CREATE('ec2', '', '', '', 'XI110116', 'XI211116', 16, 16, 100, 'rest');

Transport	Polling	Avg Scan	I/O Rate	Determinism
REST	100ms	1.2ms	10 Hz	Variable (HTTP stack)
Native IPC	2ms	0.69ms	500 Hz	Consistent (direct IPC)

Uses official Bosch ctrlx-datalayer-golang/v2 SDK (CGo) for native IPC
Verified on ctrlX CORE X3 (ARM64) with physical loopback testing
CTRLX_EC_WRITE_DO returns FALSE on disconnect — ST-level fault detection
10 ST functions for full I/O lifecycle management

Data Layer Bridge (Variable Synchronization)

Bidirectional variable sync between GOPLC and the ctrlX Data Layer:

ctrlx_datalayer:
  enabled: true
  base_url: "https://localhost"
  username: "ctrlx-user"
  password: "ctrlx-password"
  publish_prefix: "goplc-runtime"        # ctrlX node path prefix
  publish_vars: ["temp_c", "pump_on"]    # PLC → ctrlX Data Layer
  subscribe_vars: ["ctrlx/setpoint"]     # ctrlX Data Layer → PLC
  sync_interval_ms: 100
  insecure_tls: true

PLC variables published as ctrlX Data Layer nodes under publish_prefix/
ctrlX nodes read back into PLC variables on each sync interval
Authenticates via ctrlX identity manager JWT
Pure HTTP/REST — no native libraries required

Datacenter Gateway

GOPLC as a universal protocol gateway for data center infrastructure management — bridging CRAC units, PDUs, UPS systems, fire suppression, and building automation into a unified SCADA layer.

Three-Tier Architecture

Corporate Layer (Grafana, SCADA, cloud)
         │
    Site Supervisor (GOPLC Boss)
    ├── OPC UA clients to each edge
    ├── MQTT subscriber (primary path)
    └── DNP3 master (failover path)
         │
    Edge Modules (GOPLC Clusters)
    Boss → per-protocol minions
    ├── Modbus TCP/RTU (CRAC, UPS, VFD)
    ├── BACnet/IP (AHU, dampers, lighting)
    ├── EtherNet/IP (power meters)
    └── SNMP v3 (smart PDUs, switches)

Dual-Path Communication

Primary: MQTT publish/subscribe (sub-second latency)
Failover: DNP3 outstation with store-and-forward (SQLite buffer, GZIP + AES-256-GCM encryption)
Automatic switchover when MQTT path goes stale

See the full Datacenter Gateway Whitepaper for architecture details and deployment examples. For scale analysis and cost modeling see the Hardware Gateway Whitepaper and Virtualized Gateway Whitepaper.

Download

Pre-built binaries for Windows and Linux — single ~30 MB download, no installer needed.

Platform	Architecture	Download
Windows	x86_64	`goplc-v1.0.520-windows.zip`
Linux	x86_64 (amd64)	`goplc-v1.0.520-linux-amd64.tar.gz`
Linux	ARM64 (aarch64)	`goplc-v1.0.520-linux-arm64.tar.gz`

Visit jmbtechnical.com/goplc/download to download the latest release.

What's included: goplc binary, launcher script (app-mode browser), config.yaml, and a sample counter.st program. Extract, run, and open your browser — that's it.

Licensing: Runs in a 2-hour restartable demo mode out of the box. Activate with a license key for unlimited use. See Licensing for details.

Quick Start

1. Download & Extract

Visit jmbtechnical.com/goplc/download and grab the package for your platform.

# Linux
tar xzf goplc-v1.0.520-linux-amd64.tar.gz
cd goplc

# Windows — unzip goplc-v1.0.520-windows.zip

2. Run

# Linux — launches GOPLC and opens browser in app mode
./start-goplc.sh

# Windows — double-click start-goplc.bat
# Or run directly:
./goplc --config config.yaml

3. Open the Web IDE

Navigate to http://localhost:8082/ide/ in your browser.

Docker (Alternative)

Build a container from the downloaded binary:

FROM alpine:3.19
COPY goplc /usr/local/bin/goplc
COPY config.yaml /app/config.yaml
EXPOSE 8082 502
WORKDIR /app
ENTRYPOINT ["goplc", "--config", "/app/config.yaml"]

# Extract the Linux binary, then build and run
docker build -t goplc:latest .
docker run -d --name goplc \
  -p 8082:8082 \
  -p 502:502 \
  -v $(pwd)/data:/app/data \
  goplc:latest

Configuration Example

# config.yaml
runtime:
  log_level: info

tasks:
  - name: FastTask
    type: periodic
    scan_time_us: 100      # 100 microsecond scan
    priority: 1
    watchdog_ms: 10
    programs:
      - fast_control.st

  - name: SlowTask
    type: periodic
    scan_time_ms: 100      # 100ms scan
    priority: 10
    programs:
      - monitoring.st

protocols:
  modbus:
    enabled: true
    port: 502
  opcua:
    enabled: true
    port: 4840

nodered:
  enabled: true
  auto_start: true

ai:
  provider: "claude"
  api_key_env: "ANTHROPIC_API_KEY"

api:
  port: 8082

Examples

Structured Text Programs

See the examples/st/ directory for 14 ready-to-run programs:

Example	Description
`pid_control.st`	PID loop with anti-windup and bumpless transfer
`modbus_gateway.st`	Bridge between Modbus TCP devices
`modbus_client.st`	Modbus TCP client — registers, coils, read-verify
`data_sync.st`	Multi-PLC DataLayer synchronization
`alarm_handler.st`	Alarm management with shelving and history
`bacnet_client.st`	BACnet/IP client — read objects, track status
`dnp3_master.st`	DNP3 master — analog/binary inputs, pump control
`enip_scanner.st`	EtherNet/IP scanner — CIP tag read/write
`esp32_io.st`	ESP32 remote I/O — 8 DI, 8 DO, 3 AI, 2 PWM, NeoPixel
`fins_client.st`	Omron FINS client — DM word read/write
`iec104_client.st`	IEC 60870-5-104 client — SP, DP, floats, counters
`mqtt_publish.st`	MQTT pub/sub — telemetry, commands, liveness
`opcua_client.st`	OPC UA client — node read/write, method calls
`datalayer_ethercat.st`	ctrlX EtherCAT I/O — native IPC, DI/DO toggle

Configuration Examples

See the examples/configs/ directory:

Config	Description
`modbus_server.yaml`	Modbus TCP server with I/O mapping
`multi_plc.yaml`	DataLayer sync between PLCs
`realtime.yaml`	Real-time container mode
`full_stack.yaml`	All protocols enabled

Architecture

Multi-PLC Clustering

Performance

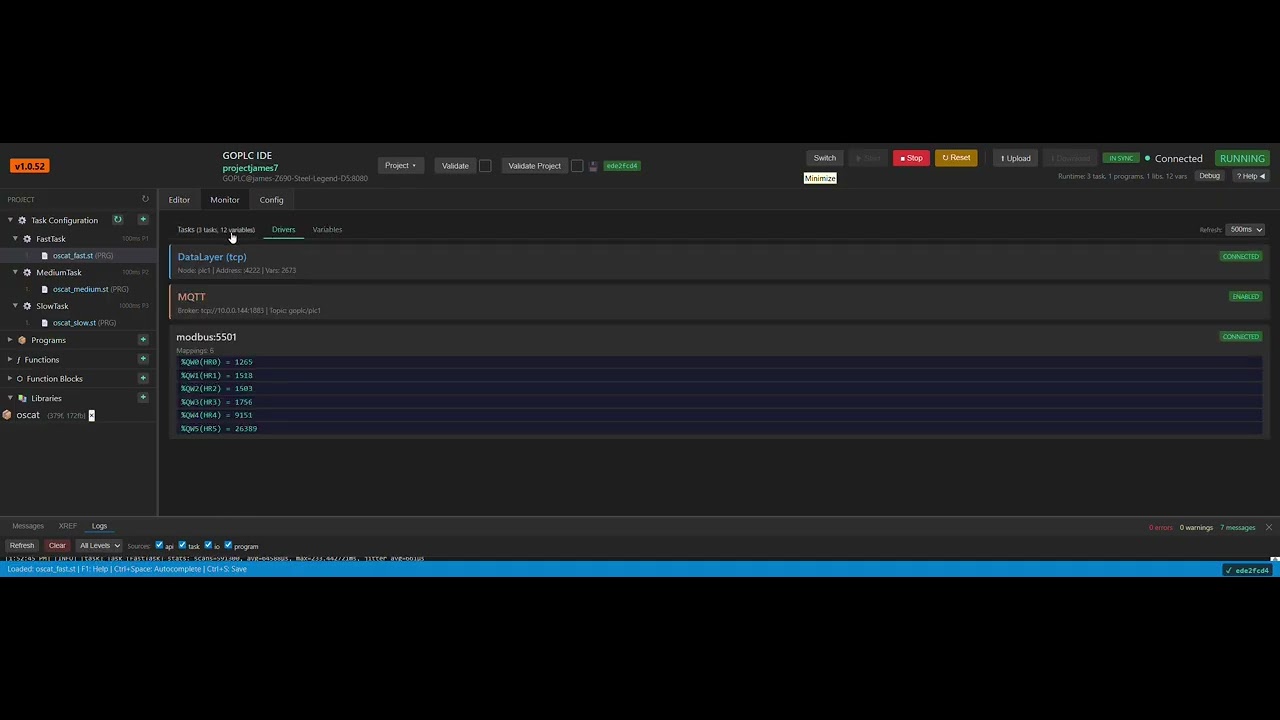

Click to watch: Stress Test Walkthrough

Live Multi-PLC Benchmark (January 2026)

3 GOPLC instances running simultaneously with DataLayer synchronization:

Test Configuration:

3 PLCs with DataLayer TCP sync (server + 2 clients)
9 programs per PLC: math, arrays, strings, JSON, datetime, regex, crypto, datastructures
Each PLC running ~4,500 lines of Structured Text
Modbus TCP servers on each PLC (ports 5601-5603)
Real-time variable synchronization across all nodes

Modbus Stress Test (January 2026)

Modbus Scalability Test - 500 Servers (January 2026)

PTR_QW Feature: New system constants for pointer arithmetic with I/O memory:

PTR_QW - Base pointer for output words (%QW)
PTR_IW - Base pointer for input words (%IW)
PTR_MW - Base pointer for marker words (%MW)

Enables efficient bulk I/O operations: (PTR_QW + offset)^ := value

Modbus Scalability Test - 5000 Servers (January 2026)

Configuration:

5000 concurrent Modbus TCP servers on ports 7000-11999
ST program: Counter + GSV_TASKSCANTIME() writing to %QW0-1
All servers receive same PLC outputs via driver broadcast

Results:

Metric	Value
Scan Execution Time	20-50µs (avg 30µs)
Memory Usage	780 MB (~156 KB/server)
CPU Usage	50%
Stability	12+ minutes, 0 errors

Driver Broadcast Architecture:

Cluster Mode - Idle vs Running Programs (January 2026)

Test Configuration:

Intel i9-13900KS (32 threads), 62 GB RAM
Single-process architecture with goroutine-based minions
Each minion has fully isolated PLCContext (protocols, connections, data)
Boss API proxies to minions via Unix sockets

Idle Minions (scheduler only):

Minions	RAM	Per Minion	CPU
1,000	3.4 GB	3.4 MB	24%
5,000	20 GB	4.0 MB	67%
10,000	37.4 GB	3.9 MB	108%

Running ST Programs (50x SIN/COS, string ops, 100ms scan):

Minions	RAM	Per Minion	CPU	Load
1,000	15.8 GB	15.8 MB	63%	2.96
3,000	48 GB	16 MB	188%	7.38

Key Findings:

Idle: ~3.9 MB/minion → ~9,000 minions at 75% resources
Running: ~16 MB/minion (4x overhead) → ~2,500 minions at 75% resources
Memory is the limiter, not CPU

Benchmarks

Metric	Result
Scan execution time	20-50μs (5000 servers)
Minimum scan interval	100μs sustained
Modbus throughput	89,769 req/sec (100 connections)
Modbus scalability	5000 servers (780 MB), 500 clients (0 errors)
PTR_QW writes	~300,000 registers/sec
DataLayer latency	<1ms P50, <3ms P99
Memory footprint	~65MB typical, ~150MB with DataLayer
Distributed speedup	10.4x throughput (same workload, 10 minions)
Aggregate throughput	620,949 scans/sec (31 minions at 50μs)
ST functions	1,900+ available
Lines of code	280,000+ Go

Latency Distribution (2ms scan, DataLayer TCP)

ctrlX EtherCAT Native IPC (March 2026, X3 Hardware)

Measured on Bosch ctrlX CORE X3 (ARM64 Cortex-A53) with XI110116 (16 DI) + XI211116 (16 DO) physical loopback:

Metric	REST Mode	Native IPC Mode
Poll interval	100ms	2ms
Task scan time	50ms	5ms
Avg scan duration	1.2ms	0.69ms
Max scan duration	30ms	13ms
I/O update rate	10 Hz	500 Hz
Read errors	0	0
Watchdog trips	0	0

The native IPC path uses the official Bosch ctrlx-datalayer-golang/v2 SDK — direct function calls through libcomm_datalayer.so instead of HTTP/TLS/JSON. The EtherCAT bus itself cycles at 2ms (500 Hz), and native IPC matches that rate with zero errors.

REST API

Full REST API for integration with SCADA, MES, and custom applications.

Key Endpoints

Endpoint	Description
`GET /api/tags`	List all tags with values
`GET/PUT /api/variables/:name`	Read/write variables
`POST /api/runtime/start`	Start PLC runtime
`POST /api/runtime/stop`	Stop PLC runtime
`POST /api/tasks/:name/reload`	Hot-reload a single task
`GET /api/diagnostics`	Full runtime diagnostics
`GET /api/capabilities`	List supported protocols, functions, clustering
`GET /api/docs/functions`	All 1,900+ function signatures
`GET /api/analyzer/transactions`	Protocol capture data
`GET /api/cluster/:name/*path`	Proxy to cluster minion
`GET /api/nodered/status`	Node-RED subprocess status
`GET /api/debug/step/state`	Debugger state and position
`GET /ws`	WebSocket for real-time updates

See docs/API.md for complete API reference.

Diagnostics

Per-Module Debug System

Runtime-toggleable logging with per-module granularity. 15+ modules including webui, nextion, modbus, fins, enip, opcua, datalayer, hal, and more.

# Get debug status for all modules
curl http://localhost:8082/api/debug/status

# Set module-specific log level
curl -X PUT http://localhost:8082/api/debug/runtime/modules/modbus \
  -d '{"level": "trace"}'

# View debug ring buffer (optionally filter by module)
curl http://localhost:8082/api/debug/log?module=modbus

# Enable/disable entire debug system
curl -X POST http://localhost:8082/api/debug/runtime -d '{"enabled": true}'

Use Cases

GOPLC is designed for:

Industrial Automation - Replace or supplement traditional PLCs
Protocol Gateway - Bridge between different protocols (data center, building, utility)
Edge Computing - Run on Raspberry Pi, industrial PCs, Bosch ctrlX CORE
Distributed Control - Boss/Minion clustering for large installations
HMI/SCADA Backend - Node-RED dashboards + high-performance data collection
Fleet Management - Centrally manage and deploy to hundreds of remote GOPLC nodes
Robotics & Motion - MC_* motion control functions, servo coordination, sensor fusion
Simulation - Test automation logic without hardware
Education - Learn PLC programming with modern tools

Whitepapers

Whitepaper	Description
Clustering: Distributed Real-Time PLC Performance (PDF)	Architecture, benchmark methodology, and measured results: 10.4x throughput improvement, 620,949 aggregate scans/sec, linear scaling to 500+ minions, water treatment plant validation
Datacenter Gateway: Universal Protocol Gateway (PDF)	Three-tier DC hierarchy, 12 protocol drivers, dual-path MQTT + DNP3 store-and-forward, redundancy strategies, AI-assisted commissioning, ctrlX CORE deployment
DC Simulation: Hardware Gateway Architecture (PDF)	11 device simulators, 6 gateway blueprints, scale estimates 50 MW–1 GW, ctrlX CORE edge SBC deployment, standalone vs cluster decision matrix, full cost model
DC Simulation: Virtualized Gateway Architecture (PDF)	Server VM gateways via Cisco SVI routing, 51–66% total cost reduction vs hardware, migration path, IEC 62443 security considerations
The Operator's Revenge: Industrial Control at Software Speed	Why industrial automation needs a software-native PLC runtime — 30 MB install vs multi-GB IDE installs, browser-based programming, zero proprietary cables
Planetary Scale: From Edge to Orbit	10,000 full runtimes on one desktop, 250M+ projected deterministic runtimes at datacenter scale, memory-wall analysis, DataLayer at planetary scale
Humanoid Robotics: Real-Time Control for Next-Gen Robots (PDF)	GOPLC as a real-time control backbone for humanoid robotics — servo coordination, sensor fusion, safety interlocks, deterministic motion planning

License

GOPLC is proprietary software. Contact jbelcher@jmbtechnical.com for licensing inquiries.

Built with Go
Industrial-grade automation for the modern world

Name		Name	Last commit message	Last commit date
Latest commit History 67 Commits
assets		assets
docs		docs
examples		examples
.gitignore		.gitignore
README.md		README.md

Folders and files

Latest commit

History

Repository files navigation

GOPLC

What is GOPLC?

Features

Core Runtime

1,900+ Built-in Functions

Real-time Capabilities

Web IDE

IDE Features

Online Mode

IDE Screenshots

Debugger

Debug Controls

Debug Features

Debug API

Node-RED Integration

How It Works

7 Custom PLC Nodes

Dashboard Support

AI Flow Generation

Configuration

Node-RED API

AI Assistant

Multi-Provider Support

What It Can Generate

Context-Aware

Configuration

Agentic Control Loop

12 Built-in Control Tools

Hardware Manifests

HMI Builder

Built-in Default Dashboard

Custom Pages

HMI API

Config Wizard

Available Topics

Protocols

Industrial & Specialty Protocols

Specialty Communication

Protocol Features

Communication Layer

Hardware Abstraction Layer (HAL)

Protocol Analyzer

Protocol Coverage by Industry

Clustering

Boss/Minion Architecture

Per-Task Hot Reload

Cluster API

Fleet Management

DataLayer Mesh

Configuration

Distributed Performance (Whitepaper Results)

Redundancy & Failover

Failover Performance & Strategies

Data Pipeline

Authentication

Access Control

Features

Configuration

Licensing

Activation Flow

Snap / ctrlX CORE

ctrlX Data Layer Integration

EtherCAT I/O (Real-Time Hardware I/O)

Data Layer Bridge (Variable Synchronization)

Datacenter Gateway

Three-Tier Architecture

Dual-Path Communication

Download

Quick Start

1. Download & Extract

2. Run

3. Open the Web IDE

Docker (Alternative)

Configuration Example

Examples

Structured Text Programs

Packages
