Visual Styles
Every track becomes one card: a main representation, a title bar (track,
album, duration, key · bpm), and a waveform strip. Seventeen styles via
musiscape thumbnails <folder> --style <name>. Examples here are rendered
from a synthetic demo collection (arpeggios, drones, strummed chords).
| Style | Shows |
|---|---|
mel (default) |
timbre & texture |
chroma |
harmony over time (12 pitch classes) |
tempo |
rhythmic periodicity (diffuse = rubato) |

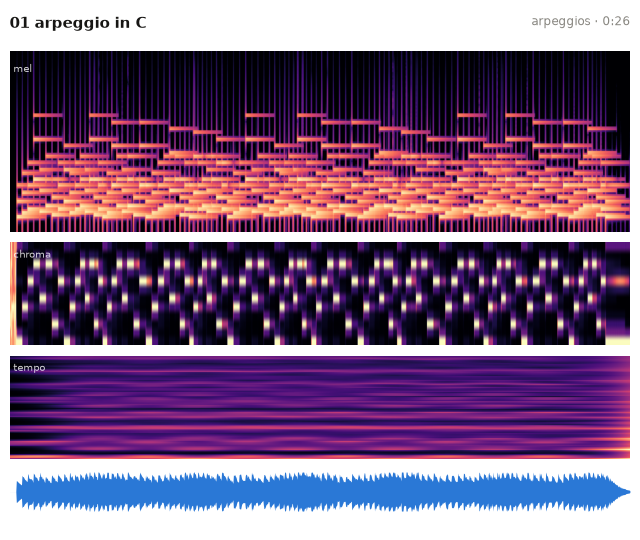

combo |
all three stacked |

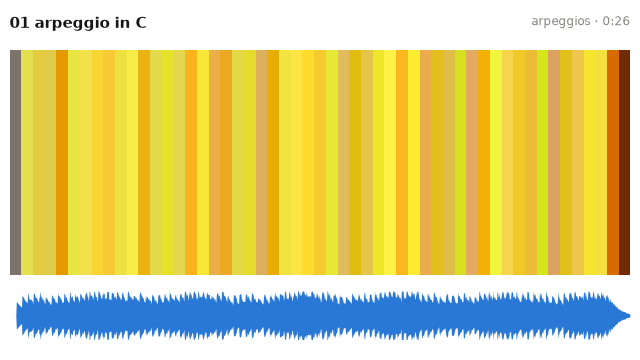

barcode — harmony as color: hue = position on the circle of fifths,
saturation = tonal focus, brightness = loudness. wave —
Freesound-style: the amplitude envelope colored by spectral centroid.

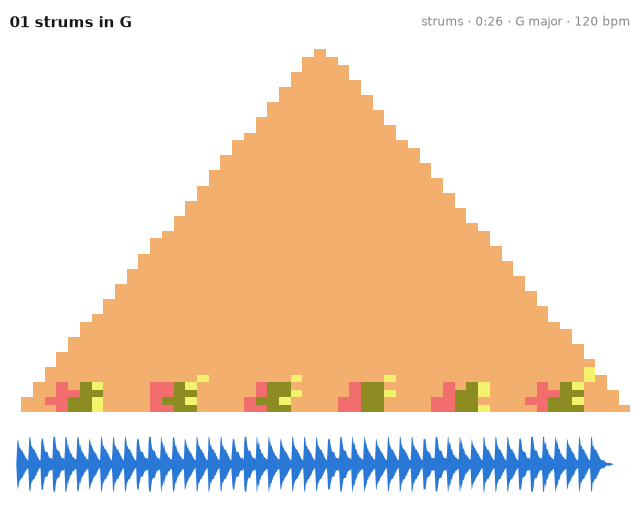

ssm — self-similarity matrix (form as texture). keyscape —

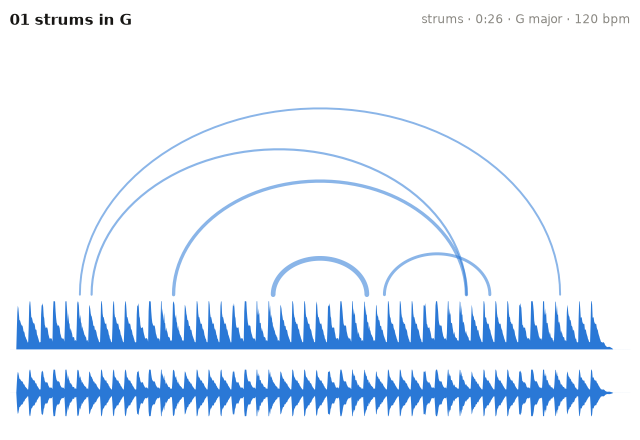

Sapp-style multi-scale key triangle. arcs — Shape-of-Song repetition
arcs mined from the self-similarity structure.

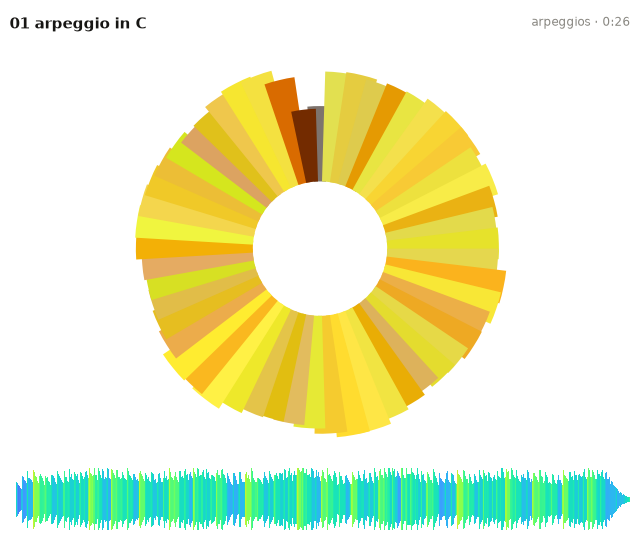

vinyl — tonality disc (one revolution; harmony as hue, loudness as

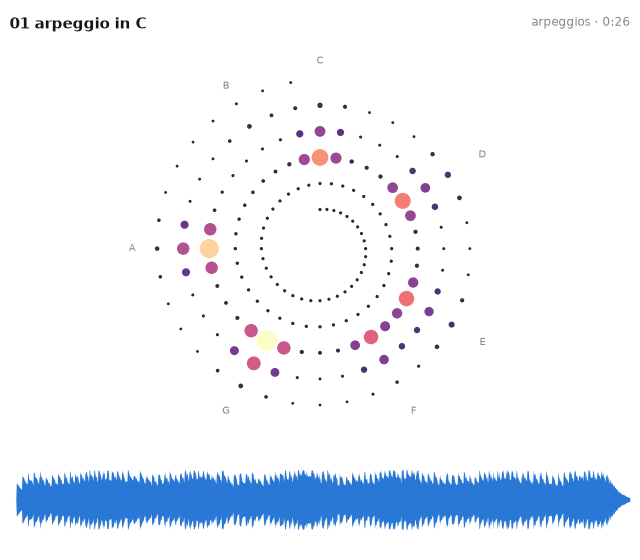

radius) over a Freesound waveform strip. spiral — Shepard-helix pitch
map (angle = pitch class, radius = octave; the only view showing register).
tonnetz — the harmony's path on the circle-of-fifths plane.

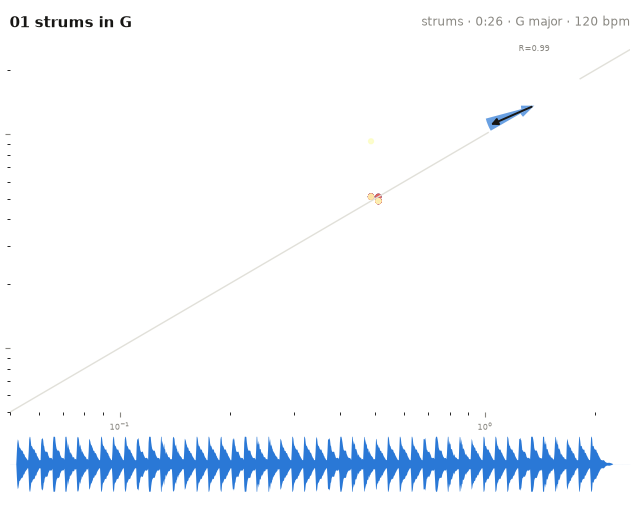

rhythm — Poincaré portrait of successive inter-onset intervals, with
a beat-wheel inset (onset phases + pulse-clarity resultant arrow).

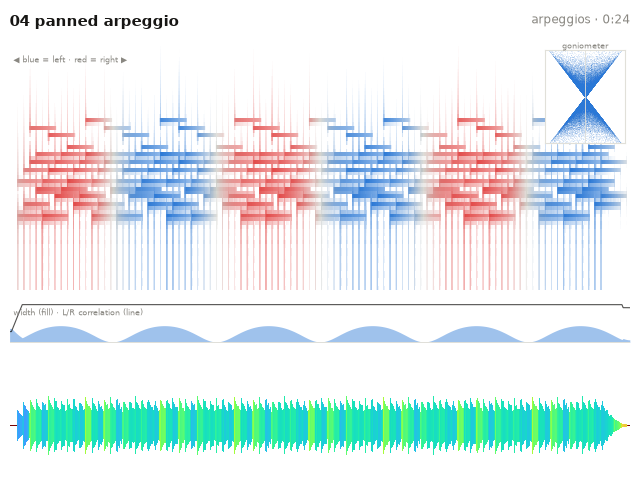

stereo — a pan-by-frequency spectrogram (blue = left, red = right, ink
strength = energy) with a goniometer inset, over a width-and-correlation
timeline. For multichannel and ambisonic material use ambiscape.

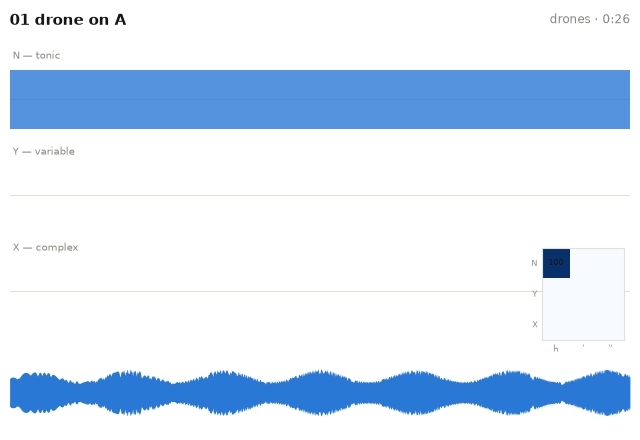

schaeffer — TARTYP object timeline (mass lanes × facture marks +

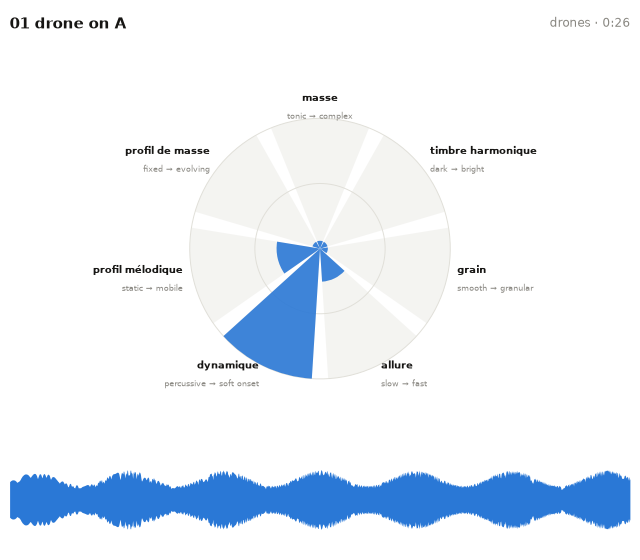

duration-share grid). tarsom — the seven morphological criteria as a
centre–periphery rose (centre = tonic/dark/smooth/… poles). See Methodology and Caveats for what these can and
cannot claim.

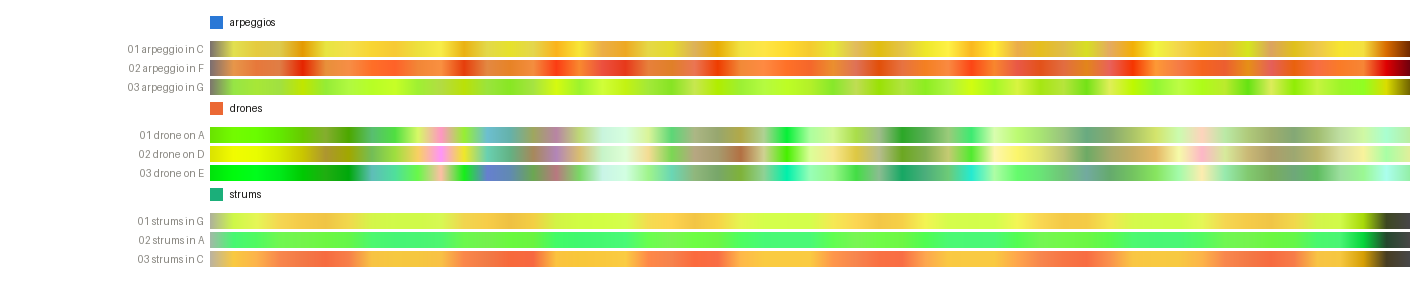

musiscape poster <folder> stacks every track as a harmony barcode;
--style vinyl lays the collection out as a grid of tonality discs. Albums
read as color families either way.
musiscape sonic <folder> — the audible counterpart: a ~12 s montage per
track (most representative passage, climax, most contrasting energetic
section, chronological, crossfaded) plus a medley file per album. Browse a
collection by ear as fast as by eye.
