Connecting to the VM using PyCharm Pro IDE

Jump to bottom
Han Mac edited this page Dec 21, 2020 · 6 revisions

VM Connection

  • Ensure you have the following:
    • A VM account set up with Nick. He will supply important information such as the correct host, and username required in a later step.
    • A GitHub account
    • PyCharm Pro downloaded on your computer - you can find it here

Set up a private SSH key.

  • If you set up an SSH key to pair to the VM, you should already have it saved somewhere in /root or /home
  • Use these online resources to configure a private ssh key on a Mac or Windows
  • Personally, I keep mine saved in /Users/hannahmacdonell/.ssh/id_rsa. You will need this file path later.

Settings in PyCharm Pro

VM Configuration

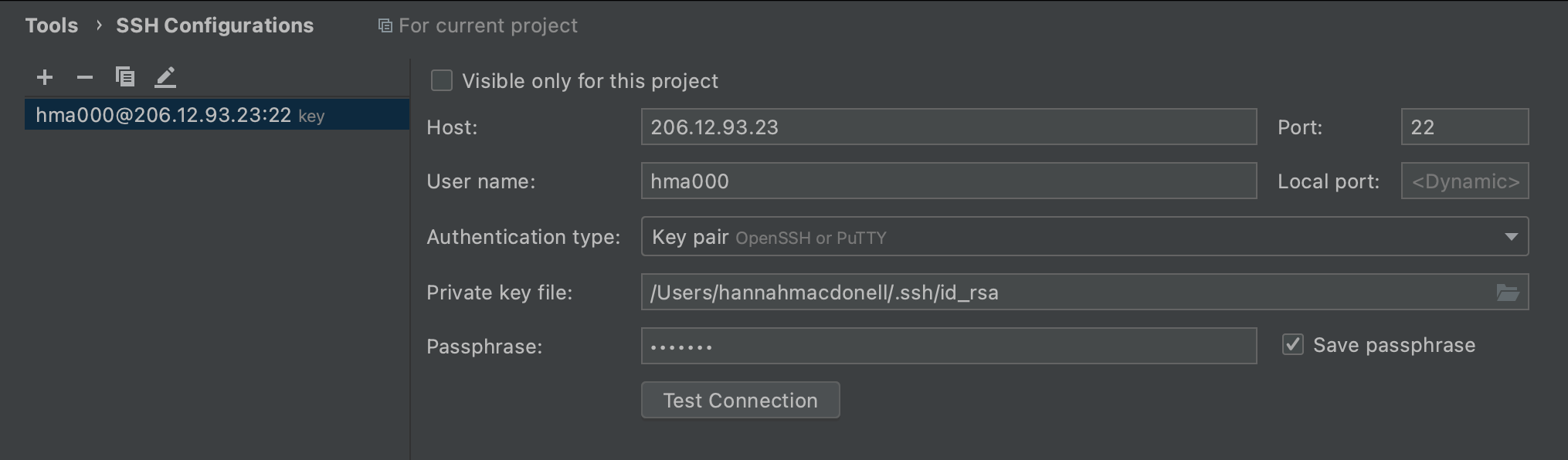

You can set up your VM connection through Preferences > Tools > SSH Configurations. Press ^N or select the + sign to add an SSH configuration. The details included in the screenshot below are unique to my account and system. You will need to alter the username, password, and Private key file file path.

VM_config

Remote directory mappings

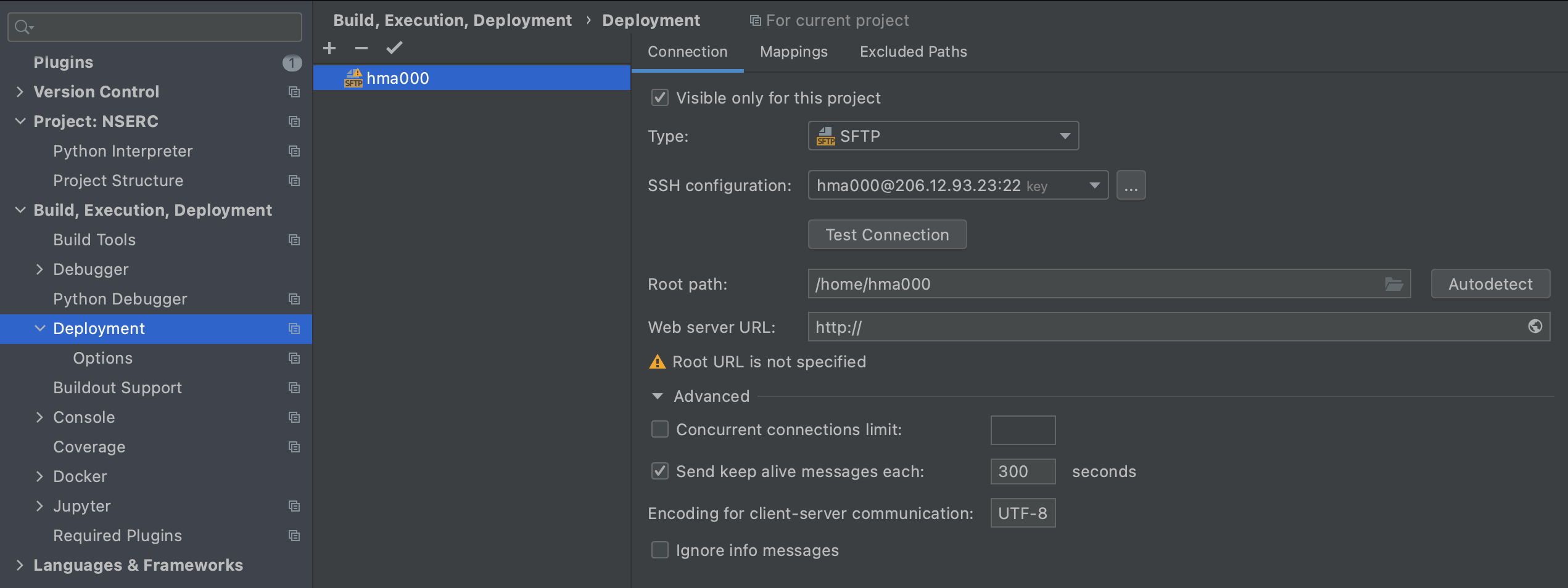

Preferences > Build, Execution and Deployment > Deployment you will either see the SSH configuration (as in the image blow), or you can press ^N or select the + sign to add an SSH configuration. You will want to select the yellow SFTP option. The SSH configuration you'd like to select should already be an option from the previous step. Root Path should be /home/your-usr-name

Deployment

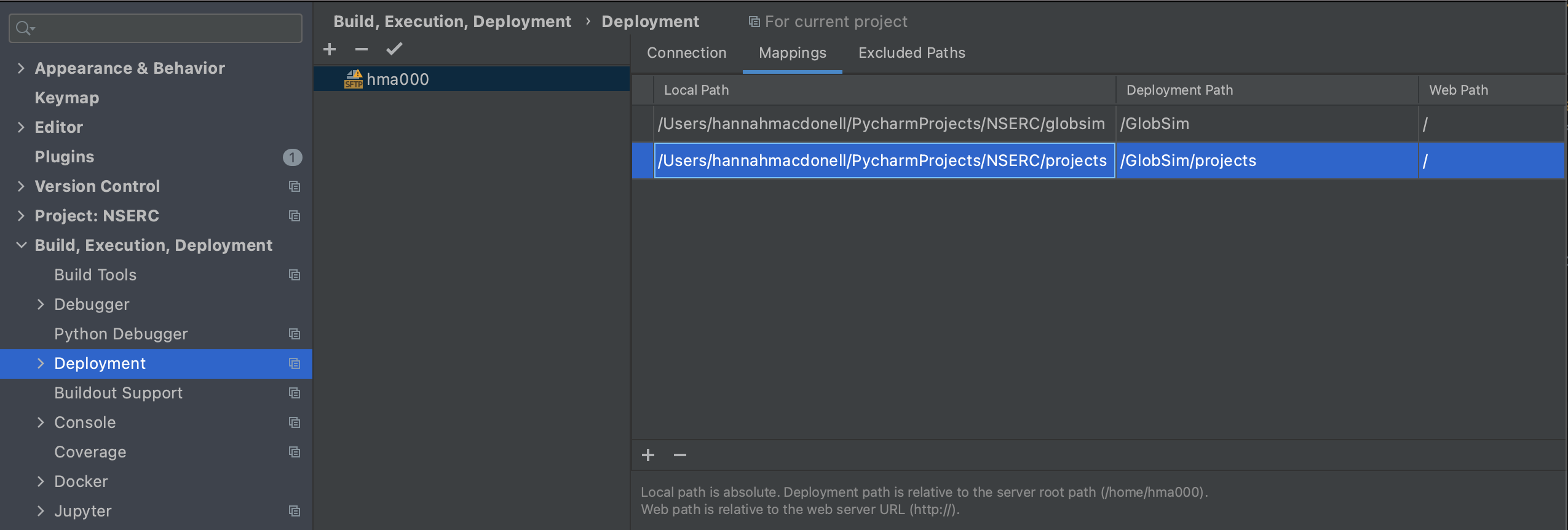

Preferences > Build, Execution and Deployment > Deployment > Mappings will allow you to configure filepath mappings to when changes are made on your local machine, they are automatically uploaded to the VM. web path can be left blank. I find it useful to have a project files mapping (for downloads) and a to connect my globsim directories.

Mappings

Cloning GitHub Projects

Connecting to GitHub:

  • Go to Preferences > Version Control > GitHub and press ^N or select the + sign to add your GitHub credentials.

Some tips:

  • Ensure you're working on a feature branch - not on the master. You can refer to a branching etiquette guide here.
  • Ensure your credentials, ssh key file and netCDF file outputs file paths are included in the .gitignore file so they aren't uploaded to the GitHub repository (I have made this mistake and it sucks to fix)

Tip: To see files leading with a ".", press CTRL+SHIFT+'.'

Connecting to the VM through Terminal

  • To connect to the VM, you can run the command ssh YOUR-USR@206.12.93.23 -i FILE-PATH-TO-SSH
  • You can also connect automatically through PyCharm by selecting Tools > Start SSH Session... from the toolbar.
  • Once you've either cloned the github repository from the VM, or uploaded your own local version, you will want to configure your environment by running bash conda_globsim.sh with the conda_globsim.sh and environment.yml files.

Other neat tools

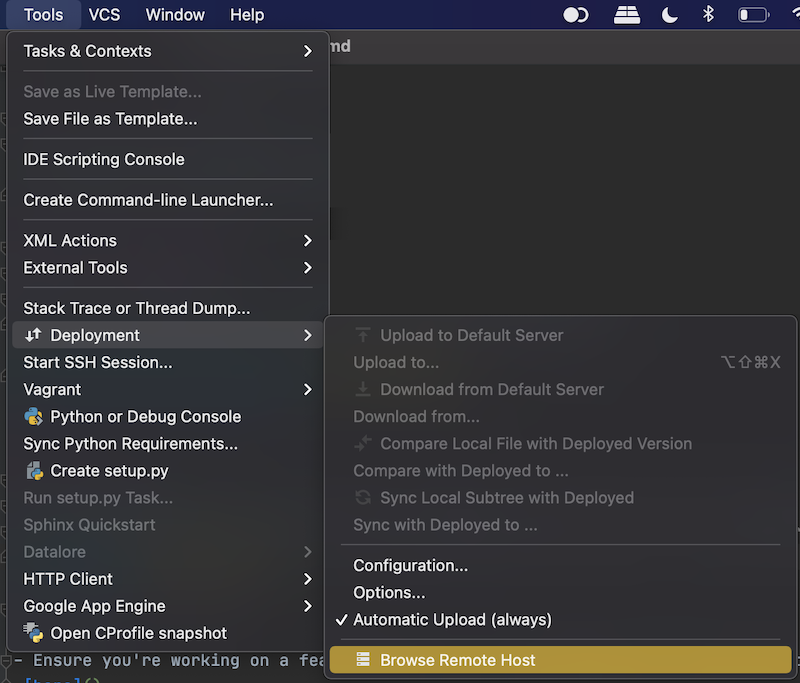

Go to the Toolbar and select Tools > Deployment > Browse Remote Host to see the virtual machine contents.

Browsing the Remote Host

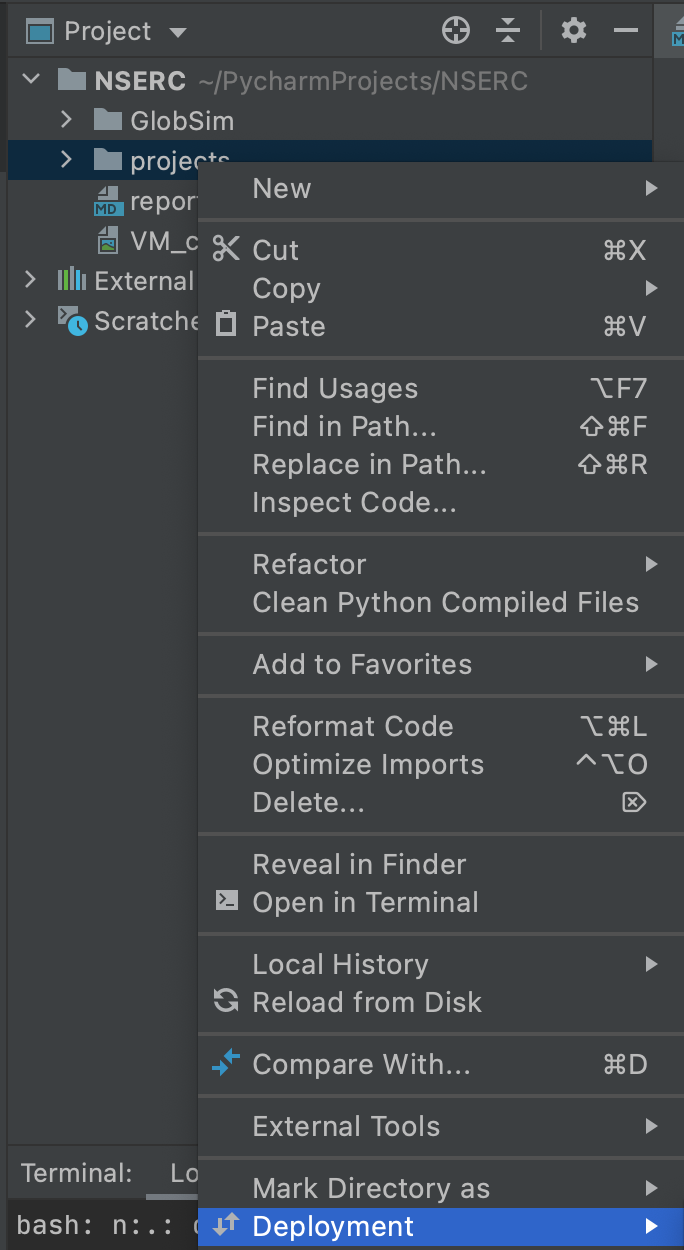

To upload projects, right click the file and select Deployment > VM Repository

Uploading
