🔷 ssot-registry

Single Source of Truth for features, claims, tests, releases, ADRs, and specs.

PyPI version Supported Python versions Downloads Hits schema_version 0.2.0 Migration coverage 9/9

ssot-registry is a portable, repository-agnostic single-source-of-truth system built from ssot-core, ssot-cli, ssot-contracts, ssot-views, ssot-tui, and ssot-codegen.

It provides a canonical registry for:

  • features
  • tests
  • claims
  • evidence
  • issues
  • risks
  • frozen boundaries
  • releases
  • ADRs
  • specs

The canonical machine-readable artifact is:

.ssot/registry.json

Everything else is derived from it.

Current registry schema_version: 0.2.0.

Core model

  • Features are the only targetable units.
  • Features carry planning horizon and target claim tier.
  • Claims assert properties of features.
  • Tests verify claims.
  • Evidence supports claims and is linked to tests.
  • Issues and risks are plannable and can block certification, promotion, or publication.
  • Boundaries freeze scope.
  • Releases bundle claims and evidence against a frozen boundary.

Canonical format

.ssot/registry.json remains the canonical machine-readable registry.

ADR and SPEC companion documents are canonically authored as YAML for readability, and may also be stored as JSON when a repository prefers machine-oriented document files. Markdown, CSV, DOT, SQLite, and reports are derived projections.

Schema 4

Schema 4 introduces first-class ADR and spec sections in .ssot/registry.json:

  • tooling
  • document_id_reservations
  • adrs
  • specs

Packaged SSOT documents are manifest-driven, immutable, and synced into reserved SSOT-owned ranges. Repository-local ADRs and specs are created in separate non-overlapping ranges so local numbering cannot collide with SSOT-managed documents.

Install

python -m pip install ssot-registry         # [ssot-core](https://pypi.org/project/ssot-core/) + [ssot-cli](https://pypi.org/project/ssot-cli/)
python -m pip install "ssot-registry[tui]"  # add optional [ssot-tui](https://pypi.org/project/ssot-tui/)
python -m pip install ssot-core             # runtime only
python -m pip install ssot-cli              # primary CLI distribution
python -m pip install ssot-tui              # Textual TUI only
# or for local development
python -m pip install -e pkgs/ssot-core

ssot_registry remains the canonical import package. The runtime now ships from ssot-core, while CLI entry points ship from ssot-cli, including both ssot and the compatibility alias ssot-registry.

The repository root is workspace tooling only. Canonical release artifacts are built from package roots under pkgs/, and the canonical Python runtime release target is pkgs/ssot-core.

If you already have a repository initialized on schema 3, upgrade it explicitly after installing the new package:

ssot upgrade . --sync-docs --write-report
# compatibility alias
ssot-registry upgrade . --sync-docs --write-report

Community

Please review CODE_OF_CONDUCT.md before contributing.

CLI quick reference

Install ssot-cli for the primary command surface. You can invoke the CLI with ssot, and ssot-registry remains supported as a compatibility alias.

ssot --help
ssot-cli --help
ssot-registry --help
ssot-registry init --help
ssot-registry validate --help
ssot-registry upgrade --help
ssot-registry adr --help
ssot-registry spec --help
ssot-registry feature --help
ssot-registry test --help
ssot-registry issue --help
ssot-registry claim --help
ssot-registry evidence --help
ssot-registry risk --help
ssot-registry boundary --help
ssot-registry release --help
ssot-registry graph --help
ssot-registry registry --help

Screenshots

CLI screenshots from ssot-cli:

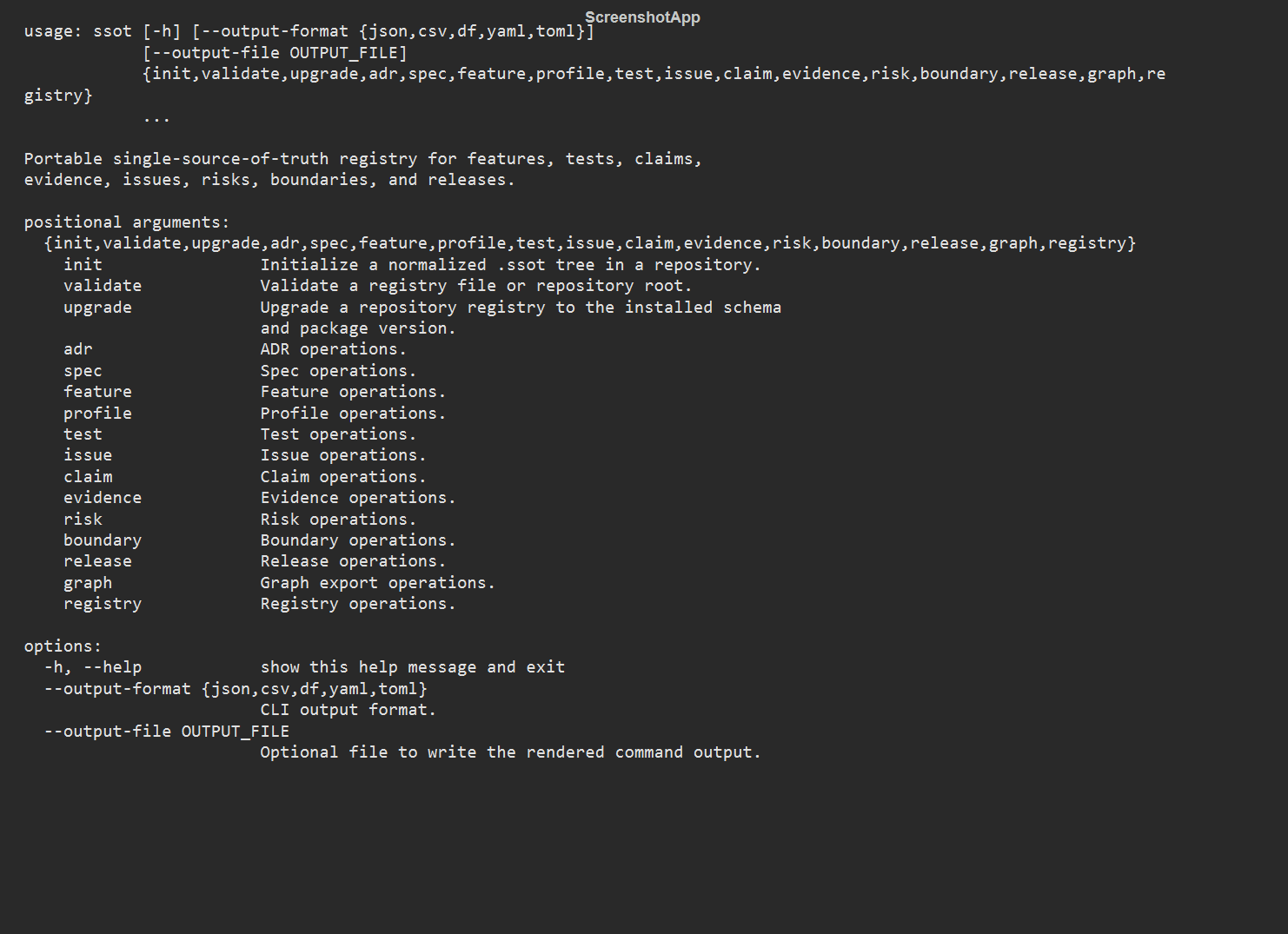

ssot top-level help

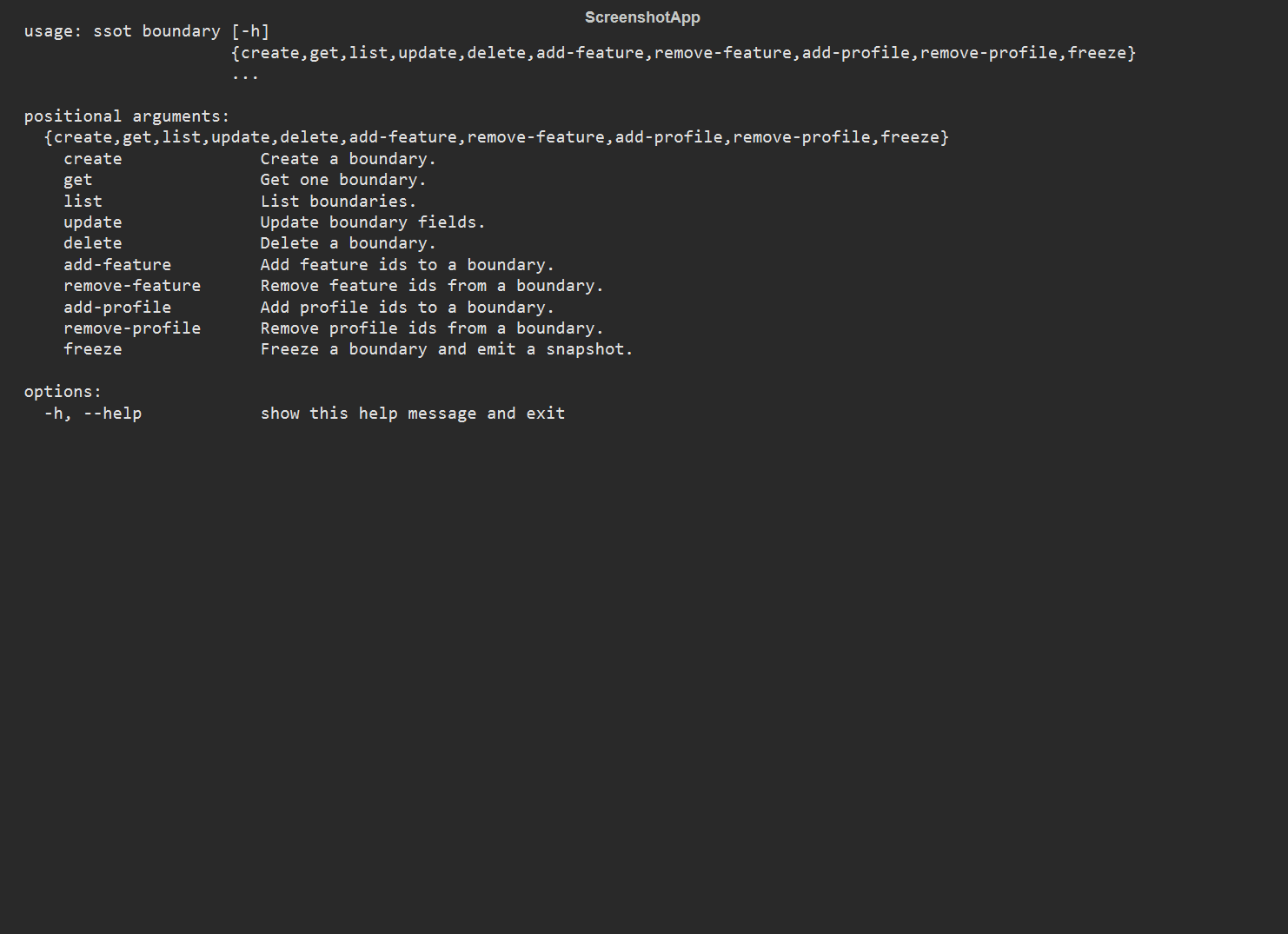

ssot boundary help

TUI screenshots from ssot-tui:

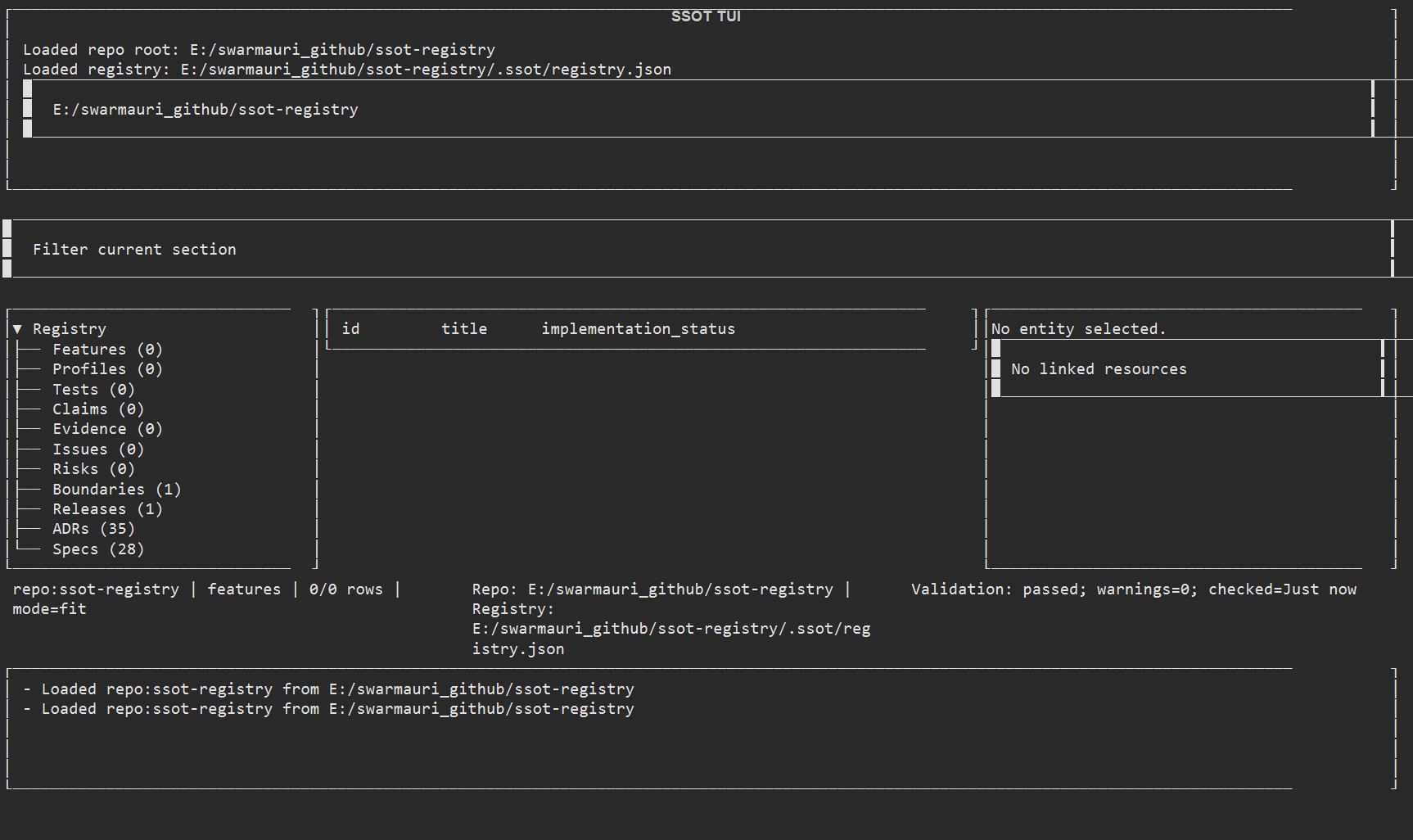

SSOT TUI browser

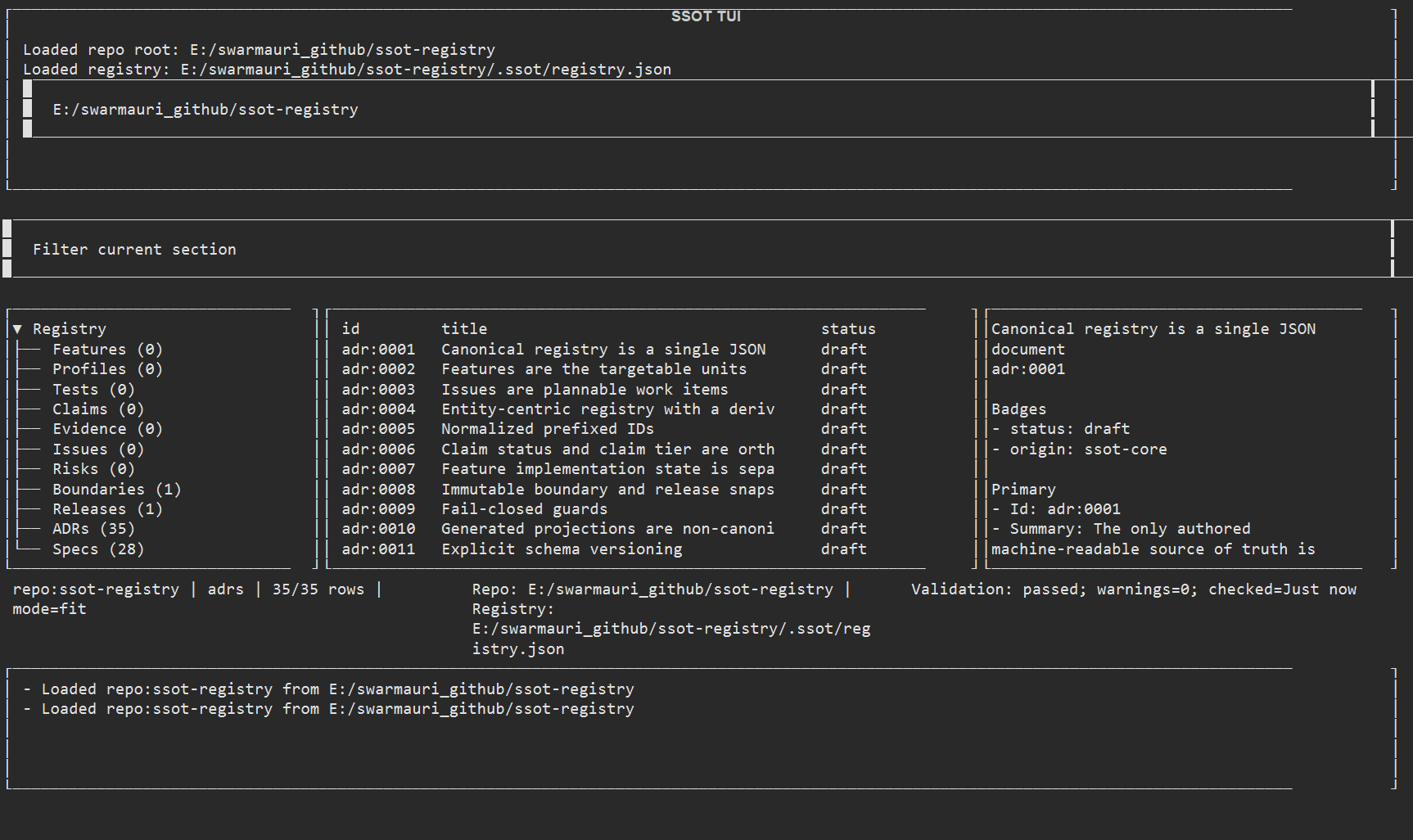

SSOT TUI ADR browser

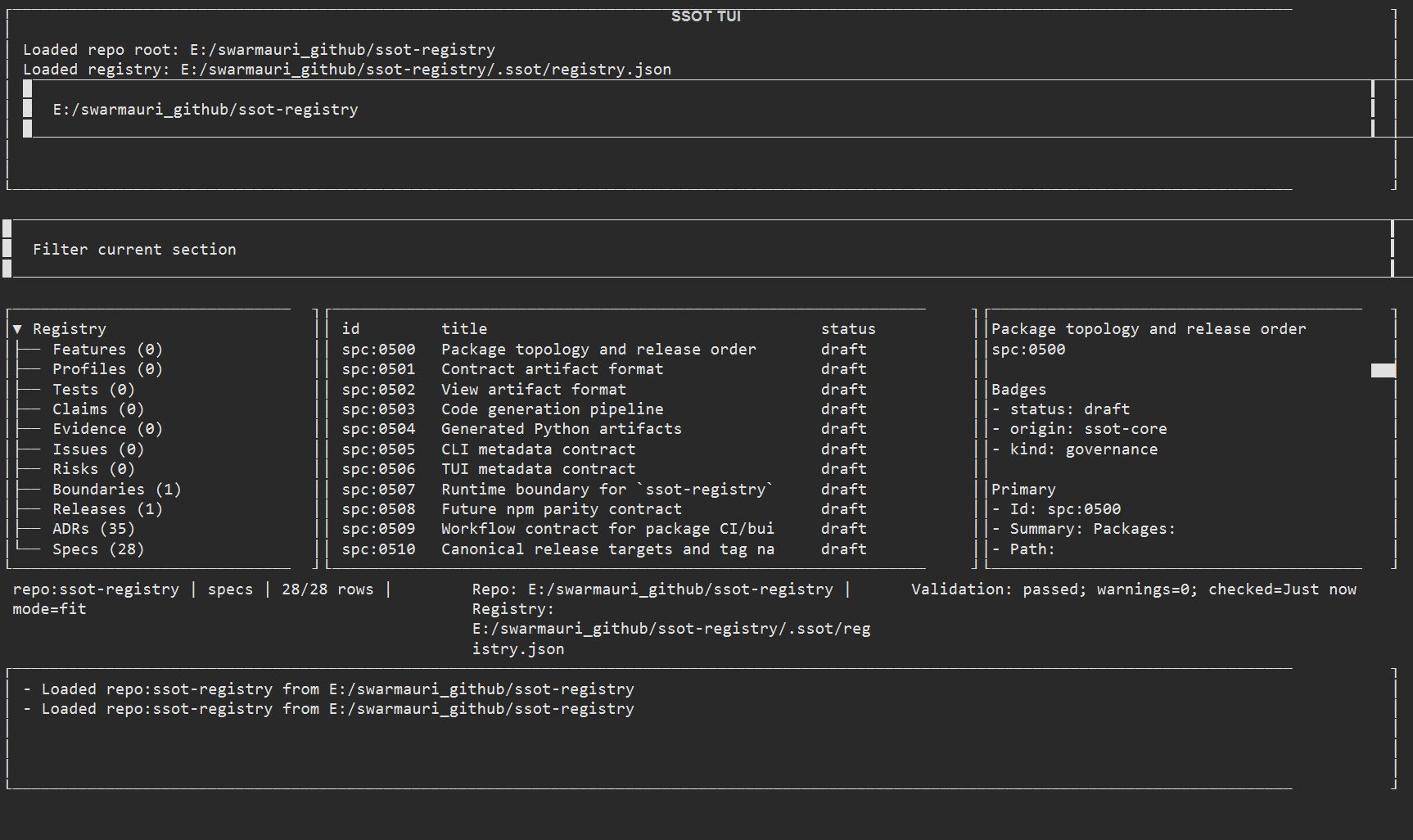

SSOT TUI spec browser

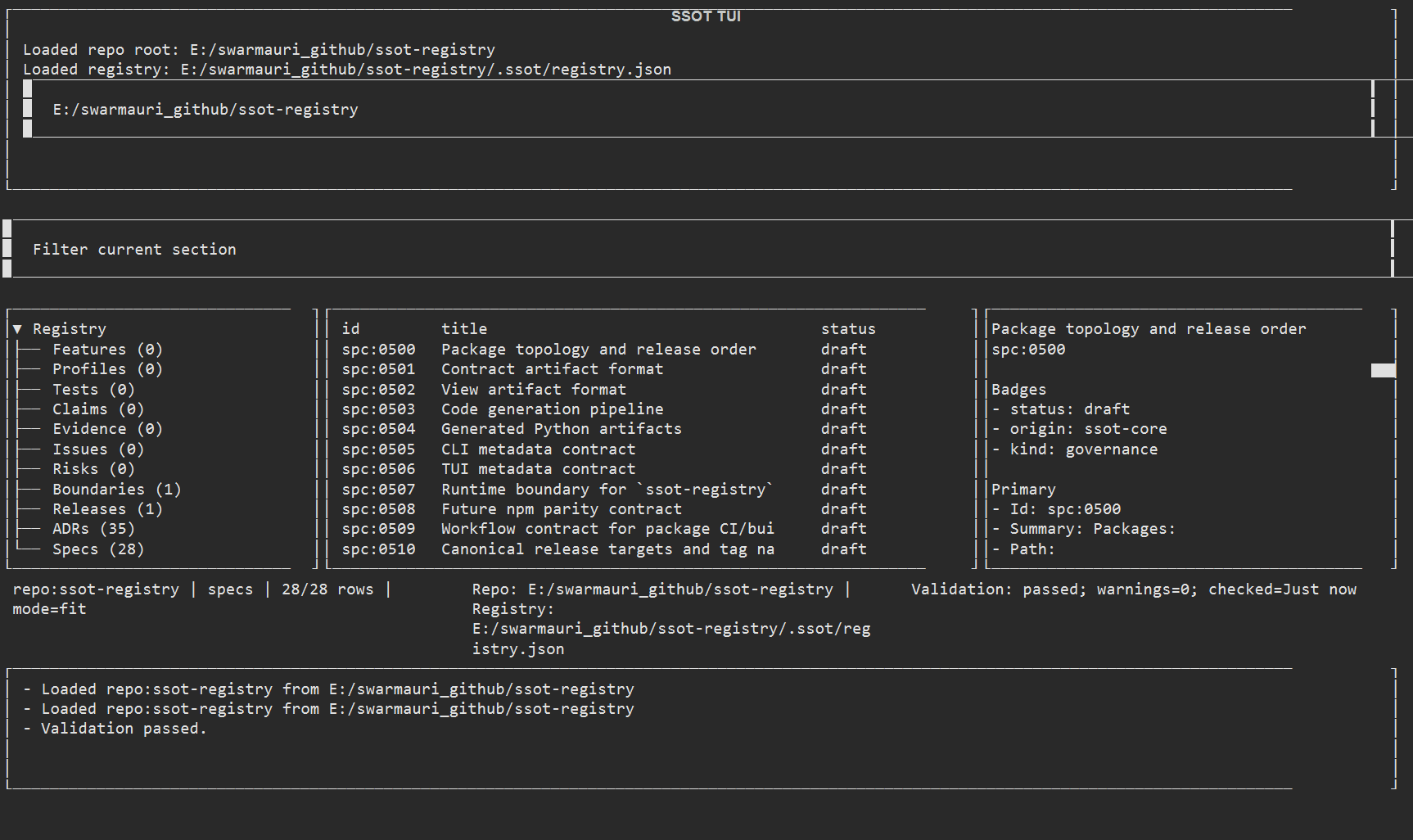

SSOT TUI validation status


CLI conventions

  • Most commands accept [path] as an optional positional argument. Default is current directory (.).
  • Prefer ssot ... in new documentation and automation; ssot-registry ... is a compatibility alias.
  • IDs are normalized prefixed identifiers (for example: feat:*, clm:*, tst:*, evd:*, iss:*, rsk:*, bnd:*, rel:*).
  • Commands emit JSON by default; use --output-format {json,csv,df,yaml,toml} for alternate renderings.
  • Use --output-file PATH to save rendered command output to disk.
  • Non-zero exit code indicates an operation failure or failed checks.

Command surface (all commands, subcommands, and flags)

Top-level commands

  • init
  • validate
  • upgrade
  • adr
  • spec
  • feature
  • test
  • issue
  • claim
  • evidence
  • risk
  • boundary
  • release
  • graph
  • registry

init

ssot-registry init [path]
  --repo-id REPO_ID
  --repo-name REPO_NAME
  --version VERSION
  --force

validate

ssot-registry validate [path]
  --write-report

upgrade

ssot-registry upgrade [path]
  --target-version VERSION
  --sync-docs
  --write-report

adr

Subcommands:

  • create, get, list, update, delete, sync
  • reserve create, reserve list
ssot-registry adr create [path]
  --title TITLE (required)
  --slug SLUG (required)
  --body-file BODY_FILE (required)
  --number NUMBER
  --status {proposed,accepted,superseded,retired}
  --origin {repo-local}
  --reserve-range RANGE_NAME

ssot-registry adr get [path]
  --id ID (required)

ssot-registry adr list [path]

ssot-registry adr update [path]
  --id ID (required)
  --title TITLE
  --body-file BODY_FILE
  --status {proposed,accepted,superseded,retired}

ssot-registry adr delete [path]
  --id ID (required)

ssot-registry adr sync [path]

ssot-registry adr reserve create [path]
  --name NAME (required)
  --start START (required)
  --end END (required)

ssot-registry adr reserve list [path]

spec

Subcommands:

  • create, get, list, update, delete, sync
  • reserve create, reserve list
ssot-registry spec create [path]
  --title TITLE (required)
  --slug SLUG (required)
  --body-file BODY_FILE (required)
  --number NUMBER
  --origin {repo-local}
  --kind {normative,operational,repo-local}
  --reserve-range RANGE_NAME

ssot-registry spec get [path]
  --id ID (required)

ssot-registry spec list [path]

ssot-registry spec update [path]
  --id ID (required)
  --title TITLE
  --body-file BODY_FILE
  --kind {normative,operational,repo-local}

ssot-registry spec delete [path]
  --id ID (required)

ssot-registry spec sync [path]

ssot-registry spec reserve create [path]
  --name NAME (required)
  --start START (required)
  --end END (required)

ssot-registry spec reserve list [path]

feature

Subcommands:

  • create
  • get
  • list
  • update
  • delete
  • link
  • unlink
  • plan
  • lifecycle set

Flags per subcommand:

ssot-registry feature create [path]
  --id ID (required)
  --title TITLE (required)
  --description DESCRIPTION
  --implementation-status {absent,partial,implemented}
  --lifecycle-stage {active,deprecated,obsolete,removed}
  --replacement-feature-id [REPLACEMENT_FEATURE_ID ...]
  --note NOTE
  --horizon {current,next,future,explicit,backlog,out_of_bounds}
  --claim-tier {T0,T1,T2,T3,T4}
  --target-lifecycle-stage {active,deprecated,obsolete,removed}
  --slot SLOT
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --requires [REQUIRES ...]

ssot-registry feature get [path]
  --id ID (required)

ssot-registry feature list [path]

ssot-registry feature update [path]
  --id ID (required)
  --title TITLE
  --description DESCRIPTION
  --implementation-status {absent,partial,implemented}

ssot-registry feature delete [path]
  --id ID (required)

ssot-registry feature link [path]
  --id ID (required)
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --requires [REQUIRES ...]

ssot-registry feature unlink [path]
  --id ID (required)
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --requires [REQUIRES ...]

ssot-registry feature plan [path]
  --ids IDS [IDS ...] (required)
  --horizon {current,next,future,explicit,backlog,out_of_bounds} (required)
  --claim-tier {T0,T1,T2,T3,T4}
  --target-lifecycle-stage {active,deprecated,obsolete,removed}
  --slot SLOT

ssot-registry feature lifecycle set [path]
  --ids IDS [IDS ...] (required)
  --stage {active,deprecated,obsolete,removed} (required)
  --replacement-feature-id [REPLACEMENT_FEATURE_ID ...]
  --effective-release-id EFFECTIVE_RELEASE_ID
  --note NOTE

test

Subcommands:

  • create, get, list, update, delete, link, unlink
ssot-registry test create [path]
  --id ID (required)
  --title TITLE (required)
  --status {planned,passing,failing,blocked,skipped}
  --kind KIND (required)
  --test-path TEST_PATH (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

ssot-registry test get [path]
  --id ID (required)

ssot-registry test list [path]

ssot-registry test update [path]
  --id ID (required)
  --title TITLE
  --status {planned,passing,failing,blocked,skipped}
  --kind KIND
  --test-path TEST_PATH

ssot-registry test delete [path]
  --id ID (required)

ssot-registry test link [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

ssot-registry test unlink [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

issue

Subcommands:

  • create, get, list, update, delete, link, unlink, plan, close, reopen
ssot-registry issue create [path]
  --id ID (required)
  --title TITLE (required)
  --status {open,in_progress,blocked,resolved,closed}
  --severity {low,medium,high,critical}
  --description DESCRIPTION
  --horizon {current,next,future,explicit,backlog,out_of_bounds}
  --slot SLOT
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]
  --risk-ids [RISK_IDS ...]
  --release-blocking | --no-release-blocking

ssot-registry issue get [path]
  --id ID (required)

ssot-registry issue list [path]

ssot-registry issue update [path]
  --id ID (required)
  --title TITLE
  --severity {low,medium,high,critical}
  --description DESCRIPTION
  --release-blocking | --no-release-blocking

ssot-registry issue delete [path]
  --id ID (required)

ssot-registry issue link [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]
  --risk-ids [RISK_IDS ...]

ssot-registry issue unlink [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]
  --risk-ids [RISK_IDS ...]

ssot-registry issue plan [path]
  --ids IDS [IDS ...] (required)
  --horizon {current,next,future,explicit,backlog,out_of_bounds} (required)
  --slot SLOT

ssot-registry issue close [path]
  --id ID (required)

ssot-registry issue reopen [path]
  --id ID (required)

claim

Subcommands:

  • create, get, list, update, delete, link, unlink, evaluate, set-status, set-tier
ssot-registry claim create [path]
  --id ID (required)
  --title TITLE (required)
  --status {proposed,declared,implemented,asserted,evidenced,certified,promoted,published,blocked,retired}
  --tier {T0,T1,T2,T3,T4}
  --kind KIND (required)
  --description DESCRIPTION
  --feature-ids [FEATURE_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

ssot-registry claim get [path]
  --id ID (required)

ssot-registry claim list [path]

ssot-registry claim update [path]
  --id ID (required)
  --title TITLE
  --kind KIND
  --description DESCRIPTION

ssot-registry claim delete [path]
  --id ID (required)

ssot-registry claim link [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

ssot-registry claim unlink [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

ssot-registry claim evaluate [path]
  --claim-id CLAIM_ID

ssot-registry claim set-status [path]
  --id ID (required)
  --status {proposed,declared,implemented,asserted,evidenced,certified,promoted,published,blocked,retired} (required)

ssot-registry claim set-tier [path]
  --id ID (required)
  --tier {T0,T1,T2,T3,T4} (required)

evidence

Subcommands:

  • create, get, list, update, delete, link, unlink, verify
ssot-registry evidence create [path]
  --id ID (required)
  --title TITLE (required)
  --status {planned,collected,passed,failed,stale}
  --kind KIND (required)
  --tier {T0,T1,T2,T3,T4}
  --evidence-path EVIDENCE_PATH (required)
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]

ssot-registry evidence get [path]
  --id ID (required)

ssot-registry evidence list [path]

ssot-registry evidence update [path]
  --id ID (required)
  --title TITLE
  --status {planned,collected,passed,failed,stale}
  --kind KIND
  --tier {T0,T1,T2,T3,T4}
  --evidence-path EVIDENCE_PATH

ssot-registry evidence delete [path]
  --id ID (required)

ssot-registry evidence link [path]
  --id ID (required)
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]

ssot-registry evidence unlink [path]
  --id ID (required)
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]

ssot-registry evidence verify [path]
  --evidence-id EVIDENCE_ID

risk

Subcommands:

  • create, get, list, update, delete, link, unlink, mitigate, accept, retire
ssot-registry risk create [path]
  --id ID (required)
  --title TITLE (required)
  --status {active,mitigated,accepted,retired}
  --severity {low,medium,high,critical}
  --description DESCRIPTION
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]
  --issue-ids [ISSUE_IDS ...]
  --release-blocking | --no-release-blocking

ssot-registry risk get [path]
  --id ID (required)

ssot-registry risk list [path]

ssot-registry risk update [path]
  --id ID (required)
  --title TITLE
  --severity {low,medium,high,critical}
  --description DESCRIPTION
  --release-blocking | --no-release-blocking

ssot-registry risk delete [path]
  --id ID (required)

ssot-registry risk link [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]
  --issue-ids [ISSUE_IDS ...]

ssot-registry risk unlink [path]
  --id ID (required)
  --feature-ids [FEATURE_IDS ...]
  --claim-ids [CLAIM_IDS ...]
  --test-ids [TEST_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]
  --issue-ids [ISSUE_IDS ...]

ssot-registry risk mitigate [path]
  --id ID (required)

ssot-registry risk accept [path]
  --id ID (required)

ssot-registry risk retire [path]
  --id ID (required)

boundary

Subcommands:

  • create, get, list, update, delete, add-feature, remove-feature, freeze
ssot-registry boundary create [path]
  --id ID (required)
  --title TITLE (required)
  --status {draft,active,frozen,retired}
  --frozen | --no-frozen
  --feature-ids [FEATURE_IDS ...]

ssot-registry boundary get [path]
  --id ID (required)

ssot-registry boundary list [path]

ssot-registry boundary update [path]
  --id ID (required)
  --title TITLE
  --status {draft,active,frozen,retired}
  --frozen | --no-frozen

ssot-registry boundary delete [path]
  --id ID (required)

ssot-registry boundary add-feature [path]
  --id ID (required)
  --feature-ids FEATURE_IDS [FEATURE_IDS ...] (required)

ssot-registry boundary remove-feature [path]
  --id ID (required)
  --feature-ids FEATURE_IDS [FEATURE_IDS ...] (required)

ssot-registry boundary freeze [path]
  --boundary-id BOUNDARY_ID

release

Subcommands:

  • create, get, list, update, delete
  • add-claim, remove-claim, add-evidence, remove-evidence
  • certify, promote, publish, revoke
ssot-registry release create [path]
  --id ID (required)
  --version VERSION (required)
  --status {draft,candidate,certified,promoted,published,revoked}
  --boundary-id BOUNDARY_ID (required)
  --claim-ids [CLAIM_IDS ...]
  --evidence-ids [EVIDENCE_IDS ...]

ssot-registry release get [path]
  --id ID (required)

ssot-registry release list [path]

ssot-registry release update [path]
  --id ID (required)
  --version VERSION
  --status {draft,candidate,certified,promoted,published,revoked}
  --boundary-id BOUNDARY_ID

ssot-registry release delete [path]
  --id ID (required)

ssot-registry release add-claim [path]
  --id ID (required)
  --claim-ids CLAIM_IDS [CLAIM_IDS ...] (required)

ssot-registry release remove-claim [path]
  --id ID (required)
  --claim-ids CLAIM_IDS [CLAIM_IDS ...] (required)

ssot-registry release add-evidence [path]
  --id ID (required)
  --evidence-ids EVIDENCE_IDS [EVIDENCE_IDS ...] (required)

ssot-registry release remove-evidence [path]
  --id ID (required)
  --evidence-ids EVIDENCE_IDS [EVIDENCE_IDS ...] (required)

ssot-registry release certify [path]
  --release-id RELEASE_ID
  --write-report

ssot-registry release promote [path]
  --release-id RELEASE_ID

ssot-registry release publish [path]
  --release-id RELEASE_ID

ssot-registry release revoke [path]
  --release-id RELEASE_ID (required)
  --reason REASON (required)

graph

Subcommands:

  • export
ssot-registry graph export [path]
  --format {json,dot,png,svg} (required)
  --output OUTPUT

registry

Subcommands:

  • export
ssot-registry registry export [path]
  --format {json,csv,df,yaml,toml} (required)
  --output OUTPUT

End-to-end usage examples

E2E example 1: initialize and validate a repo

# Initialize registry under current repo
ssot-registry init . --repo-id repo:demo.app --repo-name "Demo App" --version 0.1.0

# Validate and write machine-readable report
ssot-registry validate . --write-report

# Inspect top-level entities
ssot-registry feature list .
ssot-registry claim list .
ssot-registry test list .
ssot-registry adr list .
ssot-registry spec list .

E2E example 1b: create repo-local ADRs and specs

# Create local ADR/spec bodies
cat > adr-body.md <<'EOF'
Adopt local numbering for repository-owned decisions.
EOF

cat > spec-body.md <<'EOF'
Repository-local operational conventions for maintainers.
EOF

# Create repo-local documents from the local reservation range
ssot-registry adr create . --title "Use repo-local ADR numbering" --slug use-repo-local-adr-numbering --body-file adr-body.yaml
ssot-registry spec create . --title "Maintainer operating conventions" --slug maintainer-operating-conventions --body-file spec-body.md --kind operational

# Inspect or sync the document sets
ssot-registry adr list .
ssot-registry spec list .
ssot-registry adr sync .
ssot-registry spec sync .

E2E example 2: plan + implementation lifecycle + release flow

# 1) Create feature, claim, test, and evidence
ssot-registry feature create . --id feat:demo.login --title "User login"
ssot-registry claim create . --id clm:demo.login.t1 --title "Login succeeds" --kind behavior --tier T1
ssot-registry test create . --id tst:demo.login.unit --title "Login unit" --kind unit --test-path tests/test_login.py
ssot-registry evidence create . --id evd:demo.login.pytest --title "Pytest login run" --kind test_run --evidence-path artifacts/login.json --tier T1

# 2) Wire references
ssot-registry feature link . --id feat:demo.login --claim-ids clm:demo.login.t1 --test-ids tst:demo.login.unit
ssot-registry claim link . --id clm:demo.login.t1 --feature-ids feat:demo.login --test-ids tst:demo.login.unit --evidence-ids evd:demo.login.pytest
ssot-registry test link . --id tst:demo.login.unit --feature-ids feat:demo.login --claim-ids clm:demo.login.t1 --evidence-ids evd:demo.login.pytest

# 3) Plan and set lifecycle
ssot-registry feature plan . --ids feat:demo.login --horizon current --claim-tier T1 --target-lifecycle-stage active
ssot-registry feature lifecycle set . --ids feat:demo.login --stage active --note "Initial rollout"

# 4) Freeze boundary and create release
ssot-registry boundary create . --id bnd:demo.v0 --title "Demo v0 scope" --feature-ids feat:demo.login
ssot-registry boundary freeze . --boundary-id bnd:demo.v0
ssot-registry release create . --id rel:0.1.0 --version 0.1.0 --boundary-id bnd:demo.v0 --claim-ids clm:demo.login.t1 --evidence-ids evd:demo.login.pytest

# 5) Gate progression
ssot-registry release certify . --release-id rel:0.1.0 --write-report
ssot-registry release promote . --release-id rel:0.1.0
ssot-registry release publish . --release-id rel:0.1.0

E2E example 3: graph exports and focused checks

# Evaluate one claim
ssot-registry claim evaluate . --claim-id clm:demo.login.t1

# Verify one evidence row
ssot-registry evidence verify . --evidence-id evd:demo.login.pytest

# Export graph in JSON, DOT, and PNG formats
ssot-registry graph export . --format json --output .ssot/graphs/registry.graph.json
ssot-registry graph export . --format dot --output .ssot/graphs/registry.graph.dot
ssot-registry graph export . --format png --output .ssot/graphs/registry.graph.png

# Render list output as YAML/CSV and export full registry as TOML
ssot-registry --output-format yaml feature list .
ssot-registry --output-format csv claim list .
ssot-registry registry export . --format toml --output .ssot/exports/registry.toml

Documentation map (core vs origin)

  • Canonical upstream ssot-core docs (.ssot/)

    • Upstream ADR inventory: .ssot/adr/
    • Upstream spec inventory: .ssot/specs/
  • Canonical upstream governance docs (.ssot/)

    • Package topology and release order: .ssot/specs/SPEC-0500-package-topology-and-release-order.yaml
    • Canonical release targets: .ssot/specs/SPEC-0510-canonical-release-targets-and-tag-naming.yaml
    • Origin/core boundary rules: .ssot/specs/SPEC-0512-document-origin-boundaries-and-id-ranges.yaml
    • Architecture decisions for package layout and release flow: .ssot/adr/
  • Public operator ssot-origin templates (pkgs/ssot-contracts/src/ssot_contracts/templates/)

    • ADRs copied into downstream repos: pkgs/ssot-contracts/src/ssot_contracts/templates/adr/
    • Specs copied into downstream repos: pkgs/ssot-contracts/src/ssot_contracts/templates/specs/
  • Examples (examples/)

    • Minimal repo fixtures, advanced/e2e examples, and format/export workflows (examples/formats-and-exports.md).
  • Root reference docs

  • Verification notes: VERIFICATION.md

  • Changelog: CHANGELOG.md

Public operator surfaces

  • Canonical JSON registry: .ssot/registry.json
  • JSON Schema pack
  • Noun-scoped CLI emitting JSON by default (with optional CSV/DF/YAML/TOML renderers)
  • Python API under ssot_registry.api
  • Derived graph, report, and snapshot artifacts

Repository layout

  • Specs: .ssot/specs/
  • ADRs: .ssot/adr/
  • Examples: examples/
  • Source code: pkgs/*/src/

Development

python -m venv .venv
. .venv/bin/activate
python -m pip install --upgrade pip
python -m pip install -e pkgs/ssot-registry
python -m unittest discover -s tests -v
