Heat-Pump WPL-A 05/07 HK 230 not working

[guevara777]

The problem

I´m trying to integration my Stiebel-Eltron Heat Pump WPL-A 07 HK 230 Premium into home assistant. Sadly it won´t work and gives me error-messages "modbus read failed" like this:

What version of Home Assistant Core has the issue?

2023.1.0b5

What was the last working version of Home Assistant Core?

No response

What type of installation are you running?

Home Assistant OS

Integration causing the issue

Stiebel Eltron

Link to integration documentation on our website

https://www.home-assistant.io/integrations/stiebel_eltron/

Diagnostics information

No response

Example YAML snippet

Setup in configuration.yaml

# Wärmempumpe Neubau
modbus:
  - type: tcp
    host: 192.168.188.144
    port: 502
    name: ISG

# Stiebel-Eltron Integration Wärmempumpe Neubau
stiebel_eltron:
  name: Waermepumpe
  hub: ISG

Anything in the logs that might be useful for us?

[Working Modbus-Integration]
...
2023-01-03 13:56:14.196 INFO (MainThread) [homeassistant.setup] Setting up modbus
2023-01-03 13:56:14.205 DEBUG (SyncWorker_3) [pymodbus.client.sync] Connection to Modbus server established. Socket ('192.168.188.157', 41609)
2023-01-03 13:56:14.205 INFO (SyncWorker_3) [homeassistant.components.modbus.modbus] modbus ISG communication open
2023-01-03 13:56:14.389 INFO (MainThread) [homeassistant.setup] Setup of domain modbus took 0.2 seconds
...

[Not-Working Stiebel-Eltron Integration]
...
2023-01-03 13:56:16.469 INFO (MainThread) [homeassistant.setup] Setting up stiebel_eltron
2023-01-03 13:56:16.474 INFO (MainThread) [homeassistant.setup] Setup of domain stiebel_eltron took 0.0 seconds
2023-01-03 13:56:16.477 INFO (MainThread) [homeassistant.components.climate] Setting up climate.stiebel_eltron
2023-01-03 13:56:16.490 WARNING (SyncWorker_1) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-01-03 13:56:16.501 DEBUG (SyncWorker_1) [homeassistant.components.stiebel_eltron.climate] Update Waermepumpe, current temp: 0.0
2023-01-03 13:57:16.573 WARNING (SyncWorker_1) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-01-03 13:57:16.575 DEBUG (SyncWorker_1) [homeassistant.components.stiebel_eltron.climate] Update Waermepumpe, current temp: 0.0
...

Additional information

I use an ISGplus with Software 12.2.1.222 and an WPL-A 07 HK 230 Premium heating pump.

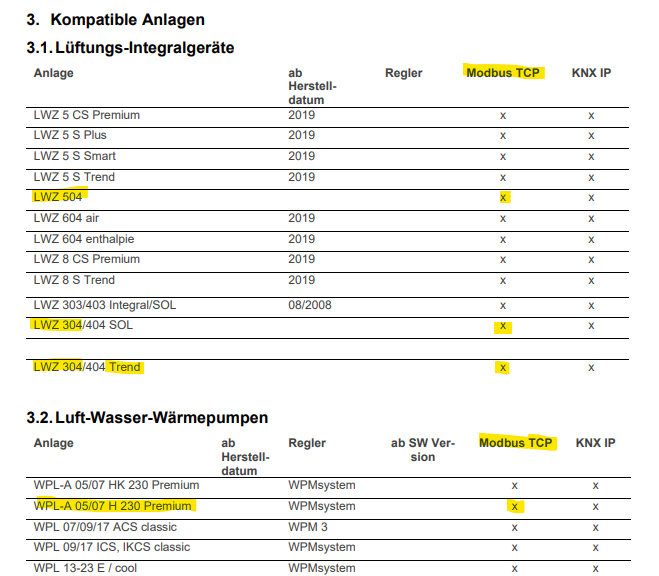

This heat pump is not listed as "known working device" but should be working like the other known devices. Here´s the compatibilty list from the manufacturer:

[home-assistant]

Hey there @fucm, mind taking a look at this issue as it has been labeled with an integration (stiebel_eltron) you are listed as a code owner for? Thanks!

Code owner commands

Code owners of stiebel_eltron can trigger bot actions by commenting:

• @home-assistant close Closes the issue.
• @home-assistant rename Awesome new title Change the title of the issue.
• @home-assistant reopen Reopen the issue.
• @home-assistant unassign stiebel_eltron Removes the current integration label and assignees on the issue, add the integration domain after the command.

_{^{(message by CodeOwnersMention)}}

---

stiebel_eltron documentation
stiebel_eltron source
_{^{(message by IssueLinks)}}

[Veaullus]

Dear @guevara777 , did you solve your issue ?
I'm trying to integrate my HeatPump HPA O-7 CS Premium to Home Assistant, in order to retrieve all the settings available in the ISG.

[guevara777]

I solved it in an other way. I used the Modbus-Integration in Home Assistant.

Stiebel Eltron has good documentation for it -> Link

I shared my configuration with the community here -> Link

[Veaullus]

Thank you for your answer and your sharing, it is very appreciable!
I just have to try and see if it's compatible with my configuration.

[issue-triage-workflows]

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates.
Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍
This issue has now been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.

[guevara777]

I´m able to add the heat-pump via configuration.yaml and it gives me an climate-entity that looks like this:

It seems to have no data and i can find this in the logs:

Logger: homeassistant.components.stiebel_eltron
Source: components/stiebel_eltron/__init__.py:68
Integration: STIEBEL ELTRON (documentation, issues)
First occurred: 14:15:06 (5 occurrences)
Last logged: 14:19:06

Modbus read failed

2023-05-06 14:15:06.095 WARNING (SyncWorker_2) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-05-06 14:16:06.115 WARNING (SyncWorker_8) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-05-06 14:17:06.113 WARNING (SyncWorker_8) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-05-06 14:18:06.114 WARNING (SyncWorker_6) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-05-06 14:19:06.114 WARNING (SyncWorker_0) [homeassistant.components.stiebel_eltron] Modbus read failed

This seems to be still an active issue.

[artspb]

I can confirm that I have the same as @guevara777. Thank you for the link to your solution, by the way! It helps a lot.

[issue-triage-workflows]

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates.
Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍
This issue has now been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.

[guevara777]

Testet it again with this Version:

Home Assistant 2023.9.1
Supervisor 2023.09.0
Operating System 10.4
Frontend 20230908.0 - latest

Still getting an climate-entity with zero-values...

and still getting these error messages in the logs:

Logger: homeassistant.components.stiebel_eltron
Source: components/stiebel_eltron/__init__.py:66
Integration: STIEBEL ELTRON (documentation, issues)
First occurred: 08:35:49 (4 occurrences)
Last logged: 08:38:49

Modbus read failed

2023-09-10 08:35:49.132 WARNING (SyncWorker_11) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-09-10 08:36:49.165 WARNING (SyncWorker_10) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-09-10 08:37:49.165 WARNING (SyncWorker_8) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-09-10 08:38:49.166 WARNING (SyncWorker_12) [homeassistant.components.stiebel_eltron] Modbus read failed
2023-09-10 08:39:49.167 WARNING (SyncWorker_14) [homeassistant.components.stiebel_eltron] Modbus read failed
