v0.11.0: aircraft glide

Choose a tag to compare

@hook-365 hook-365 released this 29 Sep 00:46
· 5 commits to master since this release

Aircraft glide now. Big thanks to @auggiesoft
for contributing smooth motion (#14).
Thanks as well to @rknobbe for the
reports behind the settings and airship fixes (#12, #13).

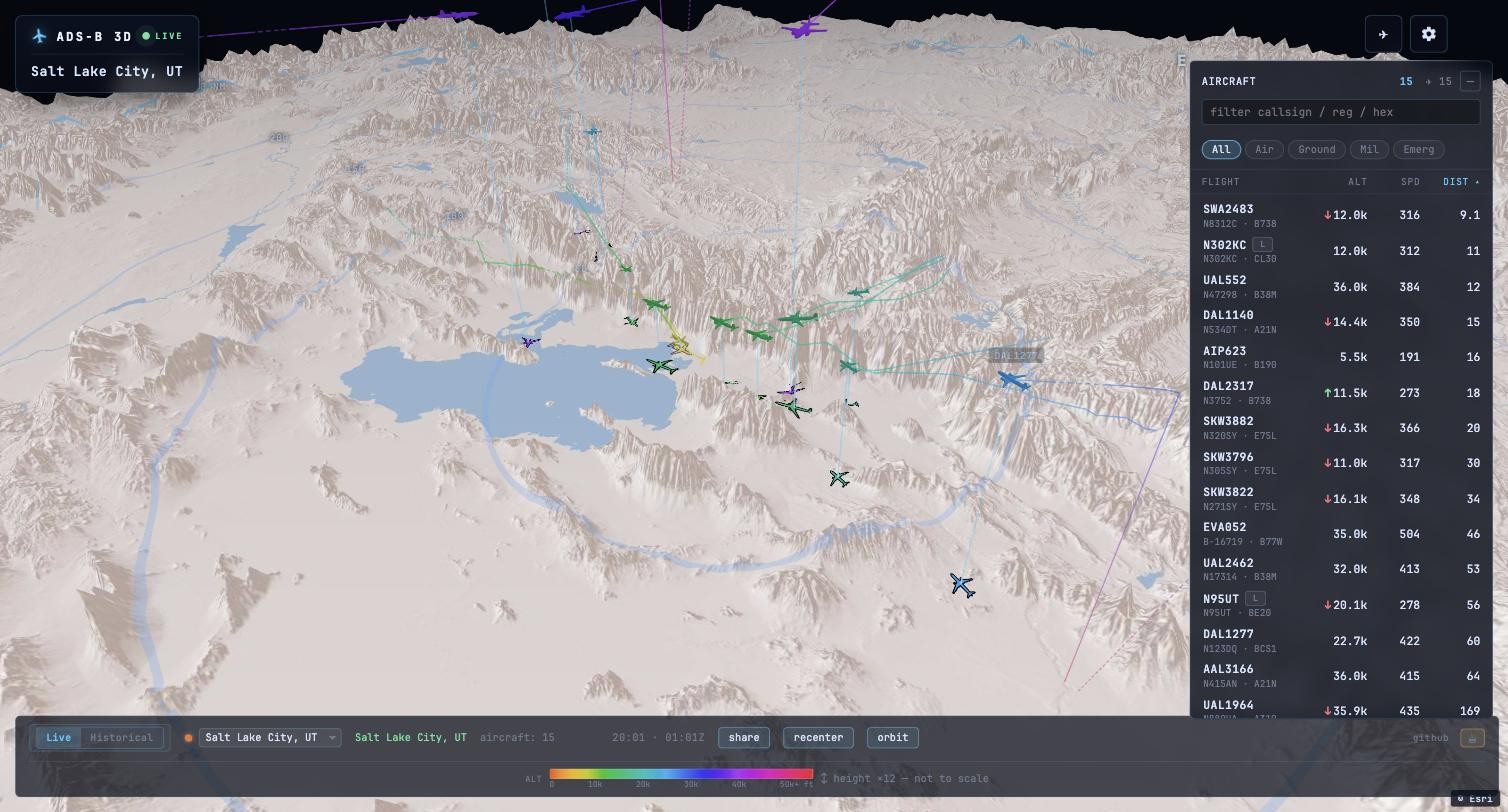

Live view over Salt Lake City: 3D aircraft and trails over exaggerated Wasatch terrain

Added

  • Smooth motion. (#14, thanks @auggiesoft) Aircraft glide between position updates instead of
    stepping once per feed tick. Each aircraft is shown about one update
    interval in the past (1.2x its own cadence, 1-12 s) and interpolated
    between its last two real fixes; late data freezes at the newest fix
    rather than extrapolating, and a gap far beyond the aircraft's usual
    cadence snaps instead of gliding across unobserved sky (a sustained
    slower cadence is re-learned after three such gaps). Live mode only;
    historical playback is unchanged. Settings -> Smooth motion
    and the wrist menu toggle it, default on.
  • Per-tab settings and feed. Each browser tab keeps its own settings
    and active feed, so two tabs can show different views side by side,
    and a reload keeps that tab's choices. New tabs start from the most
    recent change made in any tab. (#12)

Fixed

  • Balloons stand up, and blimps are blimps. tar1090's balloon is a
    side-view drawing, so the extruded marker lay on its side. Balloons
    are now an upright envelope with a basket, and airships get a finned
    hull with a gondola that follows the track. Airships reporting emitter
    category B2 (the Goodyear blimps, anything described as an airship, or
    any type code other than BALL) no longer render as balloons. (#13)

  • Live-only installs stop calling a track-service that isn't there.
    With ENABLE_HISTORICAL off, the local feed no longer tries the
    /api/ws/live socket, trail backfill or route lookups (each was a 502
    and an nginx "could not be resolved" log line), and the Live/Historical
    strip is hidden since there is nothing to play back. A shared
    historical link opened on such an install stays live. Remote feeds
    with their own track-service are unaffected. (#12)

  • Settings no longer switch themselves back between tabs. Every tab
    saved its whole settings object whenever it was hidden or closed, so
    an older tab could silently revert a change made in another one (3D
    terrain turning itself off after it had worked). Tabs now write only
    the keys they changed. (#12)

Screenshots

The README has fresh screenshots of the current interface.

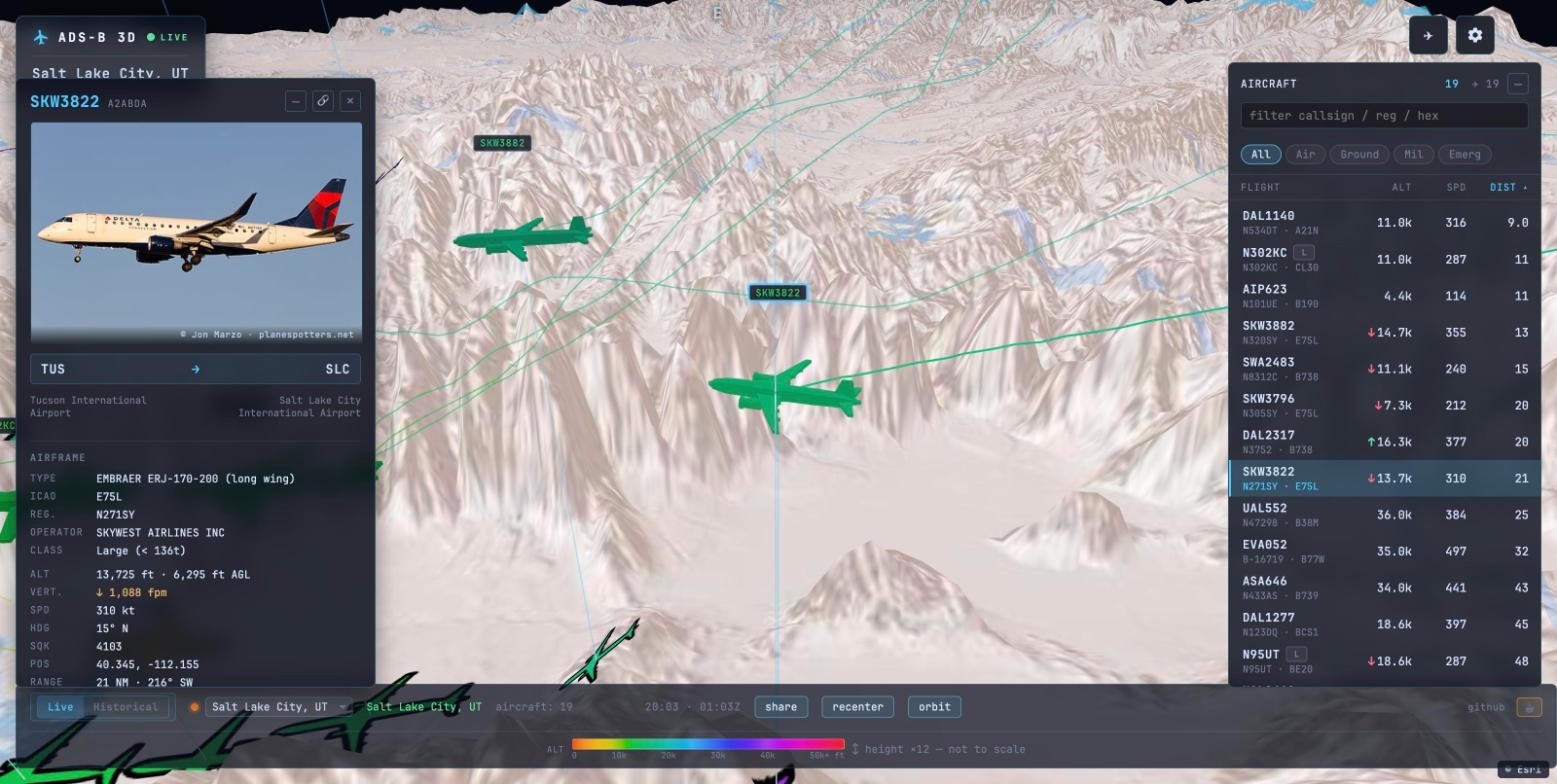

Following a SkyWest E175 inbound to Salt Lake, with its detail card

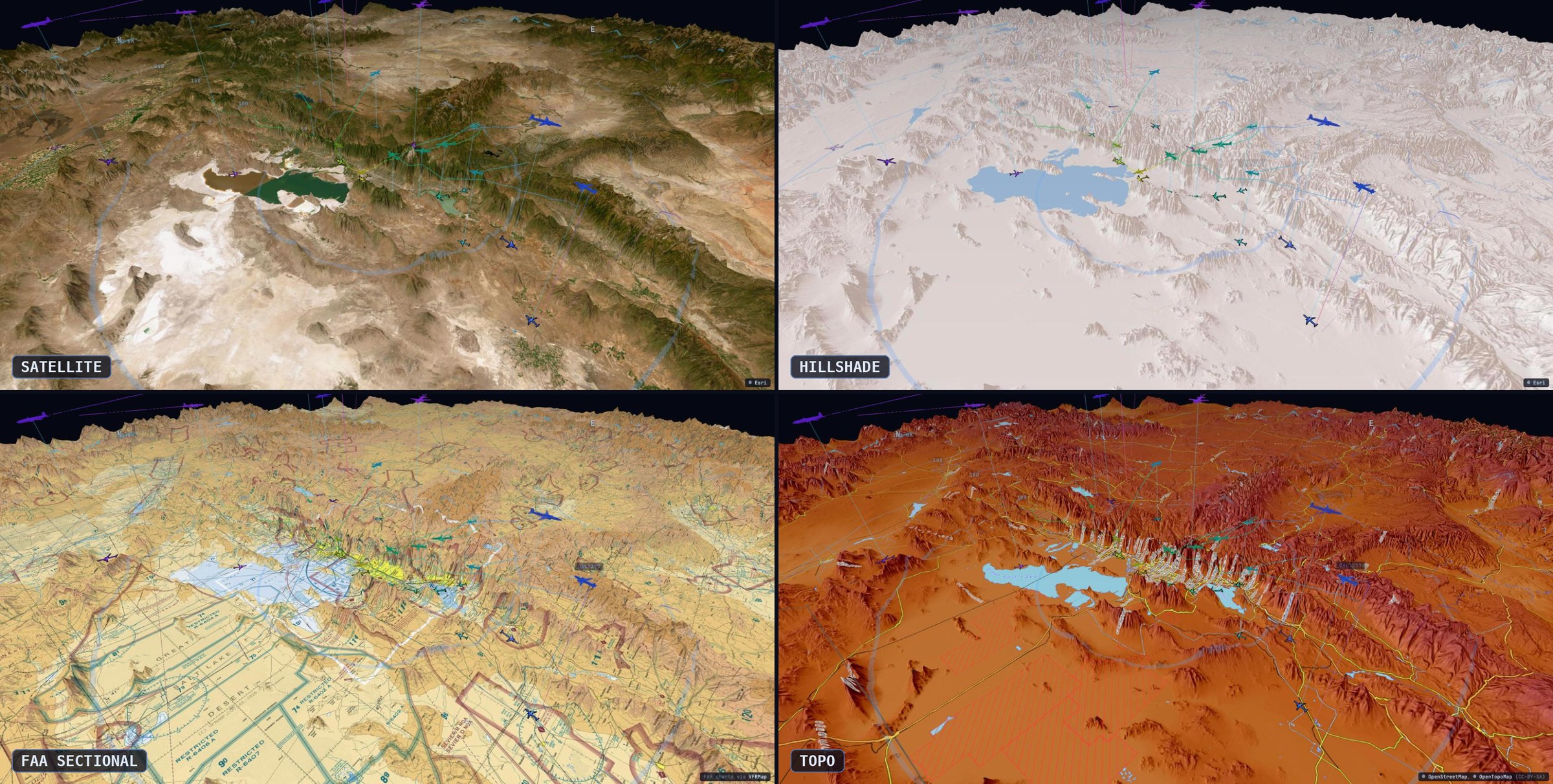

The same view on four basemaps: satellite, hillshade, FAA sectional, and topo

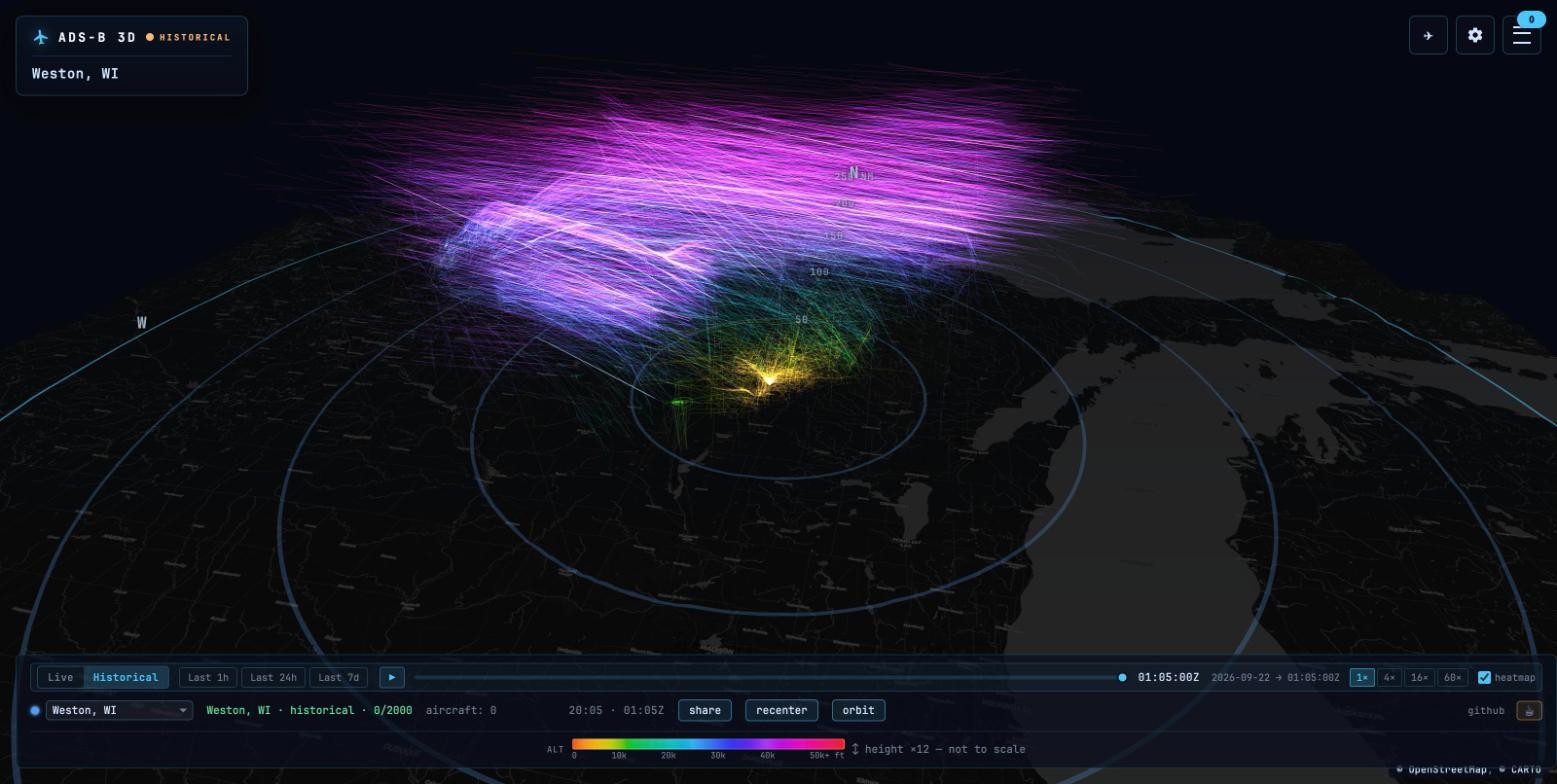

A week of traffic as a 3D airway-density heatmap

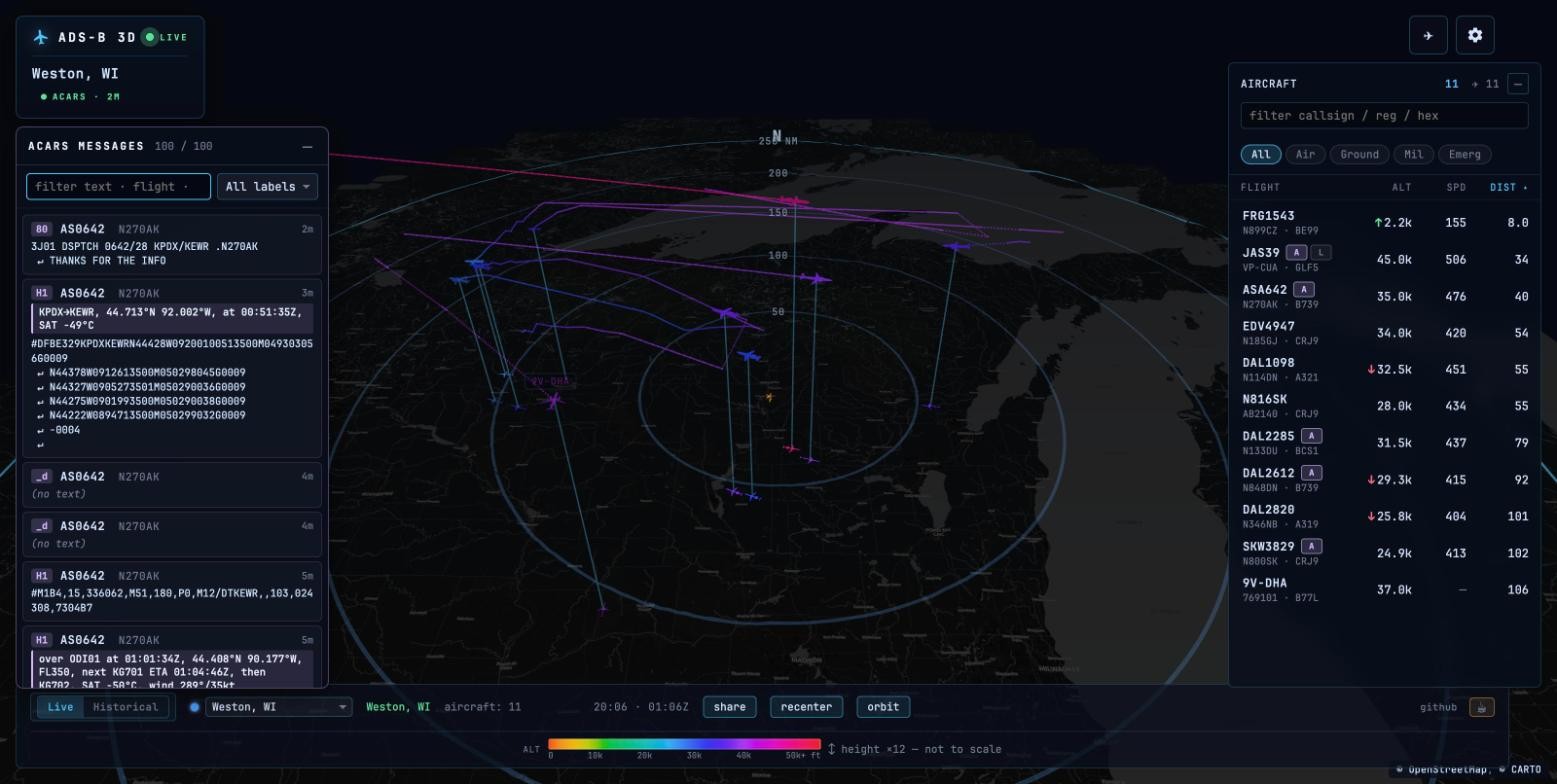

Docked ACARS panel with decoded position reports

Full Changelog: v0.10.0...v0.11.0
