bfagent

A local vision-language chat agent for Apple Silicon, built around Gemma 4 via MLX. The runtime is split into three pieces that talk to each other over Cap'n Proto RPC:

• bfagent — headless backend + Gradio web UI
• bfagent-cli — terminal chat client
• bfagent-app — Tauri native-window wrapper that launches the backend and points a webview at the UI

The default model is mlx-community/gemma-4-e2b-it-4bit, a 4-bit quantized Gemma 4 with vision support. Override it for any binary or helper script by setting BFAGENT_MODEL (see app/.env.example). It runs entirely on-device — no API keys, no network calls after the first model download.

Demo videos



• bfagent walkthrough — part 1

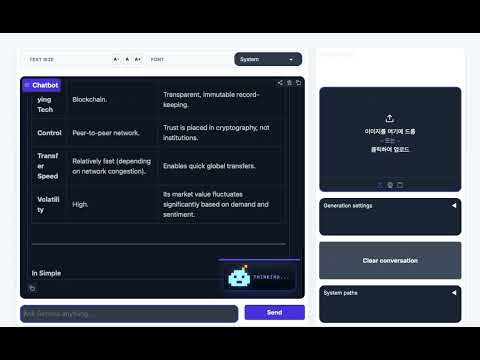

• bfagent walkthrough — part 2

Requirements

• macOS on Apple Silicon (M-series). MLX is the inference backend.
• Python 3.10+
• Rust toolchain (for the Tauri shell and pyapp packager)
• Conda recommended for the Python environment

Quick start

# 1. create the env (one-time)
conda env create -f app/environment.yml
conda activate gemma4

# 2. install runtime deps
cd app
make install

# 3. fastest path: run from source, no packaging
make debug

make debug boots the backend in a daemon thread, waits for the RPC port, then launches the Gradio UI in the foreground. The browser URL is printed on stdout.

Faster model download

The default Gemma 4 weights are ~2 GB. Anonymous downloads from Hugging Face are throttled and serial; an authenticated download with hf_transfer enabled is several times faster.

1. Get a read-only token at https://huggingface.co/settings/tokens.

2. Copy app/.env.example to app/.env and fill in HF_TOKEN:

   cp app/.env.example app/.env
   $EDITOR app/.env

3. Install the Rust accelerator and prefetch the weights:

   pip install hf_transfer
   set -a; source app/.env; set +a    # export everything in .env
   python app/download.py             # one-shot prefetch into ~/.cache/huggingface

.env is git-ignored — see app/.env.example for every supported variable. Subsequent make debug / make run invocations reuse the cached weights and start instantly.

Building standalone binaries

cd app
make package        # builds ./bfagent, ./bfagent-cli, ./bfagent-app
./bfagent-app       # native window — one-program experience
./bfagent           # headless — open the printed URL in a browser
./bfagent-cli       # terminal chat client (needs a backend running)

make package produces three self-extracting binaries via pyapp (Python) and cargo build --release (Tauri). They share a Python/dep cache under ~/Library/Application Support/pyapp/hello, so the model deps download once.

Talking to the backend from another terminal

The CLI auto-discovers a running backend through ~/.bfagent/sessions.jsonl:

bfagent-cli ping                       # TCP-probe the RPC port
bfagent-cli chat 'one word reply: pong'
bfagent-cli chat 'describe this' --image cat.jpg
bfagent-cli repl --max-tokens 200      # interactive multi-turn

Streaming is on by default; pass --no-stream for a single round-trip.

Architecture

                +------------------+
                |  bfagent-app     |  (Tauri native window, optional)
                |  webview ─────┐  |
                +───────────────┼──+
                                │ http
                +───────────────▼──+         +------------------+
                |  Gradio UI       |         |  bfagent-cli     |
                |  (frontend.py)   |         |  (cli.py)        |
                +───────┬──────────+         +─────────┬────────+
                        │                              │
                        │   Cap'n Proto RPC (TCP)      │
                        └─────────────┬────────────────┘
                                      │
                              +───────▼────────+
                              |  backend.py    |
                              |  MLX + Gemma 4 |
                              +────────────────+

The schema is defined in app/gemma.capnp. The backend exposes one bootstrap interface (GemmaAgent) with a blocking chat() method and a server-streaming chatStream() method that pushes token deltas to a ChatSink callback.

Configuration

Environment variables (all optional):

Variable	Default	Purpose
BFAGENT_MODEL	mlx-community/gemma-4-e2b-it-4bit	Hugging Face repo id — honored by the backend, frontend, CLI, and every helper script (download.py, info.py, hello.py, detect.py, visual.py, functioncall.py, stream.py)
BFAGENT_HOST / BFAGENT_PORT	127.0.0.1 / 5923	Backend RPC bind address
BFAGENT_UI_HOST / BFAGENT_UI_PORT	127.0.0.1 / 7860	Gradio bind address
BFAGENT_MAX_TOKENS	4096	Default generation cap
BFAGENT_TRAVERSAL_LIMIT_WORDS	1 << 30	Cap'n Proto message size cap (matters for large image prompts)
BFAGENT_SESSIONS	~/.bfagent/sessions.jsonl	Session log used for CLI auto-discovery

Persistence folder

State that survives across runs lives under ~/.bfagent/:

Path	Override env var	Written by	Purpose
~/.bfagent/sessions.jsonl	BFAGENT_SESSIONS	backend.py, frontend.py	Append-only JSON-lines log of process lifecycle (backend_start / backend_stop / frontend_start / frontend_stop). The CLI reads this to auto-discover the running backend's host:rpc_port so a bfagent-cli invocation in another terminal doesn't need to know which port program.py picked.
~/.bfagent/prefs.jsonl	BFAGENT_PREFS	frontend.py	UI preferences (last-selected options, settings).
~/.bfagent/chat.jsonl	BFAGENT_CHAT	frontend.py	Persistent chat history for the Gradio UI. Auto-trimmed when it exceeds the size cap.
~/.bfagent/chat-images/	BFAGENT_CHAT_IMAGES	frontend.py	Images attached to chat turns, referenced from chat.jsonl.

All of these are safe to delete — they'll be recreated on next launch. The .jsonl files are append-only, so individual lines can be edited or removed without corrupting the file.

Model weights are cached separately by Hugging Face under ~/.cache/huggingface/hub/, and the pyapp Python/dep cache lives under ~/Library/Application Support/pyapp/hello.

Project layout

app/
├── backend.py        # Cap'n Proto server, MLX inference
├── frontend.py       # Gradio chat UI
├── cli.py            # terminal client (bfagent-cli)
├── program.py        # entry point that boots backend + frontend together
├── session.py        # ~/.bfagent/sessions.jsonl read/write helpers
├── schema.py         # generated/loaded Cap'n Proto bindings
├── gemma.capnp       # RPC interface definition
├── functioncall.py   # tool-calling demo with Gemma
├── detect.py         # vision sanity check (one-shot describe)
├── visual.py         # additional vision experiments
├── stream.py         # streaming generation experiment
├── info.py           # print model architecture + disk footprint
├── download.py       # prefetch the model weights
├── tauri/            # native window shell (Rust)
├── Makefile
└── pyproject.toml

Common tasks

make help        # full command reference
make debug       # run from source (no packaging)
make client      # run cli.py against active env, e.g. ARGS="ping"
make stop        # kill any running bfagent / bfagent-app processes
make clear       # wipe the pyapp launch cache
make clean       # remove build outputs
make distclean   # also clear pyapp + tauri build caches

License

Apache 2.0.
