morph-compose

English | 简体中文

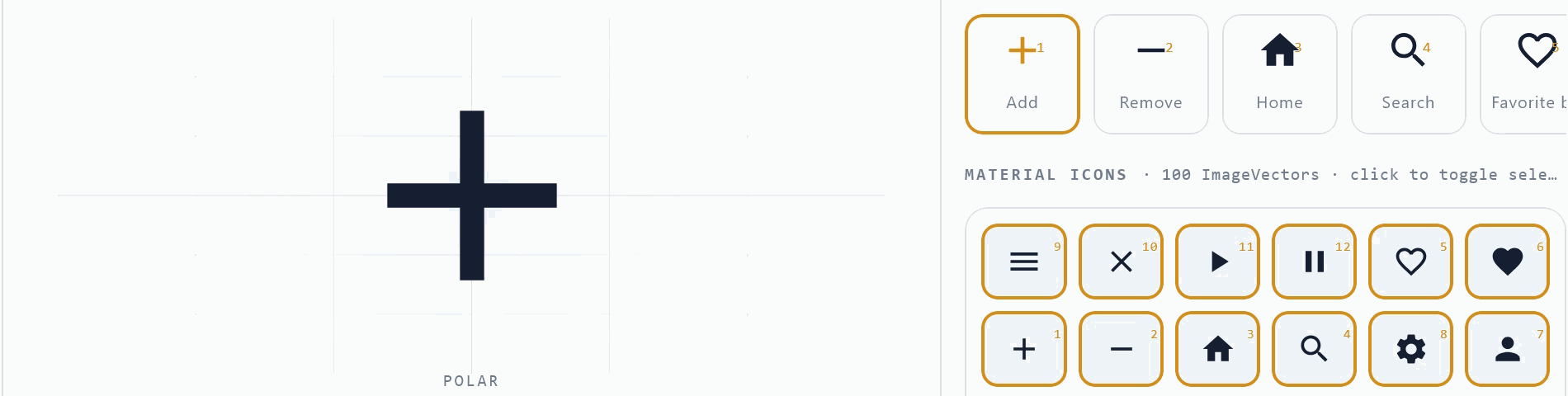

Live demo: morph-compose.pages.dev

A Compose Multiplatform library for morphing icons and custom paths. Supports Android, JVM, and Kotlin/Wasm.

Features

• Morph icons and custom paths, including shapes with multiple contours and holes.
• Animate when the target changes, or control progress yourself.
• Continue from the current shape when an animation is interrupted.
• Use animated shapes for backgrounds, borders, and image clipping.
• Follow system animation settings and handle RTL layouts automatically.

Installation

Add the dependency to commonMain and replace <latest> with the version shown in the badge above:

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("li.songe.morph:morph-compose:<latest>")
        }
    }
}

Icons

Pass an ImageVector to AnimatedMorphIcon. When the icon changes, it animates from the current shape to the new one:

@Composable
fun NavigationIcon(icon: ImageVector) {
    AnimatedMorphIcon(
        imageVector = icon,
        animationSpec = tween(durationMillis = 300),
    )
}

To switch between two icons, pass a Boolean:

AnimatedMorphIcon(
    from = Icons.Filled.PlayArrow,
    to = Icons.Filled.Pause,
    targetState = playing,
    contentDescription = if (playing) "Pause" else "Play",
)

To control progress yourself, use MorphIcon. 0 shows the source icon and 1 shows the target:

MorphIcon(
    from = Icons.Filled.Menu,
    to = Icons.Filled.Close,
    progress = progress,
    contentDescription = "Menu",
)

The icon APIs are in li.songe.morph.compose. These examples use Material icons, but you can use your own ImageVector. Animations follow the system animation duration scale by default.

To prefer the same rotation direction on both legs of a transition, supply a rotation preference:

AnimatedMorphIcon(
    from = Icons.AutoMirrored.Filled.ArrowBack,
    to = Icons.Filled.Close,
    targetState = closed,
    options = MorphOptions(
        rotationPreference = MorphRotationPreference.PreferCounterClockwise,
    ),
)

Auto preserves the existing behavior. PreferClockwise and PreferCounterClockwise choose among similarly clean correspondences in displayed coordinates, including RTL mirroring. If no suitable candidate exists, the automatic result is retained without adding a full turn. Build each direction separately: running one plan from progress 1 to 0 still reverses that plan. AnimatedMorphIcon already handles this. The preference targets Polar interpolation; Linear shares the correspondence but does not guarantee a rotation direction. Filled outlines are not automatically decomposed into strokes, so this does not reproduce a hand-authored three-line animation exactly. As with the existing algorithm, sampled quality checks do not guarantee intersection-free geometry at every intermediate frame.

Custom paths

Use morphGeometryOf with a filled Compose Path or List<PathNode>. Paths can contain multiple contours and holes. This example morphs a ring into a solid circle, closing the hole as progress goes from 0 to 1:

val ring = remember {
    morphGeometryOf(
        Path().apply {
            addOval(Rect(0f, 0f, 100f, 100f))
            addOval(Rect(30f, 30f, 70f, 70f))
        },
        viewportSize = Size(100f, 100f),
    )
}
val disc = remember {
    morphGeometryOf(Path().apply { addOval(Rect(0f, 0f, 100f, 100f)) }, Size(100f, 100f))
}
val plan = rememberMorphPlan(ring, disc)
val shape = rememberMorphShape(plan, progress)
Box(Modifier.size(160.dp).background(Color.Blue, shape))

Nested contours are treated as alternating filled regions and holes. The resulting shape works with background, border, and clip.

Digits

Convert digit outlines to MorphGeometry with morphGeometryOf. Pass outlines for 0 through 9 in order, using the same viewport and baseline. The example below animates when digit changes:

@Composable
fun MorphingDigit(digit: Int, digits: List<MorphGeometry>) {
    require(digit in 0..9 && digits.size == 10)
    val target = digits[digit]
    val state = rememberMorphGeometryState(target)

    LaunchedEffect(state, target) {
        state.animateTo(target, animationSpec = tween(300))
    }

    Box(Modifier.size(64.dp).background(Color.Black, rememberMorphShape(state)))
}

You supply the outlines; font loading is not part of the library. The playground includes sample digit paths. For transitions such as 99 → 100, see the whole-number example, which aligns digits by place value and fades added or removed digits.

Supported input

Supports solid fill paths, nested transforms, multiple contours, and holes. Clip paths, trim paths, gradient fills, and stroke-only paths are not supported. Use inspectMorphCompatibility(from, to) to check icons before animating them.

See the API and algorithm documentation for state controllers, plan reuse, and interpolation details. The project docs cover the playground and development setup.

Inspiration

This project was inspired by morphicons.
