feat(linux): give the quick terminal card visible chrome

[n2tr2]

What

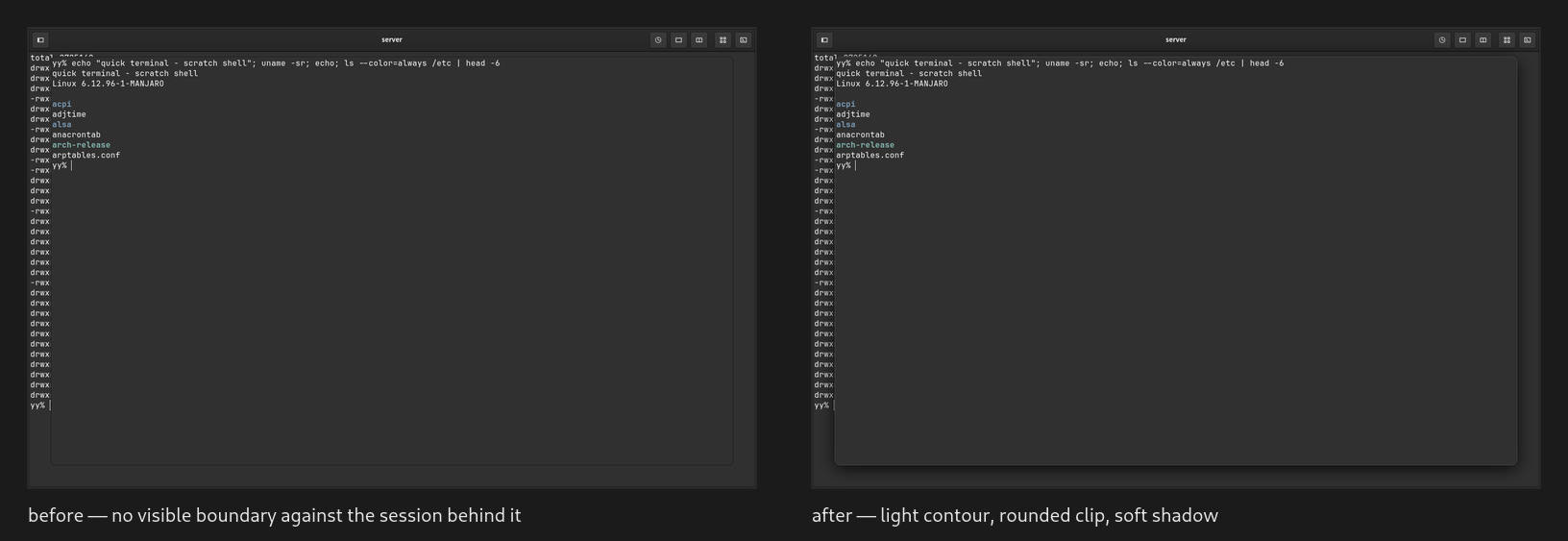

The Linux quick terminal (Ctrl+) and the sized floating session overlay read as a flat region of the window rather than a panel floating above the session behind them. There is no contour to separate card from content, nothing to lift the card off the background, and the square GtkGLArea` paints into the corners the frame is supposed to round off.

One part of the reported symptom was never broken, and it is worth saying so up front. libadwaita already draws a 1px border and a 12px radius on frame — on this box (libadwaita 1:1.9.2-1, gtk4 1:4.22.4-1), from the stylesheet compiled into /usr/lib/libadwaita-1.so.0:

/* line 1878 */ frame, .frame { border: 1px solid color-mix(in srgb, currentColor var(--border-opacity), transparent); }
/* line 1880 */ frame { border-radius: 12px; }

So this is not "add a missing border". The border was there; it was derived from currentColor, which on a dark card resolves darker than its own surround — measured at luma 27 against a 48 background. A dark line on a dark panel reads as an absence of chrome, not as a contour. What was genuinely missing is the shadow (nothing at all) and the clip.

Root cause

Three separate things, only one of which is a true absence:

1. Contrast, not existence. The theme border's colour is currentColor-derived, so it goes the wrong way on a dark card: darker than the background it is meant to separate from.
2. No shadow. .card contributes only a faint box-shadow that is invisible at this scale, so nothing lifts the card off the session.
3. No clip. GTK_OVERFLOW_VISIBLE is the widget default, so the square, opaque GtkGLArea child paints over the frame's rounded corner arcs, flattening the silhouette the radius describes.

Fix

One host-free CSS constant plus one call at each of the two frame-construction sites.

LinuxQuickCardPolicy.cardCSS emits the single .agterm-quick rule that installAppCSS() interpolates at GTK_STYLE_PROVIDER_PRIORITY_APPLICATION (600), which is what lets it win over the theme's 200 — the same mechanism the pre-existing background-color: #1e2228 already relied on:

.agterm-quick { background-color: #1e2228; border: 1px solid alpha(#ffffff, 0.18); border-radius: 12px; box-shadow: 0 8px 32px alpha(#000000, 0.8); }

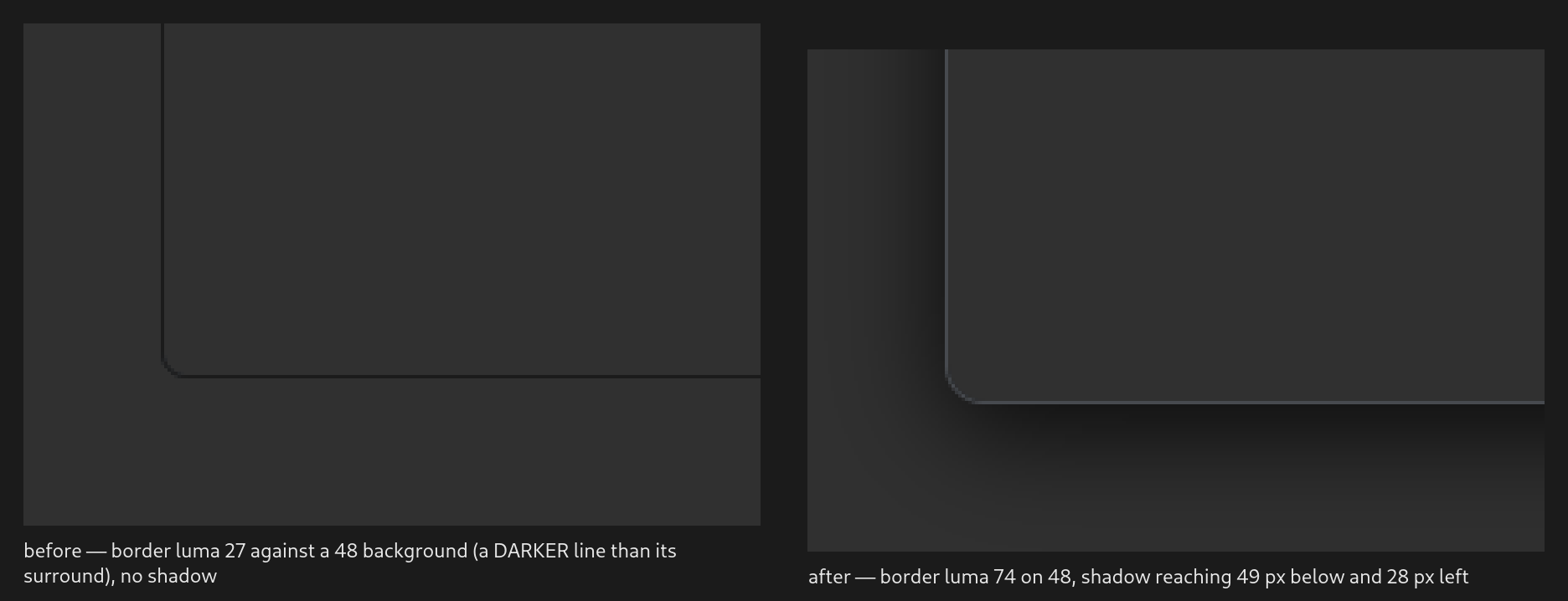

• Border colour flips polarity at the unchanged 1px width — luma 27 → 74 against the same 48 background. The width matters: the theme already drew 1px, so a colour-only swap leaves the frame's measured chrome untouched, which is what keeps a contentSize(request:chrome:)-style subtraction valid. A negative pin in the unit test forbids a border-width declaration for exactly this reason.
• Shadow is new — measured from nothing to a falloff reaching 49 px below and 28 px left of the card edge, darkest value 22 against the 48 background. Note the 49 px is bounded by the capture's 50 px bottom margin, so the true tail is ≥49 px: the nominal 8 + 32 = 40 px understates a Gaussian's reach, and the halo resolves only just inside the card's 44/56 px margins.
• Radius is stated explicitly so the contract does not silently depend on Adwaita continuing to ship 12px.
• The #1e2228 backing stays opaque — it is what stops the card going see-through when the surface below draws at background-opacity < 1. It paints under the border area, because plain .card (unlike button.card, stylesheet line 378) does not set background-clip: padding-box, so the 18% white composites over the backing.

gtk_widget_set_overflow(W(frame), GTK_OVERFLOW_HIDDEN) at both sites clips the GL child to the padding-box rounded rect. GTK snapshots the CSS background, border, and shadow before pushing that clip, so the card's own chrome is unaffected — only the child stops overdrawing the arcs.

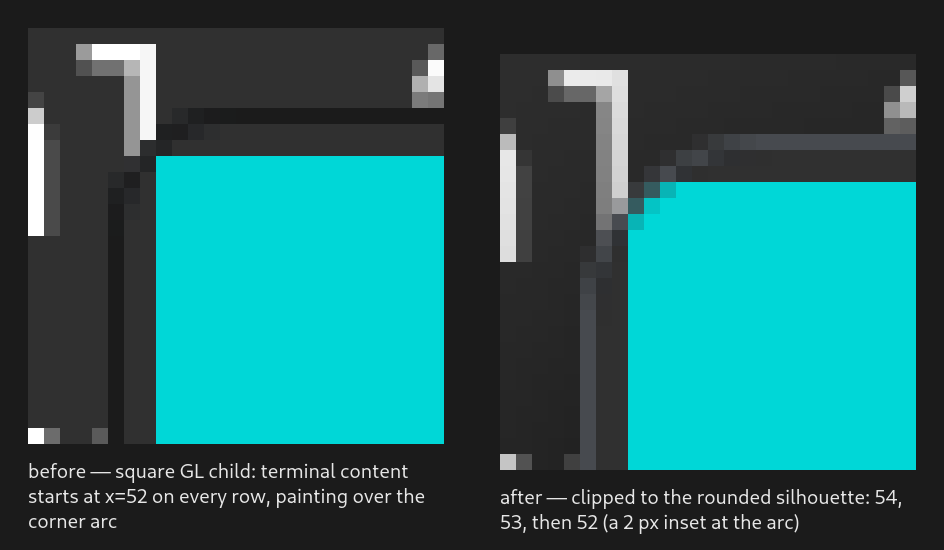

The clip's effect is small, and the screenshot is zoomed 16x to make it visible at all. Tracing the first painted terminal column per row at the corner: before it is 52 on every row; after it is 54, 53, 52 — a 2 px inset over the arc. Real, but a couple of pixels, not a reshaping. Consequences worth knowing: roughly 2–4 px of the corner cells are clipped (the same trade-off macOS's clipShape makes), and gtk_widget_pick stops hit-testing the corner arcs, so those few pixels become click-dead.

Both cards share the agterm-quick class on the same GtkFrame shape, so the floating overlay inherits all of it by construction — no second class, no divergence. .card stays on both frames: it still supplies color: var(--card-fg-color) and the :focus-visible outline.

A second commit adds a CI guard for this change's worst failure mode. GTK drops an unparseable declaration silently, so a typo would present as "chrome simply absent" — indistinguishable from the fix not working, with unit tests still green because they assert a Swift string, not GTK parseability. atspi_smoke.py now routes the app's stderr to an artifact file and test-linux-ui.sh fails the run on Theme parser (error|warning): <data>. The <data> scoping is deliberate and verified: a string-loaded provider's section prints the literal <data> (gtkcssprovider.c passes file = NULL; gtkcsssection.c renders <data> when section->file == NULL), while resource-loaded system stylesheets print a display name — so the guard covers all four of the app's providers and cannot be reddened by a deprecation in GTK's or libadwaita's own CSS. Verified against both the local GTK 4.22.4 and the 4.14.0 source the CI runner uses; the format string is identical in both.

The same commit also extends the AT-SPI overlay scenario. It previously had the suite's only session overlay open call, un-sized, so syncOverlay's floating branch — where one of the two new set_overflow calls lives — never ran in CI. It now exercises both shapes: a sized --size-percent 60 --follow card and the original full overlay, so neither teardown path loses coverage. --follow is load-bearing: without it the frame is created set_visible(0), GTK skips a hidden widget in layout, and the rounded clip never reaches GSK.

Across themes

The three new declarations are hardcoded, not theme-derived — deliberately, but it raises the obvious question of what happens under a theme other than the default, so it is measured rather than argued. The border composites alpha(#ffffff, 0.18) over the frame's own #1e2228 backing, never over the theme, so it lands at luma 73.7 regardless of theme; only what sits behind it changes. Same three sample points as above, one instance per theme:

session theme	session bg luma	border delta (after)	shadow darkening
Kanagawa Dragon	21.4	+52.3	11.2
agterm (default)	46.0	+27.7	24.0
Alabaster (light)	239.0	−165.3	127.0

Two things fall out of this, and both are load-bearing:

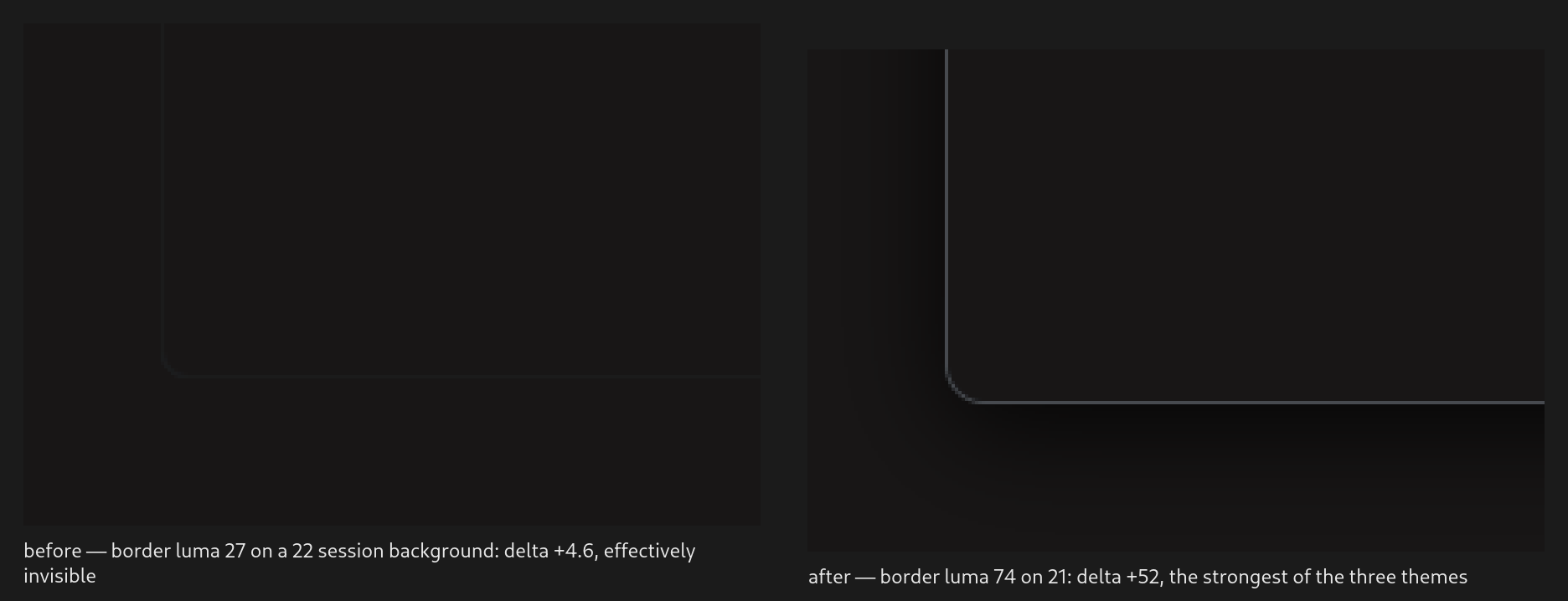

The darker the theme, the worse the original bug and the bigger the win. On the default theme the old border sat at luma 27 against 48 — a wrong-polarity line, but a visible one. On Kanagawa Dragon it sat at 27 against 22, a delta of +4.6: not merely wrong-polarity but genuinely invisible. That is the regime the bug was actually reported from, and it is where the fix helps most.

The border and the shadow cover for each other across the range. A black shadow has almost no headroom to darken an already-near-black session (11 luma steps on Kanagawa), so there the light border does the separating. On a light theme the arithmetic inverts: the shadow darkens by 127 and carries the card, while the border — still at 73.7 — reads as a dark contour against 239. Note that on a light theme the border was already clearly visible before this change (delta −220), so the fix slightly reduces its contrast there (−220 → −165); both are far above any visibility threshold, and the newly added shadow more than compensates. There is no theme in which the card ends up less separated than it started.

The guard found a real bug on its first run

Worth reporting, because it is the whole argument for the guard existing. build-linux went red on the first CI run of this branch — every AT-SPI scenario passed, and then the new check failed the job on:

Theme parser error: <data>:2:35-36: Expected '{'

Column 35 of line 2 is the comma in @keyframes agterm-blink-pulse { 0%, 100% { … } … } — a line this PR does not touch (the App.swift hunk here is +1/−1 on the .agterm-quick line). GTK gained GTK_CSS_TOKEN_COMMA handling in _gtk_css_keyframes_parse sometime after 4.14: 4.22.4 builds a selector array and loops on the comma (gtkcsskeyframes.c:511-513), while 4.14.0 consumes a single progress value and goes straight to the block (gtkcsskeyframes.c:336-356), so the comma is a parse error there.

Because GTK drops an unparseable @keyframes silently, the agent-status blink pulse has simply been dead on GTK 4.14 — which is Ubuntu 24.04, and therefore the CI runner itself — with nothing anywhere to report it. It parses on the 4.22 most developers run, so it was invisible from a dev box.

The third commit splits it into one selector per keyframe, which parses on both. Verified against the 4.14.0 and 4.22.4 sources, and by loading the fully composed installAppCSS string through a real GtkCssProvider locally. The CSS block is now all-ASCII, deliberately: the comment explaining a 4.14 parser constraint should not itself introduce a non-ASCII character into CSS I cannot run 4.14 against.

Keep-in-sync

Nothing owed, recorded so it is not relitigated:

• No control command. This is pure visual chrome with no state — no AppActions action, no Command case, no agtermctl subcommand. Both frames are already driven by the existing quick and session.overlay commands, and since nothing new is set, the write→read-back rule on tree is vacuous.
• No Settings ▸ Interface toggle. The card's own silhouette is not a hideable affordance.
• No README / site/ / agent-skill impact — no command, flag, keybinding, mode, or model change. The README's quick-terminal screenshot is a macOS capture, so it is not stale.
• docs/plans/completed/ carries the plan doc, matching the convention already in the branch; it is the bulk of the diff by line count.

Change

feat(linux): give the quick terminal card visible chrome

file	+/−
agterm-linux/Sources/AgtermLinux/LinuxQuickCardPolicy.swift	+45 / −0
agterm-linux/Tests/AgtermLinuxTests/LinuxQuickCardPolicyTests.swift	+24 / −0
agterm-linux/Sources/AgtermLinux/AppController.swift	+5 / −4
agterm-linux/Sources/AgtermLinux/App.swift	+1 / −1
agterm-linux/Sources/AgtermLinux/AppControllerSurfaces.swift	+1 / −0
docs/plans/completed/20260803-linux-quick-terminal-card-chrome.md	+595 / −0

test(linux): fail the UI smoke on a GTK CSS parse error

file	+/−
agterm-linux/tests/atspi_smoke.py	+74 / −2
scripts/test-linux-ui.sh	+34 / −0

fix(linux): make the blink keyframe parse on GTK 4.14

file	+/−
agterm-linux/Sources/AgtermLinux/App.swift	+3 / −1

AppController.swift lands at 993 lines against the 1000-line file_length limit — a net +1, and no limit was touched.

Testing

Run locally:

• swift test --package-path agterm-linux — 187 tests / 28 suites. One failure: IntegrationServiceTests "Flatpak process environments do not offer a host launcher", which reproduces on an unmodified linux-port checkout on this box (a real agtermctl is installed, so the probe resolves .installed rather than .unavailable). The new Linux quick-terminal card chrome suite passes.
• swift test --package-path agtermCore — 2040 tests / 84 suites, 3 failures, all in CodexStatusHookTests and all pre-existing here (Manjaro's gnustep-base ships a /usr/bin/plutil that rejects -extract … raw). Confirmed with --filter CodexStatusHookTests; this change touches no file under agtermCore.
• swift build for both AgtermLinux and agtermctl-linux — clean.
• swiftlint lint --strict — 0 violations, 0 serious in 408 files (0.65.0, via mise, with LINUX_SOURCEKIT_LIB_PATH pointed at the toolchain's usr/lib).
• git diff --check linux-port...HEAD and scripts/check-linux-cli-drift.sh — clean.
• Visual acceptance on an isolated dev instance on a real Wayland session (GTK 4.22.4 default renderer), confirmed by eye by the maintainer.
• CSS parse check — zero Theme parser lines on the dev instance's stderr, and zero in every capture run below. This is the check the new CI guard automates.
• The screenshots above were captured offscreen under Xvfb + llvmpipe software GL, from two binaries built from this branch and from unmodified linux-port, under identical conditions. All pixel values quoted are measured, not eyeballed.

Not run locally — relying on branch CI:

• scripts/test-linux-ui.sh, the full AT-SPI sweep, including this branch's own additions (the CSS-parse guard and the extended overlay scenario). The first CI run has since exercised it end to end: every scenario passed, including the extended overlay case that drives the new clip under llvmpipe, and the guard correctly failed the job on the pre-existing 4.14 keyframe error described above. It is not runnable end-to-end on this box: the context-menu scenario fails here for an unrelated, pre-existing reason (session rows do not receive pointer events at their reported position, reproducible at a base checkout), and the sweep aborts at the first failing scenario. The guard's shell logic was instead simulated against {empty, clean, app warning, app error, system-stylesheet warning, system-stylesheet error, missing log, missing marker} × {suite exit 0, exit 2}, and python3 -m py_compile / bash -n both pass.
• The Vulkan GSK path is covered only by the maintainer's visual check, not by an automated capture. Two GSK constructs here have no precedent in the tree: a rounded overflow clip, which forces an offscreen pass over the GL texture node, and a 32px-blur GskOutsetShadowNode. Under Xvfb, an explicit GSK_RENDERER=ngl run is pixel-identical to the sandbox default (and GSK_RENDERER is definitely being read — a bogus value warns), but that sandbox has no Vulkan, so it does not exercise the renderer a desktop session actually picks.

[melonamin]

Thank you — this is a sound Linux-native implementation. The Quick Terminal and floating-overlay chrome is correctly scoped to GTK, the clipping behavior is well justified, and the added CSS validation is useful. Local tests, release build, and lint all pass. Great work.
