feat(linux): size the quick terminal card as a percentage of the window

[n2tr2]

What

The Linux quick terminal is placed by fixed pixel margins — 56 px at the top and 44 px on the other three sides — so its size does not track the window. The bigger the window, the closer the card gets to filling it: on a 2560×1440 window it covers 96.5% of the width and reads as near-fullscreen, and the sidebar disappears underneath it.

macOS sizes the same card proportionally: QuickTerminalPane is geo.size.width * 0.9 × geo.size.height * 0.9 (agterm/Views/WindowContentView.swift:781), inside a windowOverlayLayer that spans the full window width and is inset only by titlebarHeight (:126). So the macOS rule is "90% of the window, centered, below the titlebar" — and site/docs.html:681 already documents the quick terminal as "overlaid at 90% of the window". Linux was the outlier; the docs were already right.

Root cause

A fixed margin and a percentage disagree in opposite directions as the window changes size, so a single pair of constants cannot match the macOS rule at more than one window size. Measured on the two builds, same content, same conditions:

client area	before	after
1270 × 790	1182 px wide — 93.1%	1143 px wide — 90.0%
2550 × 1430	2462 px wide — 96.5%	2295 px wide — 90.0%

The "before" column is the tell: the card's proportion drifts with the window because the band is pinned at 44 px, while the "after" column is constant by construction.

Fix

Two commits: the host-free math, then the GTK wiring.

LinuxQuickCardPolicy gains cardSizePercent (90 — the macOS constant) and cardAllocation(overlayWidth:overlayHeight:headerHeight:), returning the card rectangle in overlay coordinates: 90% of the area below the header, centered horizontally in the full overlay and vertically in that available area, so the header stays visible and clickable above the card.

The name is qualified deliberately: the unqualified sizePercent already means the session overlay's own percentage elsewhere in the port (AppControllerSurfaces.swift:147), and the two are unrelated numbers with different models — the overlay card has max(240, …)/max(160, …) pixel floors and is sized once at open time, not per layout pass.

The function is total over its Int32 inputs. The multiply widens to 64 bits and comes back through Int32(clamping:), the idiom GhosttySurfaceGeometry.initialBackingSize already uses — a naive width * cardSizePercent / 100 traps near Int32.max, while width / 100 * cardSizePercent would silently change the rounding. A headerHeight at or beyond overlayHeight (a window shorter than its own header) collapses the available height to 0 rather than going negative.

There are deliberately no pixel floors. macOS has none, and a floor here could not raise the window's own minimum size anyway — it could only clip the card.

The wiring is a GtkOverlay::get-child-position handler on the deck overlay, which hands quickFrame an explicit rectangle on every layout pass, plus the removal of the four margin calls in setQuick. Because the handler re-measures the overlay each pass, the card now tracks a live window resize and a hidden-toolbar toggle instead of holding a fixed inset.

Three details are load-bearing, and are pinned in the handler's doc comment:

• connect() uses flags 0, not G_CONNECT_AFTER. The signal is declared when="last" with a boolean-handled accumulator and the class default returns TRUE for every child, so an AFTER connection would never run.
• The frame keeps GTK_ALIGN_FILL and zero margins. gtk_widget_size_allocate re-applies align and margins inside the returned rectangle, so copying syncOverlay's GTK_ALIGN_CENTER would collapse the card back to its natural size and silently defeat the explicit allocation.
• The header is measured only while it is shown. A hidden-but-previously-allocated GTK4 widget retains its last allocated height, which would otherwise inset the card by a strip that is not on screen in hidden-toolbar mode.

The handler answers only for quickFrame. Every other deckOverlay child returns 0 and keeps GTK's default, alignment-based placement: the per-session floating overlay frames, the zoom host, the dashboard host, the Ctrl-Tab switcher box and the GL-error label. The zoom case is load-bearing — zooming .quick hides quickFrame and adds a FILL/expand zoomHost, which must never be given the card rectangle.

Teardown rides the usual registry recovery: controllerForWidget resolves through gWindows, which windowWillClose has already left, so a late emission on a closing window falls through to default placement rather than touching a freed controller.

One second-order behavioural change worth stating. Dropping the margins removes the quick frame's contribution to GtkOverlay::measure, so a window with a live quick terminal can now be dragged smaller than before — previously its own minimum plus 88/100 px of margin raised the window minimum. This is an improvement, but it is a real change.

Keep-in-sync

Nothing owed, recorded so it is not relitigated:

• No control command. This is pure geometry with no new state — no AppActions action, no Command case, no agtermctl subcommand, so the write→read-back rule on tree is vacuous. A configurable size (quick.resize --percent, mirroring session.overlay.resize/overlaySizePercent) is the obvious shape if it is ever wanted; it is deferred, not exempt, and out of scope for a parity fix.
• No Settings ▸ Interface toggle. The card's proportion is not a hideable affordance.
• No README / site/ / agent-skill impact. No command, flag, keybinding, mode or model change — and site/docs.html:681 already says 90%, so this change makes the code match the docs rather than the other way round.

Change

feat(linux): add percent-based quick card allocation math

file	+/−
agterm-linux/Tests/AgtermLinuxTests/LinuxQuickCardPolicyTests.swift	+126 / −0
agterm-linux/Sources/AgtermLinux/LinuxQuickCardPolicy.swift	+83 / −13

feat(linux): size the quick card via get-child-position

file	+/−
agterm-linux/Sources/AgtermLinux/AppControllerCallbacks.swift	+58 / −0
agterm-linux/Sources/AgtermLinux/AppController.swift	+9 / −9

AppController.swift stays at 985 lines against the 1000-line file_length limit — a net 0, and no lint limit was touched. The signal connect is one line there calling an installQuickCardPlacement(on:) helper in the callbacks file, following the existing installEmptyWindowKeyController precedent: the inline unsafeBitCast for this 4-argument signature is ~226 columns, past the 200-column line_length limit.

The 13 removed lines in LinuxQuickCardPolicy.swift are the cardCSS shadow-budget comment, which bounded the shadow against the 44 px margin this change removes. Its replacement states a threshold instead of a constant — a 5% band clears the shadow's 8 px offset + 32 px blur only above ~800 px — and spells out the floating overlay card's different model so the two cards are not read as sharing math.

Testing

Run locally:

• swift test --package-path agterm-linux — 210 tests / 30 suites. One failure: IntegrationServiceTests "Flatpak process environments do not offer a host launcher", which reproduces on an unmodified linux-port checkout on this box (a real agtermctl is installed at /opt/agterm-linux/bin, so packageCLI() resolves .installed before the flatpak guard is reached). The new Linux quick-terminal card allocation suite passes — 10 tests, including a 20-case @Test(arguments:) sweep.
• swift test --package-path agtermCore — 2040 tests, 3 failures, all in CodexStatusHookTests and all pre-existing here (Manjaro ships a /usr/bin/plutil via libplist, so the hook takes the macOS branch). Confirmed with --filter CodexStatusHookTests; this change touches no file under agtermCore.
• swift build for both AgtermLinux and agtermctl-linux — clean.
• swiftlint lint --strict — 0 violations in 410 files.
• scripts/check-linux-core-boundary.sh, scripts/check-linux-cli-drift.sh, git diff --check linux-port...HEAD — all clean.
• scripts/test-linux-ui.sh — 13 of 14 scenarios pass, including hidden-toolbar, which is the scenario nearest this change (it toggles the very header the handler measures). The 14th, context-menu, fails identically on a pristine linux-port build — I built one and ran the same matrix against both to check rather than assume. Note this box also needs a private dbus-daemon + at-spi2-registryd for the suite to see the app at all; that is a host quirk, no repo file was changed for it.

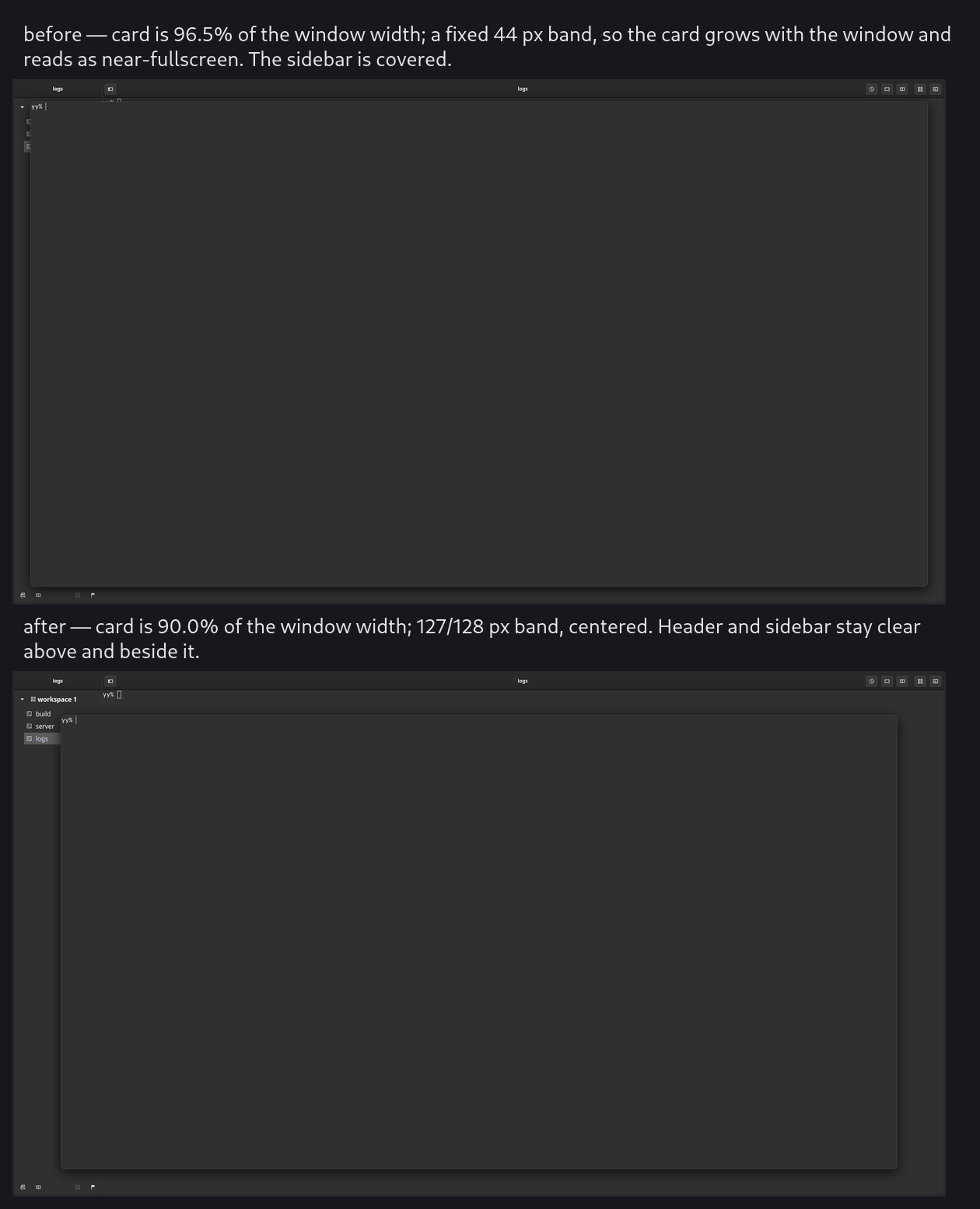

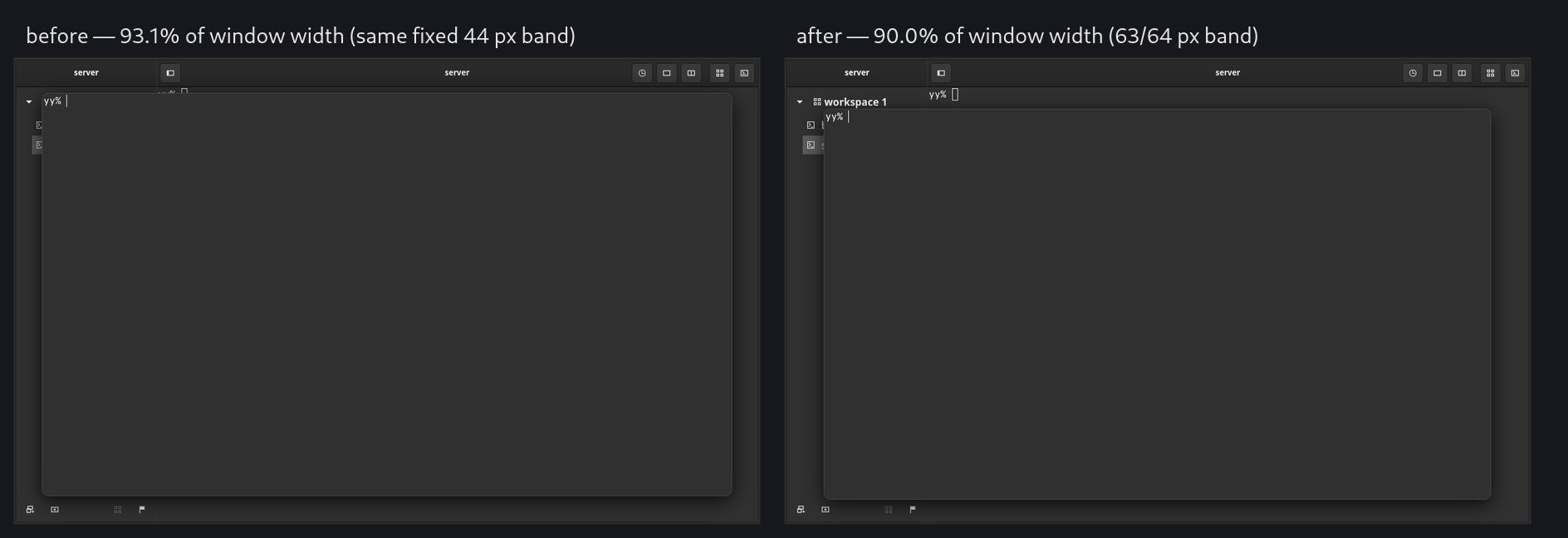

• The screenshots above were captured offscreen under Xvfb + llvmpipe software GL, from two binaries built from this branch and from unmodified linux-port at 86c29ff, under identical conditions. Every pixel value quoted is measured — the card rectangle is located by its alpha(#ffffff, 0.18) over #1e2228 border, which renders as a distinctive (71,74,79) — not eyeballed.

Not covered by any automated gate — stated plainly:

The card's on-screen geometry has no assertion behind it. LinuxQuickCardPolicyTests pins the math and the GTK handler is not unit-testable, but no AT-SPI scenario reads the card's extents, so deleting the installQuickCardPlacement line would silently revert this feature with every test still green. The hidden-toolbar centering and the live-resize tracking rest on manual verification on a real Wayland session, which is where the before/after above was confirmed by eye.

A scenario closing that gap is specified — drive agtermctl quick, wait on the quickVisible read-back, then compare the quick frame's Atspi WINDOW extents against the window's, the same shape as the existing verify_sidebar_row_height_follows_font_size — but it is not in this PR: it cannot be executed from the review worktree here, and shipping an unverified e2e scenario seemed worse than shipping none. Happy to add it in a follow-up if you would rather have it alongside.

[melonamin]

Thank you — this is a focused GTK implementation, and the allocation behavior checks out against the current base. Local build, lint, Linux tests, core tests, and the exact-head CI suite all passed. Merging.
