A resilient, observable Brazilian zipcode (CEP) lookup and street search API — built as a proving ground for the technologies behind a payment gateway.
🔴 Live demo: zipcodesearch.onrender.com — interactive Swagger UI, try the endpoints directly in the browser.
Zipcode Search API resolves Brazilian zip codes (CEP) and searches addresses by street name. It consumes external CEP providers, caches results in PostgreSQL, and exposes a clean REST API.
This project is a proving ground: a deliberate test to validate that I can apply the core technologies a payment gateway relies on — circuit breaking, resilient external integration, and full-stack observability — before building a payment gateway of my own from scratch. The CEP domain is just the vehicle; the real subject is the engineering around it. Many of the decisions below are deliberately scoped: the goal is to demonstrate knowing when to apply a pattern as much as knowing how.
- Multi-source CEP resolution — a provider abstraction lets the system fall back across multiple external sources without the business layer knowing which one answered.
- Resilience — retry with exponential backoff and a circuit breaker (Resilience4j), each independently tested.
- Smart caching (deduplication) — once a CEP is fetched, it is persisted; subsequent lookups hit the database, not the external API.
- Fuzzy street search — PostgreSQL
pg_trgmsimilarity search with pagination. - Full-stack observability — metrics (Prometheus), dashboards (Grafana), and centralized logs (Loki), all wired through Spring Boot Actuator and a structured logging policy.
- Virtual threads (Java 21 / Loom) — high-concurrency I/O to external providers without reactive programming.
- OpenAPI / Swagger — fully documented endpoints with request/response examples.
The codebase follows a package-by-feature layout. Address resolution is decoupled from any specific provider through a small abstraction:
Controller -> Service -> CepResolver -> CepProvider (ViaCep, ...)
|
+--------> Repository (PostgreSQL cache)
CepProvider— interface every external source implements (fetch(cep)returning a neutralCepDataDTO).CepResolver— iterates providers in order, falling back to the next when one fails, and surfaces a domain-level result.ZipcodeService— owns caching and persistence only; it talks to the resolver, never to a concrete provider.
This means adding a new source (e.g. BrasilAPI) is a matter of implementing CepProvider — the service and resolver remain untouched. (Open/closed in practice: extend without modifying.)
- Validation happens at the border (controller): zip-code format and street length are checked before any work is done.
- Normalization happens internally, so the rest of the system works with clean, consistent input.
CEP data is intentionally denormalized into a single table. Because this is a read-heavy lookup of stable reference data, normalizing state/region/etc. into separate tables would add joins and complexity with no real benefit at this scale.
The application is container-first and Kubernetes-friendly: it is stateless, ships logs and metrics for scraping, and externalizes all configuration — so running it as one or more replicas in a cluster is the intended production shape. The Kubernetes manifests in k8s/ were validated on a local kind cluster (app + PostgreSQL + Prometheus/Grafana via Helm running in-cluster — see k8s/README.md for the screenshots). (Kubernetes manifests are not part of this repository yet; see the roadmap.)
One deliberate architectural stance: in production, PostgreSQL should run outside the Kubernetes cluster — as a managed service or a dedicated host — not as a pod. Databases are stateful and have very different lifecycle, storage, and failover needs than stateless app workloads; keeping the database off the cluster avoids a class of operational problems that running stateful sets in K8s tends to invite. The cluster runs the stateless app; the data lives on stable, dedicated infrastructure.
External provider calls are wrapped with retry and a circuit breaker (Resilience4j):
- Retry — up to 3 attempts with exponential backoff (500ms -> 1s). Retries only on technical failures (
ProviderException); never on "not found" (ZipcodeNotFound), so a non-existent CEP fails fast. - Circuit breaker — opens after a failure-rate threshold over a sliding window, then fails fast (
CallNotPermittedException) instead of hammering a dead source, and probes again after a wait period.
Both behaviors are covered by dedicated, isolated tests (retry attempt counts; circuit state transitions).
The resolver's fallback and the per-provider resilience compose cleanly: each provider retries on its own; if it ultimately fails, the resolver moves to the next source.

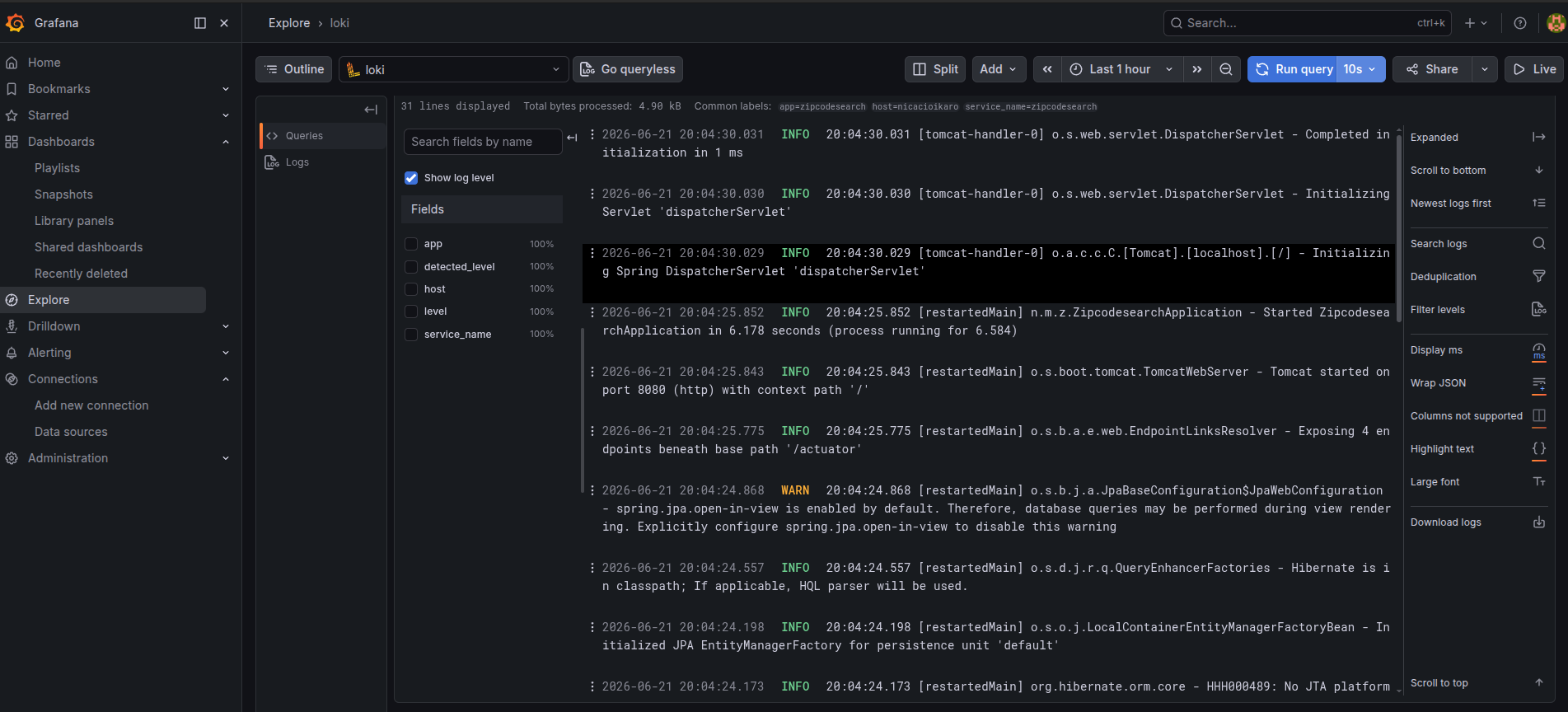

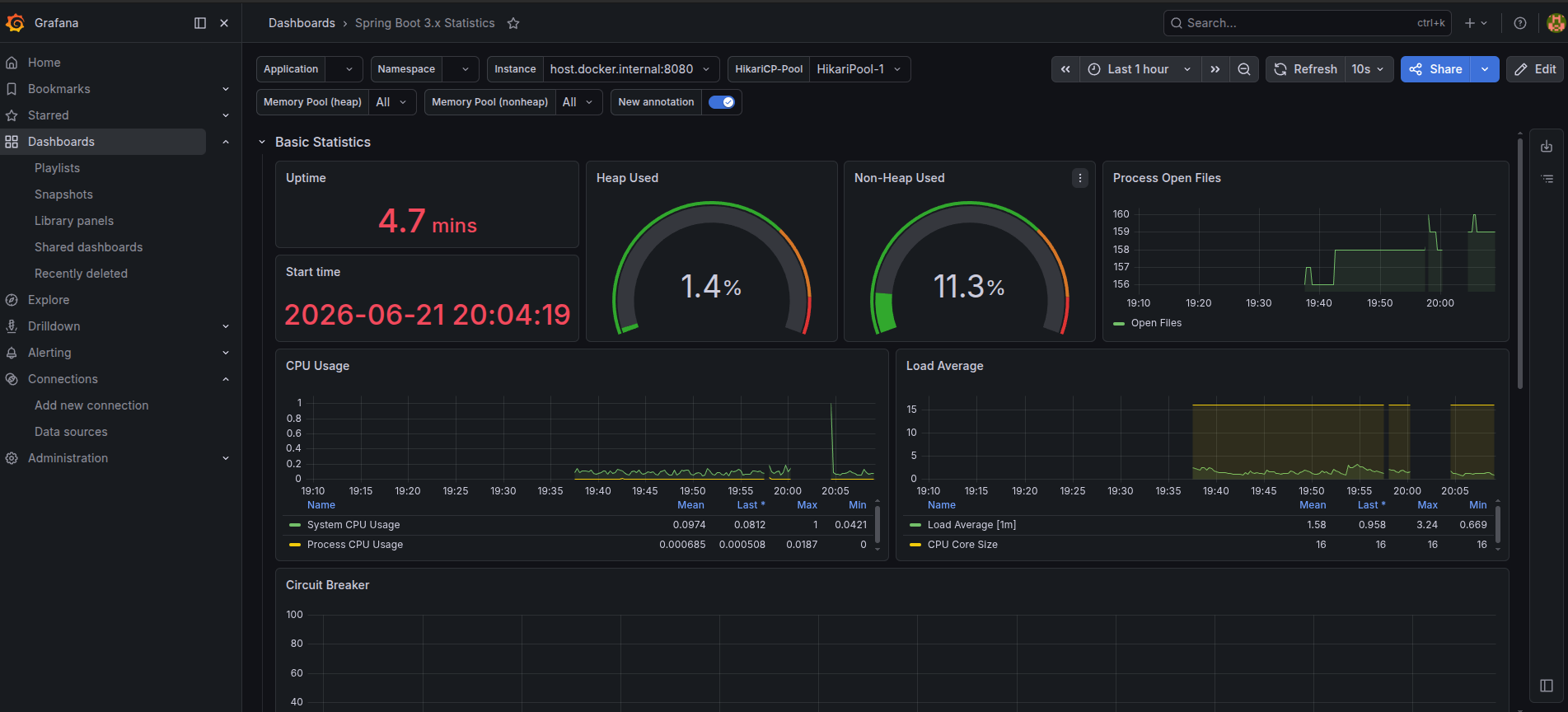

Full observability is in place — metrics and logs are both collected and visualized in Grafana, giving the classic "a metric tells you something happened, a log tells you why" workflow.
The stack has three pieces, all running via Docker Compose:
- Prometheus — scrapes application metrics from
/actuator/prometheus(HTTP request latency and counts, JVM, HikariCP pool, and Resilience4j circuit-breaker / retry state). - Grafana — dashboards over the Prometheus data (and Loki, below).
- Loki — centralized logs, shipped directly from the application via a Logback appender and queryable by label (e.g.
level="ERROR").
Log level reflects the nature of the event, not the layer:
ERROR— unexpected failures (500) and "all providers failed".WARN— client-side errors (400/422/405) worth watching (bot / misconfigured integration), and a provider falling back.INFO— successful inserts (selected fields only, never the full payload).DEBUG— cache-hit vs. api-hit resolution, not-found, DB queries.
Principle: the log records the event (key + context); the database holds the data. Logs point to data, they don't duplicate it.
A few capabilities were deliberately not implemented at this stage. They are documented here as conscious trade-offs and natural next steps under higher load — not as gaps:
| Capability | Why not now | When it would make sense |
|---|---|---|
| Redis cache | DB-level deduplication already caches results; read volume is low. | If PostgreSQL reads became a bottleneck under high traffic. |
| Rate limiting | This belongs outside the application — at the infrastructure edge (WAF / API gateway), not in the app code. | The app should never own rate limiting; it's an edge concern by design. |
| Bulkhead / TimeLimiter | Retry + circuit breaker already cover resilience at this volume. | Isolating thread pools under high concurrency across many sources. |
This section exists to show the reasoning about boundaries — when a pattern earns its complexity and when it doesn't.
Application
- Java 21 (virtual threads enabled)
- Spring Boot 4.1 (Web MVC, Data JPA, Validation, Actuator)
- PostgreSQL 17 with
pg_trgmfor fuzzy search - Flyway for migrations (
ddl-auto: validate) - MapStruct for DTO/entity mapping
- Lombok
- Resilience4j (retry + circuit breaker)
- springdoc-openapi (Swagger UI)
Observability
- Micrometer + Prometheus — metrics collection and scraping
- Grafana — dashboards
- Loki (loki-logback-appender) — centralized logging
Testing
- JUnit 5 + Mockito + AssertJ
The observability stack — PostgreSQL, Prometheus, Grafana, and Loki — runs as a single Docker Compose setup, so the whole environment comes up with one command.
docker compose up -d| Service | Port | Purpose |
|---|---|---|
| PostgreSQL | 5433 |
Application database (CEP cache). |
| Prometheus | 9090 |
Scrapes metrics from the app's /actuator/prometheus. |
| Grafana | 3000 |
Dashboards for metrics and logs (login: admin / admin). |
| Loki | 3100 |
Receives logs pushed directly from the app. |
A note on networking: the application runs on the host (via ./mvnw spring-boot:run), while the stack runs in Docker. Prometheus reaches the host app through host.docker.internal:8080, and the app ships logs to Loki at localhost:3100. Grafana talks to Prometheus and Loki by service name (prometheus:9090, loki:3100) since they share the Compose network.
Note: this Compose setup is for local development and demonstration. It is not the production topology — see Deployment intent above (Kubernetes for the stateless app, PostgreSQL outside the cluster).
Once up:
- Grafana ->
http://localhost:3000 - Prometheus ->
http://localhost:9090 - Import a Spring Boot dashboard in Grafana and point it at the Prometheus data source; query logs in Explore with
{app="zipcodesearch"}.
Prefer to just try it? Use the live demo — no setup required.
- Java 21
- Docker (for the database and observability stack)
# 1) start the stack (database + observability)
docker compose up -d
# 2) run the application (from the project root)
./mvnw spring-boot:runThe API starts on http://localhost:8080.
Once running, the interactive Swagger UI is available at:
http://localhost:8080/swagger-ui.html
| Method | Path | Description |
|---|---|---|
GET |
/zipcodes/{zipcode} |
Look up a single CEP (8 digits, with or without hyphen). |
GET |
/zipcodes/search?street={name}&page={n} |
Fuzzy street search, paginated. |
The test suite is layered and scoped to where the real risk lives:
- Repository (
@DataJpaTestagainst real PostgreSQL) — verifies thepg_trgmsimilarity query and JPA auditing, since the Postgres-specific query can't run on H2. - Service (Mockito) — cache-hit vs. provider resolution vs. not-found propagation.
- Resilience — retry attempt counts and circuit-breaker state transitions, tested in isolation.
- Controller (
@WebMvcTest) — status codes, parameter validation, and exception handlers.
Coverage is intentionally dimensioned to risk: orchestration and resilience are tested thoroughly; generated mappers and plain DTOs are not.
./mvnw test- Live demo deployed (Render).
- Kubernetes manifests, validated on a local kind cluster.
- Additional CEP providers (e.g. BrasilAPI) to exercise the multi-source abstraction.
- Scheduled revalidation of stored CEP data (e.g. every 30 days).
his project is licensed under the MIT License — see the LICENSE file.
