feat(gantt): feature parity Phases 1-5 — links, time scales, hierarchy, interactions, virtualization#1672
Merged
Merged
Conversation
…of Gantt parity)
Dependency data was parsed from dependenciesField but never drawn. Now:
- SVG overlay draws orthogonal arrows from predecessor to dependent bars,
with backward links detoured around the bars
- Object-form deps { id, type } support all 4 MS-Project link types
- Arrows follow bars live during drag/resize preview
- Hovering a bar highlights its links (and while dragging)
- normalizeDependencies (exported): CSV strings, id arrays, object arrays
with id aliases (task/target/_id) and long-form type aliases
- Link colors use theme CSS vars directly — the prebuilt components
stylesheet never emits Tailwind stroke-*/fill-* utilities
Also adds the phased Gantt parity roadmap (packages/plugin-gantt/ROADMAP.md,
pointer from root ROADMAP § P2.11) from the SVAR React Gantt gap analysis.
Tests: 8 new GanttView link tests + 6 normalizeDependencies tests (24 total).
|
The latest updates on your projects. Learn more about Vercel for GitHub. |
github-actions
Bot
added
documentation
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|

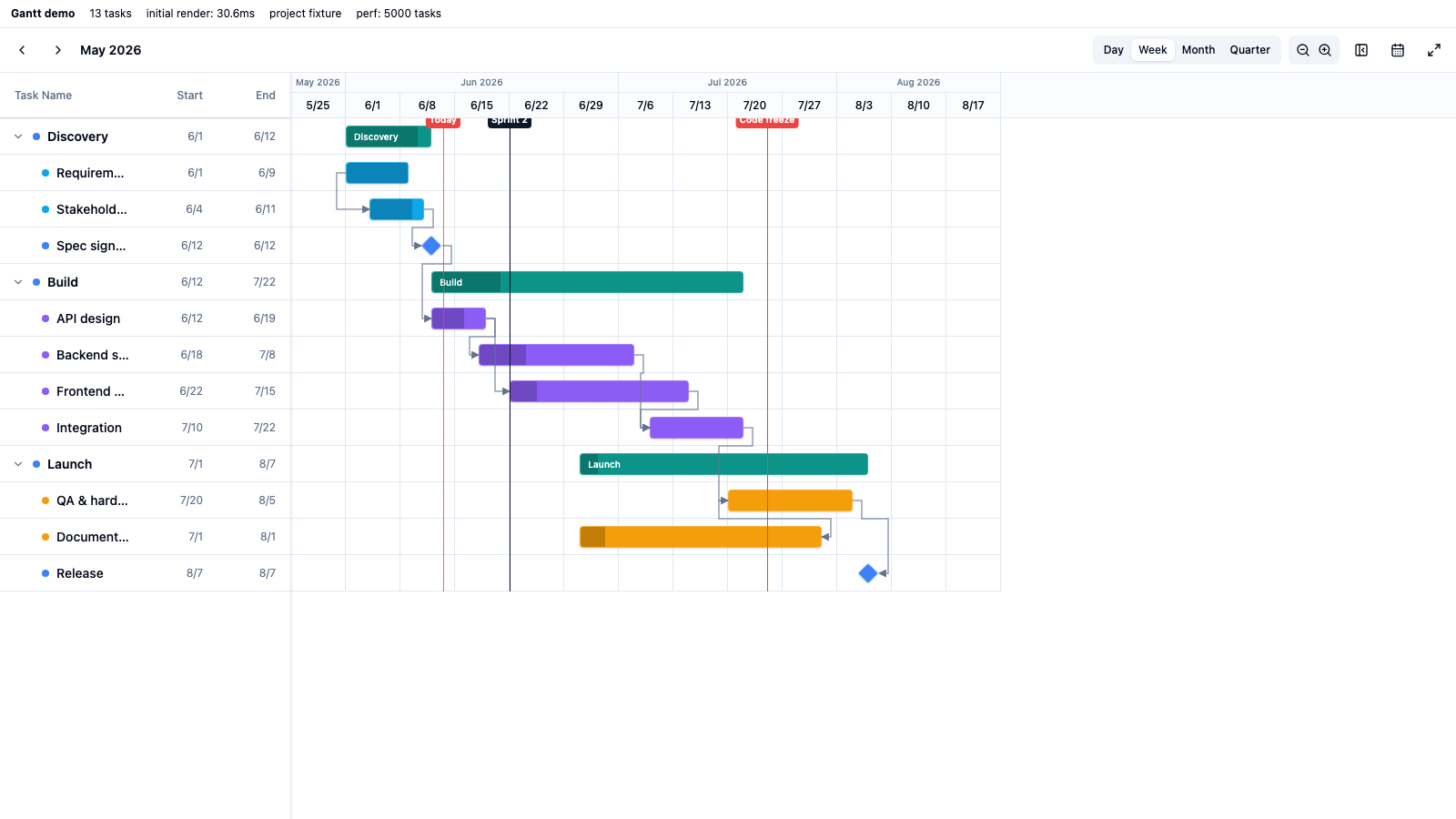

- timeColumns now generates one column per unit of the active viewMode, calendar-true widths over a single linear ms->px mapping (pxPerDay) - two-row scale header: month groups over day/week units, year groups over month/quarter units - toolbar segmented control switches granularity (onViewChange restored); zoom buttons fall through to coarser/finer scales at the bounds - drag snapping follows the active scale; month/quarter moves shift by calendar months (day-clamped) preserving duration - 8 new scale tests; ROADMAP Phase 2 checked off
- task.parent / parentField builds a tree: indented list rows with expand/collapse chevrons; orphans and parent cycles surface as roots - summary rows (any task with children) render as bracket bars spanning the children rollup range with duration-weighted progress - milestones (type 'milestone' or end <= start) render as diamonds, movable but not resizable; links anchor at the diamond center - dependency links now index visible rows, so links into a collapsed subtree disappear with their rows - ObjectGantt: parentField/typeField wiring + normalizeTaskType export - 9 new hierarchy tests; ROADMAP Phase 3 checked off
…u, keyboard nav, drag-to-link, row reorder (Phase 4)
…ers (Phase 5)
- Spacer-div row windowing for task list + timeline (viewport + 6-row
overscan), driven by scroll position and a ResizeObserver-measured
viewport; jsdom falls back to a 4000x600 virtual viewport so small
fixtures keep rendering fully in tests
- Column windowing via prefix-sum offsets: header groups, header units
and the background grid render as absolutely-positioned cells within
a +-240px overscan window (multi-year day scales stay cheap)
- Dependency-link SVG keeps absolute row coordinates; links fully
outside the row window are skipped
- Fullscreen toolbar toggle on the container (native Fullscreen API)
- markers prop: custom vertical lines ({date, label?, color?}) on the
shared ms->px mapping; ObjectGantt passes schema.markers through
- 8 new tests (60 total)
…ebuilt stylesheet Consuming apps load the prebuilt @object-ui/components/style.css, which does not emit bg-foreground/75, bg-red-500(/80), bg-muted/20, bg-accent/60, bg-black/5 or ring-primary/60 — all of these computed to transparent in a real browser. Summary brackets, the Today marker, weekend tinting, row hover/selection and the drag ring now use inline hsl(var(--token) / alpha) or rgba values (or the utilities that do exist). Also removes the duplicate legacy current-time indicator that overlapped the Today marker.

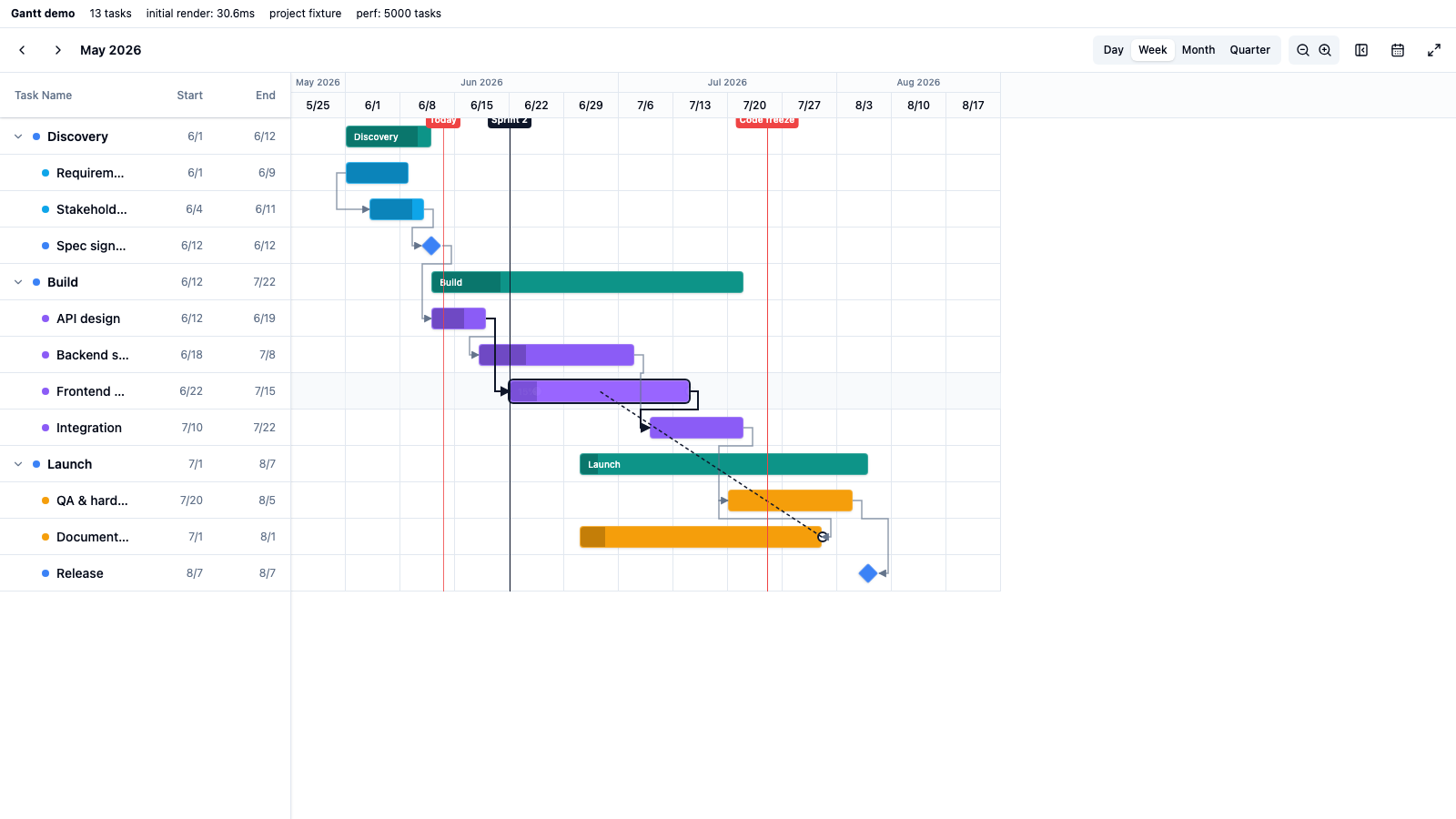

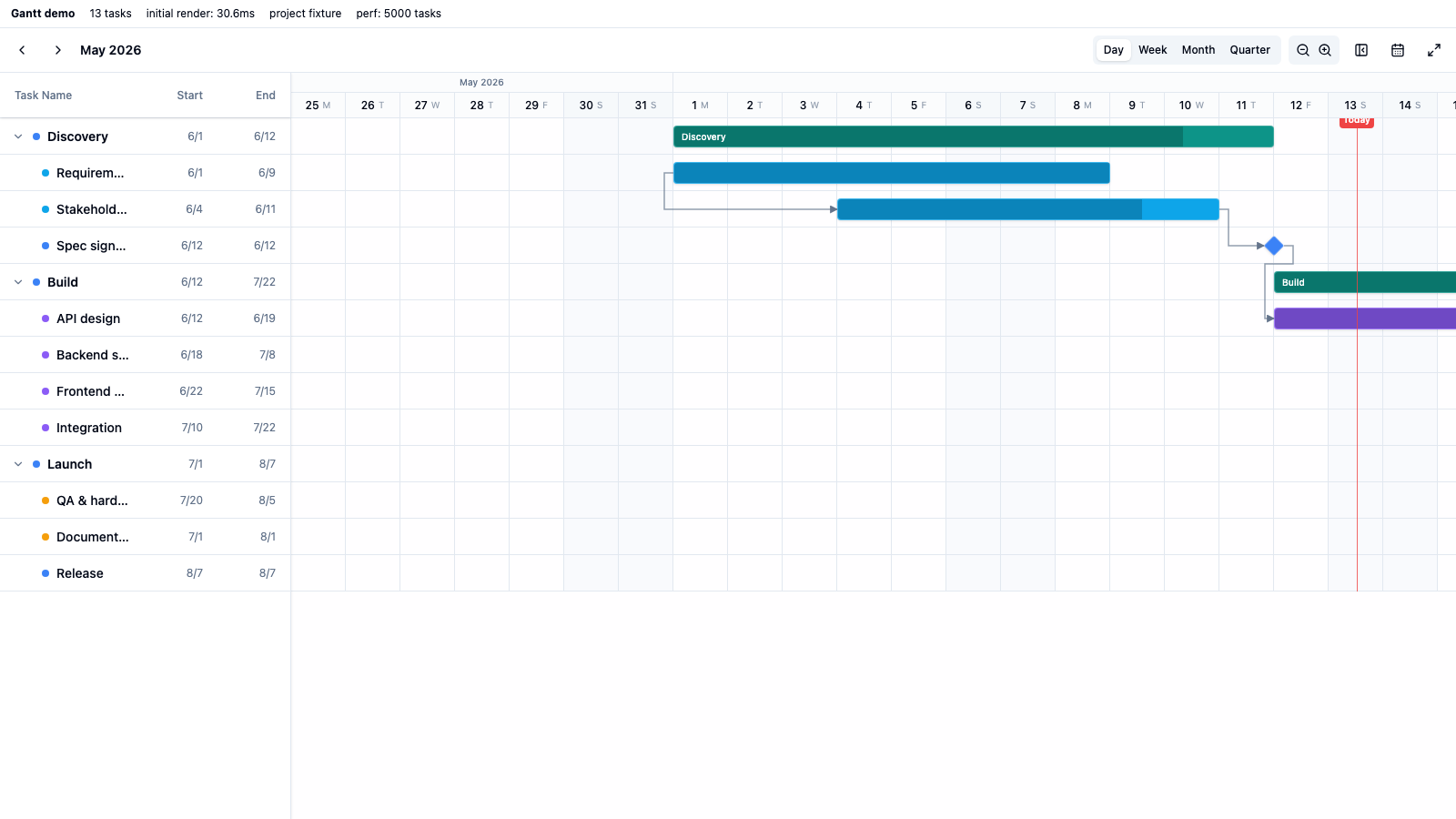

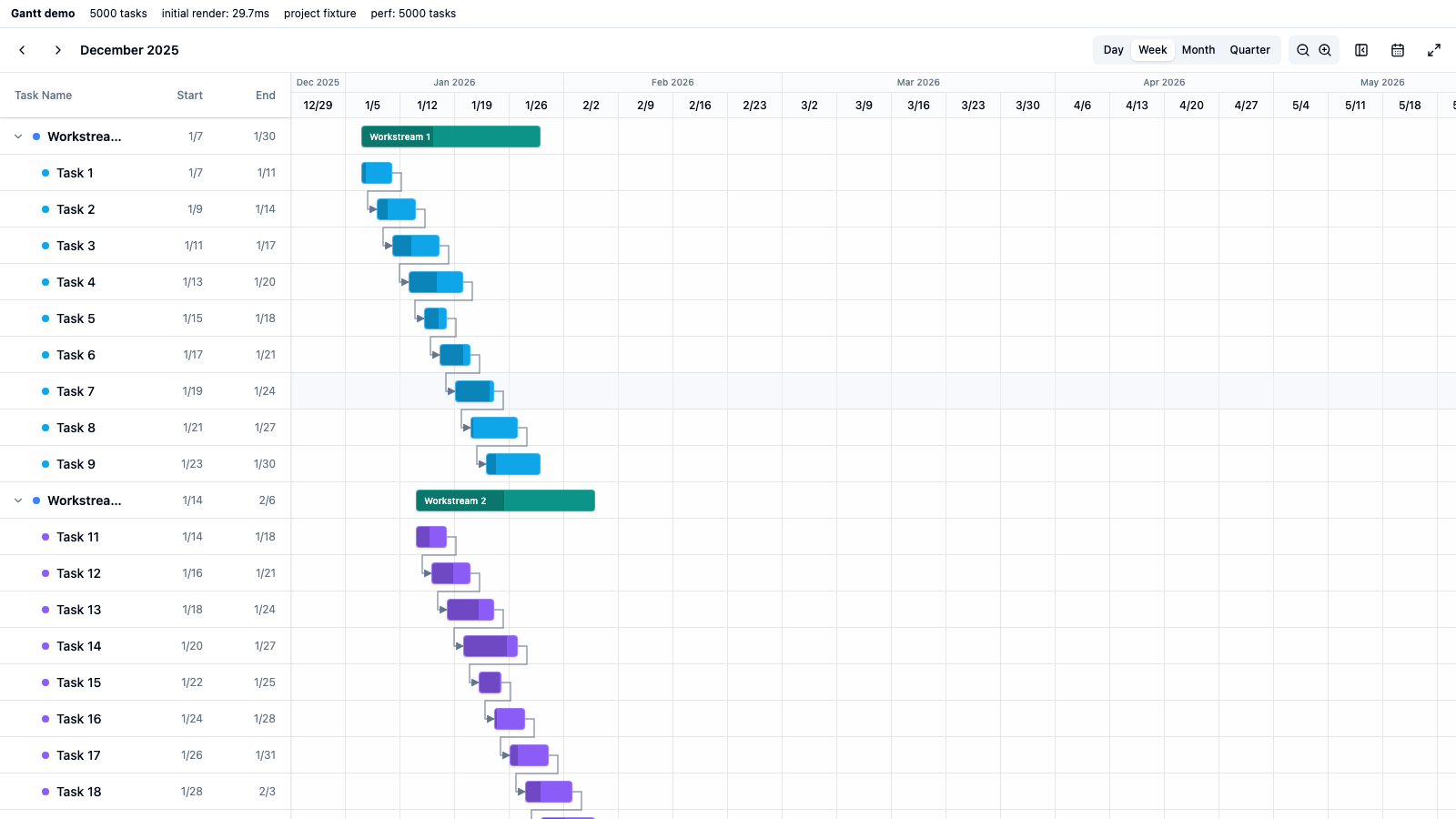

…d screenshots - demo/: standalone vite fixture (13-task project exercising hierarchy, milestones, all four link types, markers; ?perf=N generates N tasks in summary groups with dependency chains and a render-timing banner) - scripts/verify-browser.mjs: 18 DOM-level checks — hierarchy counts, collapse/expand, tooltip + link highlight, real-mouse drag-to-create dependency, markers, and 5000-task virtualization/perf budgets — saving 8 screenshots + results.json into docs/verification/ - docs/verification/: latest run (18/18) — 5000 tasks render in ~27ms with 26 rows in the DOM; mid-list window shift ~40ms - changeset now covers Phases 1-5
baozhoutao
changed the title
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
…bility gaps A pixel-level browser audit (new scripts/audit-geometry.mjs, measuring every arrow endpoint against live DOM rects) found three real misalignments: - Task bars used calc()-based height utilities that the prebuilt components CSS never emits, so bars collapsed to content height at the row top and every link anchor missed by ~11.5px vertically. Bars (and the drag ghost) now carry explicit inline top/height, exactly row-centered. - Links into milestones anchored at the diamond's center, running the line underneath the shape; they now stop at the diamond's visual tip (half a diagonal out), both ends, including the drag rubber band. - Links touching summary rows aimed at the row center, ~7px below the rollup bracket; they now anchor at the bracket's own center. Same audit also surfaced more utilities missing from the prebuilt stylesheet: progress fill (bg-black/20), progress knob (bg-white + ring-black/30), resize handle hover (hover:bg-white/40), bar border (border-primary-foreground/20), and hover emphasis (brightness-110) — all invisible in consuming apps, now explicit inline colors or scoped CSS. Audit: 29/29 endpoints within ±0.4px across day/week modes and an ?edge=1 fixture (backward links of all four types, summary links, milestone chains). Tests: 63 passing (3 new geometry regression tests). verify-browser: 18/18, screenshots regenerated.
Contributor
Author
|
Follow-up: pixel-level geometry audit (94a884a) — added It caught 3 real misalignments, all fixed: bars collapsed to content height in consuming apps (calc-based utilities missing from the prebuilt CSS) so every anchor missed by ~11.5px; milestone links anchored at the diamond center instead of its tip; summary-row links aimed 7px below the bracket. Also fixed more invisible-in-prod utilities (progress fill/knob, bar border, hover brightness). Result: 29/29 endpoints within ±0.4px, 63 unit tests green, verify-browser 18/18, screenshots regenerated (see |
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
…ags stretch the parent via rollup
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
…e override Perf scripts pass ?perf=N&mode=week explicitly so stress metrics keep the zoomed-out scale, while every plain entry URL now starts in day mode.
Contributor
✅ Console Performance Budget
📦 Bundle Size Report
Size Limits
|
os-zhuang
pushed a commit
that referenced
this pull request
Jun 13, 2026
…1672) (#1689) * fix(gantt): progress % no longer occluded; replace 6 missing prebuilt-CSS utilities with inline styles The connector dot used `-right-2`, which the prebuilt components stylesheet never emits, so it collapsed to its auto top-left position and covered the progress label at the bar's start. Pin it with inline `right:-8px` and give `cursor:crosshair` inline too. Audited every GanttView class token against the prebuilt CSS and inlined the other genuinely-absent utilities: resize-handle `w-1.5`/`cursor-ew-resize`, progress-fill `rounded-l-sm`, grid `z-0`, and the sm: responsive variants (`sm:h-[50px]`, `sm:w-20`, `sm:hidden`, `-ml-1`, `h-[45%]`, `touch-manipulation`) via a scoped media-query style block. * feat(gantt): configurable hover tooltip via tooltipFields The 悬浮详情 (hover tooltip) is now dynamically configurable like the component's other field-bound properties. A view declares tooltipFields on its gantt config — field names, or { field, label } to override the label — and ObjectGantt resolves each against the record (select options to their label, lookups to the embedded record name, dates/numbers/currency/percent through the shared @object-ui/fields formatters), feeding GanttView a task.fields array. When present these label/value rows replace the default start to end / duration / progress line; unconfigured tooltips keep it. - types: add tooltipFields to GanttConfig (ObjectUI display extension) - GanttView: render task.fields as a two-column grid in the tooltip - ObjectGantt: resolve + type-format tooltipFields per record - tests: +2 ObjectGantt cases (label override, schema label, select option, date/number formatting; omitted when unconfigured) - verify: scripts/verify-tooltip-fields.mjs (6/6) + docs screenshot * feat(gantt): parent summary stretches live while dragging a child Previously an ancestor summary only re-rolled on drop — mid-drag it stayed at its pre-drag span, so a child dragged past the parent edge appeared to escape the bracket until release. Now every ancestor summary of a single dragged task re-rolls its span over its leaf descendants (substituting the dragged leaf's previewed dates) on each pointermove, so the parent bar grows/shrinks in real time. The pinned edge (earliest child) stays put — it stretches, not shifts — and the live width matches the rollup that commits on drop (no flicker). - getLiveRowStyle: live rollup branch for stretch-ancestor summary rows - dragStretchAncestorIds memo + taskById map drive the ancestor lookup - liveStyle now uses the live path for stretched ancestors too - verify: scripts/verify-child-stretch.mjs (4/4) + 2 docs screenshots * docs(skill): document gantt view config in page-builder guide * feat(gantt): Phase 6 — critical path, auto-schedule, export PNG Three additive Phase 6 features, all driven from new toolbar buttons: - Critical path (CPM): new pure `scheduling.ts` runs forward/backward passes over the dependency graph to find the zero-slack chain. A toolbar toggle (Activity icon) highlights critical task bars, milestones, summary bars and the joining link arrows in red. `criticalPathDefault` prop / `schema.criticalPath` start it on. The diamond fixture proves the maths: Frontend (23d) is critical, the parallel Backend (20d) is not. - Auto-schedule (顺延): `computeProjectReschedule` pushes each successor as late as its links require, preserving durations and never pulling earlier; honors fs/ss/ff/sf and leaves summary rollups fixed. A toolbar button (Wand2, shown only when onTaskUpdate is wired) applies it in one shot. ObjectGantt enables it whenever dependenciesField is configured. - Export PNG: a toolbar button (Download) rebuilds the WHOLE chart (virtualization-independent) into a standalone SVG with concrete hex colors — prebuilt theme CSS vars don't resolve in a detached SVG — then rasterizes to a 2x PNG via canvas and downloads gantt-<mode>.png. Zero deps. Tests: 12 new unit tests for scheduling.ts (80 total pass), tsc clean. Browser verification (verify-phase6.mjs) 13/13 pass; screenshots 15–16 persisted. ROADMAP + verification README updated. * feat(gantt): Phase 6.2 — baselines, working calendar, undo/redo - Baselines: baselineStart/baselineEnd render a thin reference strip under each row (summary/task/milestone); showBaselines prop + ObjectGantt baselineStartField/baselineEndField mapping. - Working calendar: WorkingCalendar (skipWeekends + holidays) measures durations in working days; critical-path and reschedule snap to working-day boundaries (fs/ss via nextWorkingDay, ff/sf via subWorkingDays). Derived in ObjectGantt from schema.skipWeekends/holidays. - Undo/redo: commitTaskUpdates records before/after field deltas (group drag + auto-schedule batched), replayed via onTaskUpdate; toolbar buttons + Ctrl/Cmd+Z / Shift+Z / Ctrl+Y; only shown when onTaskUpdate is wired. - Tests: 5 working-calendar cases (85 total pass), tsc clean. - Verification: scripts/verify-phase6b.mjs, 16/16 browser checks pass, screenshots 17-20 persisted under docs/verification/. * feat(gantt): explicit readOnly switch (prop, demo, skill, tests) Add an explicit readOnly prop to GanttView that disables every write interaction in one place via prop-shadowing — bar drag/resize/progress, inline edit, context-menu edit/delete, dependency-link drag, row reorder, auto-schedule, and the Undo/Redo toolbar buttons — regardless of which callbacks are wired. Non-mutating affordances (task click, view switch, zoom, critical path, export, fullscreen) stay live. - ObjectGantt maps the view schema's top-level readOnly to the prop. - demo: ?readonly=1 nav link. - 3 unit tests assert no writes fire even when all callbacks + readOnly are passed (88 tests total). - verify-phase6b.mjs: +6 read-only browser checks (22/22), screenshot 21-read-only.png. - page-builder skill + README document readOnly. * fix(gantt): export PNG now includes baselines and custom markers The PNG export re-draws the whole chart into a standalone SVG, but it was written before baselines (Phase 6.2) and never drew custom markers — so the downloaded image dropped both: the planned-vs-actual baseline strips and the vertical marker lines/labels (sprint boundaries, deadlines) that the live chart shows. exportPng now draws, with concrete colors (CSS vars don't resolve in a detached SVG): - baseline strips for tasks carrying baselineStart/baselineEnd, gated by showBaselines, at the row-bottom strip beneath the live bar; - custom markers as vertical lines + label chips, with hsl(var(--primary)) falling back to a concrete indigo. verify-phase6.mjs gains 2 checks (15/15): the export SVG contains 3 baseline fills and both marker labels (Sprint 2 + Code freeze). Verified in-browser by capturing the generated SVG (3 baselines, both markers, 0 NaN). * fix(gantt): export month/year header band; unclip marker labels Two visual fixes reported against the export PNG and the live chart: 1. Export PNG had no month/year context — the live header is two rows (a month/year group band over the day/week/… unit labels) but exportPng drew only the unit row. It now renders both: the headerGroups band on top (bold month/year labels + group dividers) over the unit labels, taller header (18+18px). The downloaded image now reads like the on-screen chart. 2. The Today / custom-marker label chips were clipped at the top. They sat at top:-8 inside the timeline scroll container, so the overflow clipped the part above the content's top edge. Moved to top:2 with z-30 so each chip sits fully inside the chart just under the header, no longer occluded. verify-phase6.mjs gains a month-band assertion (16/16): the export SVG now contains a 4-digit year from the group band. Verified in-browser — all three label chips measure clippedAbove:false, and the export header band renders. * fix(gantt): fill the timeline viewport in week/month/quarter mode With a fixed per-unit column width, a short date span in week/month/quarter mode produced a grid far narrower than the timeline area, leaving a large blank gap on the right (day mode already overflows, so it looked fine there). When the end date is auto-derived, timelineRange now extends with empty trailing calendar columns until the grid reaches the right edge — the scale stays honest (real calendar units), only the visible future grows. No-op in day mode and when the caller controls endDate. Also refresh a stale verify-browser assertion: t4 carries configured tooltipFields (Owner/Status/Effort) which replace the default date·duration·progress line, so the tooltip check now asserts those fields instead of '30%'. verify-browser.mjs: +1 viewport-fill check (19/19); verified week/month/ quarter all fill in-browser (content width ≥ viewport). * fix(gantt): fit-to-width instead of padding empty calendar columns The previous viewport-fill extended the timeline with empty trailing calendar units until the grid reached the right edge. In coarse modes that meant years of blank columns (a 2.5-month project in month mode padded out to ~2030). Back that out: keep the natural date span and STRETCH the column width ("zoom to fit") so a short project fills the viewport with a handful of real columns. A manual zoom overrides it; a long project that already overflows keeps the base width and scrolls. Gated on auto-derived end (a caller-pinned endDate keeps fixed width). Verify: week ≤24 cols + month ≤8 cols + both fill the viewport (verify-browser 22/22, phase6 16/16, 88 unit tests). Docs updated. * fix(gantt): localize dates to i18n language + complete stale gantt locale packs 国际化一致性修复，两处： 1. 日期跟随 i18n 语言，而非浏览器 locale。GanttView 把 provider 的 language 透传到所有面向用户的 toLocaleDateString（表头月份/年、 单位标签、tooltip、拖拽与编辑日期片）经由 dateLocale。此前会出现 chrome 是英文、日历却是中文日期（浏览器为 zh-CN）的割裂；现在两者 始终一致。无 I18nProvider 时 language 为 undefined，回退浏览器 locale，保持独立嵌入/单测行为不变。 2. 补全过期的内置 gantt 语言包。@object-ui/i18n 的 en.ts / zh.ts 中 gantt: 命名空间停留在 Phase 2，缺少 Phase 4–6 新增的 toolbar (viewMode/criticalPath/autoSchedule/exportPng/undo/redo/fullscreen)、 viewMode、row、aria、tooltip、menu 等键 —— 套了 I18nProvider 的应用 会把这些渲染成原始 key（如 gantt.viewMode.day）。现已对齐插件内 GANTT_DEFAULT_TRANSLATIONS 的完整键集；其余语言经 fallbackLng 优雅 降级为英文。 demo 包一层 I18nProvider 并提供 English · 中文 切换（?lang=en/zh）， 新增 scripts/verify-i18n.mjs 断言两种语言下 chrome/日期均完整本地化、 无 gantt.* 原始 key 泄漏（13/13 通过），留痕 22/23 截图。 测试：tsc(i18n+gantt) 干净；单测 88/88(gantt)、113/113(i18n)； verify-browser 22/22、verify-phase6 全绿、verify-i18n 13/13。 * feat(gantt): 动态 Group by — groupBy accessor + ObjectGantt groupByField 将叶子任务按 groupBy(task)=>{key,label} 分桶，在合成的分组汇总行下渲染， 替换原有 parent 层级，复用现有 rollup/折叠/汇总渲染。纯展示层变换：时间轴范围、 关键路径、自动排程仍读取真实 tasks；合成分组行带 data.__group，不可拖拽。 ObjectGantt 暴露为 groupByField（select 选项/lookup 解析为显示标签）。 - GanttView: groupBy / ungroupedLabel props + displayTasks 变换，beginDrag 守卫 - ObjectGantt: groupByField 配置 + groupByAccessor - demo: ?group=owner|status 切换 - 8 个单测 + verify-groupby.mjs（6/6 通过，截图 24/25） * feat(gantt): 资源/工作负载视图 — per-resource load histogram with over-allocation 新增 ResourceWorkload 视图：按资源（负责人/状态等）聚合任务负载，每个资源一行直方图， 列负载 = Σ effort(重叠任务)，超过 capacity 的列标红（过载）。纯聚合逻辑在 workload.ts （7 个单测），渲染与时间轴几何在 ResourceWorkload.tsx（5 个渲染测试）。ObjectGantt 通过 resourceView + assigneeField/effortField/capacity 配置开启；demo 提供 ?resource=owner|status。 新增 gantt.resource.* 四个 i18n key（en/zh + 插件内置回退）。 浏览器验证 5/5 通过，留痕 26/27（中英）/28（中文）三张截图。 * feat(gantt): 非线性工作时间轴 — fold weekends/holidays out of the day axis In day mode, when a workingCalendar marks weekends (skipWeekends) or explicit holidays as non-working, those columns are now dropped from the grid entirely — Friday sits against Monday, so the timeline shows only working time. This makes date→px non-linear, so all positioning (bars, dependency arrows, milestones, Today line, custom markers) is routed through a single dateToX/xToDate pair that interpolates within the owning column. Drag/resize advance by working columns (Fri +1 → Mon). Coarser scales and the no-calendar path keep the plain linear axis — dateToX is algebraically identical there. - 7 unit tests (GanttView.workaxis.test.tsx): fold count, weekend drop, weekend-straddling bar compression, working-day drag, holiday fold, day-mode gating, linear equivalence. - verify-workaxis.mjs browser check (5/5) + 3 screenshots (linear / folded / folded-zh) under docs/verification/. * docs(skill): document group-by, resource/workload view, and non-linear axis Page-builder gantt guide now covers groupByField (swimlanes), resourceView + assigneeField/effortField/capacity (workload histogram), and the day-mode weekend/holiday axis folding (非线性工作时间轴) added to the skipWeekends/holidays options. * feat(gantt): 快速筛选 — 可配置多维度过滤栏 + 自动缩放时间轴 - QuickFilterBar 展示组件:每个维度一个多选下拉,AND 组合;全选折叠为无约束 - ObjectGantt 集成:选项解析优先级(显式 options → schema select/enum 全域 → lookup/master_detail 引用对象全量拉取 → 数据去重兜底);lookup 按内嵌记录 id 匹配 - autoZoomToFilter(默认 true):筛选后按剩余任务重算时间轴范围;false 则钉住全量跨度 - 23 个单测(QuickFilterBar + ObjectGantt.quickfilter)+ verify-quickfilter.mjs 9/9 浏览器验证留痕(截图 32–37) - 文档:page-builder.md 增补 quickFilters/autoZoomToFilter;verification README 新增快速筛选章节 * feat(gantt): 依赖增删 + 类型选择（右键链接菜单 + 添加紧前/紧后） - GanttView 新增 onDependencyDelete prop（readOnly 时禁用） - 在依赖连线上叠加透明命中路径（pointer-events: stroke 覆盖 svg 的 none）， 右键打开链接菜单：切换 FS/SS/FF/SF 类型 或 移除依赖 - 任务右键菜单新增 添加紧前依赖/添加紧后依赖，弹出候选任务选择器 （排除自身与已连接任务） - ObjectGantt：handleDependencyCreate 改为按 (source→target) upsert 类型， 新增 handleDependencyDelete；序列化保形（CSV 保持 CSV，出现非 FS 类型时 自动升级为 [{id,type}] 数组），乐观更新 + 失败回滚 - i18n：新增 menu.addPredecessor/addSuccessor/removeDependency/noCandidates 与 linkType.fs/ss/ff/sf（默认英文 + demo 中文） - demo 工程示例接入 onDependencyDelete 并使 onDependencyCreate 按类型 upsert - 测试：GanttView 交互 8 例 + ObjectGantt 写回 6 例（共 151 通过），tsc 通过 - 浏览器留痕：verify-dep-edit.mjs 7/7，截图 38-41 * feat(gantt): 拖拽冲突校验 + 顺延确认 拖动任务条后回放依赖前向排程，若新位置违反 FS/SS/FF/SF 约束则弹出顺延 确认框：自动顺延按拓扑顺序重排受影响任务（汇总条固定），取消保留则保留 手动位置。dependenciesField 存在时默认启用，readOnly 下禁用。 - GanttView 新增 rescheduleOnConflict 属性、冲突检测与确认对话框 - ObjectGantt 在 dependenciesField 配置时自动开启 - i18n 新增 gantt.conflict.* (英文默认 + demo 中文) - 单测 +8 (GanttView 拖拽冲突 6 + ObjectGantt 接线 2)，共 159 通过 - 浏览器留痕 scripts/verify-conflict.mjs，截图 42-44
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Implements Phases 1–5 of the Gantt feature-parity roadmap (
packages/plugin-gantt/ROADMAP.md). Feature set referenced against svar-widgets/react-gantt (GPLv3 — feature reference only, all code written from scratch under MIT).Progress
fs/ss/ff/sf), live tracking during drag/resize, hover highlight,normalizeDependenciesexportSelf-test results (real Chromium, screenshots committed)
scripts/verify-browser.mjsdrives the newdemo/app and persists screenshots todocs/verification/— 18/18 checks passed:Browser testing also caught (and this PR fixes) utilities missing from the prebuilt
@object-ui/components/style.css— summary brackets, the Today marker, weekend tint, row hover/selection and the drag ring were invisible in consuming apps and now use inline theme-var colors.Validation
pnpm vitest run(plugin-gantt): 60 tests passing; monorepo-wide: 3,600 tests / 220 files greenpnpm type-check: full turbo run green (58 tasks)docs/verification/
