The project file format
In version v2.0 and onwards, .mdj files are JSON files with the following structure:
{
"bpm": 80,
"data": [
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
],
"format": 1
}The file format version. Current version is 1.
The tempo in beats per minute. Must be greater than 0.

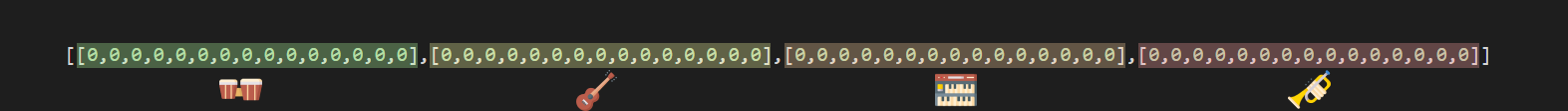

Contains four arrays, each one representing a single instrument track. They are played simultaneously and must have the same size.

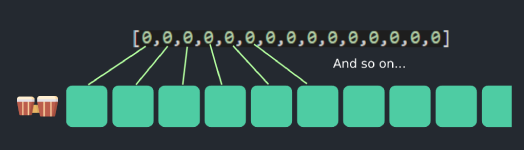

Every number represents a sample index:
| Name | Index |
|---|---|
| Empty tile | 0 |
| Introduction | |
| Groove 1 | 1 |
| Groove 2 | 2 |
| Salsa 1 | 3 |
| Salsa 2 | 4 |
| Reggae 1 | 5 |
| Reggae 2 | 6 |
| Techno 1 | 7 |
| Techno 2 | 8 |
| Verse | |
| Groove 1 | 9 |
| Groove 2 | 10 |
| Salsa 1 | 11 |
| Salsa 2 | 12 |
| Reggae 1 | 13 |
| Reggae 2 | 14 |
| Techno 1 | 15 |
| Techno 2 | 16 |
| Chorus | |
| Groove 1 | 17 |
| Groove 2 | 18 |
| Salsa 1 | 19 |
| Salsa 2 | 20 |
| Reggae 1 | 21 |
| Reggae 2 | 22 |
| Techno 1 | 23 |
| Techno 2 | 24 |
| Solo | |
| Groove 1 | 25 |
| Groove 2 | 26 |
| Salsa 1 | 27 |
| Salsa 2 | 28 |
| Reggae 1 | 29 |
| Reggae 2 | 30 |
| Techno 1 | 31 |
| Techno 2 | 32 |
