Chapter 6 — Deploy from the Ground Station into a rig

You now switch from developer to operator. In Chapter 5 you pushed two things to S3: the runtime plane (theia release services --s3 → theia-runtime) and your app SWP (theia release-swp --s3 → theia-swp). This chapter takes those S3 artifacts all the way onto a running rig — driven entirely from the Ground Station web UI, deploying into a local docker-compose rig so you can exercise the whole fleet flow without any physical board.

The Ground Station fans out to two authorities behind one surface:

• colony — the base/runtime provisioner (installs the runtime + services from the S3 runtime plane over SSH).
• Mender — the OTA transport + device authorization (enrol/accept, deploy the app SWP as an overlay).

6.1 Bring up the local rig (theia rig up)

The tutorial's "boards" are two Docker containers that behave as bare rigs: colony SSHes into them and provisions them exactly as it would a real rpi4/jetson — but all-amd64, so no cross-build and no hardware. Bring them up from the framework checkout:

theia rig up          # docker compose up -d: theia-central + theia-compute
theia rig down        # tear the rig down when you're finished

theia rig up starts two containers:

container	sshd port	role
theia-central	2201	the coordinator board (etcd + the singletons + mender-gateway)
theia-compute	2202	a zone worker board (ucm + shwa)

Both run network_mode: host, so they share the host network and the host TIPC namespace (one nametable; central=instance 0, compute=instance 1). Because they share the host port space their sshd ports must differ — a real rig owns :22, but two rigs on one host net can't. colony already has its provisioning public key in each rig's authorized_keys (baked into the rig image), which is how it SSHes in.

The docker rig is a dev convenience, not part of the distribution. Theia's release artifacts (the runtime .debs + the SWP .mender, in S3) contain no docker image — a real deployment provisions bare boards over SSH. The theia-rig container image is built from this repo's deploy/ tree (theia rig up runs docker compose build); a power user who wants a container test-bench builds their own from source the same way. Everything colony delivers to a rig (the runtime, the config, the Mender update-modules, the on-device launcher) is pulled from S3 and is identical for a container and a physical board — so what you exercise here is exactly the real fleet flow, minus the hardware.

# confirm the rigs are up and reachable
docker ps --filter name=theia-central --filter name=theia-compute
nc -z 127.0.0.1 2201 && echo "central sshd up"
nc -z 127.0.0.1 2202 && echo "compute sshd up"

6.2 Open the Ground Station

The Ground Station is the fleet operator's web UI. Open it in a browser:

The left nav is the whole workflow: Deployment (the deploy board), Fleet (enrolled devices), Releases (the S3 planes), Distributions (deployable bundles), Rollouts (Mender/on-device transport state). The badge top-right shows you're authed against the GS API.

6.3 The Releases view — your S3 planes

Click Releases. This is the operator's view of what you pushed to S3 in Chapter 5:

Three panes:

• Runtime + Services (the base plane) — every runtime you published with theia release services --s3, keyed <ver>-<abi> (0.2.2-amd64, the arm64 keys for real boards). This is the theia-runtime bucket; colony installs one of these on a fresh board.
• Distributions (the app plane) — your app SWPs (single 1.0-amd64), from theia-swp. Each shows its required runtime (unpinned = compatible with any base of the matching abi).
• Role artifacts — per-role .mender bundles for the L4-C vehicle campaign path.

If a runtime you pushed isn't listed, the GS reads <key>/index.json from S3 — theia release services --s3 writes that index alongside the debs, so a fresh push shows up on the next Releases load.

6.4 Enrol a rig — the Fleet view

Click Fleet. Enrolled devices appear with their fleet type, base runtime, app SWP, and health/SM/UCM/status columns:

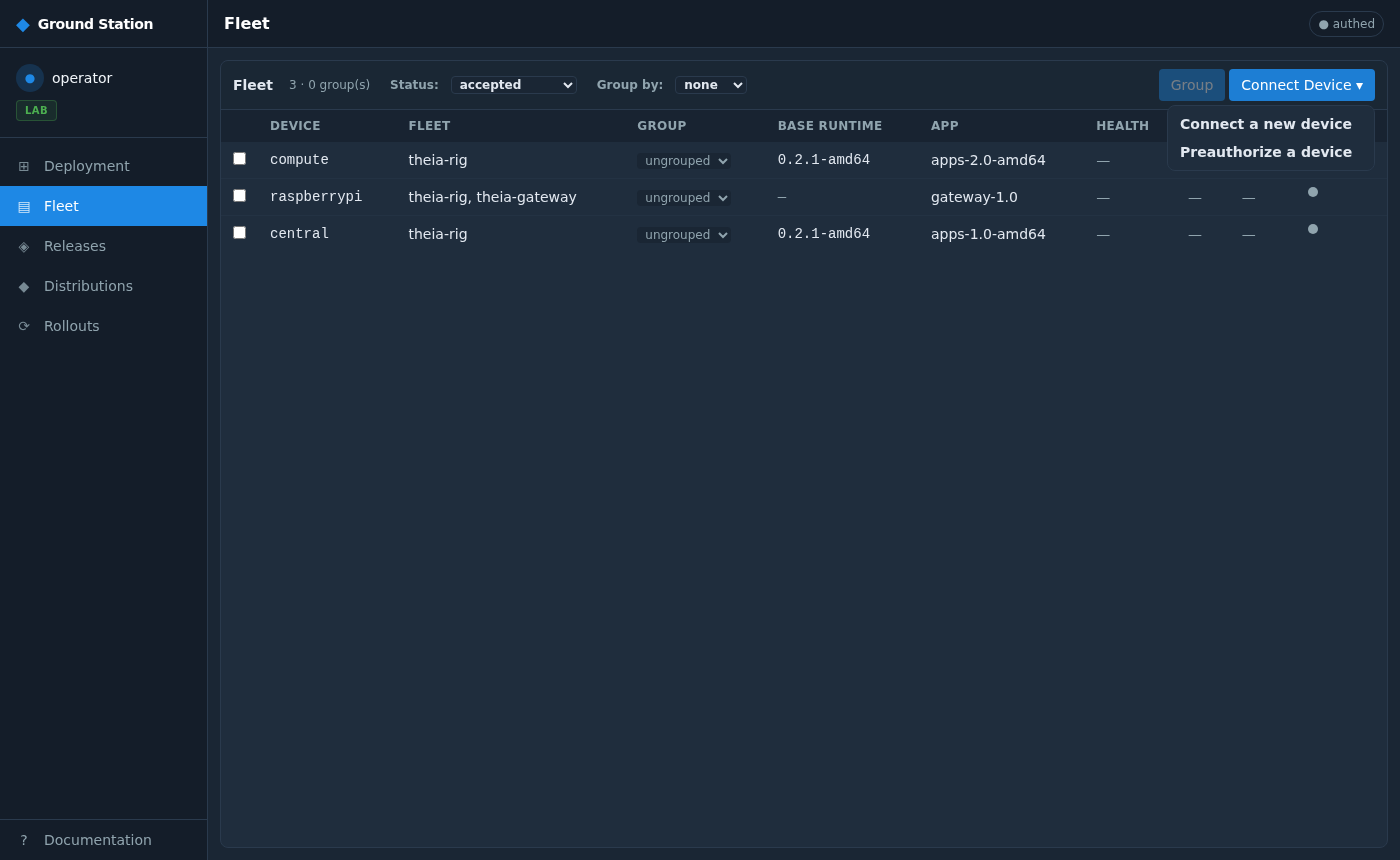

A freshly-upped rig starts as mender-only (red) — its Mender client is checking in, but colony hasn't provisioned the runtime yet. To enrol a new rig, click Connect Device ▾ (top right):

Two paths:

• Connect a new device — the rig's Mender client is already checking in (pending in Mender). The GS SSH-probes the host IP to prefill the Controller ID and name, then accepts the device.
• Preauthorize a device — register the device's identity before it checks in, so it's accepted the moment it does.

Connect a new device (the SSH-key prep)

Enter the rig's Host IP (for the local rig, the docker host at its sshd port) and click reload — the GS SSHes into the host using colony's provisioning key (the same key that's in the rig's authorized_keys) and reads back the Controller ID, which it prefills. This is the "the rig is prepared with the SSH key from the GS" step: the GS↔rig trust is that one keypair — the GS holds the private key, every rig image ships the public key. Confirm the Name and Type (theia-rig for a compute board, theia-gateway for the gateway), add a description, and Save. The pending device is accepted and appears in the Fleet.

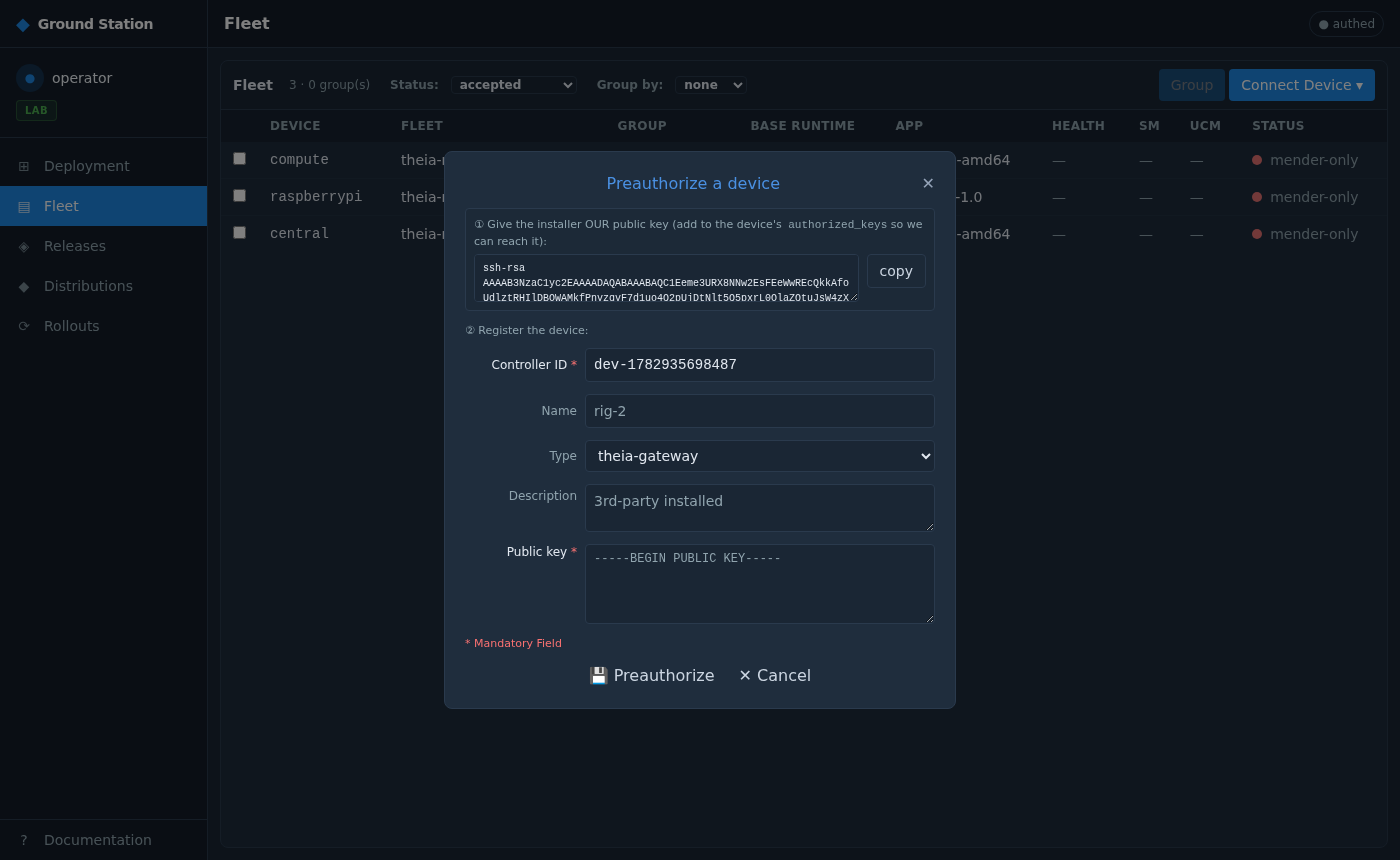

Preauthorize a device

Same idea, before check-in: paste the device's Mender identity (its controller ID) and it's accepted the instant its client first polls. Use this when you're imaging boards in bulk.

6.5 Create a Distribution from your app

A Distribution is the deployable unit: a name + version + a list of roles, each resolved to {abi, runtime_build, swp_build}. It binds your app SWP to a runtime, so runtime↔app compatibility is guaranteed by construction.

Open Distributions and create one from the single app you pushed. Behind the UI it's a single API call:

// POST /api/planes/distributions
{
  "name": "single", "version": "1.0",
  "roles": [
    { "role": "central", "abi": "amd64",
      "runtime_build": "0.2.2-amd64", "swp_build": "single-1.0-amd64" }
  ]
}

arity = len(roles) — a single-master app is arity 1; a split app that also runs a zone worker is arity 2 (central + compute), each role pinned to its own abi · runtime · SWP. The GS is stateless — the Distribution is stored as s3://theia-distributions/<name>/<version>/index.json, nothing else.

6.6 Deploy — select, bind, go

Back on Deployment, the board has three columns: Targets (your rigs, with the BASE runtime + SWP each currently carries), Distributions, and Action History.

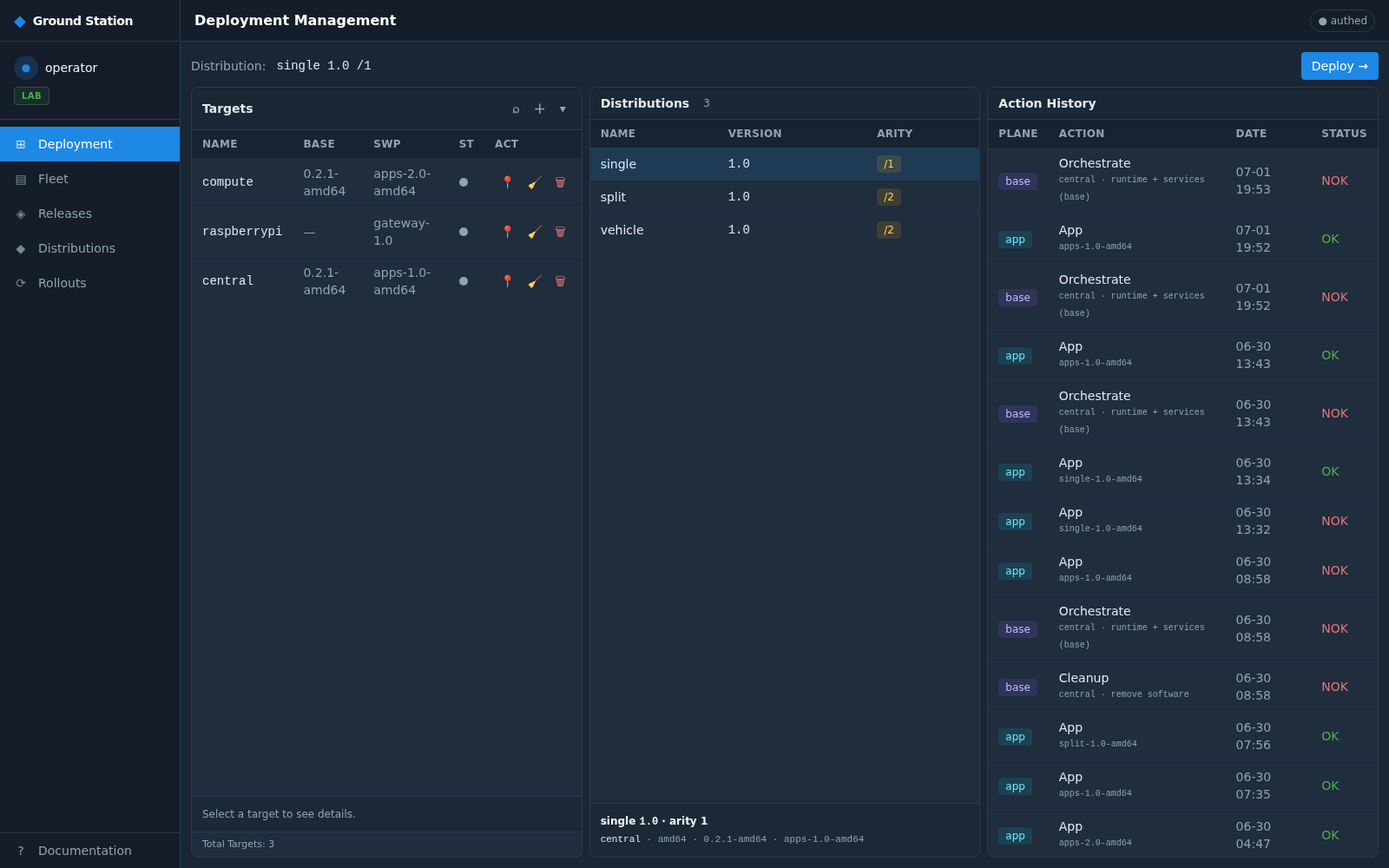

Click the single Distribution in the middle column. The top bar shows the selection (Distribution: single 1.0 /1), the Deploy → button activates, and the footer resolves the role binding (central · amd64 · 0.2.2-amd64 · single-1.0-amd64):

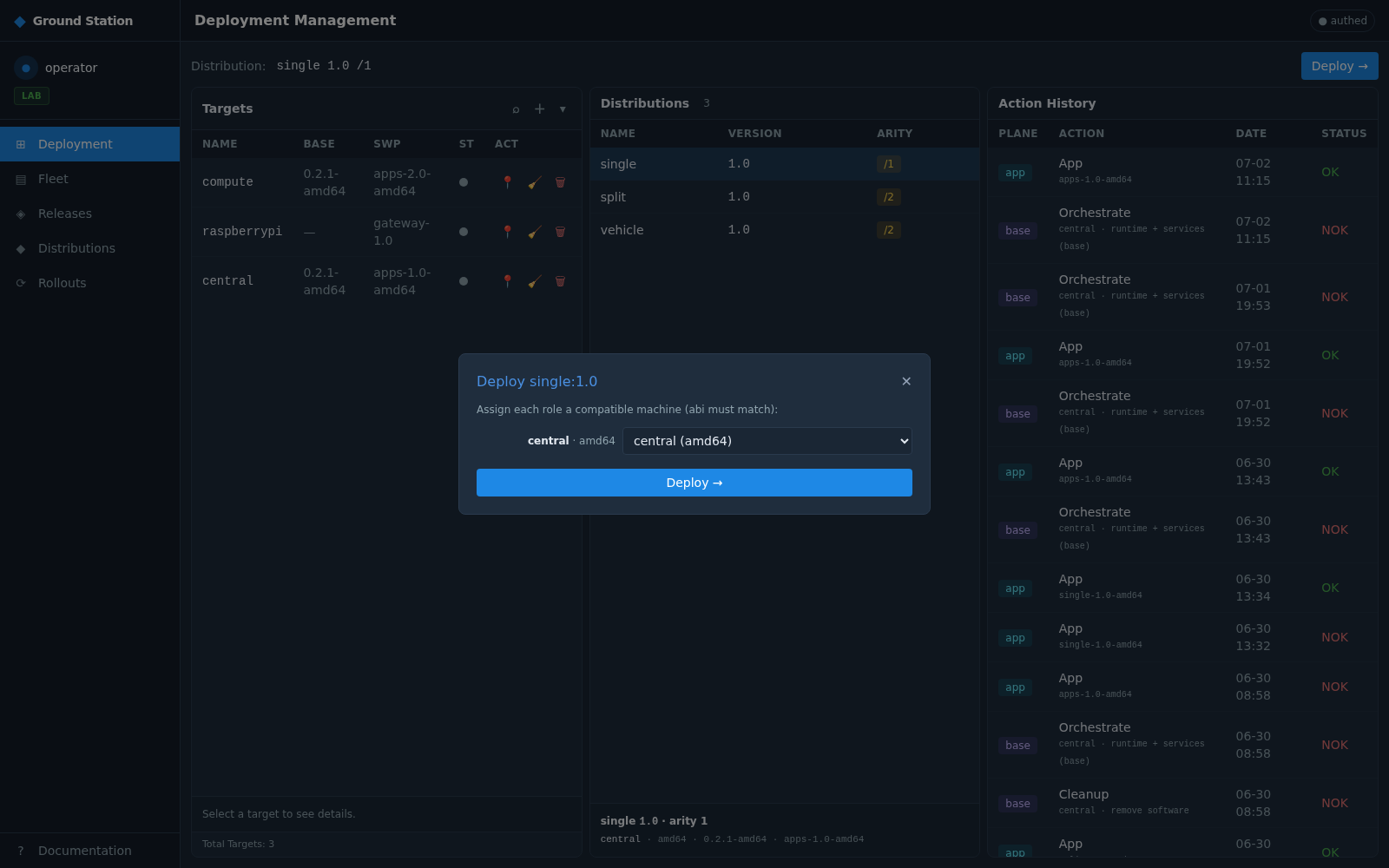

Click Deploy →. The GS asks you to assign each role to a compatible machine (the abi must match — it validates all assignments before touching anything):

Pick central for the central role and confirm. One click, and the GS fans out per role.

6.7 What happens behind the click (per-role fan-out)

The deploy validates every assignment first, then for each role creates one colony base job + one Mender deployment:

deploy single:1.0 → central
  base:  runtime 0.2.2-amd64      → colony   (installs/refreshes the runtime base)
  swp:   single-1.0-amd64         → Mender   (creates a Mender deployment for the app)

The rig's Mender client picks up its deployment on its next poll, fetches the .mender artifact, and runs the theia-swp update module — the on-device overlay applier. It:

• unpacks the SWP and overlays every FC executable into $CURRENT/bin/ (p1 lands alongside the running release),
• merges the SWP's executor worker nodes into the supervised tree, keyed by the SWP name so a re-install replaces the same SWP's nodes (idempotent),
• records the install for rollback, and reloads the supervisor so it (re)spawns your app FCs.

The runtime + services underneath are never touched — that's what makes "apps are Mender-only day-2, the platform is factory-only" real.

6.8 Action History — the deploy state machine

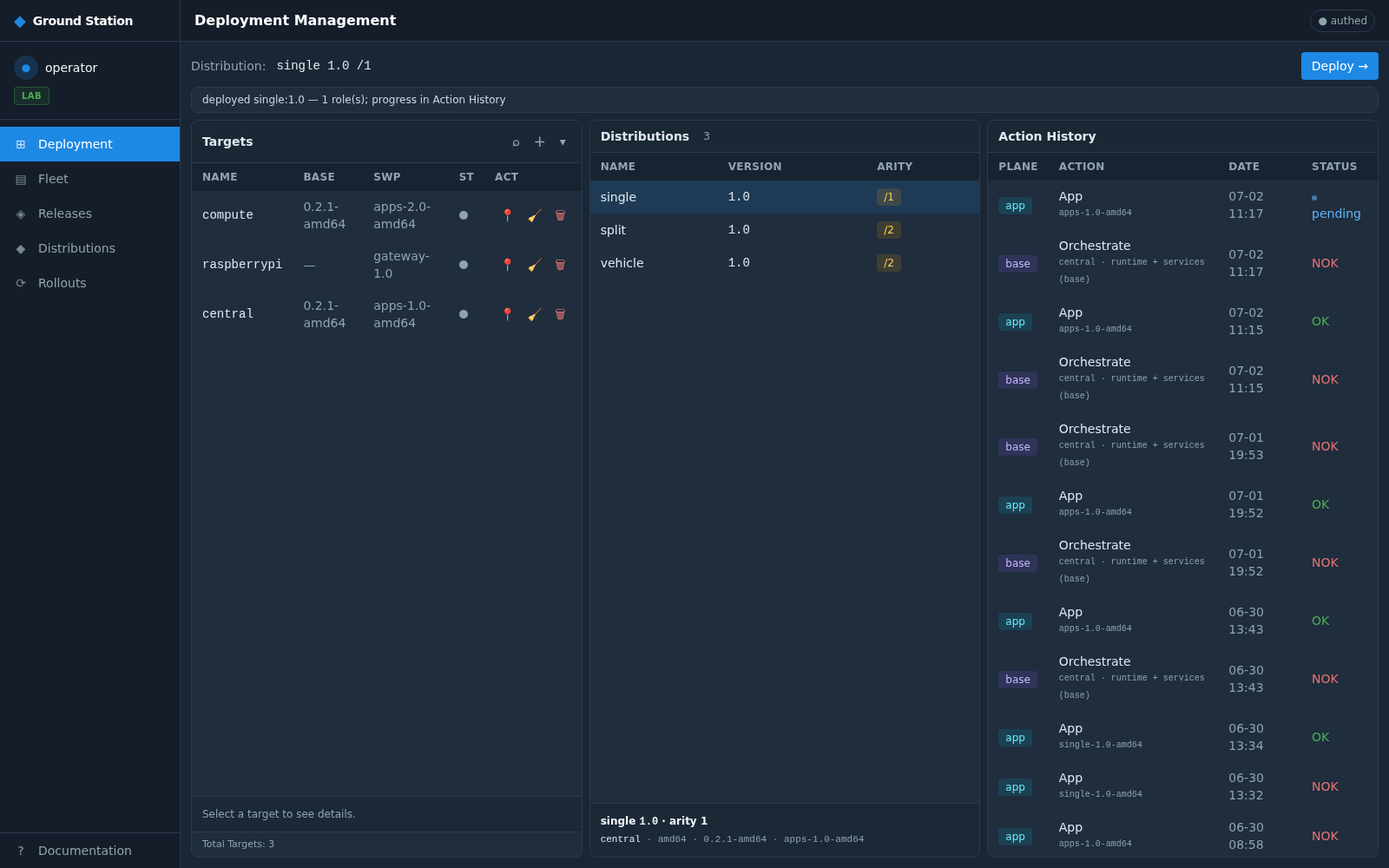

The moment you confirm, a banner appears (deployed single:1.0 — 1 role(s); progress in Action History) and the deploy shows up at the top of Action History as pending:

Each history row is one fanned-out action:

column	meaning
PLANE	base (a colony runtime action: Orchestrate / Cleanup) or app (a Mender SWP deploy)
ACTION	Orchestrate = provision the runtime base; App = deploy the SWP overlay; Cleanup = remove software
DATE	when the action was created
STATUS	pending (in flight) → OK (succeeded) / NOK (failed)

A single logical deploy is two rows: the base Orchestrate (runtime) and the app App (SWP). Watch them resolve — pending flips to OK when the colony job / Mender deployment reports success:

This is the whole audit trail: every provision, every app deploy, every cleanup, with its plane, target, and outcome. NOK rows are where a base or app action failed — click through to the Rollouts view for the per-device Mender/UCM transport detail.

On the rig itself, once the app deploy is OK:

# on the rig (docker exec into theia-central, or via the operator tools)
ls /opt/theia/current/bin/          # p1 — your SWP executable landed
tdb apps                            # your app's nodes now in the supervised tree

6.9 Iterate — new version, split, rollback

Because Distributions are versioned and the overlay is idempotent, iterating is clean:

• New SWP version — push apps-2.0, make a new Distribution, deploy it: the module replaces the same app's binaries + nodes. Rollback restores the prior install.
• Add a role — deploy a split (arity-2) Distribution: central is re-overlaid and compute gets its {ucm, shwa} slice, each from its own per-role fan-out — one click, both roles.

The whole chain, proven end to end: theia release* → S3 → Distribution → per-role {colony base + Mender deployment} → rig fetch → theia-swp overlay → OK in Action History.

---

You now have: the full operator loop — a rig up (theia rig up), enrolled through the Ground Station with the GS↔rig SSH key, its runtime provisioned from the S3 base plane, and your app deployed as a versioned Distribution with the result tracked in Action History.

Next: Chapter 7 — Write a Robot Framework test, to drive your app and assert on its behaviour.

---
