MLOps Assignment 2: Cats vs Dogs Classification Pipeline

End-to-end MLOps pipeline for binary image classification (Cats vs Dogs) for a pet adoption platform.

MLOPS Assignment 2

🔗 Repository: https://github.com/ps2program/MLOPS_ASSIGNMENT_2.git

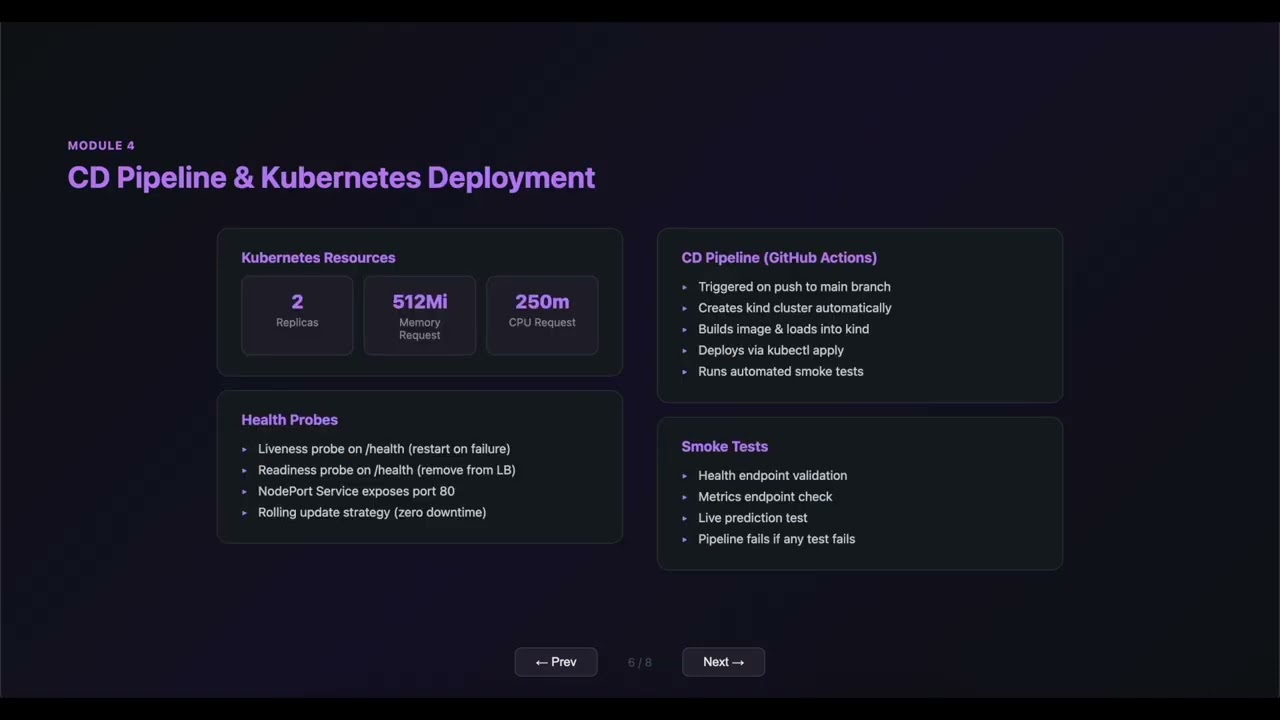

🎬 Project Demo

▶️ Watch the Full End-to-End MLOps Demo

---

Project Structure

.
├── data/                  # Data directory (tracked by DVC)
│   ├── raw/              # Raw dataset
│   ├── processed/        # Preprocessed data
│   └── .gitignore
├── src/                   # Source code
│   ├── data/             # Data processing scripts
│   ├── models/           # Model definitions
│   ├── training/         # Training scripts
│   └── inference/       # Inference service
├── tests/                # Unit tests
├── notebooks/            # Jupyter notebooks for exploration
├── mlruns/               # MLflow experiment tracking
├── deployment/           # Deployment manifests
│   ├── kubernetes/      # K8s manifests
│   └── docker-compose/  # Docker Compose config
├── .github/
│   └── workflows/       # GitHub Actions CI/CD
├── Dockerfile           # Container image definition
├── requirements.txt     # Python dependencies
├── .dvcignore          # DVC ignore patterns
├── .gitignore          # Git ignore patterns
└── README.md           # This file

Setup Instructions

1. Clone and initialize:

   git clone https://github.com/ps2program/MLOPS_ASSIGNMENT_2.git
   cd MLOPS_ASSIGNMENT_2
   dvc init

2. Install dependencies:

   pip install -r requirements.txt

3. Download dataset:

   • Dataset: bhavikjikadara/dog-and-cat-classification-dataset
   • Total: 25,038 images (12,519 cats, 12,519 dogs)
   • Use Kaggle CLI: kaggle datasets download -d bhavikjikadara/dog-and-cat-classification-dataset -p data/raw --unzip
   • Or use the script: ./scripts/download_dataset.sh (after setting up Kaggle credentials)
   • Run dvc add data/raw/ to track with DVC

4. Train model:

   python src/training/train.py

   Or Download Pre-trained Model Artifacts

   To download the trained model files from Google Drive:

   chmod +x download_drive_folder.sh
   ./download_drive_folder.sh


5. Run inference service:

   docker build -t cats-dogs-classifier .
   docker run -p 8000:8000 cats-dogs-classifier

Dataset

• Source: bhavikjikadara/dog-and-cat-classification-dataset
• Size: 25,038 images (12,519 cats, 12,519 dogs)
• Tracked with: DVC (Data Version Control)
• See DATASET_INFO.md for detailed information

Modules

• M1: Model Development & Experiment Tracking (✅ Complete)
• M2: Model Packaging & Containerization (✅ Complete)
• M3: CI Pipeline for Build, Test & Image Creation (✅ Complete)
• M4: CD Pipeline & Deployment (✅ Complete)
• M5: Monitoring, Logs & Final Submission (✅ Complete)

Repository

• GitHub: https://github.com/ps2program/MLOPS_ASSIGNMENT_2
• Status: All modules implemented and tested

---

Setup Guide

This guide will help you set up and run the complete MLOps pipeline for Cats vs Dogs classification.

Prerequisites

• Python 3.10+ (tested with 3.10 and 3.13)
• Docker Desktop (for containerization)
• Git (for version control)
• kind (for local Kubernetes deployment)
• Kaggle account (for dataset download)

Step 1: Clone and Initialize Repository

# Clone the repository
git clone https://github.com/ps2program/MLOPS_ASSIGNMENT_2.git
cd MLOPS_ASSIGNMENT_2

# DVC is already initialized in this repo

Step 2: Install Dependencies

# Create virtual environment (recommended)
python -m venv venv
source venv/bin/activate  # On Windows: venv\Scripts\activate

# Install Python packages
pip install -r requirements.txt

Step 3: Download Dataset

Option 1: Using Kaggle CLI (Recommended)

Dataset: bhavikjikadara/dog-and-cat-classification-dataset

• Total Images: 25,038 (12,519 cats, 12,519 dogs)
• Size: ~775MB

1. Download your Kaggle API credentials from https://www.kaggle.com/settings
2. Place kaggle.json in ~/.kaggle/
3. Run the download script:

# Update the script to use the correct dataset, or run directly:
kaggle datasets download -d bhavikjikadara/dog-and-cat-classification-dataset -p data/raw --unzip

# Organize the dataset (if needed)
# The script will handle organization automatically

Option 2: Manual Download

1. Download from: https://www.kaggle.com/datasets/bhavikjikadara/dog-and-cat-classification-dataset
2. Extract and organize into:

   data/raw/
     cats/
     dogs/


Track Data with DVC

# Add data to DVC
dvc add data/raw

# Commit DVC files
git add data/raw.dvc .gitignore
git commit -m "Add dataset with DVC"

Step 4: Train the Model

Important: You must set PYTHONPATH to the project root so that src is importable.

# Train with default parameters
PYTHONPATH=. python src/training/train.py

# Or with custom parameters
PYTHONPATH=. python src/training/train.py \
    --raw_data_dir data/raw \
    --processed_data_dir data/processed \
    --model_save_dir models \
    --num_epochs 10 \
    --batch_size 32 \
    --learning_rate 0.001

The training script will:

• Preprocess images (resize to 224x224, split 80/10/10 train/val/test)
• Apply data augmentation (random horizontal flip, rotation, color jitter)
• Train a CNN model with batch normalization and dropout
• Track experiments with MLflow (parameters, metrics, confusion matrix)
• Save the best model to models/best_model.pt

View Training Results in MLflow

mlflow ui --port 5000
# Open http://localhost:5000

Click the cats_dogs_classification experiment, then click the run to see:

• Parameters: epochs, batch_size, learning_rate
• Metrics: train/val accuracy, loss, precision, recall, F1
• Artifacts: confusion_matrix.png, saved model

Step 5: Run Tests

# Run unit tests (14 tests)
PYTHONPATH=. pytest tests/ -v

# Run with coverage report
PYTHONPATH=. pytest tests/ -v --cov=src --cov-report=html

Step 6: Build Docker Image

The model (models/best_model.pt) is baked into the image during build.

# Build the image (use --load if Docker sign-in enforcement is enabled)
docker build --load -t cats-dogs-classifier:latest .

# Verify the image
docker images | grep cats-dogs-classifier

Step 7: Run Inference Service Locally

# Run with Docker (model is already inside the image)
docker run -d --name cats-dogs-api -p 8000:8000 cats-dogs-classifier:latest

# Or with Docker Compose (includes Prometheus)
cd deployment/docker-compose
docker compose up -d
cd ../..

Step 8: Test the API

# Health check
curl http://localhost:8000/health
# Expected: {"status":"healthy","model_loaded":true}

# Prediction with a cat image
curl -X POST -F "file=@data/raw/cats/cat_000.jpg" http://localhost:8000/predict

# Prediction with a dog image
curl -X POST -F "file=@data/raw/dogs/dog_000.jpg" http://localhost:8000/predict

# Prometheus metrics
curl http://localhost:8000/metrics | grep inference

# Run smoke tests
bash scripts/smoke_tests.sh http://localhost:8000

# Clean up
docker stop cats-dogs-api && docker rm cats-dogs-api

Step 9: CI/CD Setup

GitHub Actions

The CI/CD pipelines are already configured in .github/workflows/:

• CI Pipeline (.github/workflows/ci.yml):

  • Triggers on push/PR to main/develop
  • Runs unit tests with pytest
  • Builds Docker image
  • Pushes to GitHub Container Registry

• CD Pipeline (.github/workflows/cd.yml):

  • Triggers on push to main
  • Provisions a kind cluster
  • Builds and loads the Docker image into kind
  • Deploys to Kubernetes via kubectl apply
  • Runs smoke tests
  • Cleans up the cluster

No additional secrets are required -- the CD pipeline uses kind for local-style deployment within the GitHub Actions runner.

Step 10: Deploy to Local Kubernetes (kind)

Option 1: Docker Compose (Local)

cd deployment/docker-compose
docker compose up -d

# Check status
docker compose ps

# View logs
docker compose logs -f classifier-api

# Tear down
docker compose down
cd ../..

Option 2: Kubernetes with kind (Recommended)

# Install kind (if not already installed)
# macOS:
brew install kind
# Linux:
curl -Lo ./kind https://kind.sigs.k8s.io/dl/v0.20.0/kind-linux-amd64
chmod +x ./kind && sudo mv ./kind /usr/local/bin/kind

# Create a cluster
kind create cluster --name mlops-cluster --wait 60s

# Build and load the Docker image into kind
docker build --load -t cats-dogs-classifier:latest .
kind load docker-image cats-dogs-classifier:latest --name mlops-cluster

# Deploy
kubectl apply -f deployment/kubernetes/deployment.yaml

# Wait for pods to be ready
kubectl rollout status deployment/cats-dogs-classifier --timeout=120s

# Check status (expect 2/2 pods Running)
kubectl get pods,svc,deployment

# Port-forward to access the service
kubectl port-forward svc/cats-dogs-classifier-service 8080:80 &

# Test health
curl http://localhost:8080/health

# Test prediction
curl -X POST -F "file=@data/raw/cats/cat_000.jpg" http://localhost:8080/predict

# Run smoke tests
bash scripts/smoke_tests.sh http://localhost:8080

Tear Down Kubernetes

# Delete the cluster when done
kind delete cluster --name mlops-cluster

Step 11: Monitoring & Evaluation

Prometheus Metrics

The API exposes Prometheus-compatible metrics at /metrics:

# View key metrics
curl http://localhost:8080/metrics | grep -E "(inference_requests_total |inference_request_duration|predictions_total)"

Key metrics:

Metric	Description
inference_requests_total	Total number of inference requests
inference_request_duration_seconds	Latency histogram (p50, p90, p99)
predictions_total{class="cat/dog"}	Prediction count by class

Prometheus Setup

Docker Compose: Prometheus UI is automatically available at http://localhost:9090 when using Docker Compose.

Kubernetes: To deploy Prometheus with Kubernetes:

# Deploy Prometheus configuration and service
kubectl apply -f deployment/kubernetes/prometheus-config.yaml
kubectl apply -f deployment/kubernetes/prometheus-deployment.yaml

# Port-forward to access Prometheus UI
kubectl port-forward svc/prometheus-service 9090:9090

# Access Prometheus UI at http://localhost:9090

Prometheus will automatically scrape metrics from your classifier service pods.

Grafana Setup

Kubernetes: To deploy Grafana for visualization:

# Deploy Grafana configuration and service
kubectl apply -f deployment/kubernetes/grafana-config.yaml
kubectl apply -f deployment/kubernetes/grafana-datasource.yaml
kubectl apply -f deployment/kubernetes/grafana-deployment.yaml

# Port-forward to access Grafana UI
kubectl port-forward svc/grafana-service 3000:3000

# Access Grafana UI at http://localhost:3000
# Login: admin / admin

Grafana is pre-configured to connect to Prometheus. You can create dashboards to visualize:

• Total inference requests
• Request rate over time
• Latency percentiles (p50, p90, p99)
• Prediction distribution by class

See deployment/kubernetes/GRAFANA_SETUP.md for detailed instructions.

Application Logs

# Docker
docker logs cats-dogs-api

# Docker Compose
docker compose logs -f classifier-api

# Kubernetes
kubectl logs deployment/cats-dogs-classifier --tail=20

Logs include structured prediction entries with confidence and latency:

2026-02-11 08:25:20 - src.inference.app - INFO - Prediction: dog, Confidence: 0.9895, Latency: 0.7850s

Post-Deployment Model Evaluation

Run the evaluation script to assess model performance on real images:

python scripts/evaluate_deployed_model.py --url http://localhost:8080 --num-samples 20

This sends images with known labels (from data/raw/cats/ and data/raw/dogs/) to the deployed API and reports accuracy, precision, recall, F1 score, and a confusion matrix. If real images are not available, it falls back to simulated test images.

MLflow UI

View experiment tracking:

mlflow ui --port 5000
# Open http://localhost:5000

Troubleshooting

ModuleNotFoundError: No module named 'src'

You need PYTHONPATH set to the project root:

PYTHONPATH=. python src/training/train.py
PYTHONPATH=. pytest tests/ -v

Model not found error

Ensure the model file exists:

ls -la models/best_model.pt

If missing, train the model first (Step 4).

Docker sign-in enforcement error

If docker build fails with a sign-in error, use the --load flag:

docker build --load -t cats-dogs-classifier:latest .

Port already in use

Change the host port:

• Docker: -p 8001:8000
• Docker Compose: Update ports in docker-compose.yml
• Kubernetes port-forward: kubectl port-forward svc/cats-dogs-classifier-service 8081:80

DVC issues

If DVC cache is corrupted:

dvc cache dir
# Clear and re-add data
dvc remove data/raw.dvc
dvc add data/raw

kind cluster issues

# Check if cluster exists
kind get clusters

# Delete and recreate if broken
kind delete cluster --name mlops-cluster
kind create cluster --name mlops-cluster --wait 60s

Support

For issues or questions, please open an issue in the repository.
