Official PyTorch implementation of EdgeFormer

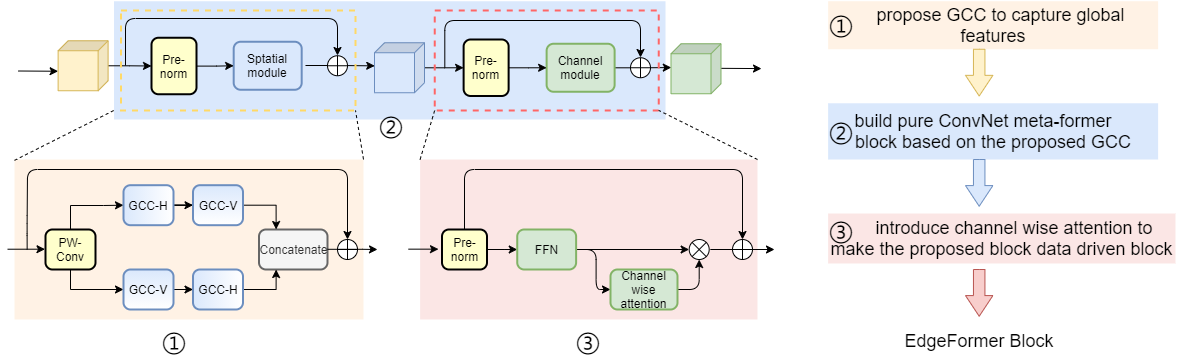

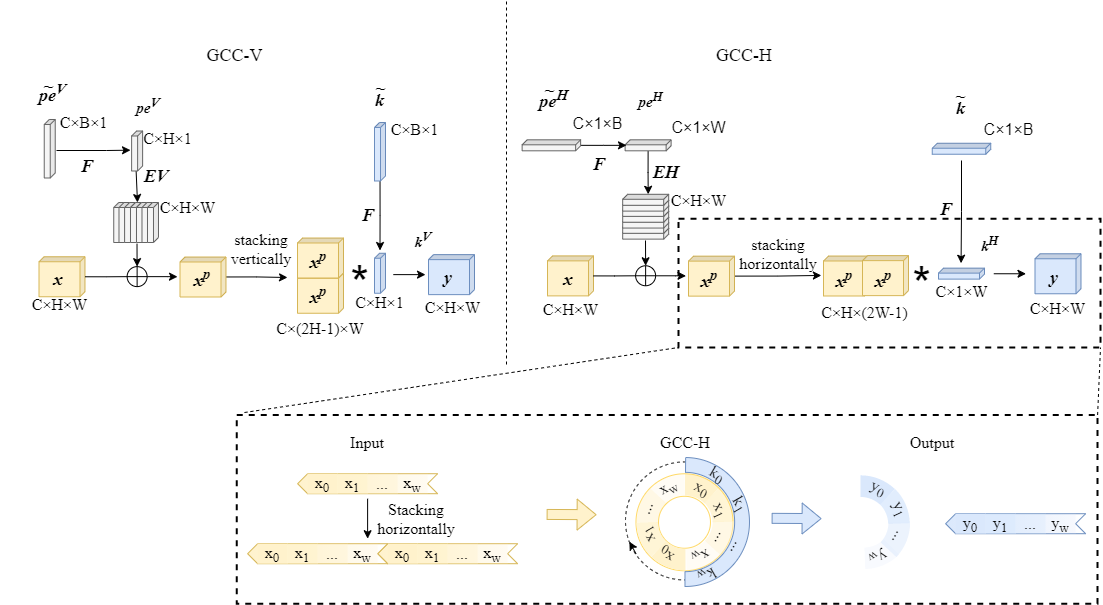

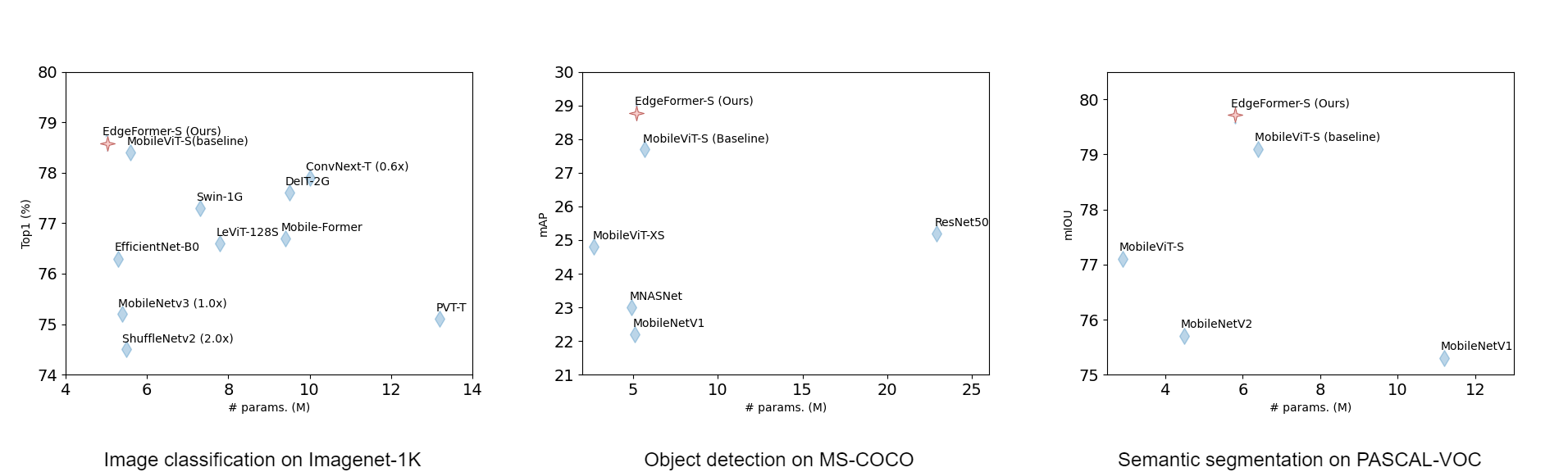

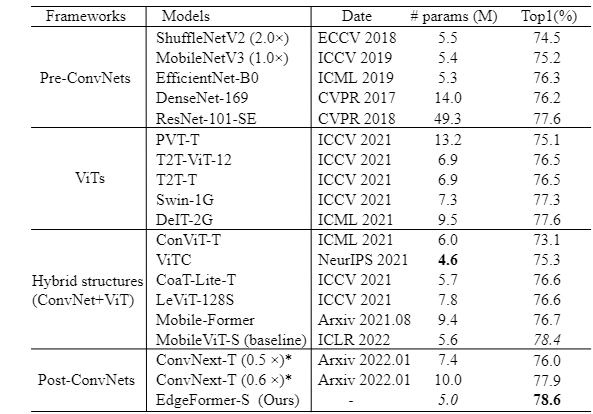

EdgeFormer, a pure ConvNet based light weight backbone model that inherits advantages of ConvNets and integrates strengths of vision transformers. Specifically, we propose global circular convolution (GCC) with position embeddings, a light-weight convolution op which boasts a global receptive field while producing location sensitive features as in local convolutions. We combine the GCCs and squeeze-exictation ops to form a meta-former like model block, which further has the attention mechanism like transformers. The aforementioned block can be used in plug-and-play manner to replace relevant blocks in ConvNets or transformers. Experiment results show that the proposed EdgeFormer achieves better performance than popular light-weight ConvNets and vision transformer based models in common vision tasks and datasets, while having fewer parameters and faster inference speed. For classification on ImageNet-1k, EdgeFormer achieves 78.6% top-1 accuracy with about 5.0 million parameters, saving 11% parameters and 13% computational cost but gaining 0.2% higher accuracy and 23% faster inference speed (on ARM based Rockchip RK3288) compared with MobileViT.
| Tasks | performance | #params | pretrained models |
|---|---|---|---|
| Classification | 78.6 (Top1 acc) | 5.0 | model |
| Detection | 28.8 (mAP) | 5.2 | model |
| Segmentation | 79.7 (mIOU) | 5.8 | model |
We deploy the proposed EdgeFormer on a widely used low power chip Rockchip RK3288 and compare it with baseline. We use ONNX [1] and MNN to port these models to RK3288 and time each model for 100 iterations to measure the average inference speed.
| Models | #params (M) | Madds (M) | inference speed (ms) | Top1 acc |
|---|---|---|---|---|
| MobileViT-S | 5.6 | 2010 | 457 | 78.4 |
| EdgeFormer-S | 5.0 (-11%) | 1740 (-13%) | 353 (+23%) | 78.6 (+0.2%) |

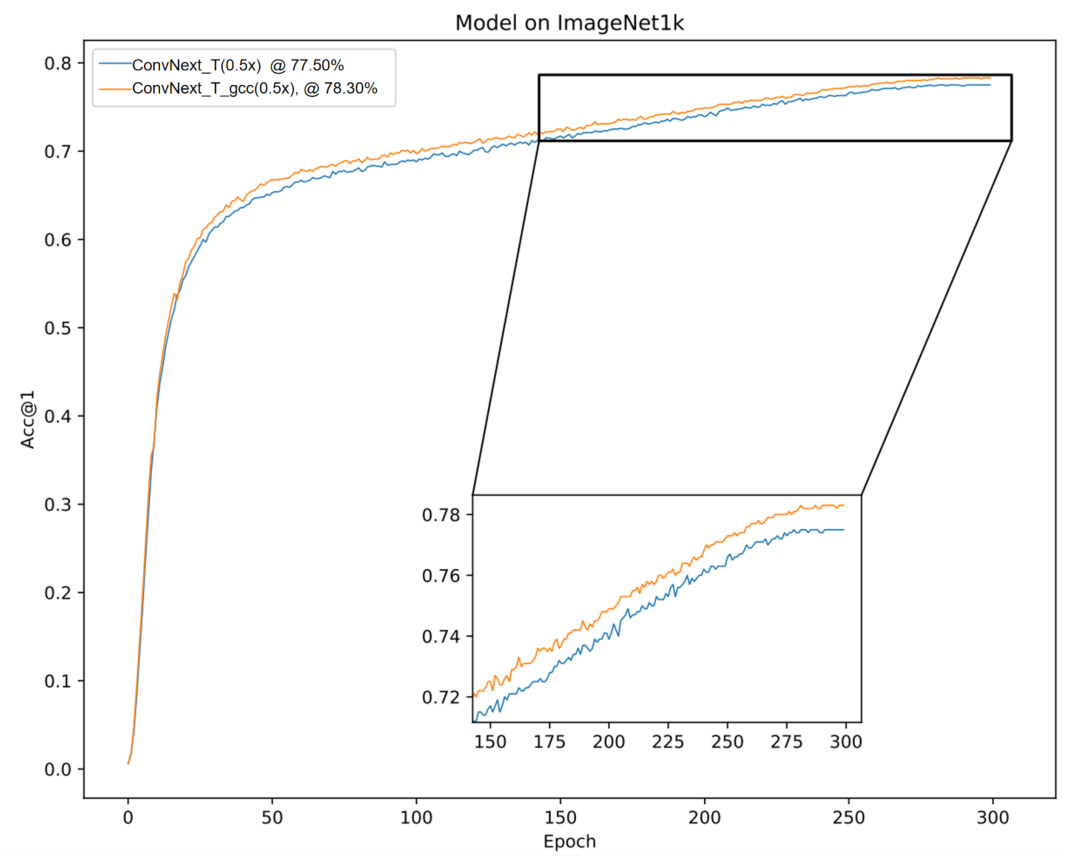

In terms of designing a pure ConvNet via learning from ViTs, our proposed EdgeFormer is most closely related to a parallel work ConvNext. By comparing Edgeformer with Convnext, we notice that their improvements are different and complementary. To verify this point, we build a combination network, where Edgeformer blocks are used to replace several ConvNext blocks in the end of last two stages. Experimental results show that such an replacement operation signifcantly improves classification accuracy, while slightly decreases parameters. Corresponding code will be released soon.
We implement EdgeFomer with PyTorch-1.9.0, CUDA=11.1.
The environment can be build in the local python environment using the below command:
pip install -r requirements.txt
A docker image containing environment will be provided soon.
Training settings are listed in yaml files (./config/classification/xxx/xxxx.yaml, ./config/detection/xxx/xxxx.yaml, ./config/segmentation/xxx/xxxx.yaml )
Classifiction
cd EdgeFormer-main
CUDA_VISIBLE_DEVICES=0,1,2,3,4,5,6,7 python main_train.py --common.config-file ./config/classification/edgeformer/edgeformer_s.yaml
Detection
cd EdgeFormer-main
CUDA_VISIBLE_DEVICES=0,1,2,3 python main_train.py --common.config-file --common.config-file config/detection/ssd_edgeformer_s.yaml
Segmentation
cd EdgeFormer-main
CUDA_VISIBLE_DEVICES=0,1,2,3 python main_train.py --common.config-file --common.config-file config/segmentation/deeplabv3_edgeformer_s.yaml
Classifiction
cd EdgeFormer-main
CUDA_VISIBLE_DEVICES=0 python eval_cls.py --common.config-file ./config/classification/edgeformer/edgeformer_s.yaml --model.classification.pretrained ./pretrained_models/classification/checkpoint_ema_avg.pt
Detection
cd EdgeFormer-main
CUDA_VISIBLE_DEVICES=0 python eval_det.py --common.config-file ./config/detection/edgeformer/ssd_edgeformer_s.yaml --model.detection.pretrained ./pretrained_models/detection/checkpoint_ema_avg.pt --evaluation.detection.mode validation_set --evaluation.detection.resize-input-images
Segmentation
cd EdgeFormer-main
CUDA_VISIBLE_DEVICES=0 python eval_seg.py --common.config-file ./config/detection/edgeformer/deeplabv3_edgeformer_s.yaml --model.segmentation.pretrained ./pretrained_models/segmentation/checkpoint_ema_avg.pt --evaluation.segmentation.mode validation_set --evaluation.segmentation.resize-input-images
We thanks authors of Mobilevit for sharing their code. We implement EdgeFormer based on their source code. If you find this code is helpful in your research, please consider citing our paper and Mobilevit
