SimChecklists - Interactive Checklists

This is a very simple app, to use as a checklist manager for flight simulators. I guess it can be applied to any checklists, like grocery shopping, but it wasn't developed for that, i made for my own flight sim checklists.

This software supports any flight simulator software, since it doesn't connect directly to the simulator. So you can use it for cross-check checklists with any flight simulator. The current version has checklists created specifically for: X-Plane 11, X-Plane 12, Microsoft Flight Simulator 2020 (40th anniversary) and Microsoft Flight Simulator 2024, this software isn't affiliated with any flight simulator or any airplane maker.

Coded and Started by tibonev with Help, patches and checklists from:

• Lightdasher360
• laxentis
• mickster04
• Swisskommando

Check the live version of this app @ checklist.classicgames.com.br

Status

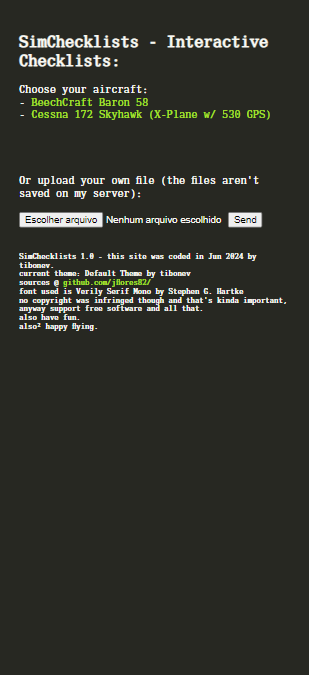

Screenshots

Disclaimer

None of the information or checklists in this application should be used for real-world flying. All the information here is for simulation purposes only!

Usage

Select the desired checklist, click on a item to automatically cross it, mark as done and highlight the next item. If you're on a touchscreen (recommended) just touch the item to cross and move to the next.

Currently supported Aircraft

• Airbus A310
• Airbus A32x Family (A320neo, A321neo, A319 and A318)
• Airbus A330 (A330-200, A330-300)
• Airbus Beluga
• Avro RJ70/85/100
• Beechcraft Baron 58
• Beechcraft Bonanza G36
• British Aerospace (BAe) 146
• Boeing 727
• Boeing 737-800
• Boeing 747-800
• Cessna 152
• Cessna 172 Skyhawk (G530 Version)
• Cessna 337 Skymaster (Thranda/X-Plane)
• Cessna CJ4 (Citation)
• Cessna 750 (Citation X)
• Lancair Legagy (Aerobask/X-Plane)
• Piper Warrior 2 (JustFlight)
• Robin DR400/100 Cadet
• TBM900 (HotStart)
• SIAI-Marchetti SF-260D (Jrollon/X-Plane)
• Sukhoi Su25-t Frogfoot
• Sukhoi Su27 / Su33 Flanker

Checklist Files

Checklist files are simple .txt files, the format is also very simple, basically 1 item per line, with a few exceptions:

• the very first line of the file is the main title (aka aircraft name)
• each new sublist (Pre-Flight, Before Takeoff, Taxi, etc) is named between double dashes (ie. --Before Flight--) also on its own line.
• each item use the format descriptive=state (ie. Parking Brake=ON).
• to add additional information or comment to a item, add a line right below it starting with double asterisk **
• If you want to credit the checklist, just use --Credits-- on the very last line of the checklist file.

Checklist Masterfile

Due to the requirements of the offline version, a masterlist, called masterlist.json must be updated each time a new list is added, the format follows:

{
    "file": "a320neo.txt",
    "name": "Airbus A320neo"
},

Pretty much self-explanatory, but the file property is the name of the file inside /lists and the name property is the display name for the list on the first screen of the app. You can also use the included masterlist_gen.py (unsupported) to auto generate the masterfile.

Native Versions

Currently in alpha stage, Android only and unsupported.

Requirements

The code is written in Vanilla Javascript, you need to use a browser with support for ECMAScript 2019. No need to build anything, it runs straight from the webserver.

Version History:

Version 2.3 (2024/12/16)

• Added: Light and Dark Modes.
• Added: Button and Option to switch between Dark/Light modes instantly. (Fix Issue #33)
• Added: Light and Dark Modes SVG Icons (from fonts.google.com).
• Updated: Tweaked CSS to make colors standout better in both modes.

Version 2.2 (2024/12/09)

• Fixed: Linebreaks for cross-OS compatiblity. (Patch by mickster04)
• Added: Avro RJ70/85/100 checklist by laxentis.
• Updated: Airbus A32x (Simplified) checklist by tibonev with corrections by Swisskommando on reddit.
• Updated: Airbus A320neo checklist by tibonev with corrections by Swisskommando on reddit.
• Updated: Boeing 737-800 checklist by tibonev with corrections by Swisskommando on reddit.
• Added: Alpha (unsupported) Native Windows version by tibonev.

Version 2.1 (2024/12/05)

• Added: Airbus A330 / Beluga checklist by tibonev.
• Restored the option of the user to upload their own checklists. Using fileAPI and sessionStorage, makes sure the file isn't stored anywhere permanent. (Fix issue #32)
• Added uploaded.html which shows and handles the uploaded checklist.
• Added js/upload.js for the new functions regarding loading the uploaded checklist.
• Fixed blank space on index.html

Version 2.0.1 (2024/11/22)

• Fixed typo in README.MD

Version 2.0 (2024/11/22)

• Converted from PHP to pure VanillaJS, this is done in preparation for the native versions of the app to be able to run offline, since embedding a local PHP server would be an overkill, so the app will entirely locally in the native versions, without the need for the device to be connected to the internet, and this still allows me to use the same codebase for all the versions, but it will require re-compiling for each plataform on the release of an update to anything (code or lists);
• Added masterlist.json to concentrate information about the checklists.
• Created a script masterlist_gen.py to autogenerate the masterlist from the files in the /lists folder, requires python.
• Added support for a general config file, in the form of config.json, inside the inc folder.
• Removed option to select different themes (for now, at least).
• Removed option to upload your own list (for now, at least).
• Re-written the core code (old _class.checklist.php) in VanillaJS (checklist.js);
• Re-written the icon load functions in VanillaJS.
• Free native Android version release package - still in Alpha, no support for this version yet.
• Added support for comments in items. Comments aren't clickable, and to add them, just add a line starting with double asterisk in the checklist. - According to Issue #31.
• Updated TBM900 checklist by Lightdasher360.
• Added Lancair Legacy checklist by Lightdasher360.
• Added SIAI-Marchetti SF-260D (Jrollon/X-Plane) checklist by Lightdasher360.
• Added Airbus A310 (iniBuilds) checklist by tibonev.
• Renamed Airbus A320neo (Simplefied) checklist to Airbus A32x Family (Simplified) (checklist by tibonev.)
• Solved bug with "--" still showing in titles in some lists.
• Created a python script to update the masterlist.json file, simply run masterlist_gen.py in the lists directory and it will overwrite and output the masterlist.json file as required.
• Removed build e test buttons from footer, as they require user to be online.
• Added tibonev logo by ChrisBunny (used with permission).

Version 1.2 (2024/09/19)

• Updated: Airbus A320neo (Simplefied) checklist by tibonev.
• Updated: Boeing 727 checklist by Lightdasher360.
• Updated: Cessna 337 Skymaster (Thranda/XP12) by Lightdasher360.
• Updated: TBM900 checklist by Lightdasher360.
• Updated: Piper Warrior 2 (JustFlight/XP11) by Lightdasher360.
• Fixed PHP error causing build error.
• Added CI/CD support via Github Actions.

Version 1.1.9 (2024/08/26)

• Added: Secondary and Terciary cronometers.
• Added: Boeing 747-800 checklist by tibonev.
• Added: Boeing 727 checklist by Lightdasher360.
• Added: TBM900 checklist by Lightdasher360.
• Updated: C337 checklist by Lightdasher360.
• Updated: Boeing 737-800 checklist by tibonev.

Version 1.1.8 (2024/07/25)

• Added: Chronometer functionality.
• Added: Chronometer SVG icon.
• Added: new font (chrono.ttf - public domain)
• Added: Piper Warrior 2 checklist by Lightdasher360.
• Updated: Airbus A320neo checklist by tibonev.
• Updated: Beechcraft Bonanza G36 checklist by tibonev.
• Updated: Cessna Citation X checklist by Lightdasher360.
• Updated: Cessna Skymaster 337 checklist by Lightdasher360.

Version 1.1.7 (2024/07/11)

• Added: Sukhoi Su-25t (DCS) Checklist by tibonev.
• Added: Sukhoi Su-27 / Su-33 (DCS) checklist by tibonev.
• Updated: Boeing 737-800 checklist by tibonev.

Version 1.1.6 (2024/07/10)

• Fix: Issue #22 - tested on more devices, no error.
• Test Fix: Issue #30 - changed the code to record what is drawn on the scratch into a temp location into memory, resize and then re-draw, it doesn't scale, so things written outside of the new size are lost.
• Updated: BAe 146 (simplified) checklist by Lightdasher360.
• Added: Boeing 737-800 (Zibo) checklist by tibonev.
• Renamed: lists/a320neo_simple_tib.txt to lists/a320neo_simple.txt

Version 1.1.5 (2024/07/04)

• Fix: Issue #27 - changed inner div height from % of the screen to % of the parent element.
• Test Feature: Issue #22 - using wakelock api with the permission for self set into the header, need further testing, tested on android on chrome and adblock browsers.
• Added: Feature #29 - type pad, a notepad to use with the device keyboard, instead of mouse/finger.
• Added: SVG Icon for type pad.
• Updated: Cessna 152 Checklist (removed reference to a missing instrument (ampmeter)).
• Updated: Airbus A320neo Checklist (fixed typo on item on the shutdown sublist).
• Updated: Tweaked the visual aspect of all inner windows to better fit the themes.

Version 1.1.4 (2024/07/03)

• Fix: Issue #17 - tested on multiple devices ok.
• Fix: Issue #28 - add a flag to know when the canvas window is being opened/setup for the first time in session.
• Test Fix: Issue #27 - changed CSS for the scratch_window class and inner_canvas class.
• Added: Favicon for HTML.

Version 1.1.3 (2024/06/28)

• Fix: Issue #17 - loaded JS may be stuck in local storage, added versioning to all JS and CSS files.
• Fix: Issue #24 - loop checked and tested ok.
• Fix: Issue #25 - simple logic change to avoid showing null.
• Fix: Issue #26 - added a error handling routine.
• New: Scratch pad, just draw/write whatever you need on it.
• Added: Issue #23 - changed CSS to place the icons in a fixed column left of the screen if the screen width is up to 999px. from 1000px onwards, the old layout remains.
• Added: Comms frequencies for airports in the icao window.
• Added: METAR information for airports in the icao window.
• Added: British Aerospace (BAe) 146 (simplified) by Lightdasher360.
• Updated: Airbus320 Simplified Checklist (added procedure for the radios - required) (tibonev).
• Removed: Airbus A320 (Asobo v1) checklist, it was redudant after the Airbus A320 (Simplified checklist) update.
• Removed: redundant file assets/default.htm (the up-to-date version is assets/thm_default.thm).

Version 1.1.2 (2024/06/25)

• Fix: Issue #17 - double-clicking / double-tapping a sublist title, will automatically cross that entire sublist and move the highlight to first item of the next sublist, it will also auto-scroll to the next sublist.
• Fix: Issue #21 - changes to the cache tested accordingly.
• Fix: Issue #24 - the loop that generates the css color class had a logic error, fixed. it was in class checklist, method displayList($items).
• Updated: Cessna Citation X Checklist (Lightdasher360).
• Updated: Cesnns C337 Checklist (Lightdasher360).
• Added: Robin DR400/100 Cadet Checklist by tibonev.

Version 1.1.1 (2024/06/21)

• Fix: Issue #18 - was missing a javascript call to a div.
• Fix: Issue #19 - was missing a CSS parameter (overflow:auto) in the inner_icao class.
• Fix: Issue #20 - wrong theme value call on default theme was causing the bug, fixed.
• Added: Cessna Citation X Checklist by Lightdasher360
• Added: Cessna Citation CJ4 Checklist by tibonev
• Added: Airbus A320neo (Simplified) Checklist by tibonev
• Information: Regarding Issue #21 - made changes to how the app is cached by the browser, but it needs testing before is considered fixed. It should be better now.

Version 1.1.0 (2024/06/18)

• Fix: Issue #15 - wrong javascript reference fixed, buttons working as intended.
• Fix: Issue #16 - Support to check for airport information via the flightplandatabase public api (ajax fetch).
• Fix: Beechcraft Bonanza G36 Checklist typo (Cowl Laps fixed to Cowl Flaps, line 42)
• Fix: Cessna 152 Checklist (Battery=ON line was duplicated)
• Added: Cessna 337 Skymaster (Thranda/X-Plane) Checklist by Lightdasher360

Version 1.0.3 (2024/06/13)

• Fix: Issue #13 - Added auto-scroll only if the clicked item is positioned after 65% of the screen height.
• Fix: Airbus A320neo Checklist (changed Fuel Pumps=ON position to work with a320neov2 and should be Toliss correct, if anyone can confirm).
• Tweak: Mininum swipe to uncheck is now user's screen width divided by two (window.screen / 2).
• Tweak: Renamed the c172_530.txt checklist to Cessna 172 Skyhawk (G530), since it is not exclusive to X-Plane 11.
• Added: Airbus A320neo (Asobo V1) Checklist.
• Added: Cessna 152 Checklist.
• Added: Beechcraft Bonanza G36 Checklist.

Version 1.0.2 (2024/06/12)

• Fix: Issue #11 - Altered the swipe function to only trigger after a mininum difference between touchStartX and touchEndX.
• Fix: Issue #12 - Added a check to see if there's a theme pre-selected, otherwise the selector goes automatically to thm_default.thm.
• Fix: Issue #14 - Added a function to sanitize and sort the list by the title of the aircraft.
• Added: Airbus A320neo Checklist.
• Added: Beechcraft Baron 58 Checklist.

Version 1.0.1 (2024/06/11)

• Fix: typo on _footer.php (inc/_footer.php).
• Fix: Issue #1 - Swiping left on a item will uncheck it (mobile only for now).
• Fix: Issue #2 - Added a function in inc/_class.checklist.php to validate the file extension and MIME type.
• Fix: Issue #3 - Added a SVG icon for refresh, at the top and bottom of the checklist.
• Fix: Issue #4 - Added a SVG icon for going back, both at the top and bottom of the checklist.
• Fix: Issue #5 - If the last line of the checklist is a title, its displayed in a different color.
• Fix: Issue #6 - Added a drop-down selector to choose from possible themes, choice is saved in a php_session.
• Fix: Issue #7 - Changed .thm files to support light/dark version of the colors.
• Fix: Issue #9 - Added proper spacing between elements.

Version 1.0: (2024/06/10)

• First version.
• Added: Checklist for Cessna 172 Skyhawk (X-Plane w/ 530 GPS).
