[Merged by Bors] - Optimise tree hash caching for block production #2106
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
michaelsproul
added
ready-for-review
Member
Author
|
will fix up the tests on Monday |
Member
Author
Member
Author
|
Ready. |
paulhauner
reviewed
Dec 21, 2020
| validator_graffiti: Option<Graffiti>, | ||
| ) -> Result<BeaconBlockAndState<T::EthSpec>, BlockProductionError> { | ||
| let state = self | ||
| .state_at_slot(slot - 1, StateSkipConfig::WithStateRoots) |
Member
There was a problem hiding this comment.
Are you aware that the slot - 1 has been removed and we will no longer be able to produce blocks from slots earlier than the head block?
Member
Author
There was a problem hiding this comment.
Yeah I did that intentionally, I'll message you
Member
Author
There was a problem hiding this comment.
Good catch! I've restored the slot - 1 with a warning, as we discussed.
I think this will be particularly relevant on the first slot of an epoch when there might be two seemingly legitimate proposers because of propagation delay of the last block of the previous epoch.
paulhauner
approved these changes
Dec 21, 2020
Member
paulhauner
left a comment
paulhauner
left a comment
There was a problem hiding this comment.
Nice, it's good to be doing less hashing!
I'm happy to merge this into unstable, regardless of the nit.
| "message" => "this block is more likely to be orphaned", | ||
| "slot" => slot, | ||
| ); | ||
| self.state_at_slot(slot - 1, StateSkipConfig::WithStateRoots) |
Member
There was a problem hiding this comment.
It does feel like this and L1783-1874 should be de-duped, but I wont block on it.
Member
Author
|
bors r+ |
bors bot
pushed a commit
that referenced
this pull request
Dec 21, 2020
## Proposed Changes `@potuz` on the Eth R&D Discord observed that Lighthouse blocks on Pyrmont were always arriving at other nodes after at least 1 second. Part of this could be due to processing and slow propagation, but metrics also revealed that the Lighthouse nodes were usually taking 400-600ms to even just produce a block before broadcasting it. I tracked the slowness down to the lack of a pre-built tree hash cache (THC) on the states being used for block production. This was due to using the head state for block production, which lacks a THC in order to keep fork choice fast (cloning a THC takes at least 30ms for 100k validators). This PR modifies block production to clone a state from the snapshot cache rather than the head, which speeds things up by 200-400ms by avoiding the tree hash cache rebuild. In practice this seems to have cut block production time down to 300ms or less. Ideally we could _remove_ the snapshot from the cache (and save the 30ms), but it is required for when we re-process the block after signing it with the validator client. ## Alternatives I experimented with 2 alternatives to this approach, before deciding on it: * Alternative 1: ensure the `head` has a tree hash cache. This is too slow, as it imposes a +30ms hit on fork choice, which currently takes ~5ms (with occasional spikes). * Alternative 2: use `Arc<BeaconSnapshot>` in the snapshot cache and share snapshots between the cache and the `head`. This made fork choice blazing fast (1ms), and block production the same as in this PR, but had a negative impact on block processing which I don't think is worth it. It ended up being necessary to clone the full state from the snapshot cache during block production, imposing the +30ms penalty there _as well_ as in block production. In contract, the approach in this PR should only impact block production, and it improves it! Yay for pareto improvements 🎉 ## Additional Info This commit (ac59dfa) is currently running on all the Lighthouse Pyrmont nodes, and I've added a dashboard to the Pyrmont grafana instance with the metrics. In future work we should optimise the attestation packing, which consumes around 30-60ms and is now a substantial contributor to the total.
|
Pull request successfully merged into unstable. Build succeeded: |
bors
bot
changed the title
Member
|
This branch can potentially be deleted :) |
Member
Author
|
done 😇 |
michaelsproul
added
the
consensus
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
Proposed Changes
@potuzon the Eth R&D Discord observed that Lighthouse blocks on Pyrmont were always arriving at other nodes after at least 1 second. Part of this could be due to processing and slow propagation, but metrics also revealed that the Lighthouse nodes were usually taking 400-600ms to even just produce a block before broadcasting it.I tracked the slowness down to the lack of a pre-built tree hash cache (THC) on the states being used for block production. This was due to using the head state for block production, which lacks a THC in order to keep fork choice fast (cloning a THC takes at least 30ms for 100k validators). This PR modifies block production to clone a state from the snapshot cache rather than the head, which speeds things up by 200-400ms by avoiding the tree hash cache rebuild. In practice this seems to have cut block production time down to 300ms or less. Ideally we could remove the snapshot from the cache (and save the 30ms), but it is required for when we re-process the block after signing it with the validator client.
Alternatives
I experimented with 2 alternatives to this approach, before deciding on it:
headhas a tree hash cache. This is too slow, as it imposes a +30ms hit on fork choice, which currently takes ~5ms (with occasional spikes).Arc<BeaconSnapshot>in the snapshot cache and share snapshots between the cache and thehead. This made fork choice blazing fast (1ms), and block production the same as in this PR, but had a negative impact on block processing which I don't think is worth it. It ended up being necessary to clone the full state from the snapshot cache during block production, imposing the +30ms penalty there as well as in block production.In contract, the approach in this PR should only impact block production, and it improves it! Yay for pareto improvements 🎉
Additional Info

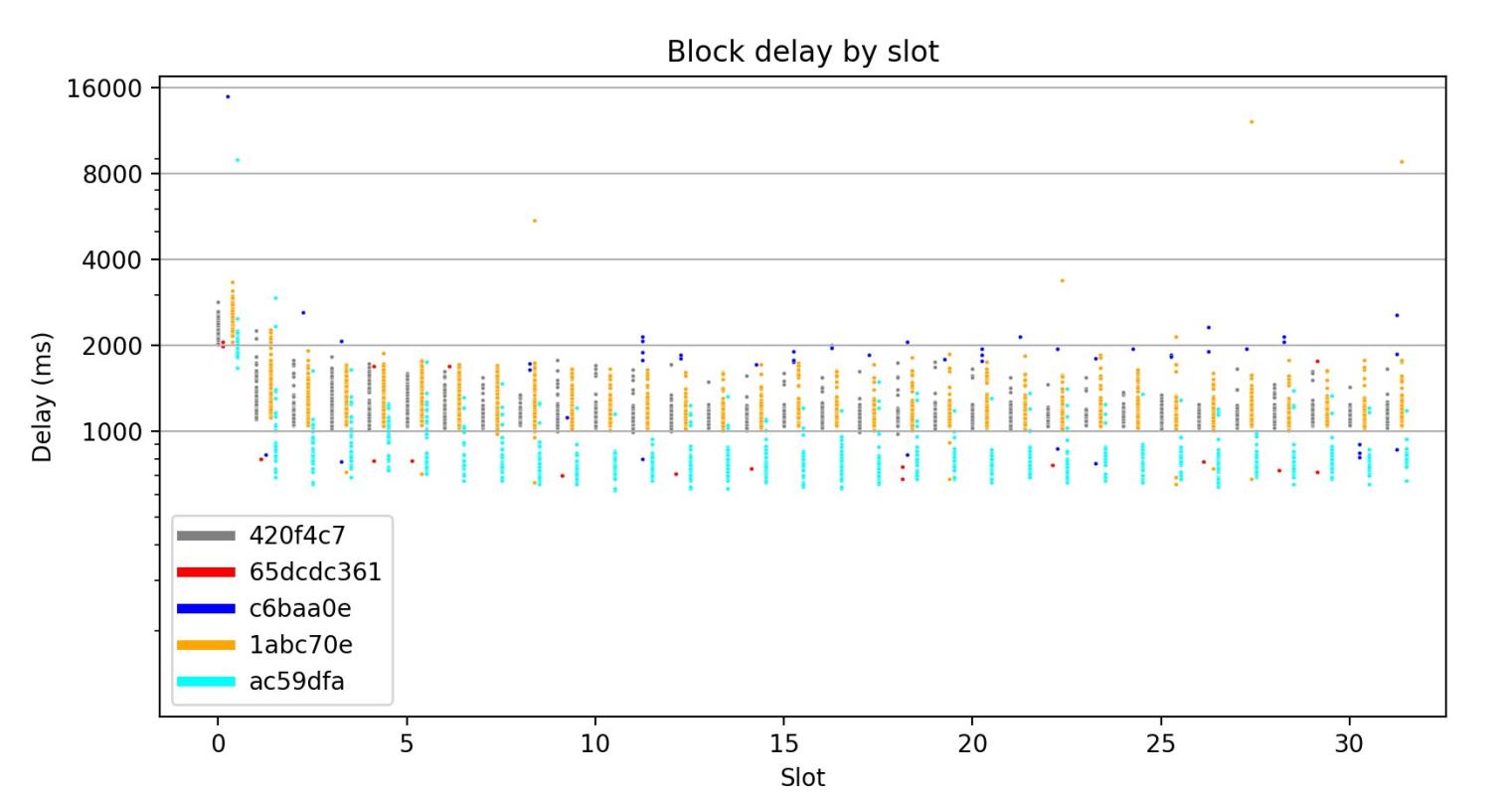

This commit (ac59dfa) is currently running on all the Lighthouse Pyrmont nodes, and I've added a dashboard to the Pyrmont grafana instance with the metrics.
In future work we should optimise the attestation packing, which consumes around 30-60ms and is now a substantial contributor to the total.
