Home

How does it work?

Dotdep searches file names within codes.

This approach have some effect for most programming languages that separates modules as files.

see natto slide

Usage

dotdep **/*.rb | dot -Tpng -ofoo.png

if you like (transitively) simplified diagram:

dotdep -rrr **/*.rb | dot -Tpng -ofoo.png

if you like circle diagram:

dotdep **/*.rb | circo -Tpng -ofoo.png

Examples

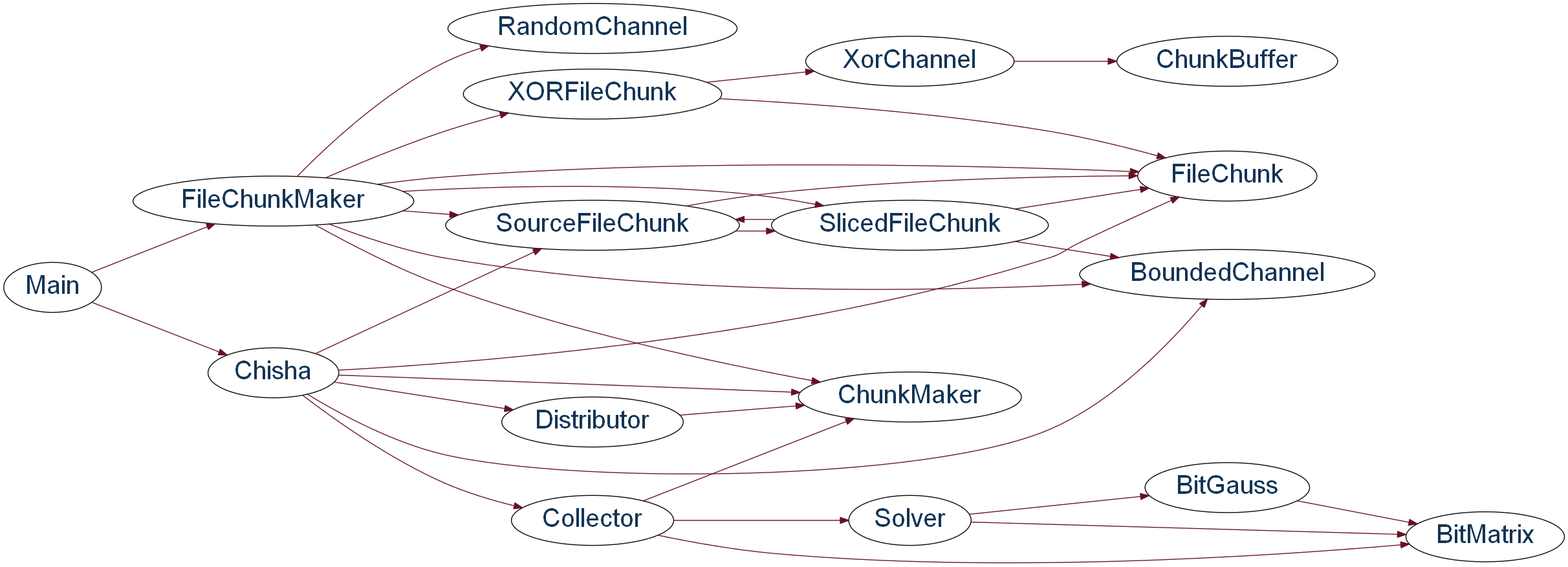

example without fan-in/fan-out counter

example with fan-in/fan-out counter

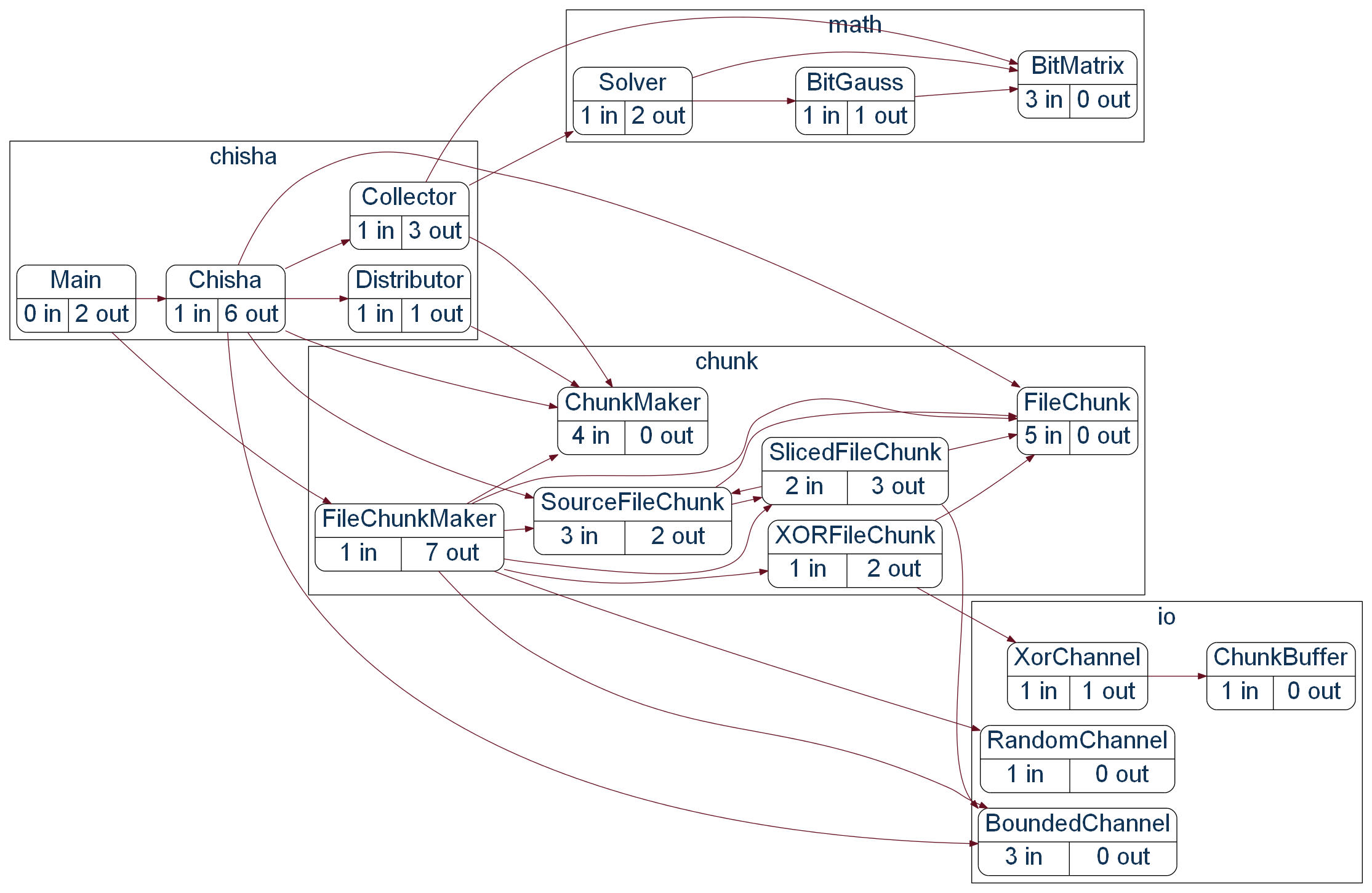

example with fan-in/fan-out counter clustered with folder name

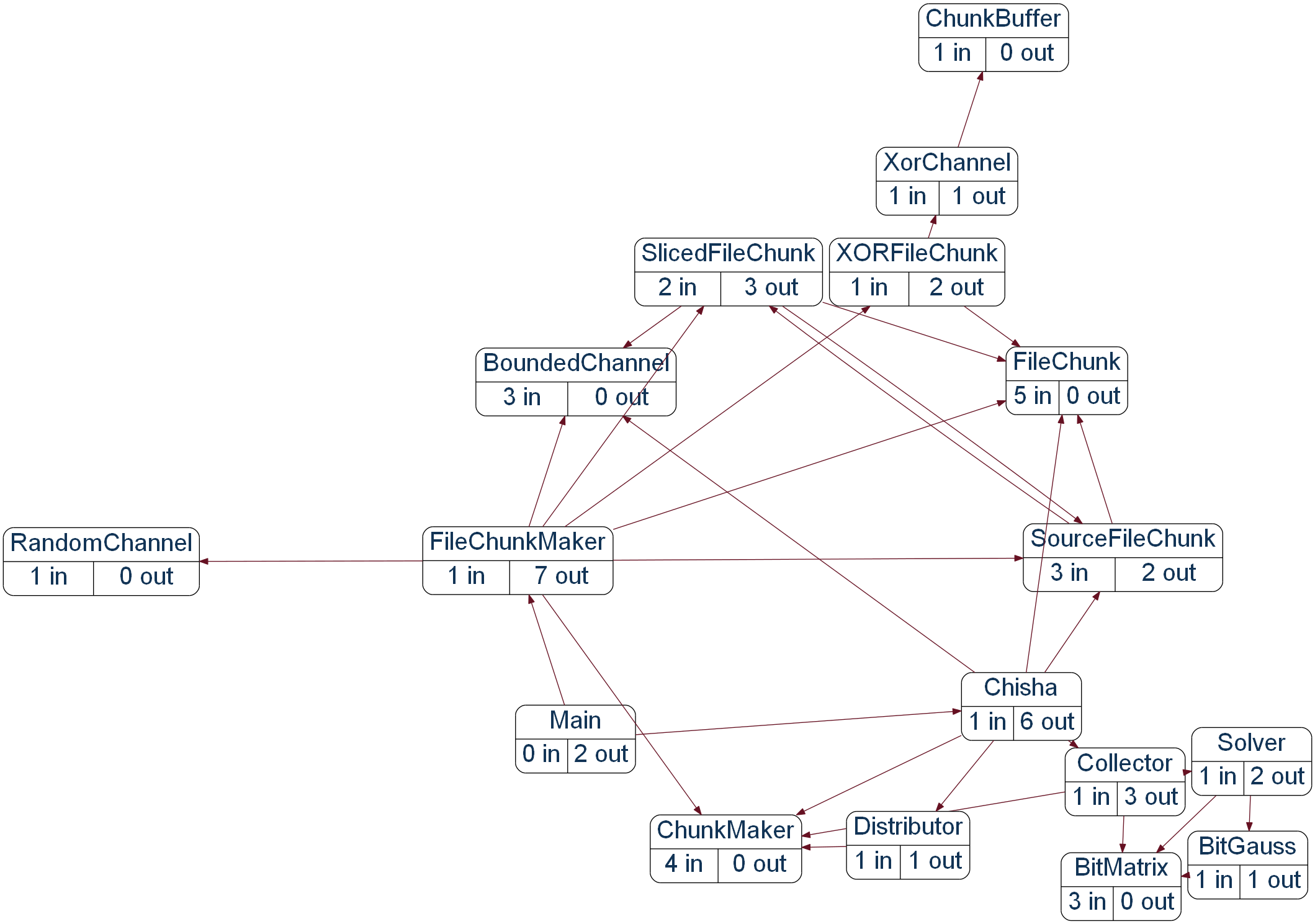

example with circo

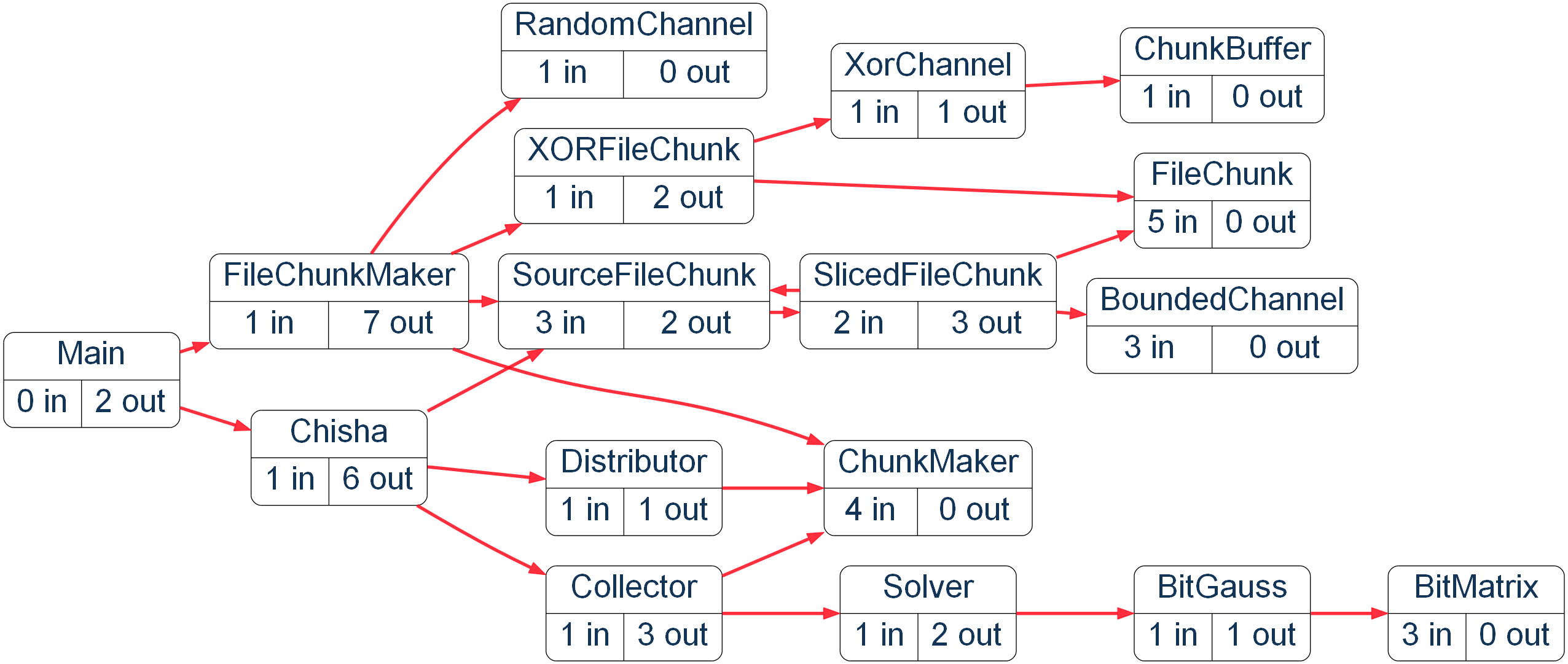

example with fan-in/fan-out counter with soft reduction (-r)

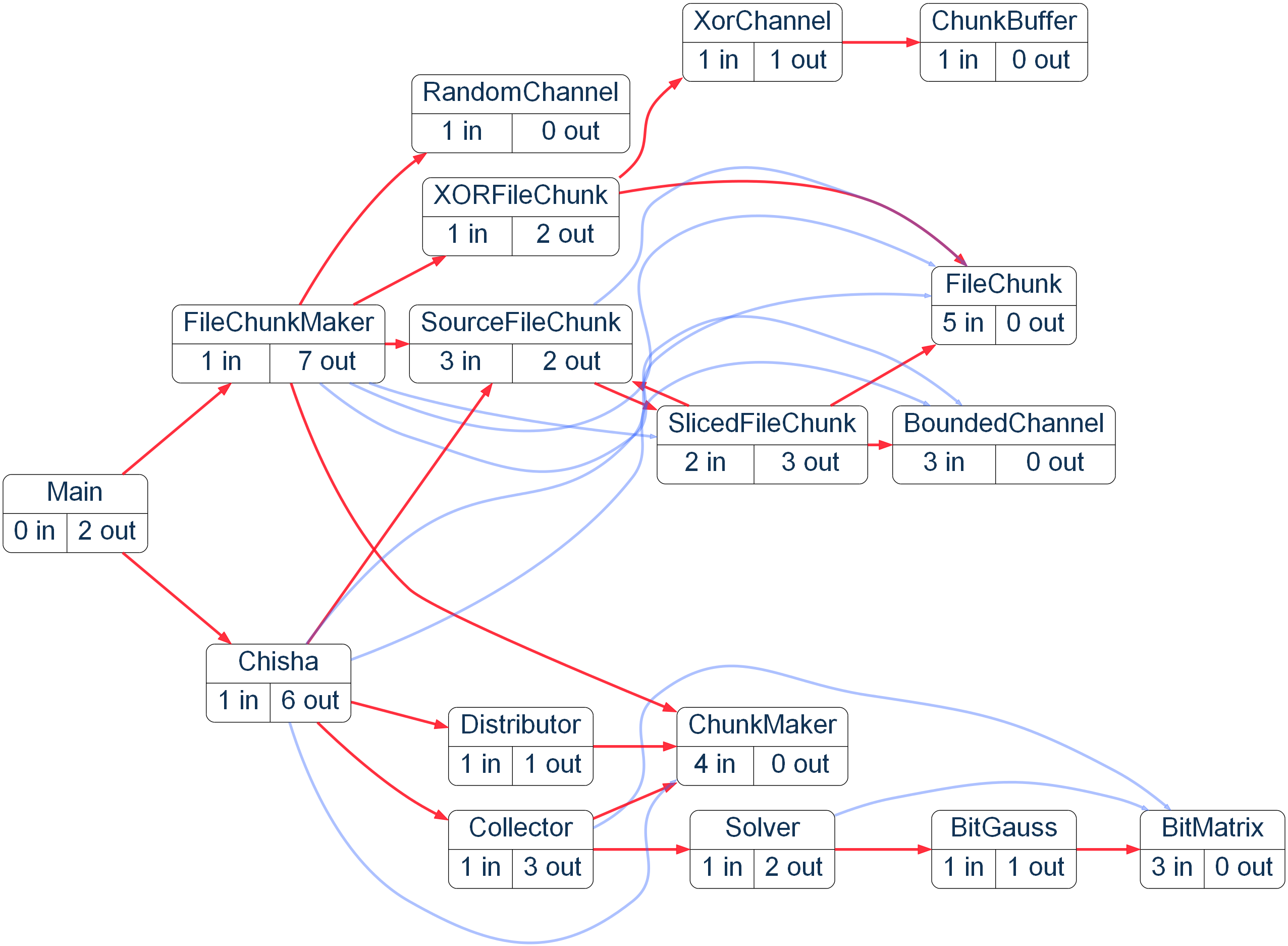

example with fan-in/fan-out counter with soft reduction 2 (-rr)

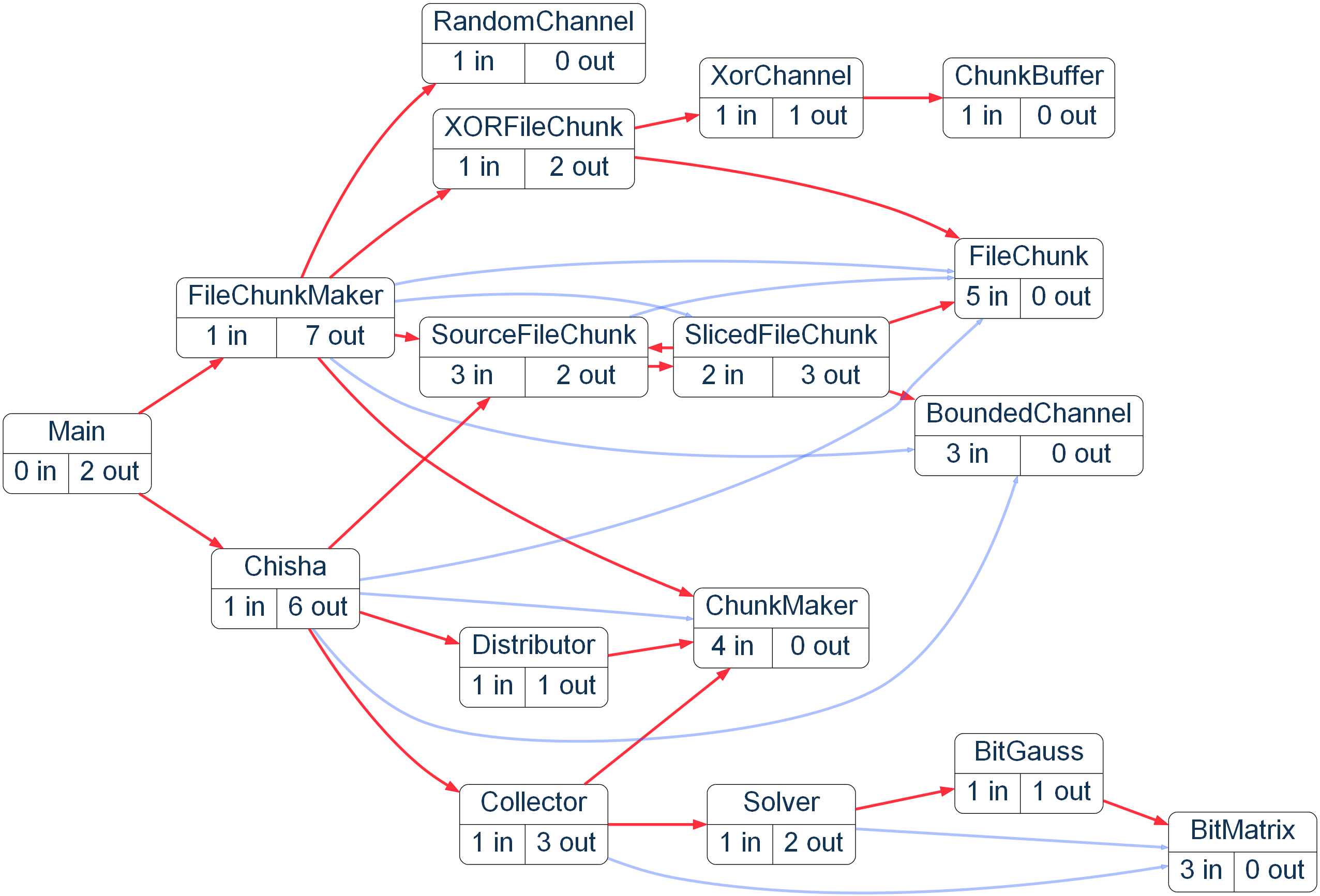

example with fan-in/fan-out counter with hard reduction (-rrr)
