detile

Detect regular tile grids in images (sprite sheets, tile atlases, game maps).

Reduces the image to 1D axis signals, finds periodic strides by autocorrelation, refines offsets, and splits each stride into tile size plus margin. No brute-force search over the full tile × margin × offset parameter space.

Overlay view	Atlas view

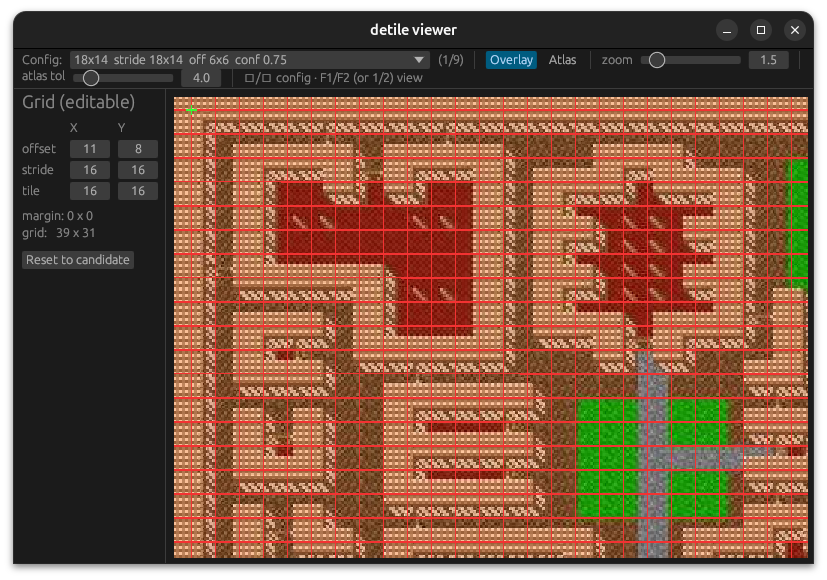

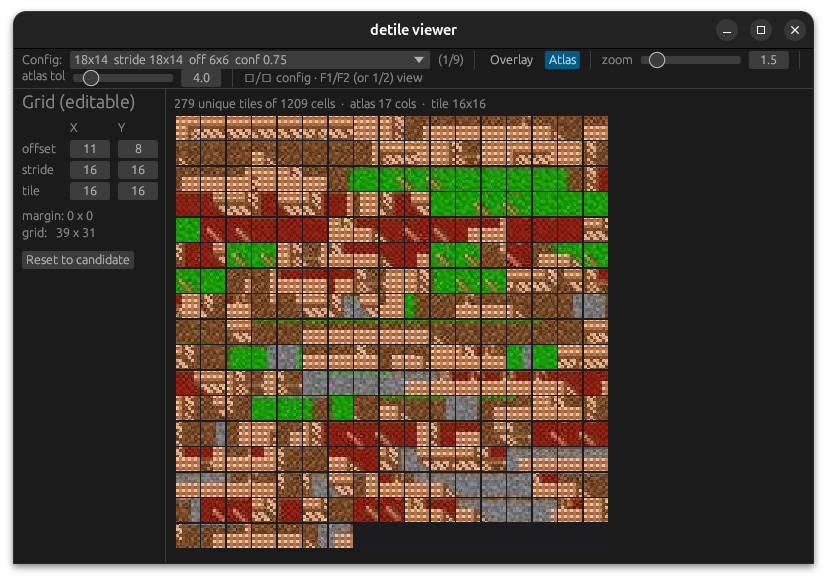

The interactive viewer: the Overlay shows the detected grid on the source (editable by mouse), and the Atlas shows the deduplicated tileset recovered from that grid.

Install / build

Install the detile binary from crates.io:

cargo install --locked detile
cargo install --locked --features ui detile   # with the interactive viewer

Or build from source:

cargo build --release

Binary: target/release/detile. Library crate: detile.

CLI

detile image.png
detile image.png --json
detile image.png --debug-overlay out.png
detile image.png --atlas tileset.png        # recovered deduped tileset
detile image.png --atlas tileset.png --atlas-tolerance 0   # exact (PNG)
detile image.png --min-stride 8 --max-stride 256
detile image.png --top-candidates 20
detile image.png --prefer-square
detile image.png --no-margin
detile image.png --levels 6

--levels N reports every distinct periodic scale (fine texture, base tile, macro layout) instead of just the strongest, each as its own row. Harmonic multiples of a scale are folded into their fundamental. When several scales are nested (e.g. a 4px texture inside a 16px tile inside a 40px room), the dominant one is reported; use --min-stride / --max-stride to target a specific scale.

Interactive viewer

An egui viewer lets you flick through the detected configurations and inspect the recovered tileset. It is behind the optional ui feature:

cargo run --release --features ui -- ui image.png
cargo run --release --features ui -- ui image.png --min-stride 12 --max-stride 28

• Dropdown / ← → arrows: switch between detected grid configurations
• Left panel: edit offset / stride / tile per axis; margin and grid counts are re-derived and the overlay + atlas update live. Reset to candidate restores the detected values. Useful when detection locks onto a near-miss offset.
• Overlay view: the source image with the grid drawn on top. Mouse editing: click sets the offset, left-drag draws the tile rectangle, right-drag sets the stride.
• Atlas view: every grid cell deduplicated into the unique tileset, packed into one image (hover a tile for its index)
• F1 / F2 (or 1 / 2): switch Overlay / Atlas view (Tab stays free for field navigation) · zoom slider scales the view · atlas tol slider controls dedup tolerance

Without --features ui, the ui subcommand prints a hint to rebuild with it.

Text output:

tiling detected: yes
tile size:       20 x 16
stride:          20 x 16
offset:          0 x 0
margin:          0 x 0
grid:            95 columns x 63 rows
confidence:      0.93

--json adds x_axis, y_axis, and a ranked candidates array for diagnostics.

Library

use detile::{detect_tiling, DetectOptions, DetectionResult};

let img = image::open("atlas.png")?;
match detect_tiling(&img, &DetectOptions::default())? {
    DetectionResult::Found(grid) => {
        println!("{}x{} stride, {} cols x {} rows",
            grid.stride_x, grid.stride_y, grid.columns, grid.rows);
    }
    DetectionResult::NotFound { best_confidence, .. } => {
        println!("no grid (best {best_confidence:.2})");
    }
}

Concepts

tile_size = visible tile dimensions
margin    = gap between tiles
stride    = tile_size + margin
offset    = first tile start position

A result of tile=18, margin=1, stride=19, offset=3 means tiles start at x = 3, 22, 41, ..., each occupying [x, x+18) with a 1px gap before the next.

Notes

• An image can contain several valid periodicities at different scales (texture, base tile, macro layout). The detector reports the strongest; use --min-stride / --max-stride to steer it, and --top-candidates to inspect alternatives.
• First version is CPU-only, deterministic, no native dependencies. ~0.12s on a 2 MP image.
