NavBoxLib- Maps for embedded devices

Like Leaflet or google maps web view, but for microcontrollers!

• Ultra effecient, works on non-PSRAM micros with minimal RAM
• Overlays for custom map elements
• Markers support for marking/updating points on the map
• GPX file reading & writing for path loading/viewing/saving
• Track simplification engine
• Supports zooming past available tiles with magnification zoom
• Platform and framework independent, runs on ESP32, desktops, etc
• Unit testable and unit tested, this repo is also runnable as a platformio project that runs unit tests

Library Installation

For platformio projects it's easy!

lib_deps =
    https://github.com/t413/NavBoxLib.git

Efficiency

Traditional embedded tile renderers: 4 × 256×256 tiles, RGB565 is 2-bytes = 524 KB RAM

NavBoxLib: Without PSRAM it only stores visible portions of tiles. ~80–180 KB

Examples

This is the primary backbone of my NavBox offline GPS firmware for the ESP32. Check out that project for a full example!

Unit tests each demo realistic uses of each compodent and parts working together, check them out!

#include <navboxlib/MapRenderer.h>
MapRenderer map;

void main() {
    // <lvgl setup>
    map.begin(baseLvglObj, 300, 200, "/maps/tiles/%d/%d/%d.png");

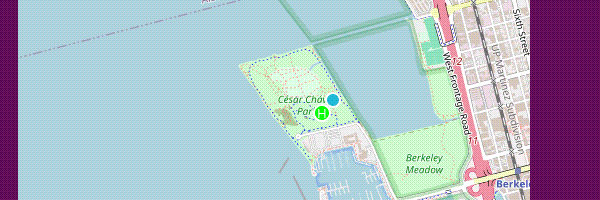

    map.setCenter(TrackPoint(37.871, -122.317), 16);
    // <lvgl loop>
}

Map Tiles

Map tiles are standard unmodified OpenStreetMap 256x256 tiles, documentation here. You can bach download tiles:

• Using my python tool osm2edgetx from the command line

  • Download the lastest version and run something like:

    cd /Volumes/SD_CARD_PATH/maps/osm/
    python osm2edgetx.py --osm . --fetch "37.87,-122.32" --radius 5 --zoom 17

• Using my AlphaMap Web Tile Downloader designed for my AlphaMapLua project. It downloads the same tiles, though into WIDGETS/AlphaMapLua/tiles.

License & Contributing

This project is GPLv3. The hope is to encourage other open source embedded projects.

If adoption/AI-rewriting becomes an issue the license may be changed to LGPL. Any contributions are with this possible relicense in mind, and the decision ultimately stays with the original developer.
