@mkuchnik mkuchnik commented Oct 15, 2020

The current implementation of GetImageInfo starts a libjpeg decompression pass over input images. Certain images (e.g., progressive JPEG) trigger a full image decompression, resulting in a performance degradation. This commit switches to an equivalent but cheaper libjpeg call for evaluating image dimensions.

The end result is performance is currently slowed down on these images by over 50x when using ExtractJpegShape.

To reproduce, download input image as 'test_img.jpg':
test_img

Convert it to progressive jpeg:
jpegtran -progressive test_img.jpg > test_img_progressive.jpg

And benchmark using test_img_progressive.jpg with use_shape=False and use_shape=True. On my machine, the first finishes in 0.12 seconds and the second in 8.85 seconds (roughly 70x performance degradation).

import tensorflow as tf
import numpy as np

import timeit

# Inputs
#filenames = ["test_img.jpg"]
filenames = ["test_img_progressive.jpg"]
#use_shape = False
use_shape = True
# End Inputs

def read_path(file_path):
    img = tf.io.read_file(file_path)
    return img

def jpeg_to_shape(image_buffer):
  shape = tf.image.extract_jpeg_shape(image_buffer)
  return shape

def fake_jpeg_to_shape(image_buffer):
  """Pretend we read shape using extract jpeg shape"""
  shape = np.array([1920, 1080, 3], dtype=np.int32)
  return shape

def create_dataset():
    dataset = tf.data.Dataset.from_tensor_slices(filenames)
    dataset = dataset.map(read_path)
    dataset = dataset.cache()
    if use_shape:
        dataset = dataset.map(jpeg_to_shape)
    else:
        dataset = dataset.map(fake_jpeg_to_shape)
    return dataset

def noop():
    return None

def run_loop(dataset):
    for x in dataset:
        noop()

def main():
    dataset = create_dataset()
    dataset = dataset.repeat(1000) # run 1e3 times
    timeit_results = timeit.timeit(lambda: run_loop(dataset),
                                   number=1
                                   )
    print("Elapsed time:\n{}".format(timeit_results))

if __name__ == "__main__":
    main()

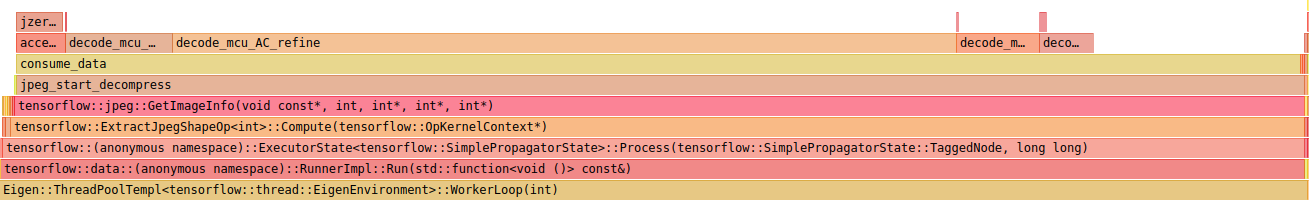

Inspecting profiling results, the data decoding part of the decompression pass is being performed on the JPEG. In other words, the JPEG is being decompressed at near the full cost of decompression rather than simply extracting the shape (a metadata operation).
get_shape_profiler

This PR replaces the jpeg_start_decompress call with a call to jpeg_calc_output_dimensions, which fills out the required cinfo fields without decompressing the data.

The current implementation of GetImageInfo starts a libjpeg
decompression pass over input images. Certain images
(e.g., progressive JPEG) trigger a full image decompression, resulting
in a performance degradation. This commit switches to an equivalent but
cheaper libjpeg call for evaluating image dimensions.
