Inconsistent panel border width when exporting as SVG with Cairo

[eggrandio]

I am generating figures for a paper in svg format, and when I export the ggplot to .svg, I obtain inconsistent panel border widths depending on the device I use to export. I need to use CairoSVG as some figures have symbols that the standard device does not generate properly.

It does not depend on the data, so here I am showing some dummy examples.

figure = ggplot(mtcars, aes(x = mpg, y = disp)) +
         geom_point()

ggsave(figure, filename = "./output/figure.svg",
       width = 2, height = 2)
ggsave(figure, filename = "./output/figure_cairo.svg",
       device = CairoSVG, width = 2, height = 2)

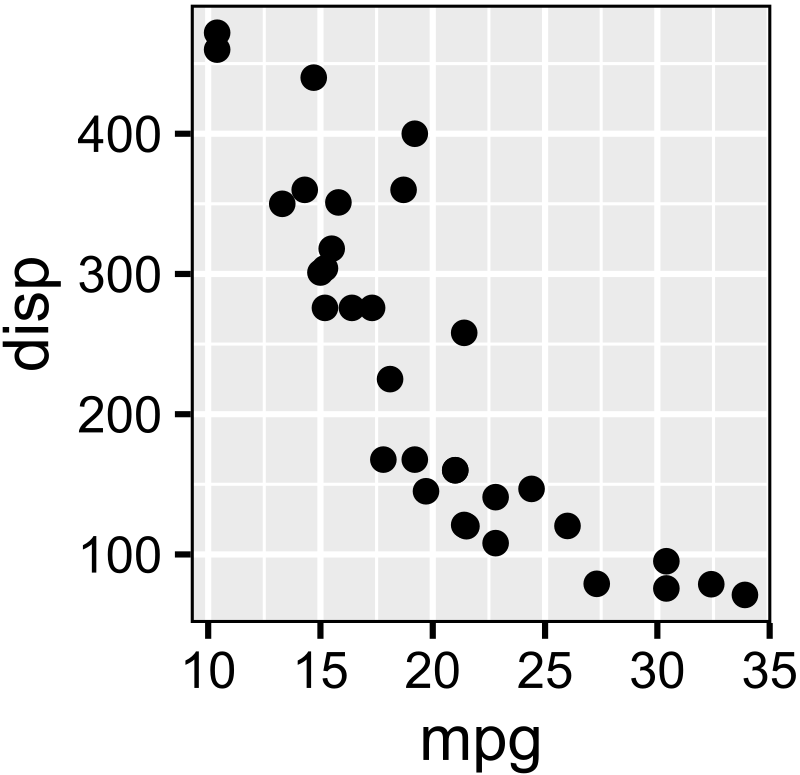

Output from default svg device:

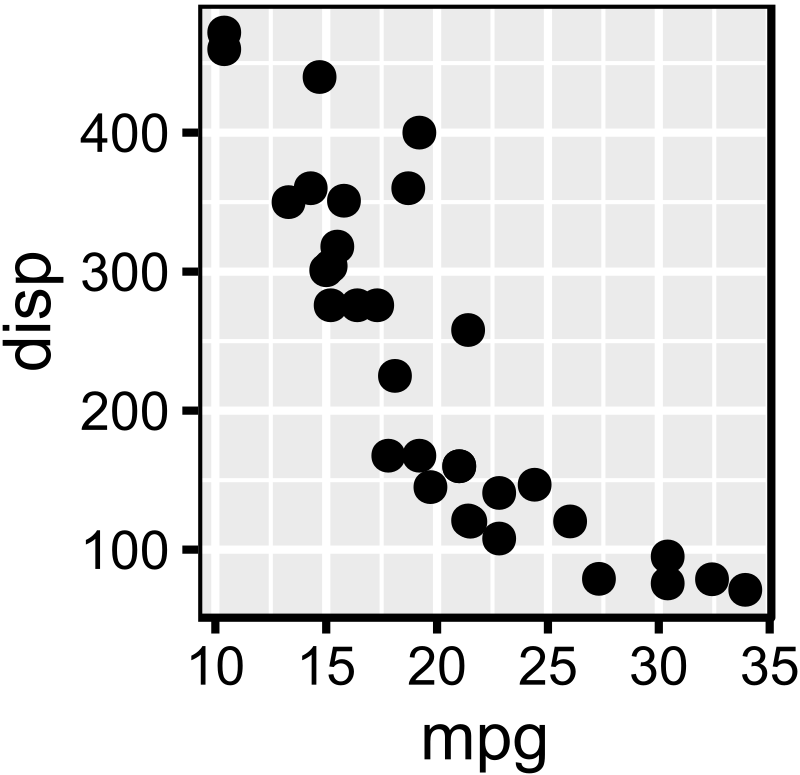

Output from CairoSVG device (as you can see, bottom and right borders are wider):

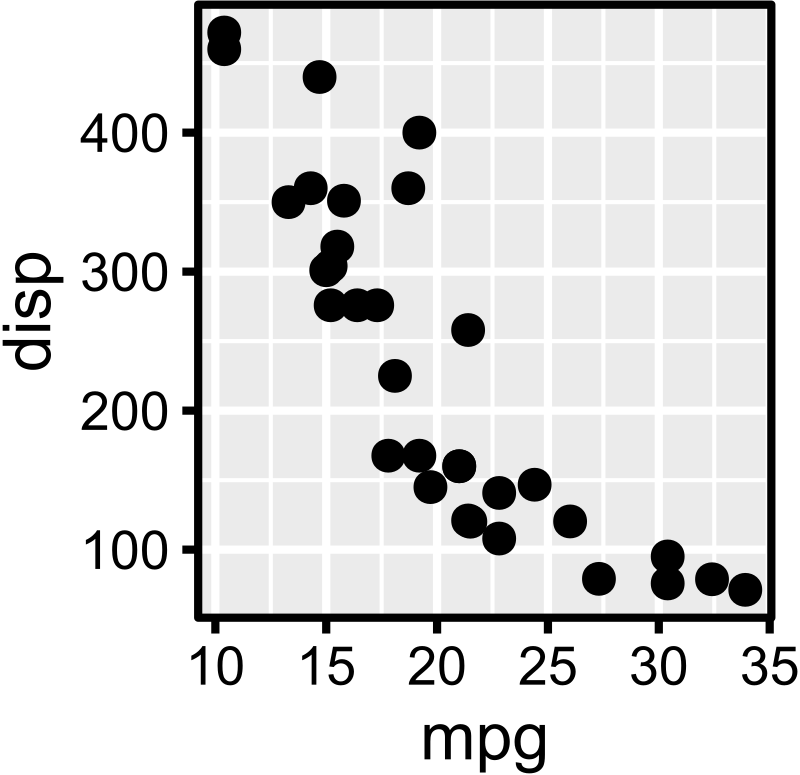

The weird thing is that when I edit the CairoSVG output, select the panel and Ungroup the elements, the panel border width becomes consistent. However, the line width is thicker than when using the "default" svg device.

Can anyone guess why is this happening and if there is anyway of not having to manually edit the figures after exporting?

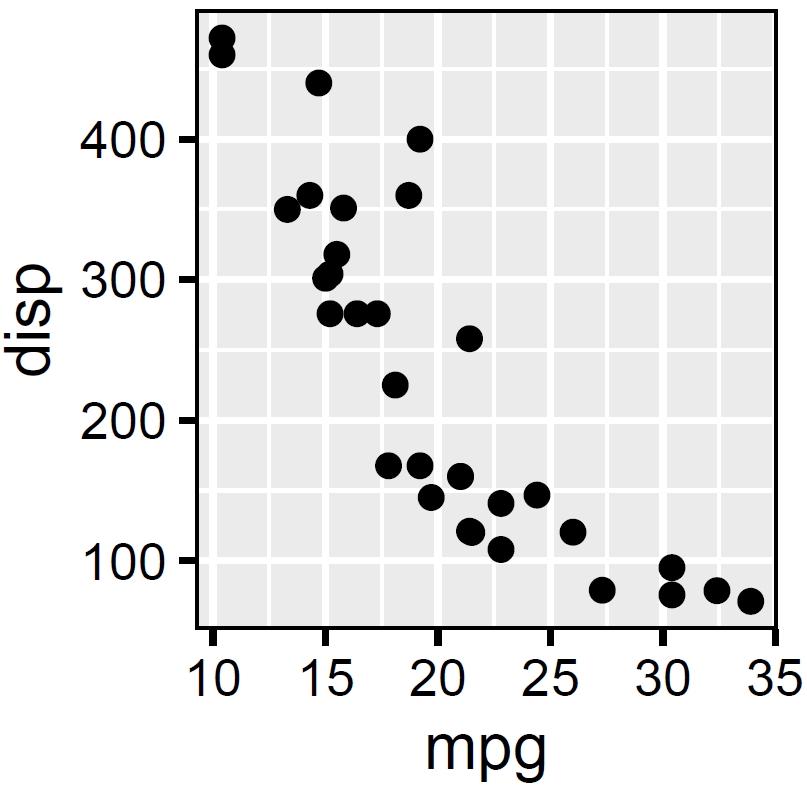

It does not happen with pdf/CairoPDF though:

ggsave(figure, filename = "./output/figure.pdf",
       width = 2, height = 2)
ggsave(figure, filename = "./output/figure_cairo.pdf",
       device = cairo_pdf(), width = 2, height = 2)

Here is my sessionInfo in case it helps:

sessionInfo()
R version 4.1.1 (2021-08-10)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 19043)

Matrix products: default

locale:
[1] LC_COLLATE=English_United States.1252  LC_CTYPE=English_United States.1252    LC_MONETARY=English_United States.1252
[4] LC_NUMERIC=C                           LC_TIME=English_United States.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] Cairo_1.5-12.2  forcats_0.5.1   stringr_1.4.0   dplyr_1.0.7     purrr_0.3.4     readr_2.0.1     tidyr_1.1.3
 [8] tibble_3.1.2    ggplot2_3.3.5   tidyverse_1.3.1 biomaRt_2.48.3

loaded via a namespace (and not attached):
 [1] bitops_1.0-7           fs_1.5.0               lubridate_1.7.10       bit64_4.0.5            filelock_1.0.2
 [6] progress_1.2.2         httr_1.4.2             GenomeInfoDb_1.28.1    tools_4.1.1            backports_1.2.1
[11] utf8_1.2.1             R6_2.5.1               DBI_1.1.1              BiocGenerics_0.38.0    colorspace_2.0-2
[16] withr_2.4.2            tidyselect_1.1.1       prettyunits_1.1.1      bit_4.0.4              curl_4.3.2
[21] compiler_4.1.1         cli_3.0.1              rvest_1.0.1            Biobase_2.52.0         xml2_1.3.2
[26] labeling_0.4.2         scales_1.1.1           rappdirs_0.3.3         systemfonts_1.0.2      digest_0.6.27
[31] rmarkdown_2.10         svglite_2.0.0          XVector_0.32.0         htmltools_0.5.1.1      pkgconfig_2.0.3
[36] dbplyr_2.1.1           fastmap_1.1.0          rlang_0.4.11           readxl_1.3.1           rstudioapi_0.13
[41] RSQLite_2.2.7          generics_0.1.0         farver_2.1.0           jsonlite_1.7.2         RCurl_1.98-1.3
[46] magrittr_2.0.1         GenomeInfoDbData_1.2.6 Rcpp_1.0.7             munsell_0.5.0          S4Vectors_0.30.0
[51] fansi_0.5.0            lifecycle_1.0.0        yaml_2.2.1             stringi_1.7.3          zlibbioc_1.38.0
[56] BiocFileCache_2.0.0    grid_4.1.1             blob_1.2.2             parallel_4.1.1         crayon_1.4.1
[61] Biostrings_2.60.1      haven_2.4.3            hms_1.1.0              KEGGREST_1.32.0        knitr_1.33
[66] pillar_1.6.2           GenomicRanges_1.44.0   stats4_4.1.1           reprex_2.0.1           XML_3.99-0.6
[71] glue_1.4.2             evaluate_0.14          modelr_0.1.8           png_0.1-7              vctrs_0.3.8
[76] tzdb_0.1.2             cellranger_1.1.0       gtable_0.3.0           assertthat_0.2.1       cachem_1.0.5
[81] xfun_0.24              broom_0.7.9            AnnotationDbi_1.54.1   memoise_2.0.0          IRanges_2.26.0
[86] ellipsis_0.3.2

[clauswilke]

Try +coord_cartesian(clip = "off").

[eggrandio]

Try +coord_cartesian(clip = "off").

Thanks! that worked! Also, now both the default svg and CairoSVG produce the same panel border width.

Is there an option to set coord_cartesian(clip = "off") as the default option or should I include it in each plot?

[clauswilke]

If this helps it means one of the graphics devices you're using doesn't clip properly.

You have to turn off clipping separately for each plot, and for certain geoms or limits it can create unexpected side-effects (plot artifacts outside the plot boundary).
