This is a very draft proof of concept moving VRL to use Rc<RefCell<Value>> to reduce the number of clones that are needed at runtime.

In testing the results were pretty disappointing, so I would very much appreciate some help looking through this to see if I am missing anything obvious.

I am testing with this config:

[sources.randomvip]
type = "generator"
format = "shuffle"
count = 10000000
lines = [
  '{"message": "{\"noog\": \"nork\"}", "host": "schneider", "file": "zork/12-32.log"}',
  '{"message": "{\"nonk\": \"flork\"}", "host": "zookflook", "file": "zork/34-29.log"}',
]
decoding.codec = "json"
interval = 0.0


[transforms.remap]
type = "remap"
inputs = ["randomvip"]
source = '''
.agent_name = "vector"

parsed, err = parse_json(.message)
if err == null {
    .message = parsed
    .format = "json"
} else {
    .format = "ascii"
}
matches = parse_regex!(.file, r'.*/(?P<num>\d+)-(?P<name>\w+).log')
.origin, err = .host + "/" + matches.name + "/" + matches.num
'''

[sinks.blackhole]
type = "blackhole"
inputs = ["remap"]

Running master, this is giving me a time of:

./target/release/vector -c ../confs/perf.toml  270.23s user 321.31s system 219% cpu 4:29.63 total

Running this branch we get times of:

./vector.rc -c confs/perf.toml  247.08s user 291.09s system 214% cpu 4:10.90 total

Here is a flamegraph from running master:
https://github.com/vectordotdev/vector/blob/stephen/vrl_refcount/flamegraph.master.svg

Here is a flamegraph from running the RC branch:
https://github.com/vectordotdev/vector/blob/stephen/vrl_refcount/flamegraph.rc.svg

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

netlify · 2021-10-25T14:16:40Z

✔️ Deploy Preview for vector-project canceled.

🔨 Explore the source changes: e1c1007

🔍 Inspect the deploy log: https://app.netlify.com/sites/vector-project/deploys/61a8999e5fd53200080b9157

StephenWakely · 2021-10-25T15:57:54Z

With a simpler config, the timings are similar:

[transforms.remap]
type = "remap"
inputs = ["randomvip"]
source = '''
.agent_name = "vector"

if .message == "thing" {
  .nonk = upcase!(del(.host))
} else if .message == "thung" {
  .noog = downcase!(del(.host))
}
matches = { "name": .message, "num": 2 }
.origin, err = .host + "/" + matches.name + "/" + matches.num
'''

On master:

../vector.master -c ../confs/perfsimple.toml  227.63s user 308.42s system 228% cpu 3:54.54 total

With ref counting:

./target/release/vector -c ../confs/perfsimple.toml  213.28s user 284.74s system 223% cpu 3:42.38 total

StephenWakely · 2021-10-25T20:22:50Z

Memory profiles seem similar as well.

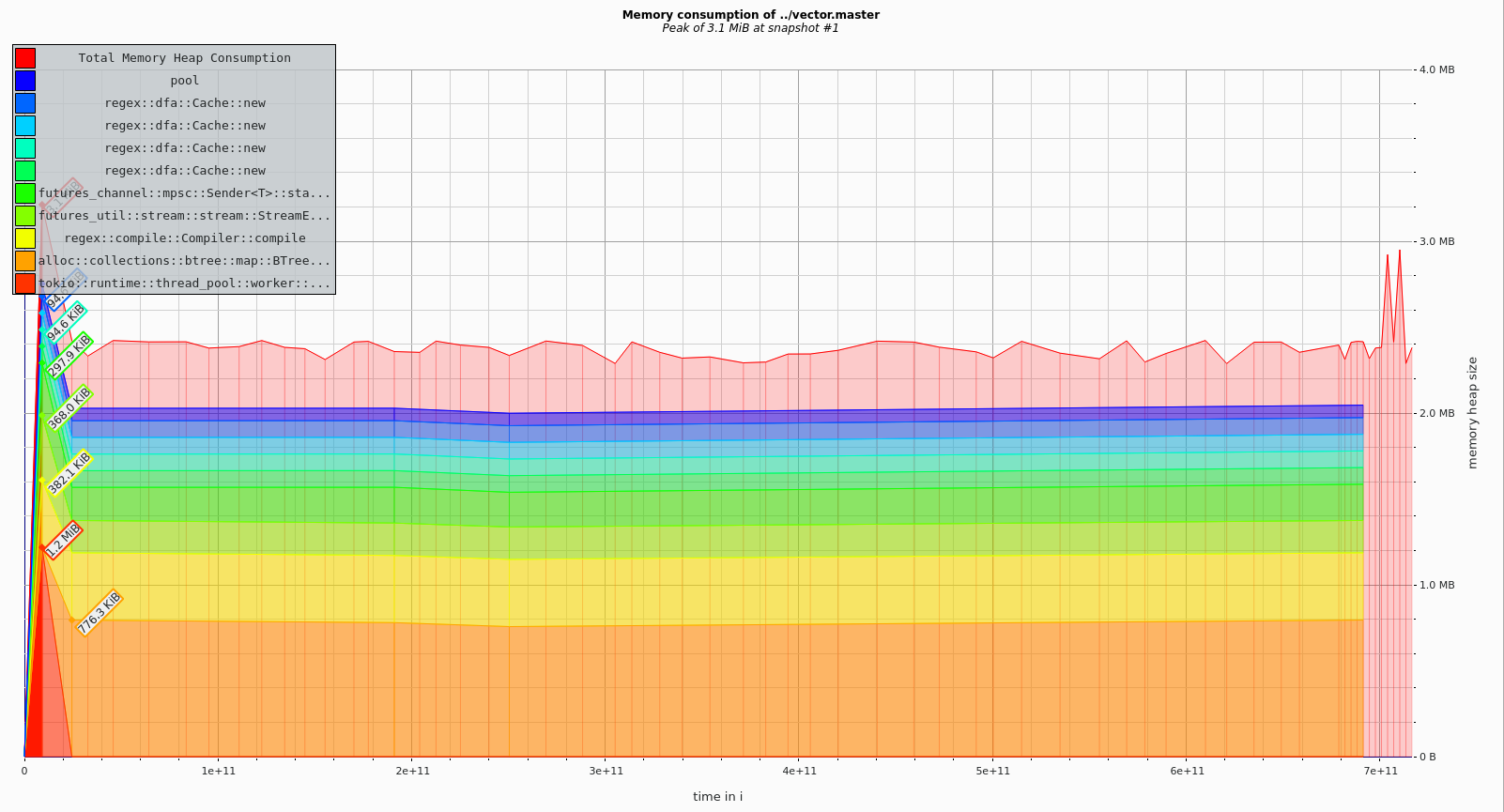

Master:

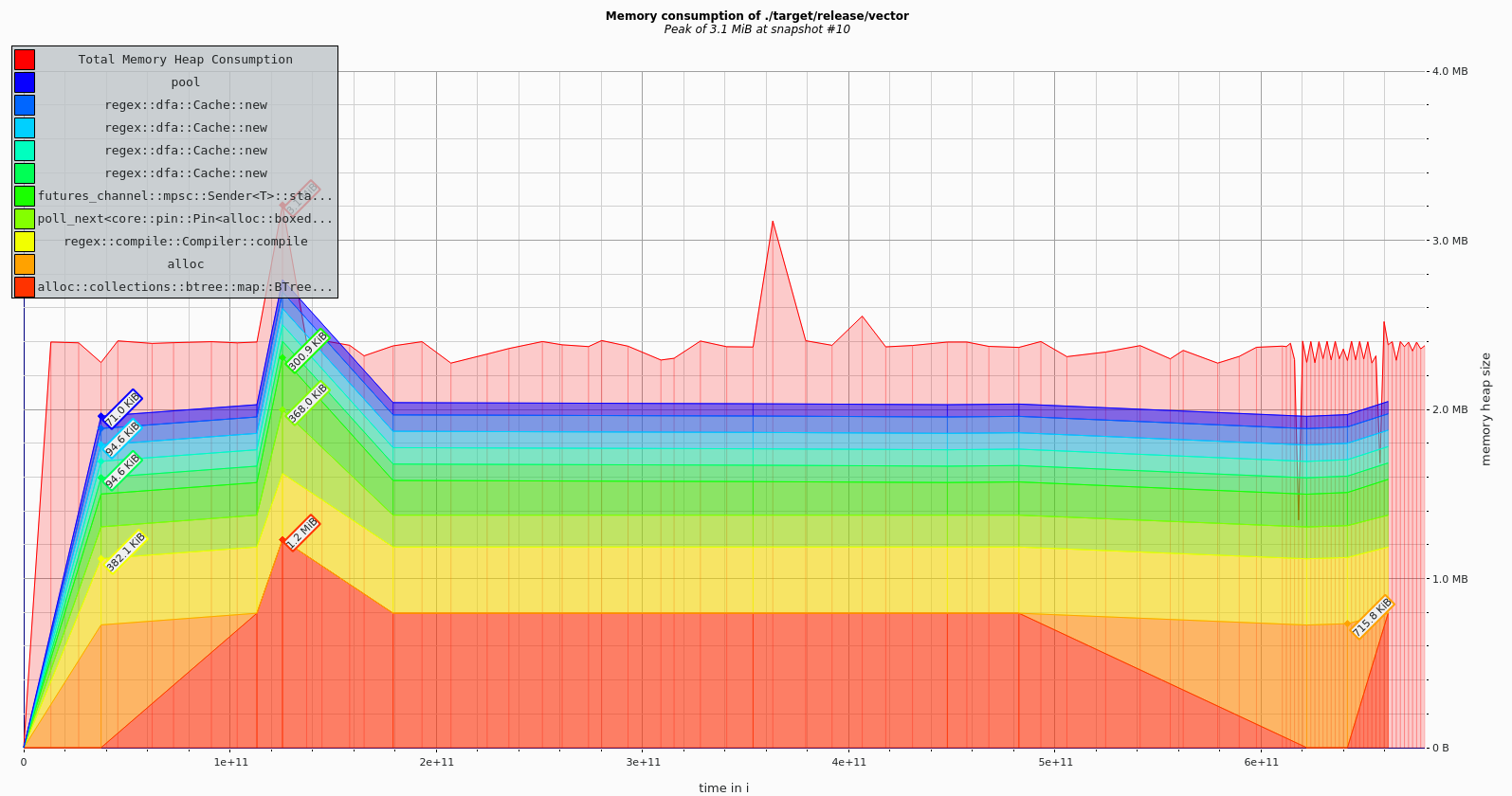

Reference counted:

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

StephenWakely · 2021-10-26T12:29:14Z

It was pointed out to me that the Generator source is quite expensive. So I have updated the test config to use the HTTP source. Data generated by https://github.com/blt/lading.

Sending 100,000 records through Vector with this has reduced the runtime from 1m20 seconds to 1m02s, albeit using fairly naive measurements (timed with my watch). This is a much more encouraging benchmark!

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

bits-bot · 2021-11-03T17:23:49Z

All committers have signed the CLA.

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

StephenWakely · 2021-11-09T14:12:54Z

-            }
-            Event::Metric(event) => VrlTarget::Metric(event),
+            Event::Log(event) => VrlTarget::LogEvent(
+                SharedValue::from(vrl_core::Value::from(&event.fields)),


VrlTarget is now a SharedValue (a wrapper over Rc<RefCell<Value>>). When creating the target we need to copy the event into this SharedValue. This is why the clone is no longer necessary since the original event is then untouched until the end of the process.

StephenWakely · 2021-11-09T14:13:47Z

            VrlTarget::LogEvent(log, _) => log
                .get(path)
-                .map(|val| val.map(|val| val.clone().into()))
+                .map(|val| val.map(|val| val.clone()))


The clone here is now a cheap increment of the reference count. We also don't need the into since the value is already stored as a vrl::Value.

StephenWakely · 2021-11-09T14:14:52Z

+                object
+                    .iter()
+                    .map(|(k, v)| (k.clone(), v.borrow().clone().into()))
+                    .collect(),


There is a cost here since we now need to convert back from a vrl::Value into a Vector Value.

This is one downside of the approach.

StephenWakely · 2021-11-09T14:24:44Z

+mod target;
+
+#[derive(Debug, Clone, PartialEq)]
+pub struct SharedValue(pub(crate) Rc<RefCell<Value>>);


SharedValue is just a wrapper over Rc<RefCell<Value>> .

Since it is used everywhere now it is much easier to create a wrapper and then add functionality to the wrapper than it is to use Rc<RefCell<Value>> everywhere and then have to deal with the Rc<RefCell directly.

I will add more functionality here over time.

StephenWakely · 2021-11-09T16:26:17Z

        let value = value.try_bytes_utf8_lossy()?;

        let with_value = self.with.resolve(ctx)?;
+        let with_value = with_value.borrow();


This is a common pattern. Unfortunately it seems we can't add this function to SharedValue like:

pub fn try_bytes_utf8_lossy(&self) -> Result<Cow<'_, str>, crate::value::error::Error> { let value = self.borrow(); value.try_bytes_utf8_lossy() }

Since that results in an error:

error[E0515]: cannot return value referencing local variable `value` --> lib/vrl/compiler/src/shared_value.rs:72:9 | 72 | value.try_bytes_utf8_lossy() | -----^^^^^^^^^^^^^^^^^^^^^^^ | | | returns a value referencing data owned by the current function | `value` is borrowed here

(It does work for Interer however, since that is Copy. I will add that.)

StephenWakely · 2021-11-10T10:22:44Z

+        };
+
+        if segments.peek().is_none() {
+            return self.borrow_mut().remove_by_segment(segment);


The code here is probably the hairiest aspect of this PR. There are a lot of borrow and borrow_mut calls around.

With a bit of work it's possible a lot of this could be tidied up so we only have a single borrow_mut at the top, but I think it would still be of great value to fuzz test this code very thoroughly.

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

github-actions · 2021-11-26T18:32:44Z

Soak Test Results

Baseline: 1ec79ef
Comparison: d18d1d7
Total Vector CPUs: 4

What follows is a statistical summary of the soak captures between the SHAs given above. Units are bytes/second/CPU, except for 'skewness' and 'kurtosis'. Higher numbers in 'comparison' is generally better. Higher skewness or kurtosis numbers indicate a lack of consistency in behavior, making predictions of fitness in the field challenging.

`datadog_agent_remap_blackhole`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	10.49Mi	10.52Mi	10.52Mi	10.53Mi	-0.16	-0.19
comparison	10.04Mi	10.07Mi	10.07Mi	10.07Mi	-0.93	0.76

`datadog_agent_remap_datadog_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	19.46Mi	19.50Mi	19.51Mi	19.52Mi	0.31	-0.12
comparison	17.27Mi	17.32Mi	17.32Mi	17.33Mi	-0.11	-0.85

`fluent_elasticsearch`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	54.05Mi	54.25Mi	54.29Mi	54.31Mi	-0.53	-0.45
comparison	53.97Mi	54.15Mi	54.17Mi	54.17Mi	-0.49	-0.34

`fluent_remap_aws_firehose`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	38.38Mi	38.59Mi	38.64Mi	38.66Mi	0.62	-0.36
comparison	42.07Mi	42.24Mi	42.29Mi	42.29Mi	0.15	-0.93

`http_pipelines_blackhole`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	0.00	1.05Ki	1.59Ki	1.59Ki	2.08	2.62
comparison	0.00	556.00	556.00	8.31Ki	9.15	96.46

`splunk_hec_route_s3`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.34Mi	5.61Mi	5.66Mi	5.69Mi	-0.33	-0.45
comparison	0.00	189.20Ki	189.20Ki	189.20Ki	0.42	-1.55

`splunk_transforms_splunk3`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	2.35Mi	2.52Mi	2.57Mi	2.60Mi	0.11	-0.58
comparison	0.00	124.77Ki	147.22Ki	149.45Ki	0.36	-0.36

`syslog_humio_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	7.16Mi	7.20Mi	7.20Mi	7.20Mi	-0.50	-0.75
comparison	6.80Mi	6.85Mi	6.85Mi	6.85Mi	-0.44	-0.86

`syslog_log2metric_humio_metrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	4.99Mi	5.02Mi	5.02Mi	5.02Mi	-0.55	-0.52
comparison	5.11Mi	5.13Mi	5.13Mi	5.14Mi	-0.22	-0.78

`syslog_log2metric_splunk_hec_metrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.15Mi	5.18Mi	5.18Mi	5.18Mi	-0.14	-1.45
comparison	6.05Mi	6.07Mi	6.07Mi	6.07Mi	-1.07	1.75

`syslog_loki`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	3.88Mi	4.32Mi	4.34Mi	4.34Mi	-0.72	-0.51
comparison	3.66Mi	3.91Mi	3.95Mi	3.96Mi	-0.31	-1.35

`syslog_regex_logs2metric_ddmetrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	3.86Mi	3.87Mi	3.87Mi	3.87Mi	-1.31	0.95
comparison	4.42Mi	4.63Mi	4.64Mi	4.64Mi	-1.60	1.12

`syslog_splunk_hec_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	7.18Mi	7.22Mi	7.22Mi	7.22Mi	-0.22	-1.67
comparison	7.01Mi	7.05Mi	7.06Mi	7.06Mi	0.10	-1.19

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

github-actions · 2021-11-26T22:39:09Z

Soak Test Results

Baseline: 1ec79ef
Comparison: 3472115
Total Vector CPUs: 4

What follows is a statistical summary of the soak captures between the SHAs given above. Units are bytes/second/CPU, except for 'skewness' and 'kurtosis'. Higher numbers in 'comparison' is generally better. Higher skewness or kurtosis numbers indicate a lack of consistency in behavior, making predictions of fitness in the field challenging.

`datadog_agent_remap_blackhole`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	10.06Mi	10.08Mi	10.09Mi	10.09Mi	0.44	0.92
comparison	10.07Mi	10.09Mi	10.10Mi	10.10Mi	0.11	-0.26

`datadog_agent_remap_datadog_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	18.77Mi	19.18Mi	19.21Mi	19.21Mi	0.68	-1.18
comparison	17.35Mi	17.41Mi	17.42Mi	17.42Mi	0.80	-0.26

`fluent_elasticsearch`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	54.37Mi	54.62Mi	54.64Mi	54.64Mi	-0.58	-0.81
comparison	54.41Mi	54.71Mi	54.79Mi	54.80Mi	-0.69	-0.52

`fluent_remap_aws_firehose`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	40.01Mi	40.30Mi	40.33Mi	40.34Mi	-0.61	-0.74
comparison	42.65Mi	42.87Mi	42.90Mi	42.91Mi	-0.36	-0.77

`http_pipelines_blackhole`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	0.00	556.00	2.12Ki	2.12Ki	2.10	5.65
comparison	0.00	17.70Ki	17.70Ki	17.70Ki	0.21	-1.82

`splunk_hec_route_s3`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.40Mi	5.62Mi	5.70Mi	5.72Mi	0.06	-0.50
comparison	5.39Mi	5.58Mi	5.61Mi	5.63Mi	-0.02	-0.84

`splunk_transforms_splunk3`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	2.43Mi	2.64Mi	2.69Mi	2.69Mi	0.07	-1.27
comparison	2.78Mi	2.87Mi	2.90Mi	2.90Mi	-0.14	-0.19

`syslog_humio_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	7.15Mi	7.17Mi	7.17Mi	7.17Mi	-0.05	-0.99
comparison	6.93Mi	6.95Mi	6.95Mi	6.95Mi	0.29	-0.95

`syslog_log2metric_humio_metrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	4.98Mi	4.99Mi	5.00Mi	5.00Mi	0.11	-0.41
comparison	4.92Mi	4.94Mi	4.94Mi	4.94Mi	-0.10	-0.22

`syslog_log2metric_splunk_hec_metrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.32Mi	5.34Mi	5.35Mi	5.35Mi	0.10	-0.84
comparison	6.02Mi	6.04Mi	6.04Mi	6.04Mi	0.25	-1.40

`syslog_loki`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	4.01Mi	4.29Mi	4.31Mi	4.32Mi	-0.18	-0.64
comparison	4.03Mi	4.64Mi	4.69Mi	4.70Mi	-0.27	-0.84

`syslog_regex_logs2metric_ddmetrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	3.75Mi	3.76Mi	3.76Mi	3.76Mi	0.83	0.91
comparison	4.54Mi	4.59Mi	4.60Mi	4.60Mi	-0.38	-0.77

`syslog_splunk_hec_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	7.13Mi	7.16Mi	7.16Mi	7.17Mi	0.30	-1.44
comparison	7.06Mi	7.09Mi	7.09Mi	7.09Mi	-0.40	-1.17

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

github-actions · 2021-11-30T14:55:46Z

Soak Test Results

Baseline: 9d78719
Comparison: c628fee
Total Vector CPUs: 4

What follows is a statistical summary of the soak captures between the SHAs given above. Units are bytes/second/CPU, except for 'skewness' and 'kurtosis'. Higher numbers in 'comparison' is generally better. Higher skewness or kurtosis numbers indicate a lack of consistency in behavior, making predictions of fitness in the field challenging.

`datadog_agent_remap_blackhole`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	9.85Mi	9.87Mi	9.88Mi	9.88Mi	-0.24	-0.08
comparison	10.51Mi	10.59Mi	10.59Mi	10.60Mi	0.44	-1.16

`datadog_agent_remap_datadog_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	18.08Mi	18.12Mi	18.13Mi	18.13Mi	-0.44	0.37
comparison	17.36Mi	17.44Mi	17.46Mi	17.46Mi	0.33	-0.93

`fluent_elasticsearch`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	50.94Mi	51.34Mi	51.37Mi	51.39Mi	0.22	-1.42
comparison	51.53Mi	51.69Mi	51.79Mi	51.81Mi	0.59	1.22

`fluent_remap_aws_firehose`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	37.01Mi	37.18Mi	37.20Mi	37.20Mi	0.15	-1.10
comparison	42.83Mi	43.01Mi	43.09Mi	43.09Mi	0.72	0.16

`http_pipelines_blackhole`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	0.00	3.17Ki	3.17Ki	3.17Ki	0.23	-1.36
comparison	0.00	0.00	2.12Ki	2.12Ki	6.31	38.70

`splunk_hec_route_s3`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.32Mi	5.53Mi	5.59Mi	5.59Mi	0.28	-0.42
comparison	5.04Mi	5.26Mi	5.30Mi	5.30Mi	-0.04	-0.87

`splunk_transforms_splunk3`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	2.37Mi	2.48Mi	2.50Mi	2.52Mi	0.09	-0.28
comparison	2.70Mi	2.92Mi	2.95Mi	2.96Mi	-0.45	-1.13

`syslog_humio_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	6.89Mi	6.92Mi	6.92Mi	6.92Mi	0.20	-1.18
comparison	6.84Mi	6.88Mi	6.89Mi	6.89Mi	-0.26	-1.14

`syslog_log2metric_humio_metrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.02Mi	5.04Mi	5.04Mi	5.04Mi	0.63	-0.85
comparison	4.92Mi	4.95Mi	4.95Mi	4.95Mi	0.36	-0.57

`syslog_log2metric_splunk_hec_metrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	5.14Mi	5.16Mi	5.16Mi	5.16Mi	0.29	-1.10
comparison	6.01Mi	6.03Mi	6.03Mi	6.03Mi	0.09	-1.16

`syslog_loki`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	4.04Mi	4.32Mi	4.41Mi	4.42Mi	-0.03	-0.59
comparison	3.63Mi	4.33Mi	4.39Mi	4.39Mi	0.57	-1.34

`syslog_regex_logs2metric_ddmetrics`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	3.76Mi	3.84Mi	3.84Mi	3.85Mi	-2.45	7.07
comparison	1.97Mi	1.98Mi	1.98Mi	1.98Mi	0.03	-0.55

`syslog_splunk_hec_logs`

EXPERIMENT	VALUE_min	VALUE_p90	VALUE_p99	VALUE_max	VALUE_skewness	VALUE_kurtosis
baseline	7.18Mi	7.33Mi	7.35Mi	7.35Mi	0.96	-0.35
comparison	6.82Mi	6.87Mi	6.88Mi	6.88Mi	0.43	-0.18

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

github-actions · 2021-12-02T11:12:11Z

Soak Test Results

Baseline: 4cdbab1
Comparison: e1c1007
Total Vector CPUs: 4

Explanation

A soak test is an integrated performance test for vector in a repeatable rig, with varying configuration for vector. What follows is a statistical summary of a brief vector run for each configuration across SHAs given above. The goal of these tests are to determine, quickly, if vector performance is changed and to what degree by a pull request. Test units below are bytes/second/CPU, except for 'skewness'. The further 'skewness' is from 0.0 the more indication that vector lacks consistency in behavior, making predictions of fitness in the field challenging.

This table lists those experiments that have experienced a statistically significant change in their throughput performance between baseline and comparision SHAs, with 95.0% confidence. Negative values mean that baseline is faster, positive comparison. Results that do not exhibit more than a ±8.87% change in mean throughput are discarded.

experiment	Δ mean	Δ mean %
fluent_remap_aws_firehose	3.84MiB	9.95
syslog_log2metric_splunk_hec_metrics	647.85KiB	12.28
syslog_regex_logs2metric_ddmetrics	637.51KiB	16.45
syslog_loki	518.7KiB	12.47
splunk_transforms_splunk3	269.91KiB	10.58

Fine details of change detection per experiment.

experiment	Δ mean	Δ mean %	baseline mean	baseline stdev	baseline outlier percentage	comparison mean	comparison stdev	comparison outlier percentage	t-statistic	p-value
fluent_remap_aws_firehose	3.84MiB	9.95	38.56MiB	837.19KiB	0.806452	42.4MiB	1.24MiB	0	-49.6017	3.83437e-220
syslog_log2metric_splunk_hec_metrics	647.85KiB	12.28	5.15MiB	87.15KiB	0.273973	5.79MiB	210.29KiB	0	-54.4365	3.33243e-209
syslog_regex_logs2metric_ddmetrics	637.51KiB	16.45	3.79MiB	264.6KiB	0	4.41MiB	280.53KiB	0.275482	-31.0513	5.95064e-134
fluent_elasticsearch	582.72KiB	1.07	53.11MiB	2.7MiB	0	53.68MiB	2.44MiB	0	-2.9769	0.00301026
syslog_loki	518.7KiB	12.47	4.06MiB	279.87KiB	0.275482	4.57MiB	749.72KiB	4.6832	-12.3494	1.82054e-30
splunk_transforms_splunk3	269.91KiB	10.58	2.49MiB	1.14MiB	0.884956	2.76MiB	1.26MiB	1.37363	-2.91487	0.003672
datadog_agent_remap_blackhole	217.12KiB	5.99	3.54MiB	324.06KiB	0.906344	3.75MiB	337.0KiB	0	-8.75821	1.46914e-17
splunk_hec_route_s3	109.71KiB	1.96	5.46MiB	2.05MiB	0	5.57MiB	2.08MiB	0.274725	-0.700013	0.484143
syslog_log2metric_humio_metrics	7.35KiB	0.14	4.97MiB	123.35KiB	0	4.98MiB	188.66KiB	0	-0.621944	0.534205
http_pipelines_blackhole	-265.16B	-27.71	956.97B	8.71KiB	1.36612	691.81B	12.92KiB	0.273224	0.317815	0.750729
syslog_splunk_hec_logs	-136.08KiB	-1.92	6.94MiB	249.93KiB	0	6.8MiB	223.74KiB	0	7.60762	9.28562e-14
syslog_humio_logs	-348.5KiB	-4.77	7.13MiB	73.62KiB	0.276243	6.79MiB	139.68KiB	0	42.0856	3.05304e-174
datadog_agent_remap_datadog_logs	-1.36MiB	-7.05	19.3MiB	521.21KiB	0	17.94MiB	779.96KiB	0	28.1536	2.51199e-114

Fine details of each soak run.

(experiment, variant)	total samples	mean	std	min	average	p90	p95	p99	max	skewness
('fluent_elasticsearch', 'comparison')	364	53.68MiB	2.44MiB	48.38MiB	53.6MiB	56.81MiB	57.03MiB	57.58MiB	58.26MiB	-0.0707949
('fluent_elasticsearch', 'baseline')	361	53.11MiB	2.7MiB	47.88MiB	52.54MiB	56.6MiB	56.91MiB	57.49MiB	58.16MiB	0.0377152
('fluent_remap_aws_firehose', 'comparison')	367	42.4MiB	1.24MiB	39.73MiB	42.26MiB	44.21MiB	44.48MiB	44.9MiB	45.63MiB	0.168281
('fluent_remap_aws_firehose', 'baseline')	372	38.56MiB	837.19KiB	36.28MiB	38.57MiB	39.59MiB	39.84MiB	40.51MiB	41.02MiB	-0.0173972
('datadog_agent_remap_datadog_logs', 'baseline')	341	19.3MiB	521.21KiB	18.34MiB	19.26MiB	20.03MiB	20.3MiB	20.49MiB	20.65MiB	0.424361
('datadog_agent_remap_datadog_logs', 'comparison')	368	17.94MiB	779.96KiB	16.51MiB	17.87MiB	18.87MiB	19.01MiB	19.24MiB	19.59MiB	0.00244309
('syslog_humio_logs', 'baseline')	362	7.13MiB	73.62KiB	6.91MiB	7.14MiB	7.22MiB	7.24MiB	7.29MiB	7.32MiB	-0.190143
('syslog_splunk_hec_logs', 'baseline')	341	6.94MiB	249.93KiB	6.5MiB	6.84MiB	7.25MiB	7.26MiB	7.3MiB	7.33MiB	0.0853223
('syslog_splunk_hec_logs', 'comparison')	366	6.8MiB	223.74KiB	6.41MiB	6.78MiB	7.1MiB	7.13MiB	7.2MiB	7.24MiB	0.112283
('syslog_humio_logs', 'comparison')	364	6.79MiB	139.68KiB	6.46MiB	6.82MiB	6.96MiB	6.97MiB	7.01MiB	7.02MiB	-0.295655
('syslog_log2metric_splunk_hec_metrics', 'comparison')	366	5.79MiB	210.29KiB	5.39MiB	5.82MiB	6.04MiB	6.08MiB	6.11MiB	6.18MiB	-0.0151869
('splunk_hec_route_s3', 'comparison')	364	5.57MiB	2.08MiB	335.3KiB	5.57MiB	8.16MiB	8.61MiB	10.44MiB	11.62MiB	-0.0763866
('splunk_hec_route_s3', 'baseline')	365	5.46MiB	2.05MiB	976.06KiB	5.39MiB	8.22MiB	8.95MiB	10.01MiB	11.11MiB	0.202169
('syslog_log2metric_splunk_hec_metrics', 'baseline')	365	5.15MiB	87.15KiB	4.9MiB	5.16MiB	5.27MiB	5.29MiB	5.32MiB	5.38MiB	-0.158302
('syslog_log2metric_humio_metrics', 'comparison')	364	4.98MiB	188.66KiB	4.63MiB	4.95MiB	5.24MiB	5.26MiB	5.31MiB	5.35MiB	0.103798
('syslog_log2metric_humio_metrics', 'baseline')	364	4.97MiB	123.35KiB	4.73MiB	4.97MiB	5.14MiB	5.17MiB	5.2MiB	5.26MiB	0.0949554
('syslog_loki', 'comparison')	363	4.57MiB	749.72KiB	3.39MiB	4.57MiB	5.52MiB	6.2MiB	6.64MiB	6.79MiB	0.884897
('syslog_regex_logs2metric_ddmetrics', 'comparison')	363	4.41MiB	280.53KiB	3.84MiB	4.38MiB	4.8MiB	4.97MiB	5.08MiB	5.22MiB	0.55653
('syslog_loki', 'baseline')	363	4.06MiB	279.87KiB	3.26MiB	4.05MiB	4.41MiB	4.51MiB	4.7MiB	4.84MiB	0.119418
('syslog_regex_logs2metric_ddmetrics', 'baseline')	342	3.79MiB	264.6KiB	3.37MiB	3.69MiB	4.17MiB	4.22MiB	4.27MiB	4.29MiB	0.446473
('datadog_agent_remap_blackhole', 'comparison')	382	3.75MiB	337.0KiB	2.81MiB	3.75MiB	4.15MiB	4.25MiB	4.51MiB	4.68MiB	-0.106987
('datadog_agent_remap_blackhole', 'baseline')	331	3.54MiB	324.06KiB	2.34MiB	3.53MiB	3.97MiB	4.08MiB	4.21MiB	4.42MiB	-0.0262966
('splunk_transforms_splunk3', 'comparison')	364	2.76MiB	1.26MiB	333.94KiB	2.62MiB	4.35MiB	5.17MiB	6.15MiB	8.43MiB	0.773842
('splunk_transforms_splunk3', 'baseline')	339	2.49MiB	1.14MiB	91.41KiB	2.38MiB	3.93MiB	4.74MiB	5.41MiB	6.05MiB	0.604085
('http_pipelines_blackhole', 'baseline')	366	956.97B	8.71KiB	0B	0B	0B	0B	42.41KiB	124.71KiB	10.8368
('http_pipelines_blackhole', 'comparison')	366	691.81B	12.92KiB	0B	0B	0B	0B	0B	247.27KiB	19.1311

StephenWakely · 2022-01-05T18:58:25Z

The soak test results that we are getting from this PR are showing there is a disappointing improvement in performance using Reference Counts.

Given the additional complexity of the code and the potential for runtime panics due to moving the borrow checking to runtime, it is not felt that this PR has any value and is not worth pursuing further.

StephenWakely added 3 commits October 18, 2021 11:51

Added vrl performance rfc

17acdc9

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Moved to Rc

d6980ea

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Added flamegraphs

9a1f66a

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

StephenWakely added 2 commits October 26, 2021 10:22

Converted del, upcase and downcase

422e291

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Merge remote-tracking branch 'origin' into stephen/vrl_refcount

f54f7f5

This was referenced Oct 28, 2021

chore: Add RFC for improving Vrl performance #9812

Closed

Develop a soak test for Reference Counting within Vrl #9831

Closed

Updated benchmarks

66b733b

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

StephenWakely added 2 commits November 4, 2021 13:24

Create SharedValue wrapper over Rc<RefCell<Value>>

3e01b04

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Added more stdlib functions

175a612

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

github-actions Bot added domain: core Anything related to core crates i.e. vector-core, core-common, etc domain: rfc domain: transforms Anything related to Vector's transform components domain: vrl Anything related to the Vector Remap Language labels Nov 9, 2021

StephenWakely added 2 commits November 9, 2021 12:56

Update Vector with SharedValue

2567c44

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Remove rfc

b7dcbe5

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

github-actions Bot removed the domain: rfc label Nov 9, 2021

StephenWakely commented Nov 9, 2021

View reviewed changes

StephenWakely commented Nov 10, 2021

View reviewed changes

StephenWakely added 4 commits November 11, 2021 14:27

Added more functions

ad57a33

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Finished stdlib

1e237a0

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Merge remote-tracking branch 'origin' into stephen/vrl_refcount

dd83e44

Reupdate remap transform to not clone the event

1e48376

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Removed warnings

d18d1d7

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Fixed arithmetic

3472115

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Move value out of shared_value without cloning.

c628fee

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

StephenWakely added 2 commits December 1, 2021 13:17

Remove println

7fef6f9

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

Make soak test bigger

e1c1007

Signed-off-by: Stephen Wakely <fungus.humungus@gmail.com>

StephenWakely closed this Jan 5, 2022

Conversation

StephenWakely commented Oct 25, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

netlify Bot commented Oct 25, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

StephenWakely commented Oct 25, 2021

Uh oh!

StephenWakely commented Oct 25, 2021

Uh oh!

StephenWakely commented Oct 26, 2021

Uh oh!

bits-bot commented Nov 3, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

StephenWakely Nov 9, 2021

Choose a reason for hiding this comment

Uh oh!

StephenWakely Nov 9, 2021

Choose a reason for hiding this comment

Uh oh!

StephenWakely Nov 9, 2021

Choose a reason for hiding this comment

Uh oh!

StephenWakely Nov 9, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

StephenWakely Nov 9, 2021

Choose a reason for hiding this comment

Uh oh!

StephenWakely Nov 10, 2021

Choose a reason for hiding this comment

Uh oh!

github-actions Bot commented Nov 26, 2021

Soak Test Results

datadog_agent_remap_blackhole

datadog_agent_remap_datadog_logs

fluent_elasticsearch

fluent_remap_aws_firehose

http_pipelines_blackhole

splunk_hec_route_s3

splunk_transforms_splunk3

syslog_humio_logs

syslog_log2metric_humio_metrics

syslog_log2metric_splunk_hec_metrics

syslog_loki

syslog_regex_logs2metric_ddmetrics

syslog_splunk_hec_logs

Uh oh!

github-actions Bot commented Nov 26, 2021

Soak Test Results

datadog_agent_remap_blackhole

datadog_agent_remap_datadog_logs

fluent_elasticsearch

fluent_remap_aws_firehose

http_pipelines_blackhole

splunk_hec_route_s3

splunk_transforms_splunk3

syslog_humio_logs

syslog_log2metric_humio_metrics

syslog_log2metric_splunk_hec_metrics

syslog_loki

syslog_regex_logs2metric_ddmetrics

syslog_splunk_hec_logs

Uh oh!

github-actions Bot commented Nov 30, 2021

Soak Test Results

datadog_agent_remap_blackhole

datadog_agent_remap_datadog_logs

fluent_elasticsearch

fluent_remap_aws_firehose

http_pipelines_blackhole

splunk_hec_route_s3

splunk_transforms_splunk3

syslog_humio_logs

syslog_log2metric_humio_metrics

syslog_log2metric_splunk_hec_metrics

syslog_loki

StephenWakely commented Oct 25, 2021 •

edited

Loading

netlify Bot commented Oct 25, 2021 •

edited

Loading

bits-bot commented Nov 3, 2021 •

edited

Loading

StephenWakely Nov 9, 2021 •

edited

Loading

`datadog_agent_remap_blackhole`

`datadog_agent_remap_datadog_logs`

`fluent_elasticsearch`

`fluent_remap_aws_firehose`

`http_pipelines_blackhole`

`splunk_hec_route_s3`

`splunk_transforms_splunk3`

`syslog_humio_logs`

`syslog_log2metric_humio_metrics`

`syslog_log2metric_splunk_hec_metrics`

`syslog_loki`

`syslog_regex_logs2metric_ddmetrics`

`syslog_splunk_hec_logs`

`datadog_agent_remap_blackhole`

`datadog_agent_remap_datadog_logs`

`fluent_elasticsearch`

`fluent_remap_aws_firehose`

`http_pipelines_blackhole`

`splunk_hec_route_s3`

`splunk_transforms_splunk3`

`syslog_humio_logs`

`syslog_log2metric_humio_metrics`

`syslog_log2metric_splunk_hec_metrics`

`syslog_loki`

`syslog_regex_logs2metric_ddmetrics`

`syslog_splunk_hec_logs`

`datadog_agent_remap_blackhole`

`datadog_agent_remap_datadog_logs`

`fluent_elasticsearch`

`fluent_remap_aws_firehose`

`http_pipelines_blackhole`

`splunk_hec_route_s3`

`splunk_transforms_splunk3`

`syslog_humio_logs`

`syslog_log2metric_humio_metrics`

`syslog_log2metric_splunk_hec_metrics`

`syslog_loki`

`syslog_regex_logs2metric_ddmetrics`

`syslog_splunk_hec_logs`
