A VIM plug-in for completion using libclang

Yoda-vim is a Vim plug-in for code completion using libclang. Yoda-vim's features are:

• Fast code completion for C/C++ and Objective-C/C++.
• Load compilation options using your python configuration file influenced by YouCompleteMe.
• Jump to definition or declaration under the cursor of the editing file.
• Show code diagnostics in Vim's quickfix-window or you can use it via API as you want.
• Automatically insert variable segments, substring of text of candidate supporting snake case and camel case, by one keystroke in completion (Like XCode behaivior).
• Support code snippets if you have installed ultisnips.
• Works on python2 and python3.

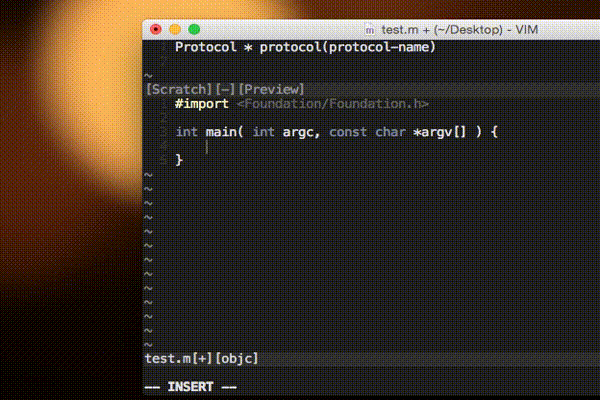

Below gif picture demonstrates the variable segments insertion with <tab> key.

There are various code completion plug-ins using clang like clang_complete, YouCompleteMe, etc. However, these are usefull, why did I make this plug-in and who should use this?

• I want to write Objective-C code in Vim.
• I want to reduce typing when searching completion.
• I want to use multi-byte string in code.
• My Vim compiled with +python3.
• clang_complete does not support ignorecase completon.
• YouCompleteMe forces fuzzy completion, but I want just use clang's completion engine.
• Many of the completion plug-ins with the similar settings like popupmenu, preview window, etc. This causes too long .vimrc and to spend time users to write similar settings. I think plug-ins should be compatible with Vim's option, or delegate to a special purpose plug-in when Vim does not have such features.

Requirements

• Yoda.vim has tested in linux and MacOSX platform.
• Vim version 7.4 or above and has compiled with +python or +python3.
• libclang.(so | dylib) (3.5 is recommended.)
• ultisnips (Optional: Expand snippets like function arguments, template parameters, etc)

Quick Start

To use yoda-vim for completions, you have to do are folowings:

1. Add yoda-vim in Vim runtime path manually or using plug-in manager like Vundle.
2. Tell yoda-vim where a clang dynamic library is.
3. Write python configuration file of .yoda_config.py for your project.

Python configuration file is a python file, default basename is .yoda_config.py set by g:yoda_config_basename, should give clang compilation flags of the editing file. Yoda-vim search the file in the directory or above it in the hierachy when a new C-fammily file read. And it will call function, default name is Flags set by g:yoda_config_funcname, using vim's information as it's argument, you can set it via g:yoda_config_pass_arg, to give clang the flags. Folowing is an example.

A Recipe For Configuration

In your .vimrc.

" Set full path of clang library path.
" You do not have to set this configuration if you have installed `llvm-config` in your $PATH.
" For more ditails, see option 'g:yoda_clang_library'.
let g:yoda_clang_library = '/path/to/clang-library'

" Set snippet engine if ultisnips is in your Vim runtime
let g:yoda_snippet_engine = 'ultisnips'

" Specify the function argument to give it `.yoda_config.py`.
" NOTE: This example set string of dict. You can also set any evaluatable strings
" like global functions, list, etc. (default is `'expand("%:p")'`)
let g:yoda_config_pass_arg =
\  "{'filename' : expand('%:p'),"
\ . "'filetype' : &l:filetype}"

In .yoda_config.py.

import os

def Flags( fileinfo ):
  '''
  The function is called when yoda-vim read a new C-fammily file.
  It has to return compilation flags for clang, may return only flags related
  to syntax.
  It can return None if you want to disable the completion in the editing file.
  '''
  filename = fileinfo['filename']
  filetype = fileinfo['filetype']

  # Disable completion if `filename` is above your home directory.
  # NOTE: This is an example. You can remove this block as you want.
  if not filename.startswith( os.path.expanduser('~/') ):
    return None

  # Get compilation flags related to a `filetype`.
  # NOTE: Clang does not know filetype of editing file. So you should tell
  # clang its filetype using compilation flags, e.g. '-x', 'LANG(c++, c, etc.)'
  # and '-std=WHAT(c99, c++, etc.)'.
  # Because this is an example, you should add suitable compilation flags
  # for your project.
  common_flags = ['-Wall', '-I' + os.path.dirname( filename )]
  ft_flags = dict(
    c=['-x', 'c', '-std=c99'],
    cpp=['-x', 'c++', '-std=c++11'],
    objc=['-x', 'objective-c', '-std=c99', '-fobjcarc'],
    objcpp=['-x', 'objective-c++', '-std=c++11', '-fobjcarc'],
  )
  return common_flags + ft_flags[ filetype ]

Commands

The :YodaGoto [where] command

Go to the location to definition or declaration under the cursor if possible. The argument of where is where to jump. It is supposed to be 'Definition' or 'Declaration'. If no arguments are given. Go to the declaration.

The :YodaShowErrors command

Set quickfix list of diagnostics in current buffer and open its window. If you want to know about quickfix, See :help quickfix.

Options

The g:yoda_clang_library option

This option specifies a path to a clang dynamic library file. If the option is not set. The followings are used for searching the library.

1. Tries to search the library in the directory using llvm-config --libdir if possible.
2. Tries to search it in the directories of $LD_LIBRARY_PATH.
3. Discontinue the searching.

Type: str
Default: ''

The g:yoda_super_trigger_key option

This option controls the key mapping used to trigger the first completion string in completion popup menu. How to insert text has multiple state.

1. If snippet is enabled and inserted text matches completion exactly, expand its snippet.
2. If completion candidate is not selected and only one candidate exists, insert this text.
3. If completion candidate is not selected, insert text to next variable segments (XCode like behaivior).

Type: str
Default:'<Tab>'

The g:yoda_window_split_behavior option

This option controls how to open a new window when :YodaGoto command is invoked.

Type: str
Default: 'split'
Supported behaiviors: 'edit', 'split', 'vsplit'

The g:yoda_config_basename option

This option specifies a basename of python configuration file.

Type: str
Default: '.yoda_config.py'

The g:yoda_config_funcname option

This option specifies a name of function in python configuration file to be used to set compilation flags for current buffer.

Type: str
Default: 'Flags'

The g:yoda_config_pass_arg option

This option is used to pass argument for function in python configuration file. The option evaluate when new buffer is opened.

Type: str
Default: 'expand("%:p")'

The g:yoda_snippet_engine option

This option select a snippet engine to use expand placeholder of completion.

Supported snippet engines: "ultisnips"
Type: str
Default:''

The g:yoda_snippet_space_in_parenthes option

This option enable to insert spaces in parenthes when snippet trigger.

Type: int
Default: 0

Functions

The yoda#diagnostic_qflist() function

Get diagnostics of quick fix list of current buffer. If you want to know about its format, See :help setqflist().

Return: list

The yoda#location_to( where ) function

Get location under the current cursor.

Return: dict
Argument where: where to location (str)
Supported locations: 'Definition', 'Declaration'

TODO

• Add more platforms tested (Yoda.vim has been tested on Ubuntu, MacOSX).
• Yoda.vim can crash while parsing.
• Yoda.vim consume large memory.
• Support any string encodings. (It has tested only UTF-8).

License

This software is licensed under the MIT license
Copyright (C) 2014 by Kaika Yuhi

This plug-in includes a function part of code snippets from jedi-vim for python/vim unicode support. The jedi-vim is also licensed under the MIT license. See LICENSE.txt.
