Architecture Canvas v0.2.1-alpha — Editable architecture diagrams with reviewable AI updates

Create architecture diagrams through conversation, keep a manually editable canvas, and review proposed changes before applying them. This first public Alpha also includes an offline demo and optional Tavily search.

Visual proof

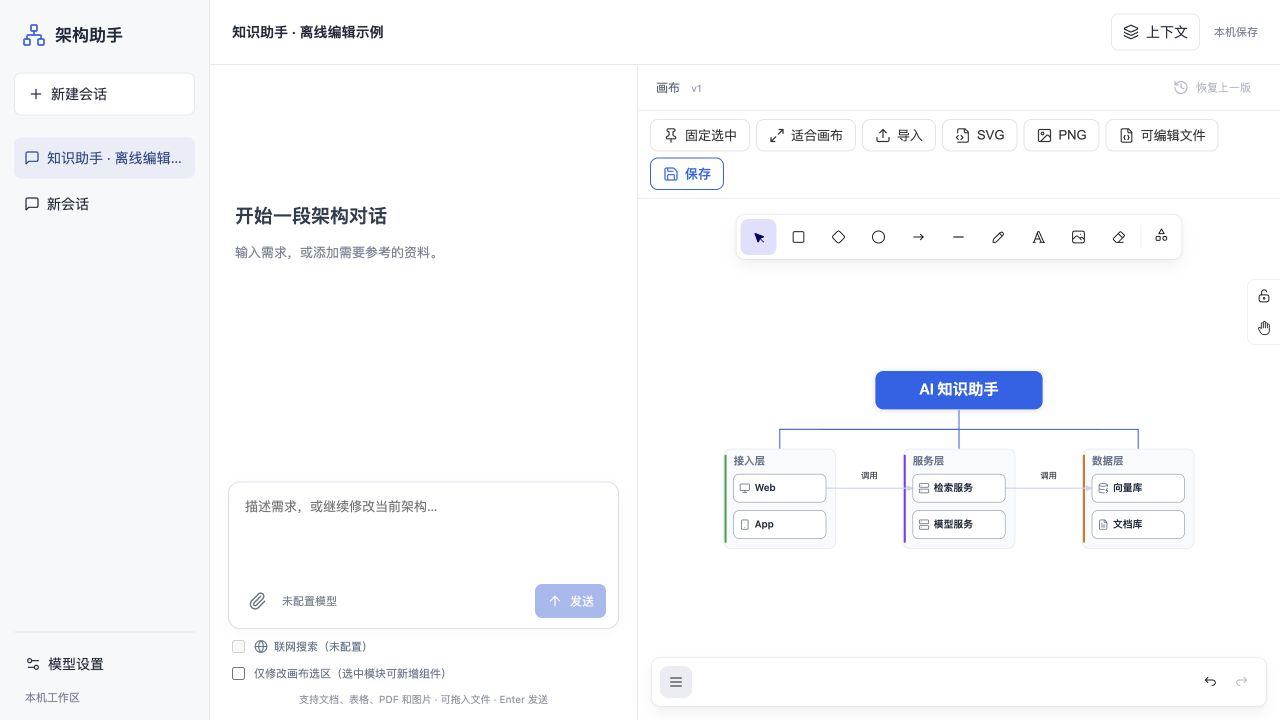

Offline architecture workspace

Actual application with the hand-authored offline sample; this is editing evidence, not an LLM quality benchmark.

Should I update?

Update now if:

  • You want a local architecture workspace with document reading and editable output.

You can defer if:

  • You need multi-user hosting, real-time collaboration, sequence diagrams or an English application UI.

What changed

  • Review AI modification proposals before applying them.
  • Retain detailed semantic relationships while showing a simple module overview.
  • Import a demo without model credentials; export SVG, PNG and editable files.
  • Reuse Tavily as a Harness plugin or standalone HTTP/JS module.

Install or update

git clone --branch v0.2.1-alpha https://github.com/weike-zhang/architecture-canvas.git
cd architecture-canvas
python3 start.py

Verification

  • 33 Python and 35 Node tests passed locally.
  • Clean macOS installation and local workspace startup passed.
  • Ubuntu GitHub Actions passed installation, build, unit tests and the isolated workspace smoke test (run 37100609310).
  • Offline demo imported through the browser UI; save and reload passed.

Compatibility

  • macOS clean install verified; Ubuntu CI verified. Python 3.10+ and Node.js 22.12+ required.

Known limitations

  • Alpha, local-only workspace, Chinese UI; Windows unverified.
  • Live model/Tavily quality was not re-evaluated for this release. Bring your own API keys.
  • Dense diagrams use a simplified relationship view; complex topology may require manual layout.

Release asset

  • architecture-canvas-v0.2.1-alpha.zip
  • Verify the SHA-256 digest shown by GitHub after upload before redistributing it.
