Automation Rules

Automation Rules

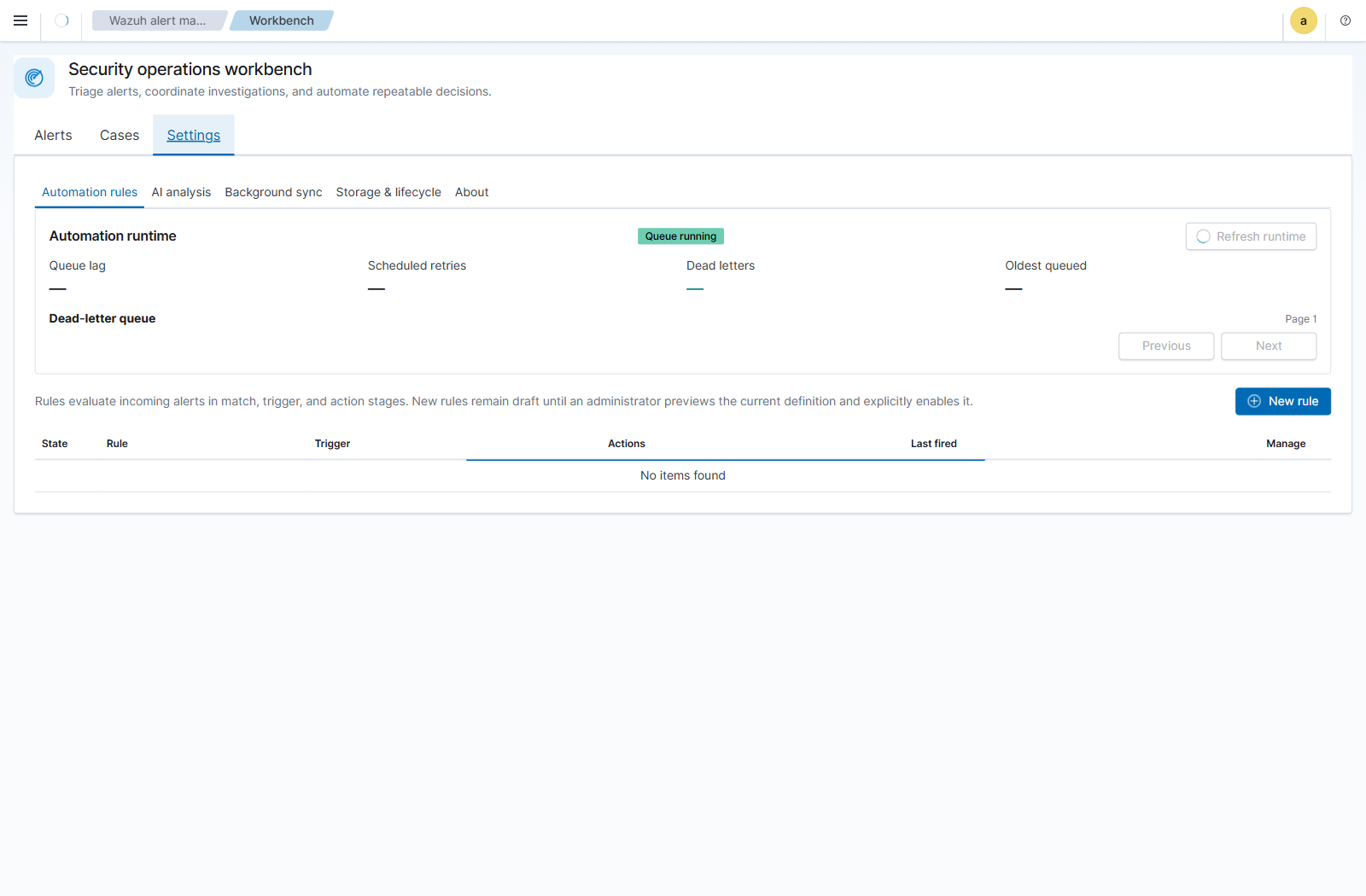

Automation rules act on alerts when they are first ingested into the Workbench operational store. Manage them under Workbench -> Settings -> Automation rules.

Rules are evaluated in this order:

1. Match selects the Wazuh alerts in scope.
2. Trigger applies entity predicates and decides when to fire.
3. Actions update Workbench status, assignment, or a deduplicated case.

Rule editing, preview, activation, rollback, deletion, queue settings, and dead-letter mutations require the effective Wazuh/OpenSearch Security all_access role. The UI is read-only otherwise. SSO, LDAP, or organizational-unit names are not authorization inputs by themselves; configure the mapped Wazuh user roles as described in the Wazuh user administration documentation.

Match Scope

All populated Match fields are combined with AND. Agent/host scope belongs here and is not repeated as a separate trigger filter.

Condition	Meaning
Rule groups	Wazuh rule groups, such as authentication_failed or pam.
Rule IDs	Specific Wazuh rule IDs, such as 5710 or 5716.
Agents	The agents/hosts in scope.
Minimum level	The minimum Wazuh rule level.

Within Rule groups, Rule IDs, and Agents, Any of accepts any listed value. For burst rules, All of requires every listed value to occur for the same resolved correlation key within the window. Per-alert rules use Any of because one immediate alert has no cross-alert co-occurrence window.

A match definition with no restrictions matches every alert and requires an explicit safety acknowledgment. Changing Match clears that acknowledgment.

Trigger Entity Expression

The Trigger page supports a constrained expression with no free-form query syntax:

• predicates inside a group are joined with AND;
• groups are joined with OR;
• a rule may contain at most five groups and five predicates in total;
• each predicate uses an entity, Equals or Is present, and a value when required;
• duplicate predicates and blank or invalid values are rejected before save.

Example:

(Source IP equals 10.20.30.40 AND Destination port equals 22)
OR
(Source user equals administrator AND Process equals sshd)

Supported entities are Agent, Source/Destination IP, Source/Destination port, Source/Destination user, and Process. Agent can be part of a correlation identity, but agent scope still belongs on Match.

Preview and live execution use the same normalization and expression evaluator. IP addresses are canonicalized, ports are validated as integers from 0 through 65535, and user/process values are lowercased. A missing field does not form an unknown bucket; that group does not match. If one alert satisfies multiple OR groups, actions run once and all matching-group provenance is retained.

The operator/value behavior is deliberately explicit:

Definition	Result
Equals with a valid value	Matches only that normalized value.
Equals with a blank or invalid value	Rejected; the rule cannot be saved or enabled. A blank value never becomes a wildcard.
Is present	Requires the field but no configured value. The actual value observed on the alert becomes the correlation and case-deduplication identity.
No entity groups	Every alert that passes Match qualifies. With one-case-per-rule routing, matching alerts share the active rule case.

For example, Source IP is present does not put all source addresses into an anonymous bucket. With Separate by entity group, 10.0.0.5 and 10.0.0.8 have different identities and therefore different active cases. For a compound group such as Source IP is present AND Destination port is present, the identity is the normalized tuple, for example 10.0.0.5 + 22.

Trigger Modes

Every Matching Alert

Each newly ingested alert that passes Match and the entity expression fires immediately. There is no threshold, correlation window, cooldown, or quiet-period setting.

All shipped actions are available, including Create or update a deduplicated case. The case identity is based on the rule and normalized matched entity-group values. A later alert with the same identity extends the active case rather than creating a duplicate. Closed or archived cases are not silently reopened; a later match creates a new case.

Consequently, an immediate rule using Source IP is present and Separate by entity group maintains one active case per source IP. Each later qualifying alert for that address is linked to the active case. Closing the case completes that incident; the next qualifying alert creates a new deterministic case generation for the same address.

Correlated Burst

Threshold and sliding window are shared settings, but apply independently to each resolved OR group/key. Each group maintains independent counters, cooldown, rearm state, and provenance. An alert contributing to multiple groups does not receive the same non-case action twice.

Cooldown suppresses repeated firings for the same key. Rearm requires the configured quiet period, preventing a sustained burst from firing repeatedly. An existing active deduplicated case may continue to receive matching evidence according to the runtime policy.

For Source IP is present, a threshold of five means five qualifying alerts for the same normalized source IP inside the sliding window—not five alerts with five arbitrary addresses. When the threshold fires, all qualifying alerts in that IP's burst window are linked to its case. A later eligible burst for the same IP extends that active case with new evidence; after the case is closed, a later burst starts a new case generation. Cooldown, rearm, evidence ownership, and configured safety caps still govern what can be processed in each run.

When case creation is enabled, routing controls the deduplication scope:

Routing	Behavior
Separate by entity group	Default and recommended. Keeps one active case per rule, group, and normalized entity tuple.
Consolidate overlapping bursts	Combines groups only when their triggering alert sets overlap in the same correlation window.
One active case per rule	Advanced. All bursts update one rule case and may mix unrelated activity or create a very large case.

Every routing mode is deterministic and replay-safe. Repeated durable execution cannot duplicate an action or case, and case history records the contributing correlation provenance.

Actions and Safety

Choose at least one action:

Action	Effect
Set status	Sets matching Workbench alerts to Open, In progress, or Closed.
Assign to	Assigns matching alerts and a created case to an analyst.
Create or update a deduplicated case	Creates a case or extends the active case for the effective deduplication scope.

Status and assignment preconditions can limit changes to expected workflow state. Rule priority and sort order determine evaluation order; Stop processing prevents lower-priority rules from acting after this rule. Per-run action/case caps and an execution rate limit bound impact. Conflicts and cap/rate skips are visible in preview and runtime counters.

Preview and Activation

New rules are always saved as disabled drafts. Activation is an explicit workflow:

1. Save the disabled draft.
2. Preview that exact saved revision over the historical 24-hour interval.
3. Review totals, truncation, missing entities, conflicts, skips, rate caps, representative alerts, and case-routing effects.
4. Select Enable after save, then save.

Preview is historical and read-only. It uses the same normalized planner, sliding-window evaluation, preconditions, deduplication, routing, conflict behavior, and safety caps as live execution. It never changes historical alerts or cases and never enqueues replay work. Editing a previewed definition makes the approval stale; save and preview the new exact revision again.

Rollback creates a new revision from an earlier snapshot and preserves revision history. The restored definition must be reviewed and previewed before activation.

Forward-Only Semantics

Creating, editing, or enabling a rule does not scan or mutate alerts already ingested by the plugin. There is no replay or backfill control.

A genuinely new late-arriving Wazuh alert is evaluated even when its event timestamp is old because it is new to plugin ingestion. Durable queue work that completes after pause, outage, or restart is delayed completion of the original ingestion-time event, not retroactive evaluation. It uses the ruleset snapshot and rule revisions captured when the event was admitted.

Worked examples

Immediate SSH case with deduplication

Match
  Rule group: authentication_failed
  Minimum level: 5

Trigger: Every matching alert
  Source IP equals 10.20.30.40
  AND Destination port equals 22

Actions
  Set status: In progress
  Create/update case: High

The first newly ingested matching alert creates one case. A second matching alert an hour later extends that case while it is Open or In progress. It does not create one case per alert. If the earlier case is Closed or archived, the new alert creates a new active case; automation never silently reopens finished work.

One burst rule for two independent entity groups

Match
  Rule IDs: 5710, 5716 (Any of)

Trigger: Correlated burst
  (Source IP equals 203.0.113.88)
  OR
  (Source IP equals 203.0.113.89)
  Threshold: 5
  Window: 10 minutes
  Routing: Separate by entity group

Five .88 alerts create/update the .88 case. Five .89 alerts create/update a separate .89 case. Counters, cooldown, rearm, and provenance are independent for the two groups, so unrelated attackers are not merged merely because they matched one rule.

Boolean identity with overlapping consolidation

(Source IP equals 10.20.30.40 AND Destination port equals 22)
OR
(Source user equals administrator AND Process equals sshd)

With Separate by entity group, each branch has its own case identity. With Consolidate overlapping bursts, branches consolidate only when their firing alert sets overlap inside the same window. One active case per rule ignores that separation and should be reserved for intentionally broad campaigns.

Choosing values safely

• Put host/agent scope on Match; do not repeat it merely because Agent is also available as a correlation entity.
• Use Is present when existence matters regardless of value.
• Remember that Is present still separates identities by each observed value; it is not a single wildcard bucket under Separate by entity group.
• Prefer Separate by entity group unless analysts explicitly want campaign-wide consolidation.
• Start with conservative action/case caps and inspect preview conflicts and missing-entity counts before activation.
• Preview answers “what would this definition have done?” It never makes the rule retroactive.

Queue and Dead Letters

The runtime panel distinguishes two independent states:

• disabling a rule prevents that rule from receiving newly admitted work;
• pausing automation stops queue processing while preserving enabled rule definitions and durable queued events.

Administrators can pause/resume processing and set active-backlog and deferred-event caps. Queue admission closes when those bounds are reached. The dead-letter list is cursor-paginated. Retry safely returns a recoverable event to the durable queue using its captured ruleset snapshot; Resolve removes a dead letter without replaying it. Both operations are idempotent and require all_access.

See Troubleshooting for queue and rule diagnostics and Security Model for authorization and blast-radius controls.

Operational checklist

1. Confirm Background sync is current and its DLQ is understood.
2. Save the rule as a disabled draft.
3. Preview the exact saved revision and examine truncation, conflicts, and caps.
4. Activate it during a monitored change window.
5. Watch queue lag, retries, DLQ, cases created, and rule counters.
6. Pause processing—not rule definitions—if queued work must be preserved while investigating an operational problem.
7. Disable the rule to stop admission of new work for that rule.
