Measurements

The figures that mark where the project is, each with the page that holds it and a photograph of the run - the console window it came from, captured when the run finished. Every page says how the number was taken and what it cannot show; read it before quoting a figure.

The vendor publishes figures of its own for these appliances. They were taken another way, with many connections through the box, and are not comparable to a single stream ending on the appliance's own host.

The bench

Three appliances on one bench, 2026-10-17

A PC with a 10G card, the second XGS 3300 as the router in the middle, the first XGS 3300 behind a 10G fibre and the XGS 136 behind a gigabit link - bench-2026-10-17.md.

The XGS 3300

what figure page
IPv6 connections in the flow table 9.24 Gbit/s one way, 9.27 back, all eighteen directions in hardware ipv6-and-queues-2026-10-18
IPsec, the engines at both ends, MTU 9000 7.41 Gbit/s, one stream mtu-2026-10-17
clear text into its host, MTU 9000 7.11 Gbit/s, one stream mtu-2026-10-17
the flow table 99.6% of frames in hardware xgs3300
over TLS through the flow table 2,391 GiB, not a byte changed xgs3300
one transmit buffer per slot loss under load on another port from 29.2% to 0.0% xgs3300

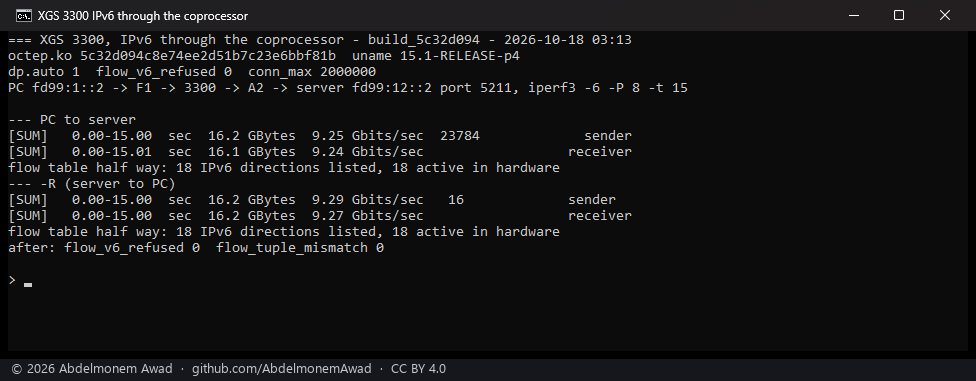

IPv6 through the XGS 3300: 9.24 Gbit/s and 9.27 back, all eighteen directions in hardware

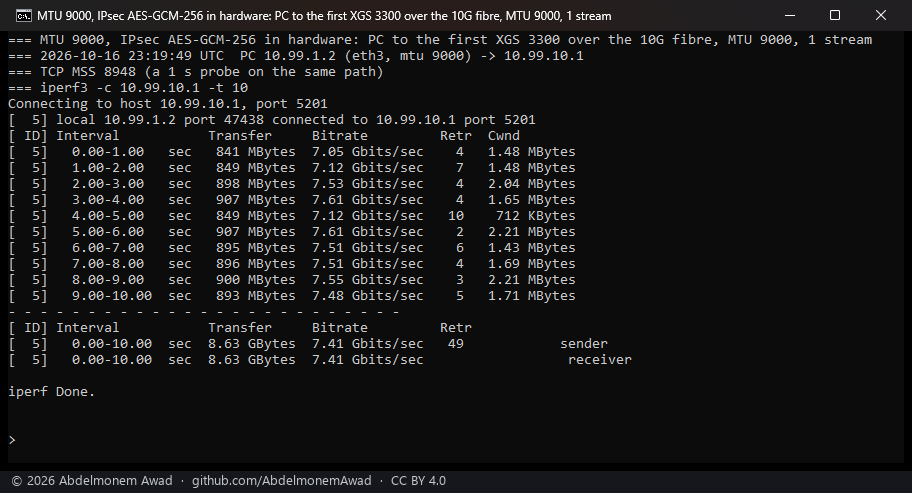

IPsec into the first XGS 3300 at MTU 9000: 7.41 Gbit/s

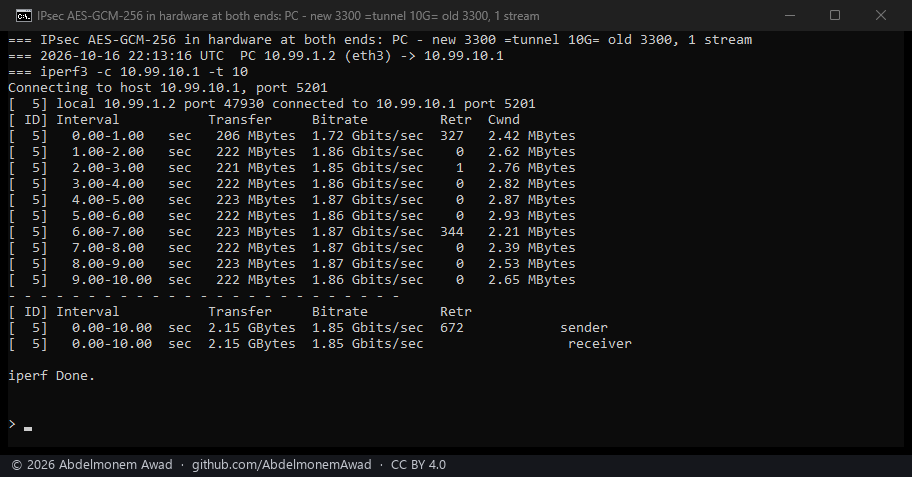

IPsec into the first XGS 3300 at MTU 9000: 7.41 Gbit/s 		IPsec in hardware at both ends, MTU 1500: 1.85 Gbit/s
IPsec in hardware at both ends, MTU 1500: 1.85 Gbit/s, as in clear text

The XGS 136

what figure page
receive, one stream 773 Mbit/s in and 934 out - was 18.3 with a ten-millisecond poll a hundred polls a second
MTU 9000 through both switch chips 989 Mbit/s clear, 982 through the IPsec tunnel mtu-2026-10-17
IPsec in hardware at both ends, MTU 1500 902 Mbit/s in, 893 out bench-2026-10-17
four transmit queues all four in use, 941 Mbit/s, the link full ipv6-and-queues-2026-10-18

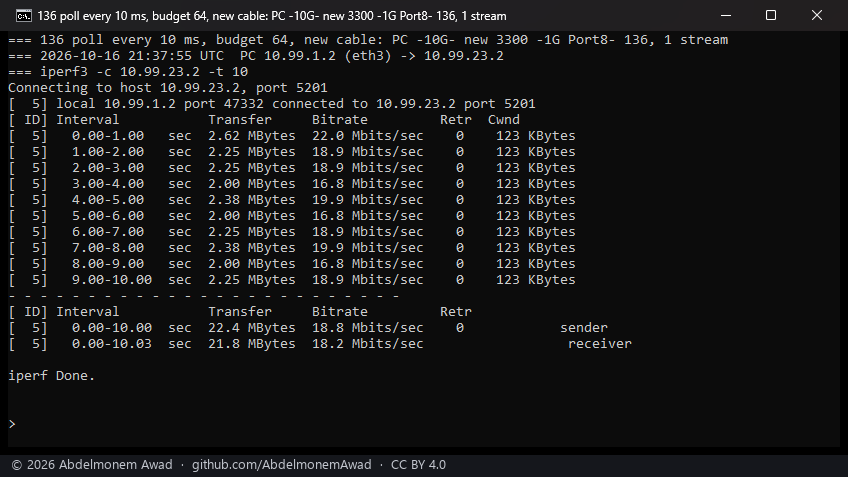

Before: the ten-millisecond poll
Before: polled every ten milliseconds, 64 frames a pass 		After: every millisecond, 1,024 frames a pass
After: every millisecond, 1,024 frames a pass

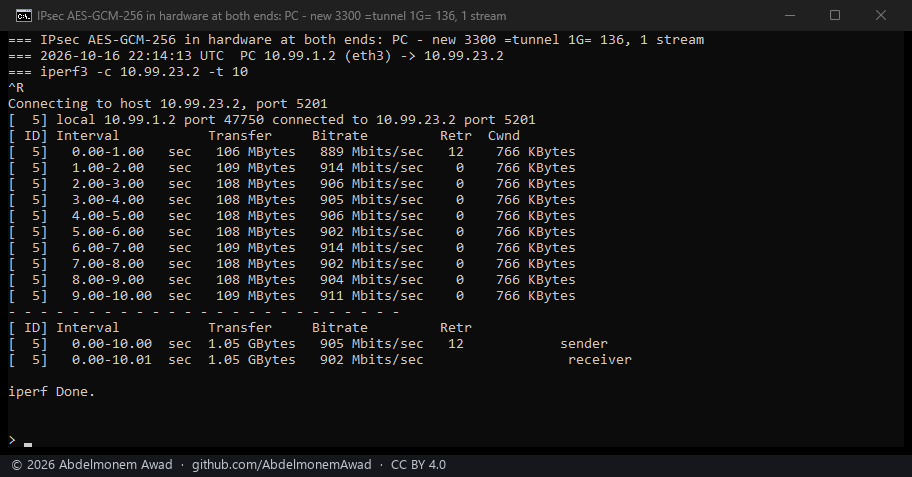

IPsec in hardware into the XGS 136: 902 Mbit/s

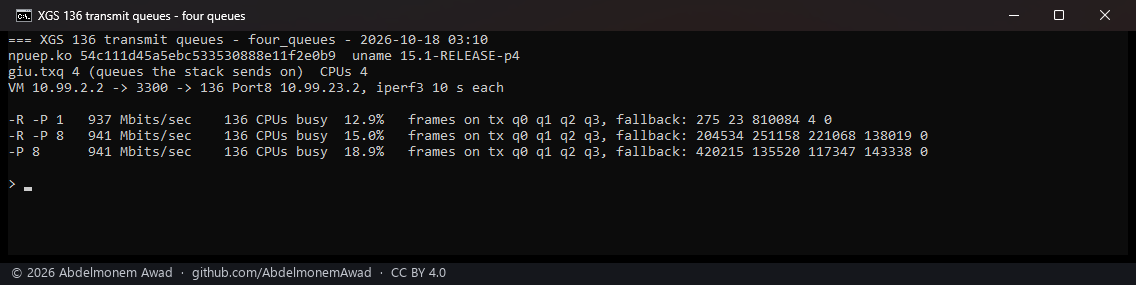

IPsec in hardware into the XGS 136: 902 Mbit/s 		Four transmit queues, all in use
Four transmit queues: 937, 941 and 941 Mbit/s, eight streams spread over all four

Every run
