Service Distribute Management

Distributed configuration management system with controller, agent, and worker services.

Overview

Service Distribute Management is a distributed system for managing and distributing configuration across multiple locations. It consists of three core services:

Controller: Central management hub that stores configurations and manages agent registrations
Agent: Polling service that bridges Controller and Worker, fetching and forwarding configuration updates
Worker: Execution service that receives configurations and proxies HTTP requests to target URLs

The system supports both push-based (Redis pub/sub) and poll-based configuration distribution with automatic fallback for resilience.

Prerequisites

For Docker Deployment

Docker Engine: 20.10 or higher
Docker Compose: 2.0 or higher
Ports: 8080 (Controller), 8082 (Worker), 6379 (Redis - optional)

For Local Development

Go: 1.25.0 or higher (download)
Make: For build automation (optional but recommended)

swag: For Swagger documentation generation

go install github.com/swaggo/swag/cmd/swag@latest

Git: For version control
SQLite: Included in Go dependencies (no separate installation needed)

Quick Start

Docker Deployment (Recommended)

1. Setup

Clone the repository:

git clone <repository-url>
cd service-distribute-management

Create environment file:

cp .env.example .env.local
# Or use the .env file created during setup

Edit .env and set secure passwords:

# IMPORTANT: Change default passwords!
ADMIN_PASSWORD=your-secure-password
AGENT_PASSWORD=your-secure-agent-password
REDIS_PASSWORD=your-secure-redis-password

Start all services:
```
docker-compose up -d
```
Verify services are running:
```
docker-compose ps
```

Test the controller API:

curl -u admin:your-password http://localhost:8080/controller/config

Test the controller API:

curl -u admin:your-password http://localhost:8080/health

For detailed Docker documentation, see docs/DOCKER.md.

Local Development Setup

1. Clone and Install Dependencies

# Clone repository
git clone <repository-url>
cd service-distribute-management

# Download dependencies
go mod download
# Or use Make
make install

2. Build Services

# Build all services
make build service=controller
make build service=agent
make build service=worker

# Binaries will be in ./app/ directory

3. Configure Environment

# Create .env file or export variables
export CONTROLLER_ADDR=:8080
export DATABASE_PATH=./data/controller.db
export ADMIN_USER=admin
export ADMIN_PASSWORD=admin
export AGENT_USER=agent
export AGENT_PASSWORD=agentpass

See docs/ENVIRONMENT.md for complete environment variable reference.

4. Run Services Locally

# Terminal 1: Start Controller
make run service=controller
# Or directly
./app/controller

# Terminal 2: Start Worker
make run service=worker

# Terminal 3: Start Agent
export CONTROLLER_URL=http://localhost:8080
export WORKER_URL=http://localhost:8082
make run service=agent

5. Verify Services

# Check Controller health
curl http://localhost:8080/health

# Check Worker health
curl http://localhost:8082/health

# Check Agent health (if accessible)
curl http://localhost:8081/health

System Design Principles

The Service Distribute Management system follows modern software architecture patterns and Go best practices.

Layered Architecture

The codebase follows a clean, three-layer architecture pattern:

Handler Layer (HTTP)
    ↓ DTOs
UseCase Layer (Business Logic)
    ↓ Domain Models
Repository Layer (Data Access)

Benefits:

Clear separation of concerns
Testability through interface mocking
Independent layer evolution
Easy to understand and maintain

Implementation:

Handler Layer (internal/server/*/handler/): HTTP request/response handling using Fiber framework
UseCase Layer (internal/server/*/usecase/): Business logic orchestration, validation, and coordination
Repository Layer (internal/server/*/repository/): Data persistence (SQLite) and external API clients
DTO Layer (internal/server/*/dto/): Data Transfer Objects for API contracts

Dependency Injection

Centralized dependency management through the deps.App struct provides:

Explicit dependencies (no globals)
Easy testing with mock implementations
Lifecycle management (startup/shutdown)
Resource sharing (database, logger, middleware)

Example:

type App struct {
    Fiber      *fiber.App
    Logger     *logger.Logger
    Database   *gorm.DB
    Middleware *middleware.Middleware
    Poller     poll.Poller
    PubSub     pubsub.PubSub
}

Interface-Driven Design

Interfaces enable flexibility and testability:

Repository interfaces for data access abstraction
UseCase interfaces for business logic mocking
Poller and PubSub interfaces for strategy pattern
Middleware interfaces for pluggable authentication

Example:

type Repository interface {
    CreateAgent(agent *models.Agent) error
    GetAgent(agentID string) (*models.Agent, error)
    UpdateAgent(agent *models.Agent) error
}

Key Design Patterns

Pattern	Implementation	Purpose
Repository	`repository/repository.go`	Data access abstraction
Factory	`New*()` constructors	Object creation
Dependency Injection	`deps.App` struct	Dependency management
Middleware Chain	Fiber middleware	Request processing pipeline
Strategy	Poller/PubSub interfaces	Pluggable polling/push mechanisms
Observer	Redis pub/sub	Event notification
Retry with Backoff	`pkg/retry`	Resilient external calls

Error Handling

Consistent error handling with:

Structured error responses (pkg/wrapper)
HTTP status code mapping
Validation error translation
Centralized error middleware
Contextual logging with Zap

Idempotency

Configuration updates are idempotent using ETags:

Prevents redundant updates when configuration hasn't changed
Reduces network traffic and processing
Safe to retry operations

Services

Controller Service

Port: 8080 | Purpose: Central management hub

The Controller is the heart of the system, responsible for:

Agent Management: Registration, authentication, heartbeat monitoring, and lifecycle management
Configuration Storage: SQLite database for configurations and agent metadata
Configuration Distribution: Serves configurations to agents via REST API
Push Notifications (optional): Redis pub/sub for instant configuration delivery
Admin API: Management endpoints for configuration updates and agent administration

Key Features:

Basic Auth for registration and admin operations
Token-based auth for registered agents
SQLite database with GORM for data persistence
Configurable polling intervals per agent
Agent heartbeat monitoring for health tracking
Token rotation for security

API Endpoints:

POST /register - Agent registration
GET /controller/config - Get configuration (agents)
PUT /controller/config - Update configuration (admin)
POST /heartbeat - Agent heartbeat
GET /agents - List all agents (admin)
PUT /agents/:id/poll-interval - Update poll interval
POST /agents/:id/token/rotate - Rotate agent token
GET /health - Health check

Agent Service

Port: 8081 (internal) | Purpose: Configuration polling and forwarding

The Agent acts as a bridge between Controller and Worker:

Polling: Fetches configuration from Controller at configurable intervals
Push Support: Subscribes to Redis pub/sub for instant updates (optional)
Hybrid Mode: Combines push notifications with fallback polling for resilience
Registration: Self-registers with Controller using exponential backoff retry
Heartbeat: Sends periodic heartbeats to Controller for health monitoring
Configuration Forwarding: Delivers updates to Worker service

Key Features:

Exponential backoff for registration retries
ETag-based caching to avoid redundant updates
Graceful fallback when Redis is unavailable
HTTP client with configurable timeouts
Token-based authentication after registration
Concurrent request handling with errgroup

Resilience:

Automatic retry on Controller connection failure
Fallback to polling if Redis pub/sub fails
Heartbeat mechanism detects disconnections
Configurable timeouts and retry intervals

Worker Service

Port: 8082 | Purpose: Configuration execution and HTTP proxy

The Worker receives configurations from Agent and executes requests:

Configuration Reception: Accepts configuration updates from Agent
HTTP Proxy: Routes requests to target URLs based on configuration
Idempotent Updates: Uses ETags to prevent redundant configuration processing
No Authentication: Internal service, relies on network isolation

Key Features:

ETag validation for idempotent config updates
HTTP client for proxying to target URLs
Configurable request timeouts
Minimal resource footprint

API Endpoints:

POST /config - Receive configuration from Agent
POST /hit - Proxy HTTP request to target
GET /health - Health check

Redis Service (Optional)

Port: 6379 | Purpose: Push notification pub/sub

Redis provides real-time configuration push:

Pub/Sub channels for instant configuration delivery
Reduces polling load on Controller by 80-90%
Optional component - system works without it
Fallback to polling ensures resilience

Benefits:

Near-instant configuration propagation (< 1 second)
Reduced network traffic and CPU usage
Scalable to thousands of agents
High availability with Redis Sentinel/Cluster

Architecture & Components

System Architecture Diagram

graph TB
    subgraph "External"
        Admin[Admin User]
    end

    subgraph "Controller Service :8080"
        API[REST API]
        Auth[Authentication]
        UC_Ctrl[UseCase Layer]
        Repo_Ctrl[Repository Layer]
        DB[(SQLite Database)]
        PubSub[Redis Publisher]
    end

    subgraph "Redis :6379 (Optional)"
        RedisServer[Redis Pub/Sub]
    end

    subgraph "Agent Service :8081"
        Poll[Poller]
        Subscribe[Redis Subscriber]
        UC_Agent[UseCase Layer]
        HTTPClient_A[HTTP Client]
    end

    subgraph "Worker Service :8082"
        API_Worker[REST API]
        UC_Worker[UseCase Layer]
        HTTPClient_W[HTTP Client]
        Target[Target URLs]
    end

    Admin -->|Basic Auth| API
    API --> Auth
    Auth --> UC_Ctrl
    UC_Ctrl --> Repo_Ctrl
    Repo_Ctrl --> DB
    UC_Ctrl -.Publish Config.-> PubSub
    PubSub -.-> RedisServer

    Poll -->|Poll /config| API
    RedisServer -.Subscribe.-> Subscribe
    Poll --> UC_Agent
    Subscribe --> UC_Agent
    UC_Agent --> HTTPClient_A
    HTTPClient_A -->|POST /config| API_Worker

    API_Worker --> UC_Worker
    UC_Worker --> HTTPClient_W
    HTTPClient_W -->|Proxy Request| Target

Configuration Flow

Agent Registration Sequence

sequenceDiagram
    participant Agent
    participant Controller
    participant Database

    Agent->>Controller: POST /register (Basic Auth)
    Controller->>Controller: Validate Credentials
    Controller->>Database: Create Agent Record
    Controller->>Database: Generate & Store Token
    Controller-->>Agent: 200 OK + Agent Token

    Note over Agent: Store token for future requests

    loop Every Heartbeat Interval
        Agent->>Controller: POST /heartbeat (Bearer Token)
        Controller->>Database: Update LastHeartbeat
        Controller-->>Agent: 200 OK
    end

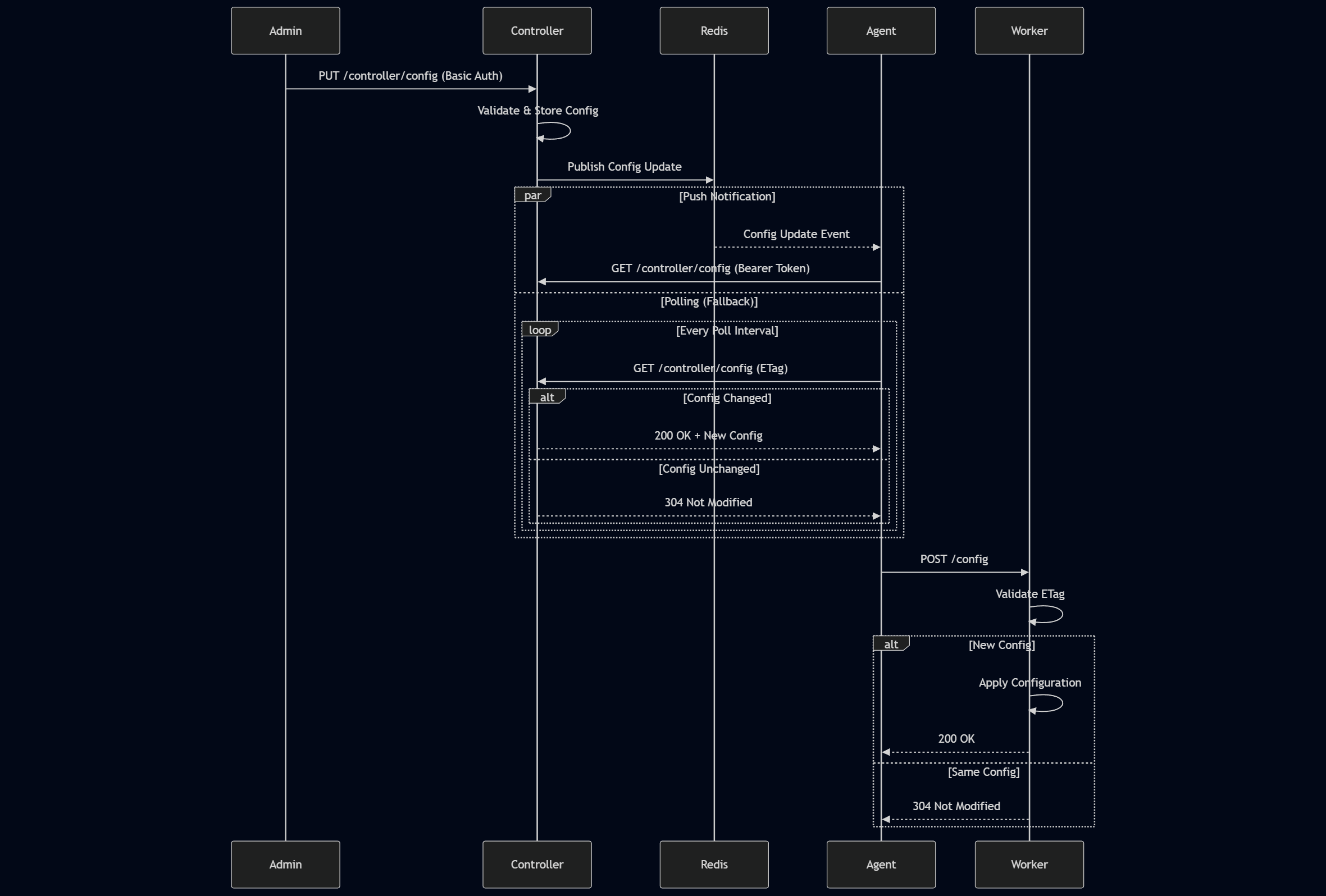

Configuration Distribution Sequence

sequenceDiagram
    participant Admin
    participant Controller
    participant Redis
    participant Agent
    participant Worker

    Admin->>Controller: PUT /controller/config (Basic Auth)
    Controller->>Controller: Validate & Store Config
    Controller->>Redis: Publish Config Update

    par Push Notification
        Redis-->>Agent: Config Update Event
        Agent->>Controller: GET /controller/config (Bearer Token)
    and Polling (Fallback)
        loop Every Poll Interval
            Agent->>Controller: GET /controller/config (ETag)
            alt Config Changed
                Controller-->>Agent: 200 OK + New Config
            else Config Unchanged
                Controller-->>Agent: 304 Not Modified
            end
        end
    end

    Agent->>Worker: POST /config
    Worker->>Worker: Validate ETag
    alt New Config
        Worker->>Worker: Apply Configuration
        Worker-->>Agent: 200 OK
    else Same Config
        Worker-->>Agent: 304 Not Modified
    end

Polling and Pub/Sub Mechanism

The system supports two modes for configuration distribution:

1. Poll-Only Mode (Redis disabled):

Agent polls Controller at configurable interval (default: 5 seconds)
ETag header prevents redundant updates
Simple, reliable, no external dependencies

2. Hybrid Push/Pull Mode (Redis enabled):

Controller publishes to Redis channel on config update
Agents subscribe to Redis channel for instant notifications
Fallback polling continues at longer interval (30-60 seconds)
Best of both worlds: Real-time updates + resilience

Configuration:

# Poll-only (Simple)
REDIS_ENABLED=false
POLL_INTERVAL=5

# Hybrid (Recommended)
REDIS_ENABLED=true
POLL_INTERVAL=10  # Less frequent
FALLBACK_POLL_ENABLED=true
FALLBACK_POLL_INTERVAL=60  # Safety net

Error Handling and Retry Logic

Exponential Backoff:

Used for agent registration retries
Configurable: initial backoff, max backoff, multiplier
Optional jitter (±25%) prevents thundering herd
Context-aware cancellation

Example Configuration:

REGISTRATION_MAX_RETRIES=10
REGISTRATION_INITIAL_BACKOFF=1s
REGISTRATION_MAX_BACKOFF=60s
REGISTRATION_BACKOFF_MULTIPLIER=2.0

Retry Sequence:

Attempt 1: Immediate
Attempt 2: 1s delay
Attempt 3: 2s delay
Attempt 4: 4s delay
Attempt 5: 8s delay ...
Attempt 10: 60s delay (capped at max)

Logging System

Structured Logging with Uber Zap:

Formats: JSON (production) or Console (development)
Levels: Debug, Info, Warn, Error, Fatal
Contextual Fields: agent_id, config_version, request_id
HTTP Logging: Canonical logger middleware logs all requests

Example Log Entry (JSON):

{
  "level": "info",
  "ts": "2026-01-31T12:34:56.789Z",
  "caller": "handler/handler.go:123",
  "msg": "Configuration updated",
  "agent_id": "agent-001",
  "config_version": "v1.2.3",
  "status": 200,
  "duration_ms": 45
}

For detailed Docker documentation, see docs/DOCKER.md.

Project Structure

service-distribute-management/
├── cmd/                          # Service entry points
│   ├── controller/
│   │   └── main.go              # Controller service main
│   ├── agent/
│   │   └── main.go              # Agent service main
│   └── worker/
│       └── main.go              # Worker service main
│
├── internal/                     # Private application code
│   ├── config/
│   │   └── config.go            # Environment-based configuration
│   ├── models/
│   │   ├── agent.go             # Agent data model
│   │   ├── configuration.go     # Configuration data model
│   │   └── ...                  # Other models
│   └── server/                  # Server implementations
│       ├── controller/
│       │   ├── dto/             # Data Transfer Objects
│       │   ├── handler/         # HTTP handlers
│       │   ├── repository/      # Data access layer
│       │   └── usecase/         # Business logic
│       ├── agent/
│       │   └── ...              # Same structure
│       └── worker/
│           └── ...              # Same structure
│
├── pkg/                          # Reusable packages
│   ├── auth/                    # Authentication service
│   ├── database/                # Database utilities (SQLite)
│   ├── deps/                    # Dependency injection
│   ├── logger/                  # Structured logging (Zap)
│   ├── middleware/              # HTTP middleware
│   ├── poll/                    # Polling mechanism
│   ├── pubsub/                  # Redis pub/sub
│   ├── retry/                   # Exponential backoff
│   ├── validator/               # Request validation
│   └── wrapper/                 # API response wrapper
│
├── docs/                         # Documentation
│   ├── DOCKER.md                # Docker deployment guide
│   ├── ENVIRONMENT.md           # Environment variables reference
│   ├── PERFORMANCE.md           # Performance tuning guide
│   ├── SECURITY.md              # Security best practices
│   ├── DEPLOYMENT.md            # Deployment examples
│   ├── controller/              # Controller API docs (Swagger)
│   ├── worker/                  # Worker API docs (Swagger)
│   └── agent-worker/            # Agent+Worker deployment docs
│
├── docker/                       # Dockerfiles
│   ├── controller/
│   │   └── Dockerfile
│   ├── agent/
│   │   └── Dockerfile
│   └── worker/
│       └── Dockerfile
│
├── data/                         # SQLite database storage
├── app/                          # Compiled binaries (created by build)
├── docker-compose.yml            # All-in-one deployment
├── docker-compose.controller.yml # Standalone controller
├── docker-compose.agent-worker.yml # Agent+Worker pair
├── go.mod                        # Go module dependencies
├── go.sum                        # Dependency checksums
├── Makefile                      # Build automation
└── README.md                     # This file

Directory Descriptions

Directory	Purpose
cmd/	Main applications - entry points for each service
internal/	Private application code - not importable by other projects
internal/config/	Configuration loading from environment variables
internal/models/	Database models (GORM entities)
internal/server/	Service implementations with layered architecture
pkg/	Public, reusable packages that could be imported by other projects
docs/	Comprehensive documentation including API specs
docker/	Dockerfile definitions for each service
data/	Runtime data storage (SQLite database files)

Libraries & Packages

Core Dependencies

Library	Version	Purpose
Fiber	v2.52.6	Fast, Express-inspired HTTP web framework
GORM	v1.25.12	ORM library for database operations
go-sqlite3	v1.14.24	SQLite driver for database/sql
Zap	v1.27.0	Blazing fast, structured logging
validator	v10.24.0	Struct and field validation
go-redis	v9.0.0	Type-safe Redis client
uuid	v1.6.0	UUID generation and parsing
goquery	v1.11.0	HTML parsing (jQuery-like)
swag	v1.16.6	Swagger documentation generation

Internal Packages

pkg/auth

Purpose: Authentication service for Basic Auth validation

Features:

Username/password validation
WWW-Authenticate header generation
Used by middleware for auth enforcement

pkg/database

Purpose: SQLite database initialization and utilities

Features:

GORM database setup
Auto-migration for models
WAL mode for better concurrency
Connection management

pkg/deps

Purpose: Dependency injection container

Features:

Centralized App struct
Lifecycle management
Shared resource access (DB, Logger, etc.)

pkg/logger

Purpose: Structured logging with Uber Zap

Features:

JSON or Console output format
Configurable log levels
Contextual fields support
Performance-optimized

Usage:

logger.Info("Message", "field1", value1, "field2", value2)

pkg/middleware

Purpose: HTTP middleware components

Components:

BasicAuth: Basic authentication middleware
AgentTokenAuth: Bearer token validation
CanonicalLogger: Structured HTTP request logging
ErrorHandler: Centralized error response handling

pkg/poll

Purpose: Configurable polling mechanism

Features:

Interval-based polling
Multiple fetch functions
Dynamic interval updates
Graceful start/stop
Context cancellation

Usage:

poller := poll.NewPoller(ctx, 5*time.Second)
poller.AddFetch("config", fetchConfigFunc)
poller.Start()

pkg/pubsub

Purpose: Redis pub/sub abstraction

Features:

Subscribe to channels
Publish messages
Health check support
Connection pooling
Interface-based (mockable)

pkg/retry

Purpose: Exponential backoff retry logic

Features:

Configurable backoff parameters
Optional jitter (±25% randomness)
Max retry limit
Context-aware cancellation

Usage:

backoff := retry.NewExponentialBackoff(
    5,              // max retries
    1*time.Second,  // initial backoff
    30*time.Second, // max backoff
    2.0,            // multiplier
    true,           // jitter
)

err := backoff.Retry(ctx, func() error {
    return register()
})

pkg/validator

Purpose: Request validation using go-playground/validator

Features:

Struct tag validation
Custom error messages
Integration with Fiber

Usage:

type RegisterRequest struct {
    AgentID string `json:"agentId" validate:"required,min=3"`
}

pkg/wrapper

Purpose: Standardized API response format

Features:

Consistent JSON structure
Success/error responses
HTTP status code mapping

Response Format:

{
  "success": true,
  "data": { ... },
  "message": "Operation successful"
}

Development

Build Commands

# Build specific service
make build service=controller
make build service=agent
make build service=worker

# Build all services
make build-all

# Build Docker images
make build-docker service=controller

Run Commands

# Run specific service locally
make run service=controller
make run service=agent
make run service=worker

# Run with Docker Compose
make run-docker
# Or
docker-compose up -d

Code Quality

# Format code
make format
# Or
go fmt ./...

# Tidy dependencies
make tidy
# Or
go mod tidy

# Run tests
make test
# Or
go test ./...

Swagger Documentation

Generate or update API documentation after changing handlers or DTOs:

# Generate all Swagger docs
make swagger-generate

# Generate Controller docs only
make swagger-controller

# Generate Worker docs only
make swagger-worker

Environment Configuration

For local development, create a .env file or export environment variables:

# Example .env for local development
CONTROLLER_ADDR=:8080
DATABASE_PATH=./data/controller.db
ADMIN_USER=admin
ADMIN_PASSWORD=admin
AGENT_USER=agent
AGENT_PASSWORD=agentpass
POLL_INTERVAL=5
LOG_FORMAT=console
LOG_LEVEL=debug

Load .env file:

export $(cat .env | xargs)

See docs/ENVIRONMENT.md for complete environment variable reference.

Testing

# Run all tests
go test ./...

# Run tests with coverage
go test -cover ./...

# Run tests for specific package
go test ./pkg/retry

# Run with verbose output
go test -v ./...

# Run specific test
go test -v -run TestExponentialBackoff ./pkg/retry

Debugging

VS Code Launch Configuration (.vscode/launch.json):

{
  "version": "0.2.0",
  "configurations": [
    {
      "name": "Debug Controller",
      "type": "go",
      "request": "launch",
      "mode": "auto",
      "program": "${workspaceFolder}/cmd/controller",
      "env": {
        "CONTROLLER_ADDR": ":8080",
        "DATABASE_PATH": "./data/controller.db",
        "ADMIN_PASSWORD": "admin",
        "LOG_LEVEL": "debug"
      }
    },
    {
      "name": "Debug Agent",
      "type": "go",
      "request": "launch",
      "mode": "auto",
      "program": "${workspaceFolder}/cmd/agent",
      "env": {
        "CONTROLLER_URL": "http://localhost:8080",
        "WORKER_URL": "http://localhost:8082",
        "LOG_LEVEL": "debug"
      }
    }
  ]
}

Makefile Commands Reference

Command	Description
`make run service=<name>`	Run service locally
`make build service=<name>`	Build binary to ./app
`make build-docker service=<name>`	Build Docker image
`make run-docker`	Start all services with Docker Compose
`make format`	Format Go code
`make test`	Run tests
`make tidy`	Tidy dependencies
`make install`	Download dependencies
`make swagger-generate`	Generate all Swagger docs
`make swagger-controller`	Generate Controller docs
`make swagger-worker`	Generate Worker docs

Services

Controller: http://localhost:8080 - Central management service
Worker: http://localhost:8082 - Configuration execution service
Agent: Internal client connecting controller and worker
Redis: http://localhost:6379 - Optional pub/sub for push notifications

Development

Build from Source

# Controller
go build ./cmd/controller

# Agent
go build ./cmd/agent

# Worker
go build ./cmd/worker

Run Locally

# Set environment variables
export CONTROLLER_ADDR=:8080
export DATABASE_PATH=./data.db
export ADMIN_USER=admin
export ADMIN_PASSWORD=admin

# Start controller
./controller

Documentation

Docker Deployment Guide

API Documentation

This project includes interactive Swagger/OpenAPI documentation for both Controller and Worker APIs.

Accessing Swagger UI

Controller API Documentation:

URL: http://localhost:8080/swagger/index.html
Authentication Required: Yes (for testing protected endpoints)
Credentials:
- Agent endpoints: agent / agentpass (Basic Auth for registration)
- Agent authenticated: Bearer token (after registration)
- Admin endpoints: admin / password (Basic Auth)

Worker API Documentation:

URL: http://localhost:8082/swagger/index.html
Authentication: No authentication required (internal service)

API Endpoints Summary

Controller API (Port 8080):

GET /health - Health check (no auth)
POST /register - Agent registration (Basic Auth: agent)
GET /controller/config - Get configuration (Bearer Token)
PUT /controller/config - Update configuration (Basic Auth: admin)
POST /heartbeat - Agent heartbeat (Bearer Token)
GET /agents - List all agents (Basic Auth: admin)
GET /agents/:id - Get agent details (Basic Auth: admin)
PUT /agents/:id/poll-interval - Update poll interval (Basic Auth: admin)
POST /agents/:id/token/rotate - Rotate agent token (Basic Auth: admin)
DELETE /agents/:id - Delete agent (Basic Auth: admin)

Worker API (Port 8082):

GET /health - Health check
POST /config - Receive configuration from Agent
POST /hit - Proxy HTTP request to target URL

Regenerating API Documentation

After modifying any API handlers or DTOs, regenerate the Swagger documentation:

# Regenerate all documentation
make swagger-generate

# Or regenerate individually
make swagger-controller
make swagger-worker

Manual regeneration:

swag init -g cmd/controller/main.go -o docs/controller
swag init -g cmd/worker/main.go -o docs/worker

The generated files are located in:

docs/controller/ - Controller API documentation (docs.go, swagger.json, swagger.yaml)
docs/worker/ - Worker API documentation (docs.go, swagger.json, swagger.yaml)

Documentation

Comprehensive Guides

Docker Deployment Guide - Complete Docker deployment instructions for all scenarios
Environment Variables Reference - All environment variables for Controller, Agent, Worker, and Redis
Performance Guide - Performance tuning, scaling strategies, resource limits, and benchmarking
Security Best Practices - Authentication, credential management, network security, and compliance
Deployment Examples - Architecture examples: all-in-one, standalone controller, distributed, and HA setups

API Documentation

Controller API - Standalone Controller deployment
Worker API Swagger - Interactive API documentation (when running)
Controller API Swagger - Interactive API documentation (when running)
Agent-Worker Deployment - Distributed Agent+Worker pair deployment

Name		Name	Last commit message	Last commit date
Latest commit History 63 Commits
.github		.github
cmd		cmd
docker		docker
docs		docs
internal		internal
pkg		pkg
.dockerignore		.dockerignore
.env.example		.env.example
.gitignore		.gitignore
Makefile		Makefile
README.md		README.md
docker-compose.agent-worker.yml		docker-compose.agent-worker.yml
docker-compose.controller.yml		docker-compose.controller.yml
docker-compose.yml		docker-compose.yml
go.mod		go.mod
go.sum		go.sum

Folders and files

Latest commit

History

Repository files navigation

Service Distribute Management

Table of Contents

Overview

Prerequisites

For Docker Deployment

For Local Development

Quick Start

Docker Deployment (Recommended)

1. Setup

Local Development Setup

1. Clone and Install Dependencies

2. Build Services

3. Configure Environment

4. Run Services Locally

5. Verify Services

System Design Principles

Layered Architecture

Dependency Injection

Interface-Driven Design

Key Design Patterns

Error Handling

Idempotency

Services

Controller Service

Agent Service

Worker Service

Redis Service (Optional)

Architecture & Components

System Architecture Diagram

Configuration Flow

Agent Registration Sequence

Configuration Distribution Sequence

Polling and Pub/Sub Mechanism

Error Handling and Retry Logic

Logging System

Project Structure

Directory Descriptions

Libraries & Packages

Core Dependencies

Internal Packages

pkg/auth

pkg/database

pkg/deps

pkg/logger

pkg/middleware

pkg/poll

pkg/pubsub

pkg/retry

pkg/validator

pkg/wrapper

Development

Build Commands

Run Commands

Code Quality

Swagger Documentation

Environment Configuration

Testing

Debugging

Makefile Commands Reference

Services

Development

Build from Source

Run Locally

Documentation

API Documentation

Accessing Swagger UI

API Endpoints Summary

Regenerating API Documentation

Documentation

Comprehensive Guides

API Documentation

About

Resources

Security policy

Uh oh!

Stars

Packages
