Adding columns to database tables

Introduction

The migration framework delegates all operations to your RDBMS-specific adapter, which creates the exact SQL needed for your RDMBS.

Because migrations are portable across RDMBSs, the definitions for tables and columns need to be expressed in a higher-level "language", and not RDBMS-specific SQL.

This page documents the syntax for adding and modifying columns in your database.

Details

All columns in a database are really just specific types of a generalized form. That is, a varchar(32) column is really just a string that happens to have a max-length of 32. Same for int(8), its just a number with a maximum value of 99999999.

The framework can take advantage of this fact to offer generalized types (with sane defaults) and the support for specifying exact details.

NOTE: The documentation below for adding columns is the same whether you are adding a column via a TableDefinition result object (using the column() method on the result object of a createTable()) or directly using the addColumn() method.

For MySQL, the supported types are:

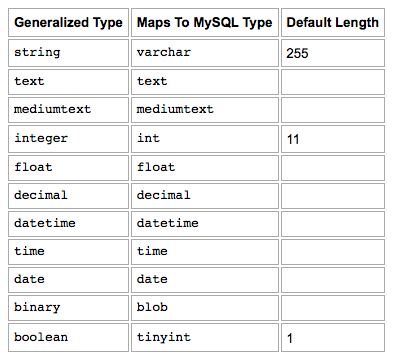

Types

All column types have defaults with support for specifying details. For example, all columns declared as string will default to 255 characters.

Lets get started with some examples already!

Default assumptions All column definitions start out with some default assumptions, which you can override as needed.

  • Columns are NULL by default

Lets see an example to get started (all examples below, assume that $users is the result of calling $this->createTable("users");):

Example A:

Create a column called first_name with a default length of 255:

<?php
   $users->column("first_name", "string");
?>

This generates the SQL:

    `first_name` varchar(255) NULL

Example B: Create a column called first_name with a max-length of 32 ( implicitly allow NULL values):

<?php
    $users->column("first_name", "string", array('limit' => 32));
?>

This generates the SQL:

    `first_name` varchar(32) NULL

Example C: Create a column called first_name with a max-length of 64, a default value of 'mr.' and do not allow NULL values:

<?php
    $users->column("first_name", "string", array('limit' => 64, 'default' => 'mr.', 'null' => false));
?>

This generates the SQL:

    `first_name` varchar(64) DEFAULT 'mr.' NOT NULL

Example D: Create a numeric column called post_count with a max-length of 4 digits, a default value of 0 and NULL values not allowed:

<?php
    $users->column("post_count", "integer", array('limit' => 4, 'default' => 0, 'null' => false));
?>

This generates the SQL:

    `post_count` integer(4) DEFAULT 0 NOT NULL

Example E: Create a datetime column called created_at and NULL values not allowed:

<?php
    $users->column("created_at", "datetime", array('null' => false));
?>

This generates the SQL:

    `created_at` datetime NOT NULL

Example F: Specify your own key primary key. By default the framework will generate an 'id' column as a primary key, but if you would like to specify your own primary key column pass a value of Boolean true into the primary_key option. This requires that you in turn specify 'id' => false into the createTable options.

<?php
    $t = $this->createTable('users', array('id' => false, 'options' => 'Engine=InnoDB'));
    $t->column('guid', 'string', array('primary_key' => true));
    $t->finish();
?>
