coil

See your NVIDIA GPU in real time. A beautiful, live-updating terminal monitor — a modern, friendly replacement for nvidia-smi.

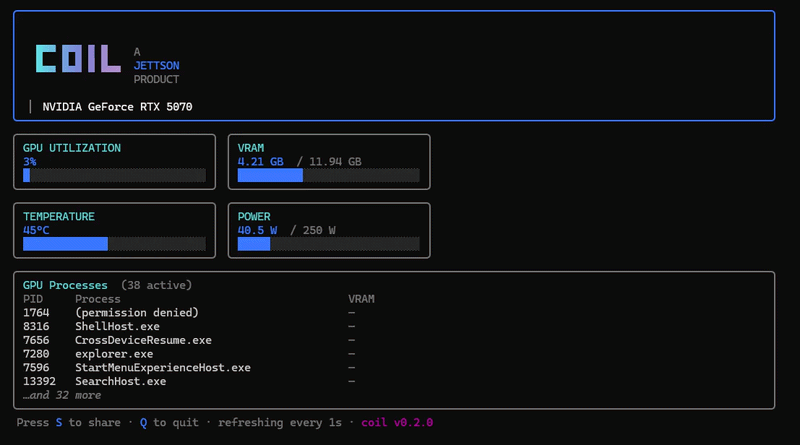

_{↑ Live demo. coil running on an RTX 5070 — utilization, VRAM, temperature, and power bars update in real time. Press S to snapshot your stats into a shareable PNG card.}

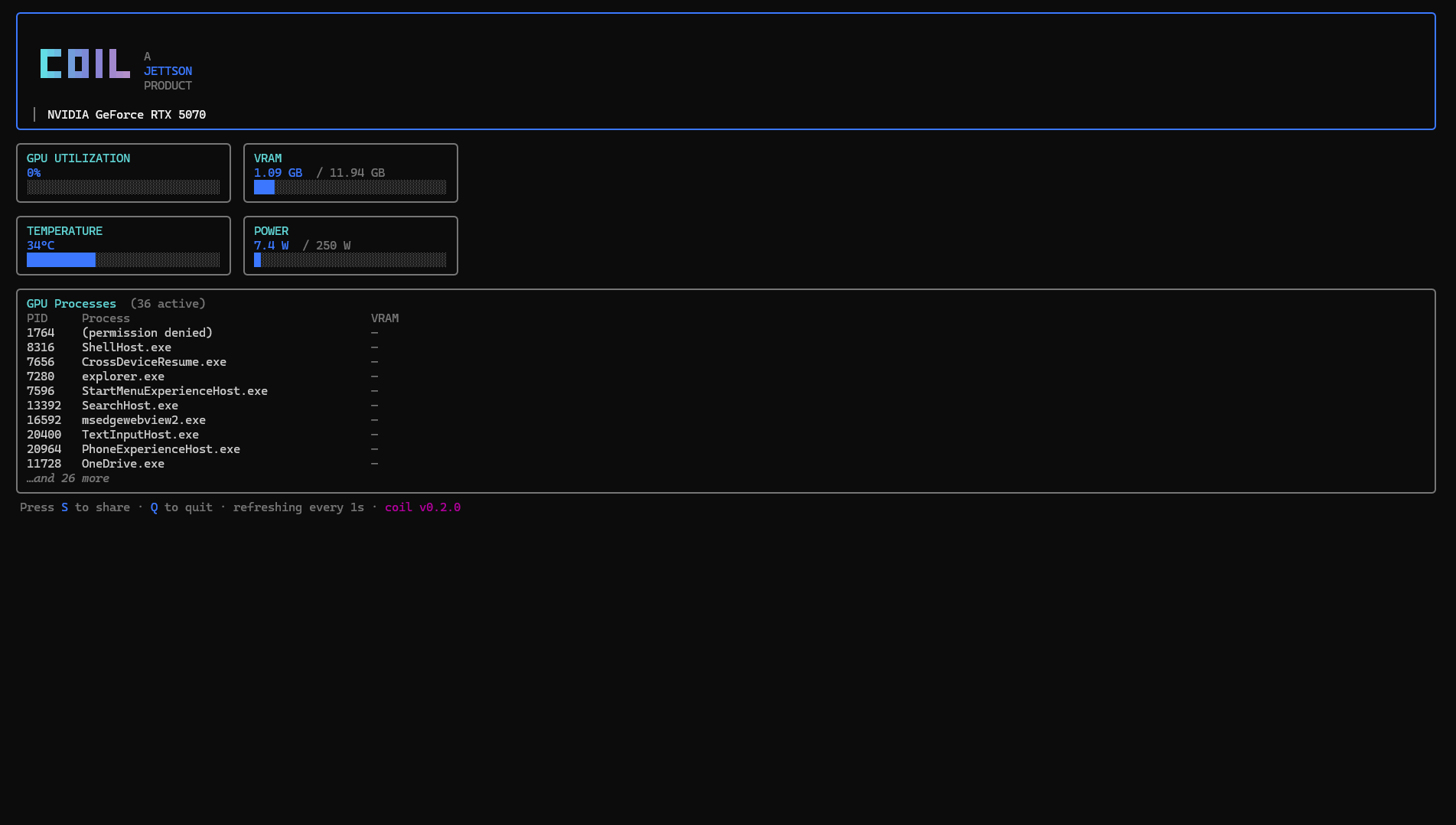

_{Static still — first frame of the demo, in case the gif fails to load.}

Quick start

npm install -g coil-cli
coil

Press Q to quit. Press S to snapshot your GPU into a shareable PNG.

That's the whole thing.

Why coil?

nvidia-smi is great, but it's a static text dump. Every time you want the current state, you run it again. coil gives you the same data, live, with the polish a modern terminal tool deserves:

• Live stats — GPU utilization, VRAM, temperature, and power, refreshed every second.
• Color-coded bars — blue under 60%, yellow 60–85%, red above 85%, so anomalies catch your eye immediately.
• Process table — every PID using the GPU, sorted by VRAM, with names instead of full executable paths.
• Share card — press S and coil generates a 1600×900 PNG of your stats styled like a Windows XP "System Properties" dialog. Saved to your Desktop, copied to your clipboard, ready to paste into Twitter, Discord, Reddit, or iMessage.
• Clean alternate-screen TUI — built with Ink (React for the terminal). Uses the alt-screen buffer like vim or htop, so quitting restores your shell completely untouched.
• Zero config — no flags required, no config files. Run coil.
• Zero telemetry — coil makes zero network calls. Ever. It only ever talks to nvidia-smi on your local machine.

Install

# Global install (recommended for daily use)
npm install -g coil-cli

# Or run it once without installing
npx coil-cli

Usage

coil                   # launch the live monitor
coil --interval 500    # refresh every 500ms instead of 1s
coil --version         # print version
coil --help            # show all options

Keyboard shortcuts

Key	Action
S	Snapshot the current stats into a PNG share card (saved to Desktop + copied to clipboard)
Q	Quit cleanly (restores your shell — nothing left behind)
Ctrl+C	Same as Q

Share your card

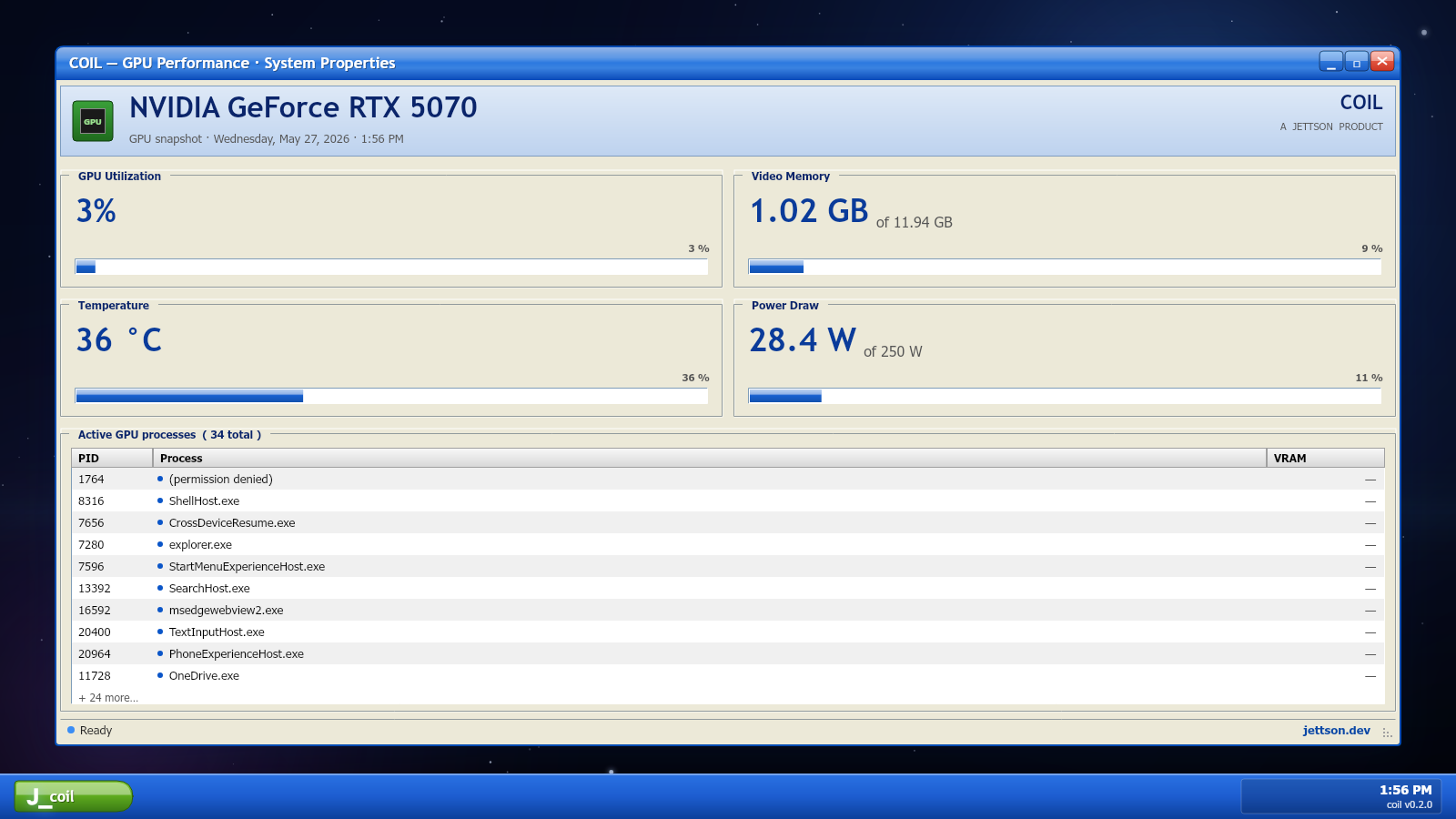

Press S while coil is running and it generates a 1600×900 PNG of your current stats — styled as a Windows XP "System Properties" window sitting on a deep-space wallpaper.

The card is:

• Saved to your Desktop as coil-share-YYYYMMDD-HHMM.png (OneDrive-aware on Windows)
• Copied to your system clipboard as an actual image — paste it directly into Twitter, Discord, Reddit, iMessage, Slack, anywhere

If the OS image-clipboard call fails (rare — typically a missing xclip on Linux), coil falls back to copying the file path as text so you can still attach the saved PNG manually.

How does it compare?

Feature	coil	nvidia-smi	nvtop	gpustat	btop
Live updating UI	✅	❌ static	✅	⚠️ poll loop	✅
Color severity thresholds	✅	❌	✅	❌	✅
Per-process VRAM table	✅	✅	✅	✅	partial
Generates a shareable PNG card	✅	❌	❌	❌	❌
Alt-screen (vim/htop-style)	✅	n/a	✅	❌	✅
One-line install	npm i -g	ships w/ driver	apt/brew	pip	apt/brew
Cross-platform	Win · macOS · Linux	All	Linux	All	Linux · macOS
Zero configuration	✅	✅	✅	✅	✅
Zero telemetry	✅	✅	✅	✅	✅

coil isn't trying to replace heavyweight tools like nvtop — it's the one you reach for when you want a fast, beautiful, glanceable view of your GPU without leaving your terminal.

How it works

coil is a thin, friendly face on nvidia-smi. Every second it shells out to:

nvidia-smi --query-gpu=name,utilization.gpu,utilization.memory,memory.used,memory.total,\
           temperature.gpu,power.draw,power.limit,fan.speed --format=csv,noheader,nounits

nvidia-smi --query-compute-apps=pid,process_name,used_memory \
           --format=csv,noheader,nounits

…parses the CSV into typed objects, and renders the result using Ink (React for the terminal). The share card is rendered with @napi-rs/canvas — a fast, prebuilt-binary canvas implementation that works on Windows, macOS, and Linux without compilation. The clipboard handoff uses OS-native paths (WinForms on Windows, AppleScript on macOS, xclip on Linux).

Requirements

• NVIDIA GPU with the official NVIDIA driver installed.
• nvidia-smi on your PATH (installed automatically with the driver).
• Node.js 18+.

Supported on Linux, Windows, and remote sessions (SSH into a Linux/Windows box — the TUI renders locally, stats come from the remote machine).

macOS: modern Macs ship with Apple GPUs, not NVIDIA, so nvidia-smi is unavailable. coil installs fine via npm, but the most realistic way to use it on a Mac is over SSH to a machine that does have an NVIDIA card.

Windows per-process VRAM: the NVIDIA WDDM driver does not report per-process VRAM, so that column shows — on Windows. All other stats are fully populated. Linux reports the full data.

Roadmap

v0.2 ships the share card. Coming next:

• Multi-GPU support — tabs / side-by-side cards for rigs with multiple GPUs
• Custom thresholds — ~/.coilrc for personal warn/crit cutoffs
• Historical sparklines — last N seconds of each metric inline in the TUI
• Alerts — desktop notification or terminal bell when a threshold is crossed
• JSON / Prometheus exporters — coil --json for scripts, coil --prom for scraping
• Process regex filter — show only processes matching a pattern
• Themeable share card — pick from XP, modern dark, terminal-classic, custom
• Web dashboard mode — coil --web exposing a live dashboard at localhost:3000
• AMD ROCm + Apple Silicon backends — pluggable, behind the same TUI

Got a wishlist item? Open an issue.

FAQ

Does it work with AMD or Intel GPUs?

Not yet. coil reads from nvidia-smi, which is NVIDIA-only. AMD (via ROCm's rocm-smi) and Apple Silicon support are on the roadmap behind a pluggable backend.

Does it work on a Mac?

npm install -g coil-cli works on macOS, but modern Macs don't ship with NVIDIA GPUs, so nvidia-smi won't be available and coil will refuse to start. The most useful pattern: SSH from your Mac into a Linux/Windows box that has an NVIDIA card, and run coil over the SSH session — the TUI renders locally on your Mac, stats come from the remote.

Does coil phone home, collect analytics, or send any data anywhere?

No. Zero network calls. coil only ever shells out to nvidia-smi on your local machine. The share card is rendered locally and copied to your local clipboard — nothing is uploaded.

Why does the process table show "—" for VRAM on Windows?

NVIDIA's WDDM driver on Windows doesn't expose per-process VRAM usage via nvidia-smi --query-compute-apps. That's a driver limitation, not a coil bug. PIDs and process names work fully; only the VRAM column is affected. On Linux the column is fully populated.

Can I change the refresh interval?

Yes. coil --interval 500 refreshes every 500ms. Minimum is 100ms. Default is 1000ms (one second).

Can I customize the color thresholds or card design?

Not yet — thresholds and card theme are fixed in v0.2. Custom thresholds via ~/.coilrc and themeable cards are both on the roadmap for v0.3.

Where is the share card saved?

To your Desktop, named coil-share-YYYYMMDD-HHMM.png. On Windows, coil is OneDrive-aware: it looks at ~/OneDrive/Desktop first, then falls back to ~/Desktop, then your home directory. On macOS/Linux it uses ~/Desktop and falls back to your home directory.

Does it work over SSH?

Yes — that's actually one of the cleanest ways to use it. ssh user@host "coil" will render the TUI in your local terminal while the stats stream from the remote machine. Just make sure your remote box has Node 18+, coil-cli installed, and an NVIDIA GPU.

Contributing

PRs are welcome — this is a fresh project and a great place to make a meaningful contribution.

git clone https://github.com/Jettsondev/coil-cli.git
cd coil-cli
npm install
npm run dev          # hot-reloading dev mode
npm run build        # compile to dist/
npm link             # symlink `coil` to your shell

Please open an issue before starting bigger features so we can align on direction.
